Verify FPGA and ASIC designs created in MATLAB and Simulink
A conventional Verilog® testbench is a code module that describes the stimulus to a logic design and checks whether the design’s outputs match its specification. Many engineers use MATLAB® and Simulink® to create system testbenches for specification models because the software provides a productive and compact notation to describe algorithms, as well as visualization tools for examining algorithm behavior. Engineers then develop Verilog testbenches based on the system testbenches.
MATLAB or Simulink users have several options for verifying that HDL algorithm realizations are correct without manually coding Verilog testbenches.
Verification Using HDL Cosimulation
Instead of writing a Verilog testbench, you can use a MATLAB or Simulink testbench in combination with an HDL simulator to verify your design under test (DUT). HDL Verifier™ automates this cosimulation process. The MATLAB or Simulink testbench compares output values from the HDL simulator with expected values from a truth model and reports "miscompares."
Verification Using FPGA-in-the-Loop Testing
You can also use a MATLAB or Simulink testbench with a DUT that has been programmed into a Xilinx®, Intel® or Microchip FPGA development board through FPGA-in-the-loop simulation. You can use HDL Verifier with FPGA vendor tools to compile the HDL, build a programming file, load the file onto the development board, and enable communication between the MATLAB or Simulink session and the board. With FPGA-in-the-loop, there is no need to generate a Verilog testbench because MATLAB or Simulink serves this purpose.

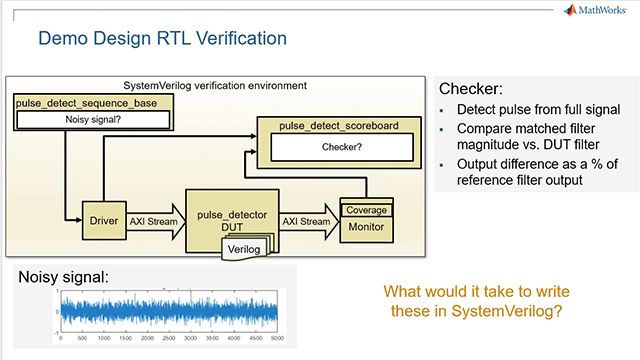

Verification Using SystemVerilog DPI Testbench
Another alternative to using a Verilog testbench is based on exporting code to HDL simulators. SystemVerilog, an extension of Verilog used for testbench development, is supported by all popular HDL simulators. With the SystemVerilog Direct Programming Interface (DPI), you can integrate C/C++ code with simulators such as Synopsys® VCS®, Cadence Xcelium™, Siemens EDA ModelSim® or Questa®, and the Xilinx® Vivado® Simulator. Using HDL Verifier in combination with MATLAB Coder™ or Simulink Coder™, you can generate SystemVerilog DPI testbenches to verify products.
HDL Verifier can generate SystemVerilog DPI testbenches in two different forms:
- Component testbench: If you generate a C component from a Simulink subsystem for use as a DPI component, you can generate a SystemVerilog testbench. The testbench verifies the generated DPI component against data vectors from your Simulink model. (See Generate SystemVerilog DPI Component.)
- HDL code testbench: If you generate HDL code from a Simulink subsystem using HDL Coder, you can generate a SystemVerilog testbench. This testbench compares the output of the HDL implementation against the results of the Simulink model. (See Verify HDL Design Using SystemVerilog DPI Testbench.)
Verification of Generated HDL using a Verilog Testbench
When you use HDL Coder to generate HDL, you can generate a Verilog testbench for a subsystem. HDL Coder generates a Verilog testbench by running a Simulink simulation to capture input vectors and expected output data for your DUT. HDL Coder writes the DUT stimulus and reference data from your MATLAB® or Simulink simulation to data files (.dat).
During HDL simulation, the HDL testbench reads the saved stimulus from the .dat files. The testbench compares the actual DUT output with the expected output.
Examples and How To
SystemVerilog DPI Testbench
