Information about filter System object

Description

example

info(sysobj) returns very basic information about the filter System object™, sysobj. The particulars depend on the filter type and structure.

example

info(sysobj,infoType) returns the amount of filter information as specified by the infoType.

example

s = info(sysobj) returns filter information in the variable s. You can also provide the optional infoType argument with this syntax.

For more input options, see info.

Examples

collapse all

Obtain short-format and long-format information about a filter.

d = fdesign.lowpass;
f = design(d,'SystemObject',true);
info(f)
ans = 6x35 char array
    'Discrete-Time FIR Filter (real)    '
    '-------------------------------    '
    'Filter Structure  : Direct-Form FIR'
    'Filter Length     : 43             '
    'Stable            : Yes            '
    'Linear Phase      : Yes (Type 1)   '

info(f,'long')
ans = 45x45 char array
    'Discrete-Time FIR Filter (real)              '
    '-------------------------------              '
    'Filter Structure  : Direct-Form FIR          '
    'Filter Length     : 43                       '
    'Stable            : Yes                      '
    'Linear Phase      : Yes (Type 1)             '
    '                                             '
    'Design Method Information                    '
    'Design Algorithm : equiripple                '
    '                                             '
    'Design Options                               '
    'Density Factor : 16                          '
    'Maximum Phase  : false                       '
    'Minimum Order  : any                         '
    'Minimum Phase  : false                       '
    'Stopband Decay : 0                           '
    'Stopband Shape : flat                        '
    'SystemObject   : true                        '
    'Uniform Grid   : true                        '
    '                                             '
    'Design Specifications                        '
    'Sample Rate     : N/A (normalized frequency) '
    'Response        : Lowpass                    '
    'Specification   : Fp,Fst,Ap,Ast              '
    'Stopband Atten. : 60 dB                      '
    'Passband Ripple : 1 dB                       '
    'Stopband Edge   : 0.55                       '
    'Passband Edge   : 0.45                       '
    '                                             '
    'Measurements                                 '
    'Sample Rate      : N/A (normalized frequency)'
    'Passband Edge    : 0.45                      '
    '3-dB Point       : 0.46957                   '
    '6-dB Point       : 0.48314                   '
    'Stopband Edge    : 0.55                      '
    'Passband Ripple  : 0.89042 dB                '
    'Stopband Atten.  : 60.945 dB                 '
    'Transition Width : 0.1                       '
    '                                             '
    'Implementation Cost                          '
    'Number of Multipliers            : 43        '
    'Number of Adders                 : 42        '
    'Number of States                 : 42        '
    'Multiplications per Input Sample : 43        '
    'Additions per Input Sample       : 42        '

Note: If you are using R2016a or an earlier release, replace each call to the object with the equivalent step syntax. For example, obj(x) becomes step(obj,x).

Create a dsp.CICDecimator System object™ with DecimationFactor set to 4. Decimate a signal from 44.1 kHz to 11.025 kHz.

cicdec = dsp.CICDecimator(4);
cicdec.FixedPointDataType = 'Minimum section word lengths';
cicdec.OutputWordLength = 16;

Create a fixed-point sinusoidal input signal of 1024 samples, with a sampling frequency of 44.1e3 Hz.

Fs = 44.1e3;
n = (0:1023)';            % 0.0232 sec signal
x = fi(sin(2*pi*1e3/Fs*n),true,16,15);

Create a dsp.SignalSource object.

src = dsp.SignalSource(x,64);

Decimate the output with 16 samples per frame.

y = zeros(16,16);
for ii = 1:16
     y(ii,:) = cicdec(src());
end

Plot the first frame of the original and decimated signals. Output latency is 2 samples.

gainCIC = ...
   (cicdec.DecimationFactor*cicdec.DifferentialDelay)^cicdec.NumSections;
stem(n(1:56)/Fs,double(x(4:59)))
hold on;
stem(n(1:14)/(Fs/cicdec.DecimationFactor),double(y(1,3:end))/gainCIC,'r','filled')
xlabel('Time (sec)')
ylabel('Signal Amplitude')
legend('Original signal','Decimated signal','Location','north')
hold off;

Using the info method in 'long' format, obtain the word lengths and fraction lengths of the fixed-point filter sections and the filter output.

info(cicdec,'long')
ans =
    'Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure    : Cascaded Integrator-Comb Decimator
     Decimation Factor   : 4
     Differential Delay  : 1
     Number of Sections  : 2
     Stable              : Yes
     Linear Phase        : Yes (Type 1)


     Implementation Cost
     Number of Multipliers            : 0
     Number of Adders                 : 4
     Number of States                 : 4
     Multiplications per Input Sample : 0
     Additions per Input Sample       : 2.5


     Fixed-Point Info
     Section word lengths     : 20  19  19  18
     Section fraction lengths : 15  14  14  13
     Output  word length      : 16
     Output  fraction length  : 11
     '

Note: If you are using R2016a or an earlier release, replace each call to the object with the equivalent step syntax. For example, obj(x) becomes step(obj,x).

Create a dsp.CICInterpolator System object™ with InterpolationFactor set to 2. Interpolate signal by a factor of 2 from 22.05 kHz to 44.1 kHz.

cicint = dsp.CICInterpolator(2);

Create fixed-point sinusoidal input signal of 512 samples, with a sampling frequency 22.05 kHz.

Fs = 22.05e3;
n = (0:511)';      % 0.0113 sec signal
x = fi(sin(2*pi*1e3/Fs*n),true,16,15);

Create dsp.SignalSource System object.

src = dsp.SignalSource(x,32);

Interpolate the output with 64 samples per frame.

y = zeros(16,64);
for ii = 1:16
     y(ii,:) = cicint(src());
end

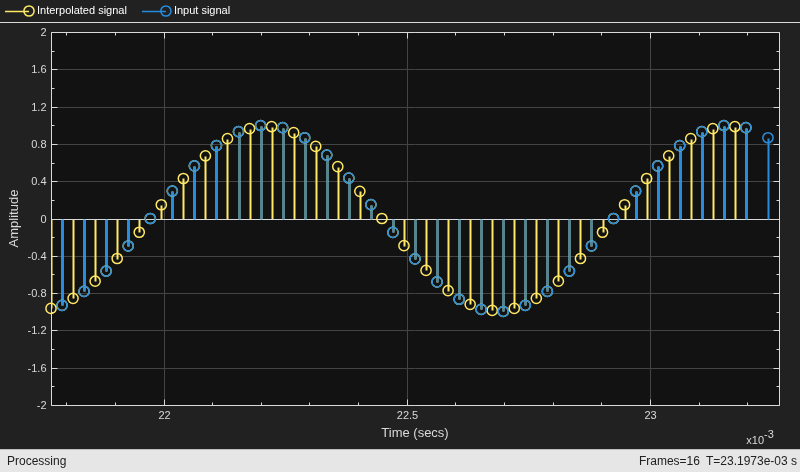

Plot the first frame of the original and interpolated signals. Output latency is 2 samples.

gainCIC = ...
   (cicint.InterpolationFactor*cicint.DifferentialDelay)...
   ^cicint.NumSections/cicint.InterpolationFactor;
stem(n(1:31)/Fs, double(x(1:31)),'r','filled')
hold on;
stem(n(1:61)/(Fs*cicint.InterpolationFactor), ...
   double(y(1,4:end))/gainCIC,'b')
xlabel('Time (sec)')
ylabel('Signal Amplitude')
legend('Original signal','Interpolated signal',...
   'location','north')
hold off;

Using the info method in 'long' format, obtain the word lengths and fraction lengths of the fixed-point filter sections and the filter output.

info(cicint,'long')
ans =
    'Discrete-Time FIR Multirate Filter (real)
     -----------------------------------------
     Filter Structure      : Cascaded Integrator-Comb Interpolator
     Interpolation Factor  : 2
     Differential Delay    : 1
     Number of Sections    : 2
     Stable                : Yes
     Linear Phase          : Yes (Type 1)


     Implementation Cost
     Number of Multipliers            : 0
     Number of Adders                 : 4
     Number of States                 : 4
     Multiplications per Input Sample : 0
     Additions per Input Sample       : 6


     Fixed-Point Info
     Section word lengths     : 17  17  17  17
     Section fraction lengths : 15  15  15  15
     Output  word length      : 17
     Output  fraction length  : 15
     '

Input Arguments

collapse all

Amount of filter information to be displayed. When this property is set to:

  • 'short' –– The function displays the same information as info(sysobj), which is the basic filter information.

  • 'long' –– The function returns the following information about the filter:

    • Specifications such as the filter structure and filter order

    • Information about the design method and options

    • Performance measurements for the filter response, such as the passband cutoff or stopband attenuation, included in the measure method

    • Cost of implementing the filter in terms of operations required to apply the filter to data, included in the cost method

    When the filter uses fixed-point arithmetic, the function returns additional information about the filter, including the arithmetic setting and details about the filter internals.

Data Types: char | string

Output Arguments

collapse all

Filter information, returned as a character array.

When the infoType is 'short', the function displays basic filter information. When the infoType is 'long', the function displays the following information:

  • Specifications such as the filter structure and filter order

  • Information about the design method and options

  • Performance measurements for the filter response, such as the passband cutoff or stopband attenuation, included in the measure method

  • Cost of implementing the filter in terms of operations required to apply the filter to data, included in the cost method

When the filter uses fixed-point arithmetic, the function returns additional information about the filter, including the arithmetic setting and details about the filter internals.

Introduced in R2011a
