Ereignisse

Erstellen von Auslösern zur Aktivierung anderer Systeme

Lösen Sie Aktionen innerhalb Ihres Stateflow^®-Diagramms oder anderer Simulink^®-Subsysteme aus, indem Sie Ereignisse verwenden. Lösen Sie externe Aktionen aus, indem Sie Ereignisse an andere Diagramme in Ihrem Simulink-Modell senden. Weitere Informationen zum Senden von Ereignissen an den Schedule Editor, um die Ausführung von aperiodischen Partitionen zu planen, finden Sie unter Events in Schedule Editor (Simulink).

Blöcke

Sequence Viewer

Display messages, events, states, transitions, and functions between blocks during simulation

Stateflow Syntax

Operatoren

Generieren von Ereignissen

`send`	Übertragen einer Meldung oder eines Ereignisses
`change`	Erzeugen eines impliziten Ereignisses, wenn Daten ihren Wert ändern
`enter`	Erzeugen eines impliziten Ereignisses, wenn der Zustand aktiv wird
`exit`	Generate implicit event when state becomes inactive

Ereignisbasierte temporale Logik

`after`	Ausführen des Diagramms nach der Übertragung eines Ereignisses oder nach einer bestimmten Zeit
`at`	Execute chart at event broadcast or specified time
`before`	Execute chart before event broadcast or specified time
`every`	Execute chart at regular intervals
`temporalCount`	Number of events, chart executions, or time since state became active

Themen

Synchronize Model Components by Broadcasting Events
Use events to communicate with Simulink and MATLAB^®.
Manage Symbols in the Stateflow Editor
Add, delete, and trace nongraphical objects.
Set Properties for an Event
Specify event properties by using the Property Inspector or the Model Explorer.
Activate a Stateflow Chart by Sending Input Events
Broadcast edge triggers and function calls as input events.
Control States in Charts Enabled by Function-Call Input Events
Set the behavior of states when a function-call input event reenables a chart.
Activate a Simulink Block by Sending Output Events
Broadcast edge triggers and function calls as output events.
Control Function-Call Subsystems by Using bind Actions
Bind a function-call output event to the activity of a state.
Broadcast Local Events to Synchronize Parallel States
Communicate between parallel (AND) states by making directed event broadcasts.
Control Chart Behavior by Using Implicit Events
Trigger chart actions by changes in data values and state activity.
Use the Sequence Viewer to Visualize Messages, Events, and Entities
View the interchange of messages, events, and functions through the Sequence Viewer block.

Verwandte Informationen

Ereignissemantik

Enthaltene Beispiele

View Differences Between Stateflow Messages, Events, and Data

View Differences Between Stateflow Messages, Events, and Data

Compare the behavior of messages, events, and data in Stateflow charts.

Modell öffnen

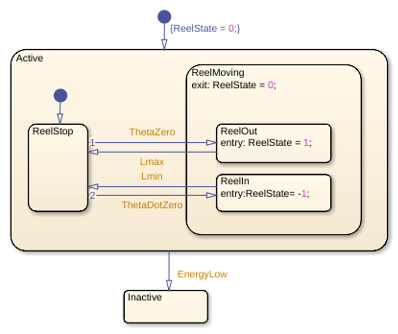

Yo-Yo Control of Satellites

Yo-Yo Control of Satellites

Model the control system for a satellite tethered to an orbiting platform.

Modell öffnen

Detect and Isolate Faults in Aircraft Elevator Control System

Detect and Isolate Faults in Aircraft Elevator Control System

Design a fault detection, isolation, and recovery (FDIR) application for a pair of aircraft elevators controlled by redundant actuators.

Modell öffnen

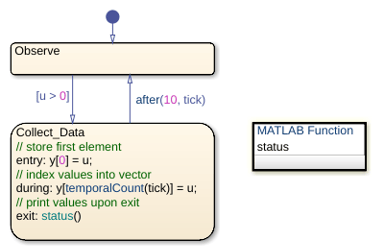

Count Events by Using the temporalCount Operator

Count Events by Using the temporalCount Operator

Count occurrences of explicit and implicit events.

Modell öffnen
