Tune PI Controllers Using Field Oriented Control Autotuner
This example computes the gain values of PI controllers available in the speed and current control loops by using the Field Oriented Control Autotuner block. For details about this block, see Field Oriented Control Autotuner. For details about field-oriented control, see Field-Oriented Control (FOC).
Use the code-generation capability of the example to deploy the gain-tuning algorithm to the target hardware. This enables you to run the algorithm by using hardware connected to a motor and to compute accurate PI controller gains by processing motor feedback in real-time on the target hardware. The example uses a quadrature encoder sensor to measure the rotor position.
Note: This example uses the field-oriented control algorithm as a reference. You can refer this example and use a similar approach to add the Field Oriented Control Autotuner block and the gain-tuning algorithm to the FOC logic available in your model.

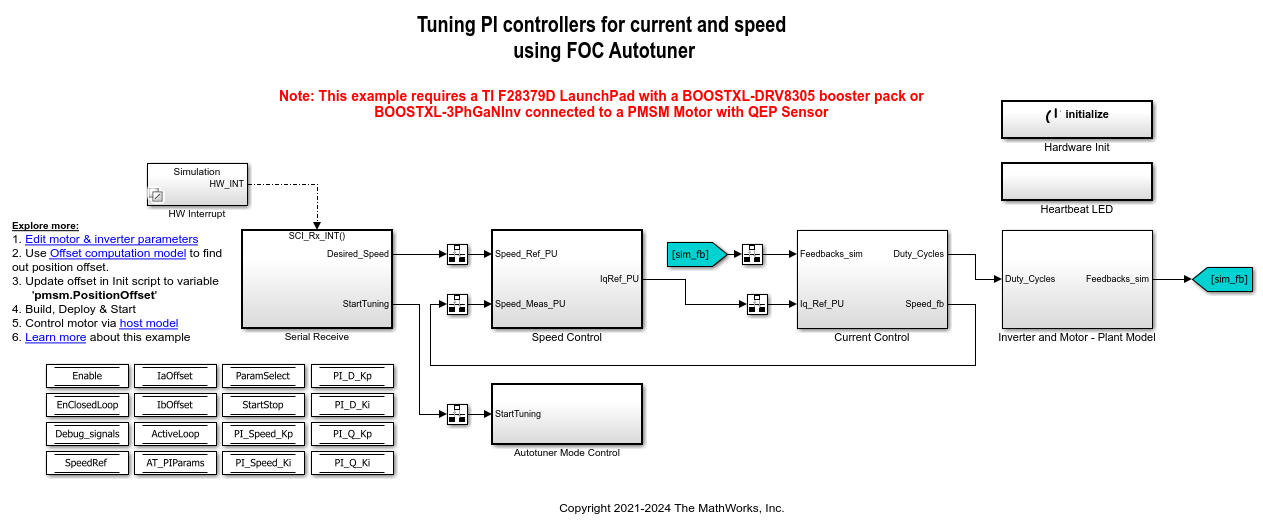

The example includes the target model mcb_pmsm_foc_autotuner_f28379d.
You can use this model for both simulation and code generation. Use the open_system command to open the model.

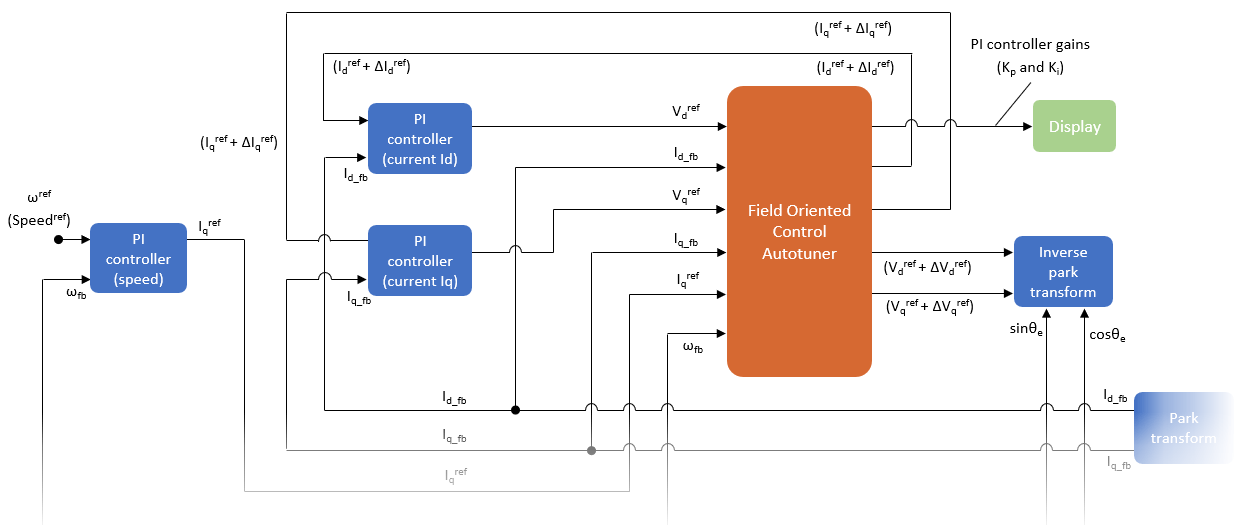

The Field Oriented Control Autotuner block iteratively tunes the
q-axis current control and speed control loops and computes the gains of the current and speed PI controllers. Use this command to locate the Field Oriented Control Autotuner block available inside the model:

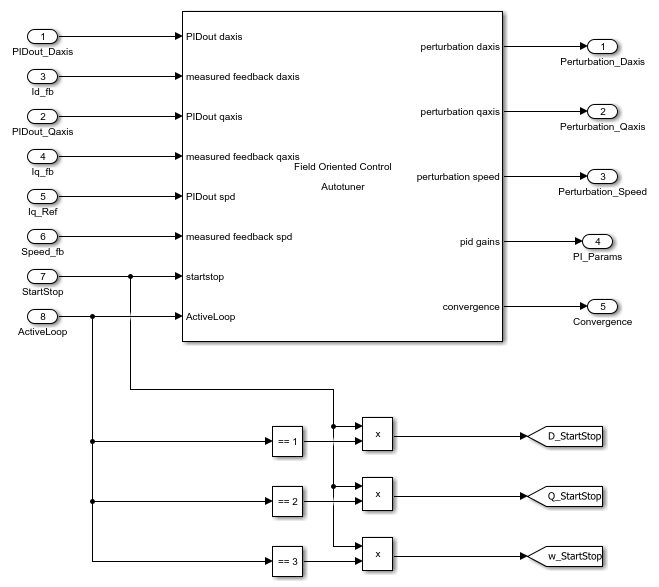

open_system('mcb_pmsm_foc_autotuner_f28379d/Current Control/Control_System/Closed Loop Control/FOC_Autotuner/FOC_Autotuner');
The block processes the current and speed feedback from the plant. It also processes the voltage output of the
q-axis current PI controllers to compute the PI controller gains (
For more details on the FOC architecture, see Field-Oriented Control (FOC).
Required MathWorks® Products
To simulate model:
Motor Control Blockset™
Simulink Control Design™
To generate code and deploy model:
Motor Control Blockset™
Simulink Control Design™
Embedded Coder® Support Package for Texas Instruments™ C2000™ Processors
Prerequisites for Simulation and Hardware Deployment
1. Open the model initialization script for the target model. Check and update the motor, inverter, and other control system and hardware parameters available in the script. For instructions on locating and editing the model initialization script associated with a target model, see Estimate Control Gains and Use Utility Functions.
2. In the Inverter & Target Parameters section of the model initialization script, verify that the
mcb_SetInverterParameters function uses the argument
BoostXL-DRV8305. This enables the script to use the preprogrammed parameters for the BOOSTXL-DRV8305 inverter.
3. Configure these parameters correctly in the model initialization script. These variables are essential for the gain-tuning algorithm to compute the PI controller gains. If the values of these variables are incorrect, the model may fail to bring the motor to the steady speed state.
4. If you are using a motor that is not listed in the
mcb_SetPMSMMotorParameters function (used in the System Parameters // Hardware parameters section of the model initialization script), tune the default values of the following initial gains available in the Initial PI parameters section of the model initialization script. This ensures that the motor reaches the steady state of speed-control operation:
When you either simulate or run the example on a target hardware, the example uses crude values of the PI controller gains to achieve the steady state of speed-control operation.
Note: When using this example, if the motor (whether it is listed or not in the
mcb_SetPMSMMotorParameters function) does not run, try tuning the default values of these parameters.
5. In the FOC Autotuner parameters section of the model initialization script, check and update the parameters of the Field Oriented Control Autotuner block. This sets the reference bandwidth and phase margin values for both the speed and the current PI controllers.
Simulate the Target Model
Simulating the example is optional. Follow these steps to simulate the target model:
1. Open the target model.
2. Click Run on the Simulation tab to simulate the target model.
3. Observe the computed PI controller gain values in the Display blocks available in the
mcb_pmsm_foc_autotuner_f28379d/Current Control/PI_Params_Display_and_Logging subsystem.
The computed gains might not be accurate because step 3 in the Prerequisites for Simulation and Hardware Deployment section checks the accuracy of only four motor parameters.
If you want to compute and test the PI controller gains using simulation, follow these steps before clicking Run on the Simulation tab of the target model.
In the System Parameters // Hardware parameters section of the model initialization script, verify that the
mcb_SetPMSMMotorParametersfunction uses an argument that represents your motor (for example,
Teknic2310P). Open the
mcb_SetPMSMMotorParametersfunction to see the preprogrammed cases that store the motor parameters of commonly used PMSMs.
mcb_SetPMSMMotorParameters function does not list your PMSM, determine the parameters for your motor using these steps:
If you have motor control hardware, you can estimate the parameters for your motor, by using the Motor Control Blockset parameter estimation tool. For instructions, see Estimate PMSM Parameters Using Recommended Hardware and Estimate PMSM Parameters Using Custom Hardware.
The parameter estimation tool updates the
motorParam variable (in the MATLAB® workspace) with the estimated motor parameters.
If you obtain the motor parameters from the datasheet or other sources, add and configure the motor parameters in the model initialization script. These parameter values override the selected pre-programmed case in the function
If you use the parameter estimation tool, do not update the motor parameters directly in the model initialization script. The script automatically extracts the motor parameters from the updated
motorParam variable in the workspace.
After you simulate the target model and determine the gains, update your model (that implements FOC) with the computed gain values to quickly bring the motor to a steady speed state.
Deploy the example to the target hardware to tune the PI controller gains more accurately by using an actual hardware connected to a motor. For more details, see the Generate Code and Deploy Model to Target Hardware section.
Generate Code and Deploy Model to Target Hardware
This section shows how to generate code and run the algorithm for tuning the PI controller gains on the target hardware. Running the example on the hardware enables you to compute the PI controller gains more accurately by processing the feedback from an actual plant in real-time.
This example uses a host and a target model. The host model is a user interface to the controller hardware board. You can run the host model on the host computer. Before you run the host model on the host computer, deploy the target model to the controller hardware board. The host model uses serial communication to command the target model and run the motor in closed-loop control.
The example supports the following hardware configuration. You can also use the target model name to open the model from the MATLAB® command prompt.
LAUNCHXL-F28379D controller + BOOSTXL-DRV8305 inverter: mcb_pmsm_foc_autotuner_f28379d
For more information on connections related to this hardware configuration, see LAUNCHXL-F28069M and LAUNCHXL-F28379D Configurations.
Generate Code and Run Model on Target Hardware
1. Complete the hardware connections.
2. The model automatically computes the analog to digital converter (ADC) offset (also known as current offset). To disable this functionality (enabled by default), update the value of the
inverter.ADCOffsetCalibEnable variable in the model initialization script to
Alternatively, you can compute the ADC offset values and update them manually in the model initialization script. For instructions, see Run 3-Phase AC Motors in Open-Loop Control and Calibrate ADC Offset.
3. Compute the quadrature encoder index offset value and update it in the
pmsm.PositionOffset variable in the model initialization script of the target model. For instructions, see Quadrature Encoder Offset Calibration for PMSM Motor.
4. Open the target model. If you want to change the default hardware configurations of the model, see Model Configuration Parameters.
5. Load a sample program to the CPU2 of the LAUNCHXL-F28379D board. For example, load the program that operates the CPU2 blue LED by using GPIO31 (
c28379D_cpu2_blink.slx). This ensures that CPU2 is not mistakenly configured to use the board peripherals intended for CPU1.
6. Click Build, Deploy & Start on the Hardware tab to deploy the target model to the hardware.

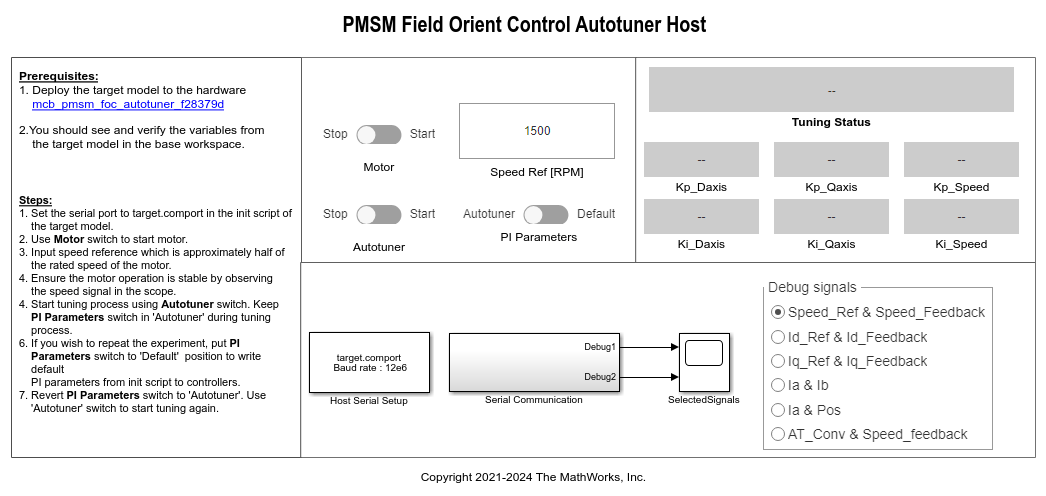

7. Click the host model hyperlink in the target model to open the associated host model. You can also use the
open_system command to open the host model.
For details on serial communication between the host and target models, see Host-Target Communication.
8. In the block parameters dialog boxes of Host Serial Setup, Host Serial Receive, and Host Serial Transmit blocks, select the Port to which you have connected the target hardware.
9. Turn the Motor slider switch to the Start position to start running the motor.
10. Update the reference speed value in the Speed Ref [RPM] field. It is recommended that you use a value that is approximately half the rated speed of the motor.
11. In the Debug signals section, select Speed_Ref & Speed_Feedback and monitor the speed signals in the SelectedSignals time scope. Wait until the motor reaches a steady speed.
The example can begin tuning only in the steady speed state.
12. Check that the PI Parameters slider switch is in the Autotuner position.
13. Turn the Autotuner slider switch to the Start position to start autotuning the PI controller gains. The tuning process introduces perturbations depending on the controller goals (bandwidth and phase margin) in the controller output. The example uses the system response to the perturbations to calculate the optimal controller gain values.
The model performs these tests iteratively on the motor and determines an accurate set of
Ki gains for the current and speed PI controllers.
The Tuning Status display changes status from
Tuning not started to
Tuning in progress.
Note: When tuning is in progress, ensure that the PI Parameters slider switch remains in the Autotuner position.
14. When the tuning process successfully completes, the Tuning Status display changes status from
Tuning in progress to
The target model updates the speed and current PI controllers running on the target hardware with the computed
Ki gains. In addition, the host model displays these values.
15. If the gain-tuning algorithm encounters an error during the tuning process, the Tuning Status display shows
Tuning failed. Turn the Autotuner slider switch to the Stop position and see the Troubleshooting section for the troubleshooting instructions.
16. If you have successfully completed the tuning process, turn the Autotuner slider switch to the Stop position. Turn the PI Parameters slider switch to the Default position to enable the default operating mode of the target model. In this mode, the target model uses the computed gain values to operate the motor using FOC.
17. Validate the computed gain values. For instructions, see the Validate Computed PI Controller Gains section.
Validate Computed PI Controller Gains
1. Check that the motor is running and that the PI Parameters slider switch is in the Default position.
2. Select the Speed_Ref & Speed_Feedback debug signal in the Debug signals section of the host model.
3. Open the SelectedSignals time scope to monitor the reference speed and speed feedback signals.
4. Update the reference speed (for your motor control application) in the Speed Ref [RPM] field and monitor the signals in the time scope.

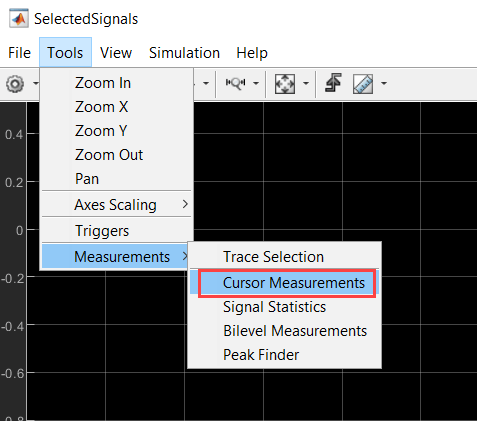

5. In the SelectedSignals window, navigate to Tools > Measurements and select Cursor Measurements to display the Cursor Measurements area.
6. Drag cursor-1 to a position that indicates zero
Speed_Ref (just before Speed_ref rises). Drag cursor-2 to a position where
Speed_Ref for the first time.

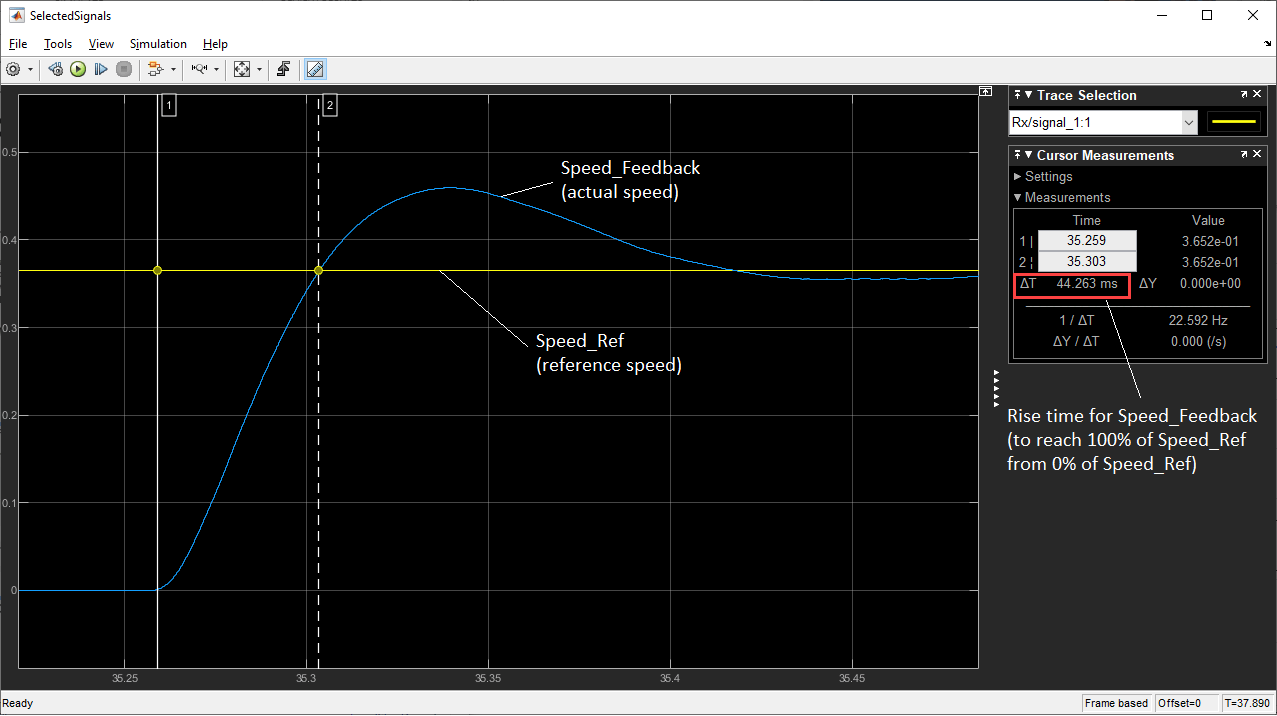

ΔT indicates the actual response time of the FOC algorithm (time taken by the motor to reach 100% of the reference speed from zero reference speed).
7. For the speed PI controller, use the
PI_params.SpeedBW variable available in the model initialization script to determine the bandwidth of the speed PI controller. Compute the theoretical response time using this relation:
Compare the theoretical
Response_time with the actual response time ΔT to validate the speed PI controller gains.
Similarly, you can validate the current PI controller gains by analyzing the step responses of the
q current PI controllers.
Follow these steps to troubleshoot failed gain-tuning instances.
1. Identify the loop (either
q current, or speed) for which the tuning process failed.
The target model tunes the PI controllers in this sequence:
d current controller →
q current controller → speed controller
Tuning failure of one controller in this sequence results in incorrect gain-tuning for the subsequent controllers.
Check the computed gains for the three controllers using the Display blocks available in the host model. A zero
Ki controller gain value indicates that the tuning process failed for the respective controller.
Follow the subsequent steps for the first PI controller in the preceding sequence for which the tuning failed.
2. Select the controller reference and feedback signals for the controller identified in step 1, in the Debug signals section (for example, Iq_Ref & Iq_Feedback for the
q current controller) and open the SelectedSignals time scope.
3. Check that the PI Parameters slider switch is in the Autotuner position.
4. Turn the Autotuner slider switch to the Start position to run the tuning process again.
5. Monitor the feedback signal for the controller identified in step 1 (for example,
Iq_Feedback) in the SelectedSignals time scope.
Case 1: Follow these steps if the peak value of the controller feedback signal satisfies one of these conditions:
Value is too high (greater than 1)
Value is too low (less than
PI_params.CurrentSineAmpfor the current controllers or less than
PI_params.SpeedSineAmpfor the speed controller)
PI_params.SpeedSineAmp variables are defined in the model initialization script.
a. If the controller identified in step 1 is the
d or the
q current controller, modify the
PI_params.CurrentSineAmp variable such that it is less than the peak value of the controller feedback signal.
b. If the controller identified in step 1 is the speed controller, modify the
PI_params.SpeedSineAmp variable such that it is less than the peak value of the controller feedback signal.
c. Turn the Autotuner slider switch to the Stop position and then to the Start position to run the tuning process again.
Case 2: Follow these steps if the peak value of the controller feedback signal lies in the range:
(for the current controllers)
(for the speed controller)
PI_params.SpeedSineAmp variables are defined in the model initialization script.
a. Update the parameters of the Field Oriented Control Autotuner block (that set the reference bandwidth and phase margin values) available in the FOC Autotuner parameters section of the model initialization script.
b. Turn the Autotuner slider switch to the Stop position and then to the Start position to run the tuning process again.
