importONNXLayers

Import layers from ONNX network

Description

example

layers = importONNXLayers(modelfile) imports the layers of an ONNX™ (Open Neural Network Exchange) network from the file modelfile. You can train the imported layers on a new data set or assemble the layers into a network ready for prediction.

This function requires the Deep Learning Toolbox™ Converter for ONNX Model Format support package. If this support package is not installed, then the function provides a download link.

example

layers = importONNXLayers(modelfile,Name,Value) imports the layers from an ONNX network with additional options specified by one or more name-value pair arguments.

For example, importONNXLayers(modelfile,'ImportWeights',false) imports the network architecture without weights from the file modelfile.

Examples

collapse all

Download and install the Deep Learning Toolbox Converter for ONNX Model Format support package.

Type importONNXLayers at the command line.

importONNXLayers

If Deep Learning Toolbox Converter for ONNX Model Format is not installed, then the function provides a link to the required support package in the Add-On Explorer. To install the support package, click the link, and then click Install. Check that the installation is successful by importing the network from the model file 'cifarResNet.onnx' at the command line. If the support package is installed, then the function returns a DAGNetwork object.

modelfile = 'cifarResNet.onnx';
layers = importONNXLayers(modelfile,'OutputLayerType','classification')

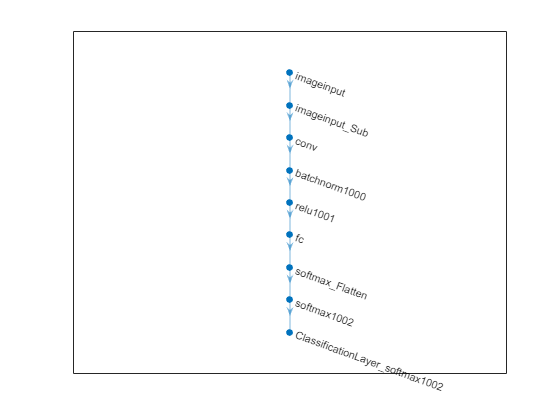

layers =

  LayerGraph with properties:

         Layers: [77×1 nnet.cnn.layer.Layer]
    Connections: [85×2 table]

Import the architecture and weights of a residual neural network trained on the CIFAR-10 data set. Specify the file containing the ONNX network and the type of the output layer to add to the imported network.

modelfile = 'cifarResNet.onnx';
lgraph = importONNXLayers(modelfile, ...
    'OutputLayerType','classification', ...
    'ImportWeights',true)
lgraph =
  LayerGraph with properties:

         Layers: [77×1 nnet.cnn.layer.Layer]
    Connections: [85×2 table]
     InputNames: {'Input_input'}
    OutputNames: {'ClassificationLayer_softmax'}

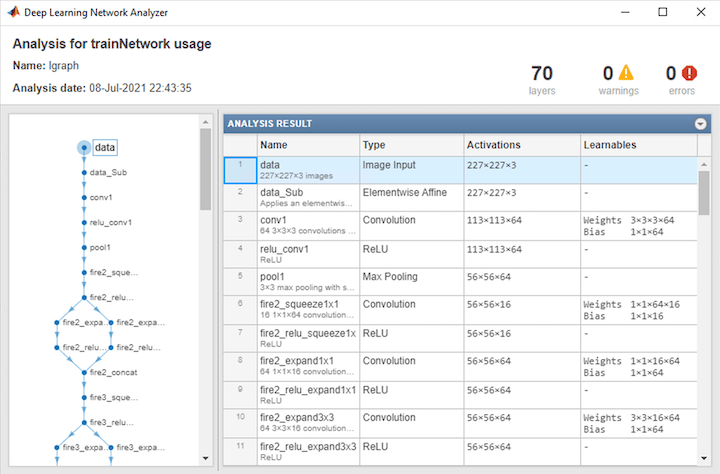

Analyze the imported network architecture.

analyzeNetwork(lgraph)

Import an ONNX network that has multiple outputs by using importONNXLayers. The function inserts placeholder layers for the outputs. After importing, you can find and replace the placeholder layers by using findPlaceholderLayers and replaceLayer, respectively.

Specify the network file from which to import layers and weights.

modelfile = 'digitsMIMO.onnx';

The network in digitsMIMO.onnx has two output layers: one classification layer to classify digits and one regression layer to compute the mean squared error for the predicted angles of the digits. Import the layers and weights from modelfile.

layers = importONNXLayers('digitsMIMO.onnx','ImportWeights',true)
Warning: ONNX network has multiple outputs. importONNXLayers inserts placeholder layers for the outputs. Find and replace the layers by using findPlaceholderLayers and replaceLayer, respectively.
layers =
  LayerGraph with properties:

         Layers: [19×1 nnet.cnn.layer.Layer]
    Connections: [19×2 table]
     InputNames: {'Input_input'}
    OutputNames: {1×0 cell}

importONNXLayers displays a warning and inserts placeholder layers for the output layers.

Plot the layer graph using plot.

plot(layers)

The layer graph has two output layers: Output_fc_1_Flatten and Output_sm_1. These two layers are the placeholders for the outputs. You can check the placeholder layers by viewing the Layers property or by using the findPlaceholderLayers function.

layers.Layers
ans =
  19×1 Layer array with layers:

     1   'Input_input'           Image Input           28×28×1 images
     2   'conv_1'                Convolution           16 5×5×1 convolutions with stride [1  1] and padding [2  2  2  2]
     3   'BN_1'                  Batch Normalization   Batch normalization with 16 channels
     4   'relu_1'                ReLU                  ReLU
     5   'conv_2'                Convolution           32 1×1×16 convolutions with stride [2  2] and padding [0  0  0  0]
     6   'conv_3'                Convolution           32 3×3×16 convolutions with stride [2  2] and padding [1  1  1  1]
     7   'BN_2'                  Batch Normalization   Batch normalization with 32 channels
     8   'relu_2'                ReLU                  ReLU
     9   'conv_4'                Convolution           32 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]
    10   'BN_3'                  Batch Normalization   Batch normalization with 32 channels
    11   'relu_3'                ReLU                  ReLU
    12   'plus_1'                Addition              Element-wise addition of 2 inputs
    13   'fc_1'                  Convolution           1 14×14×32 convolutions with stride [1  1] and padding [0  0  0  0]
    14   'fc_2'                  Convolution           10 14×14×32 convolutions with stride [1  1] and padding [0  0  0  0]
    15   'sm_1_Flatten'          ONNX Flatten          Flatten activations into 1-D assuming C-style (row-major) order
    16   'sm_1'                  Softmax               softmax
    17   'Output_sm_1'           PLACEHOLDER LAYER     Placeholder for 'Output' ONNX operator
    18   'fc_1_Flatten'          ONNX Flatten          Flatten activations into 1-D assuming C-style (row-major) order
    19   'Output_fc_1_Flatten'   PLACEHOLDER LAYER     Placeholder for 'Output' ONNX operator
placeholderLayers = findPlaceholderLayers(layers)
placeholderLayers =
  2×1 PlaceholderOutputLayer array with layers:

     1   'Output_sm_1'           PLACEHOLDER LAYER   Placeholder for 'Output' ONNX operator
     2   'Output_fc_1_Flatten'   PLACEHOLDER LAYER   Placeholder for 'Output' ONNX operator

Create output layers to replace the placeholder layers. First, create a classification layer with the name Output_sm_1. Specify the classes of the output layer as 0, 1, ..., 9. If you do not specify the classes, then the software automatically sets them to 1, 2, ..., N, where N is the number of classes.

output1 = classificationLayer('Name','Output_sm_1','Classes',string(0:9));

Create a regression layer with the name Output_fc_1_Flatten.

output2 = regressionLayer('Name','Output_fc_1_Flatten');

Replace the placeholder layers with output1 and output2 using replaceLayer.

layers = replaceLayer(layers,'Output_sm_1',output1);
layers = replaceLayer(layers,'Output_fc_1_Flatten',output2);

Display the Layers property of the layer graph to confirm the replacement.

layers.Layers
ans =
  19×1 Layer array with layers:

     1   'Input_input'           Image Input             28×28×1 images
     2   'conv_1'                Convolution             16 5×5×1 convolutions with stride [1  1] and padding [2  2  2  2]
     3   'BN_1'                  Batch Normalization     Batch normalization with 16 channels
     4   'relu_1'                ReLU                    ReLU
     5   'conv_2'                Convolution             32 1×1×16 convolutions with stride [2  2] and padding [0  0  0  0]
     6   'conv_3'                Convolution             32 3×3×16 convolutions with stride [2  2] and padding [1  1  1  1]
     7   'BN_2'                  Batch Normalization     Batch normalization with 32 channels
     8   'relu_2'                ReLU                    ReLU
     9   'conv_4'                Convolution             32 3×3×32 convolutions with stride [1  1] and padding [1  1  1  1]
    10   'BN_3'                  Batch Normalization     Batch normalization with 32 channels
    11   'relu_3'                ReLU                    ReLU
    12   'plus_1'                Addition                Element-wise addition of 2 inputs
    13   'fc_1'                  Convolution             1 14×14×32 convolutions with stride [1  1] and padding [0  0  0  0]
    14   'fc_2'                  Convolution             10 14×14×32 convolutions with stride [1  1] and padding [0  0  0  0]
    15   'sm_1_Flatten'          ONNX Flatten            Flatten activations into 1-D assuming C-style (row-major) order
    16   'sm_1'                  Softmax                 softmax
    17   'Output_sm_1'           Classification Output   crossentropyex with '0' and 9 other classes
    18   'fc_1_Flatten'          ONNX Flatten            Flatten activations into 1-D assuming C-style (row-major) order
    19   'Output_fc_1_Flatten'   Regression Output       mean-squared-error

Assemble the layer graph using assembleNetwork. The function returns a DAGNetwork object that is ready to use for prediction.

assembledNet = assembleNetwork(layers)
assembledNet =
  DAGNetwork with properties:

         Layers: [19×1 nnet.cnn.layer.Layer]
    Connections: [19×2 table]
     InputNames: {'Input_input'}
    OutputNames: {'Output_sm_1'  'Output_fc_1_Flatten'}

Input Arguments

collapse all

Name of ONNX model file containing the network, specified as a character vector or a string scalar. The file must be in the current folder, in a folder on the MATLAB® path, or you must include a full or relative path to the file.

Example: 'cifarResNet.onnx'

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: importONNXLayers(modelfile,'OutputLayerType','classification') imports the network layers from modelfile and adds an output layer for a classification output layer at the end of the imported layers.

Type of the output layer that the function appends to the end of the imported network architecture, specified as 'classification', 'regression', or 'pixelclassification'. Using 'pixelclassification' appends a pixelClassificationLayer (Computer Vision Toolbox) object (requires Computer Vision Toolbox™).

If a network in modelfile has multiple outputs, then you cannot specify the output layer types using this argument. importONNXLayers inserts placeholder layers for the outputs. After importing, you can find and replace the placeholder layers by using findPlaceholderLayers and replaceLayer, respectively.

Example: 'OutputLayerType','regression'

Indicator to import weights as well as the network architecture, specified as either false or true.

Example: 'ImportWeights',true

Data Types: logical

Output Arguments

collapse all

Network architecture, returned as a LayerGraph object.

Limitations

  • importONNXLayers supports ONNX versions as follows:

    • The function supports ONNX intermediate representation version 6.

    • The function fully supports ONNX operator sets 6, 7, 8, and 9.

    • The function offers limited support for ONNX operator sets 10 and 11.

Note

If you import an exported network, layers of the reimported network might differ from the original network and might not be supported.

More About

collapse all

Supported ONNX Layers

importONNXLayers supports the following ONNX layers, with some limitations:

ONNX LayerDeep Learning Toolbox Layer

Add

additionLayer or nnet.onnx.layer.ElementwiseAffineLayer

AveragePool

averagePooling2dLayer

BatchNormalization

batchNormalizationLayer

Concat

concatenationLayer

Constant

None (Imported as weights)

Conv*

convolution2dLayer

ConvTranspose

transposedConv2dLayer

Dropout

dropoutLayer

Elu

eluLayer

Gemm

fullyConnectedLayer if ONNX network is recurrent, otherwise nnet.onnx.layer.FlattenLayer followed by convolution2dLayer

GlobalAveragePool

globalAveragePooling2dLayer

GlobalMaxPool

globalMaxPooling2dLayer

GRU

gruLayer

InstanceNormalization

groupNormalizationLayer with numGroups specified as "channel-wise"

LeakyRelu

leakyReluLayer

LRN

CrossChannelNormalizationLayer

LSTM

lstmLayer or bilstmLayer

MatMul

fullyConnectedLayer if ONNX network is recurrent, otherwise convolution2dLayer

MaxPool

maxPooling2dLayer

Mul

multiplicationLayer

Relu

reluLayer or clippedReluLayer

Sigmoid

sigmoidLayer

Softmax

softmaxLayer

Sum

additionLayer

Tanh

tanhLayer

*If the pads attribute of the Conv operator is a vector with only two elements [p1,p2], importONNXLayers imports Conv as a convolution2dLayer with the name-value argument 'Padding' specified as [p1,p2,p1,p2].

ONNX LayerONNX Importer Custom Layer

Clip

nnet.onnx.layer.ClipLayer

Div

nnet.onnx.layer.ElementwiseAffineLayer

Flatten

nnet.onnx.layer.FlattenLayer or nnet.onnx.layer.Flatten3dLayer

Identity

nnet.onnx.layer.IdentityLayer

ImageScaler

nnet.onnx.layer.ElementwiseAffineLayer

PRelu

nnet.onnx.layer.PReluLayer

Reshape

nnet.onnx.layer.FlattenLayer

Sub

nnet.onnx.layer.ElementwiseAffineLayer
ONNX LayerImage Processing Toolbox™
DepthToSpacedepthToSpace2dLayer (Image Processing Toolbox)
Resizeresize2dLayer (Image Processing Toolbox) or resize3dLayer (Image Processing Toolbox)
SpaceToDepthspaceToDepthLayer (Image Processing Toolbox)
Upsampleresize2dLayer (Image Processing Toolbox) or resize3dLayer (Image Processing Toolbox)

Tips

  • If the ONNX network contains a layer that Deep Learning Toolbox Converter for ONNX Model Format does not support (see Supported ONNX Layers), then importONNXLayers inserts a placeholder layer in place of the unsupported layer. To find the names and indices of the unsupported layers in the network, use the findPlaceholderLayers function. You then can replace a placeholder layer with a new layer that you define. To replace a layer, use replaceLayer. For an example, see Import and Assemble ONNX Network with Multiple Outputs.

  • You can import an ONNX network with multiple inputs and multiple outputs. If the network has multiple inputs and a single output, use importONNXNetwork. If the network has multiple outputs, use importONNXLayers. The importONNXLayers function inserts placeholder layers for the outputs. After importing, you can find and replace the placeholder layers by using findPlaceholderLayers and replaceLayer, respectively. For an example, see Import and Assemble ONNX Network with Multiple Outputs. To learn about a deep learning network with multiple inputs and multiple outputs, see Multiple-Input and Multiple-Output Networks.

  • To use a pretrained network for prediction or transfer learning on new images, you must preprocess your images in the same way the images that were used to train the imported model were preprocessed. The most common preprocessing steps are resizing images, subtracting image average values, and converting the images from BGR images to RGB.

    • To resize images, use imresize. For example, imresize(image,[227,227,3]).

    • To convert images from RGB to BGR format, use flip. For example, flip(image,3).

    For more information on preprocessing images for training and prediction, see Preprocess Images for Deep Learning.

References

[1] Open Neural Network Exchange. https://github.com/onnx/.

[2] ONNX. https://onnx.ai/.

Introduced in R2018a
