synthesizeTabularData
Description
generates syntheticX
= synthesizeTabularData(X
,n
)n
observations of synthetic data using the existing data
X
. The function returns the synthetic data
syntheticX
.
specifies additional options using one or more name-value arguments. For example, you can
specify the bin method, the variables to use, and the options for computing in
parallel.syntheticX
= synthesizeTabularData(X
,n
,Name=Value
)
Examples
Generate Synthetic Tabular Data
Generate synthetic data using an existing data set in a table. Visually compare the distributions of the existing and synthetic data sets.
Load the sample file fisheriris.csv
, which contains iris data including sepal length, sepal width, petal width, and species type. Read the file into a table, and then convert the Species
variable into a categorical
variable. Display the first eight observations in the table.
fisheriris = readtable("fisheriris.csv");
fisheriris.Species = categorical(fisheriris.Species);
head(fisheriris)
SepalLength SepalWidth PetalLength PetalWidth Species ___________ __________ ___________ __________ _______ 5.1 3.5 1.4 0.2 setosa 4.9 3 1.4 0.2 setosa 4.7 3.2 1.3 0.2 setosa 4.6 3.1 1.5 0.2 setosa 5 3.6 1.4 0.2 setosa 5.4 3.9 1.7 0.4 setosa 4.6 3.4 1.4 0.3 setosa 5 3.4 1.5 0.2 setosa
Create 1000 new observations from the data in fisheriris
by using the synthesizeTabularData
function. The function uses a binning technique to learn the distribution of the variables in fisheriris
before synthesizing data.
rng("default")
syntheticData = synthesizeTabularData(fisheriris,1000);
For each numeric variable, use box plots to visually compare the distribution of the values in fisheriris
to the distribution of the values in syntheticData
.
numericVariables = ["SepalLength","SepalWidth", ... "PetalLength","PetalWidth"]; boxchart(fisheriris{:,numericVariables}) hold on boxchart(syntheticData{:,numericVariables}) hold off legend(["Real Data","Synthetic Data"]) xticklabels(numericVariables)
Blue box plots show the distributions of real data, and red box plots show the distributions of synthetic data. For each of the four numeric variables, the real and synthetic data values have similar distributions.
Use histograms to compare the distribution of flower species in fisheriris
and syntheticData
.
histogram(fisheriris.Species, ... Normalization="probability") hold on histogram(syntheticData.Species, ... Normalization="probability") hold off legend(["Real Data","Synthetic Data"])
Overall, the distribution of flower species is similar across the two data sets. For example, 32% of the flowers in the synthetic data set are setosa
irises, compared to 33% in the real data set.
Synthesize Data for Model Training
Synthesize data using existing training data. Train a model using the existing training data, and then train the same type of model using the synthetic data. Compare the performance of the two models using test data.
Load the carbig
data set, which contains measurements of cars made in the 1970s and early 1980s. Create a table containing the predictor variables Acceleration
, Displacement
, and so on, as well as the response variable MPG
.
load carbig tbl = table(Acceleration,Cylinders,Displacement,Horsepower, ... Model_Year,Origin,MPG,Weight);
Remove rows of tbl
where the table has missing values.
tbl = rmmissing(tbl);
Partition the data into training and test sets. Use approximately 60% of the observations for model training and synthesizing new data, and 40% of the observations for model testing. Use cvpartition
to partition the data.
rng("default") cv = cvpartition(size(tbl,1),"Holdout",0.4); trainTbl = tbl(training(cv),:); testTbl = tbl(test(cv),:);
Synthesize new data by using the trainTbl
data set. Specify to generate 1000 observations using 20 equal-width bins for each variable. Specify the Cylinders
and Model_Year
variables as discrete numeric variables.
syntheticTbl = synthesizeTabularData(trainTbl,1000, ... BinMethod="equal-width",NumBins=20, ... DiscreteNumericVariables=["Cylinders","Model_Year"]);
To visualize the difference between the existing data and synthetic data, you can use the detectdrift
function. The function uses permutation testing to detect drift between trainTbl
and syntheticTbl
.
dd = detectdrift(trainTbl,syntheticTbl);
dd
is a DriftDiagnostics
object with plotEmpiricalCDF
and plotHistogram
object functions for visualization.
For continuous variables, use the plotEmpiricalCDF
function to see the difference between the empirical cumulative distribution function (ecdf) of the values in trainTbl
and the ecdf of the values in syntheticTbl
.
continuousVariable = "Acceleration"; plotEmpiricalCDF(dd,Variable=continuousVariable) legend(["Real Data","Synthetic Data"])
For the Acceleration
predictor, the ecdf plot for the existing values (in blue) matches the ecdf plot for the synthetic values (in red) fairly well.
For discrete variables, use the plotHistogram
function to see the difference between the histogram of the values in trainTbl
and the histogram of the values in syntheticTbl
.
discreteVariable = "Cylinders"; plotHistogram(dd,Variable=discreteVariable) legend(["Real Data","Synthetic Data"])

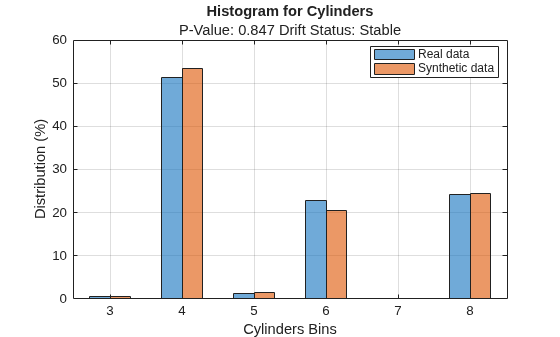

For the Cylinders
predictor, the histogram for the existing values (in blue) matches the histogram for the synthetic values (in red) fairly well.
Train a bagged ensemble of trees using the original training data trainTbl
. Specify MPG
as the response variable. Then, train the same kind of regression model using the synthetic data syntheticTbl
.
originalMdl = fitrensemble(trainTbl,"MPG",Method="Bag"); newMdl = fitrensemble(syntheticTbl,"MPG",Method="Bag");
Evaluate the performance of the two models on the test set by computing the test mean squared error (MSE). Smaller MSE values indicate better performance.
originalMSE = loss(originalMdl,testTbl)
originalMSE = 7.0784
newMSE = loss(newMdl,testTbl)
newMSE = 6.1031
The model trained on the synthetic data performs slightly better on the test data.
Evaluate Synthetic Tabular Data
Evaluate data synthesized from an existing data set. Compare the existing and synthetic data sets to determine distribution similarity.
Load the carsmall
data set. The file contains measurements of cars from 1970, 1976, and 1982. Create a table containing the data and display the first eight observations.
load carsmall carData = table(Acceleration,Cylinders,Displacement,Horsepower, ... Mfg,Model,Model_Year,MPG,Origin,Weight); head(carData)
Acceleration Cylinders Displacement Horsepower Mfg Model Model_Year MPG Origin Weight ____________ _________ ____________ __________ _____________ _________________________________ __________ ___ _______ ______ 12 8 307 130 chevrolet chevrolet chevelle malibu 70 18 USA 3504 11.5 8 350 165 buick buick skylark 320 70 15 USA 3693 11 8 318 150 plymouth plymouth satellite 70 18 USA 3436 12 8 304 150 amc amc rebel sst 70 16 USA 3433 10.5 8 302 140 ford ford torino 70 17 USA 3449 10 8 429 198 ford ford galaxie 500 70 15 USA 4341 9 8 454 220 chevrolet chevrolet impala 70 14 USA 4354 8.5 8 440 215 plymouth plymouth fury iii 70 14 USA 4312
Generate 100 new observations using the synthesizeTabularData
function. Specify the Cylinders
and Model_Year
variables as discrete numeric variables. Display the first eight observations.
rng("default") syntheticData = synthesizeTabularData(carData,100, ... DiscreteNumericVariables=["Cylinders","Model_Year"]); head(syntheticData)
Acceleration Cylinders Displacement Horsepower Mfg Model Model_Year MPG Origin Weight ____________ _________ ____________ __________ _____________ _________________________________ __________ ______ _______ ______ 11.215 8 309.73 137.28 dodge dodge coronet brougham 76 17.3 USA 4038 10.198 8 416.68 215.51 plymouth plymouth fury iii 70 9.5497 USA 4507.2 17.161 6 258.38 77.099 amc amc pacer d/l 76 18.325 USA 3199.8 9.4623 8 426.19 197.3 plymouth plymouth fury iii 70 11.747 USA 4372.1 13.992 4 106.63 91.396 datsun datsun pl510 70 30.56 Japan 1950.7 17.965 6 266.24 78.719 oldsmobile oldsmobile cutlass ciera (diesel) 82 36.416 USA 2832.4 17.028 4 139.02 100.24 chevrolet chevrolet cavalier 2-door 82 36.058 USA 2744.5 15.343 4 118.93 100.22 toyota toyota celica gt 82 26.696 Japan 2600.5
Visualize the synthetic and existing data sets. Create a DriftDiagnostics
object using the detectdrift
function. The object has the plotEmpiricalCDF
and plotHistogram
object functions you can use to visualize continuous and discrete variables.
dd = detectdrift(carData,syntheticData);
Use plotEmpiricalCDF
to visualize the empirical cumulative distribution function (ECDF) of the values in carData
and syntheticData
.
continuousVariable = "Acceleration"; plotEmpiricalCDF(dd,Variable=continuousVariable) legend(["Real Data","Synthetic Data"])
For the variable Acceleration
, the ECDF of the existing data (in blue) and the ECDF of the synthetic data (in red) appear to be similar.
Use plotHistogram
to visualize the distribution of values for discrete variables in carData
and syntheticData
.
discreteVariable = "Cylinders"; plotHistogram(dd,Variable=discreteVariable) legend(["Real Data","Synthetic Data"])
For the variable Cylinders
, the distribution of data between the bins for the existing data (in blue) and the synthetic data (in red) appear similar.
Compare the synthetic and existing data sets using the mmdtest
function. The function performs a two-sample hypothesis test for the null hypothesis that the samples come from the same distribution.
[mmd,p,h] = mmdtest(carData,syntheticData)
mmd = 0.0078
p = 0.8860
h = 0
The returned value of h = 0
indicates that mmdtest
fails to reject the null hypothesis that the samples come from different distributions at the 5% significance level. As with other hypothesis tests, this result does not guarantee that the null hypothesis is true. That is, the samples do not necessarily come from the same distribution, but the low MMD value and high p-value indicate that the distributions of the real and synthetic data sets are similar.
Input Arguments
X
— Existing data set
numeric matrix | table
Existing data set, specified as a numeric matrix or a table. Rows of
X
correspond to observations, and columns of
X
correspond to variables. Multicolumn variables and cell arrays
other than cell arrays of character vectors are not allowed in
X
.
Data Types: single
| double
| table
n
— Number of synthetic data observations to generate
positive integer scalar
Number of synthetic data observations to generate, specified as a positive integer scalar.
Example: 100
Data Types: single
| double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: synthesizeTabularData(X,100,BinMethod="equiprobable",NumBins=10)
specifies to use 10 equiprobable bins for each variable in X
to generate
100 synthetic observations.
BinMethod
— Binning algorithm
"auto"
(default) | "equal-width"
| "equiprobable"
| "dagostino-stephens"
| "freedman-diaconis"
| "scott"
| ...
Binning algorithm, specified as one of the values in this table.
Value | Description |
---|---|
"auto" |
|
"equal-width" | Equal-width binning, where you must specify the number of bins using the
NumBins name-value argument |
"equiprobable" | Equiprobable binning, where you must specify the number of bins using the
NumBins name-value argument |
"dagostino-stephens" or "ds" | Equiprobable binning with ceil(2*m^(2/5)) bins, where m
is the number of observations in the existing data |
"freedman-diaconis" or "fd" | Equal-width binning, where each bin for variable
|
"scott" | Equal-width binning, where each bin for variable
|
"scott-multivariate" | Equal-width binning, where each bin for variable
|
"terrell-iqr" | Equal-width binning, where each bin for variable
|
"terrell-scott" or "ts" | Equal-width binning with ceil((2*m)^(1/3)) bins, where
m is the number of observations in the
existing data |
"terrell-std" | Equal-width binning, where each bin for variable
|
Example: BinMethod="scott"
Data Types: char
| string
NumBins
— Number of bins to use for continuous variables
[]
(default) | positive integer scalar | positive integer vector
Number of bins to use for continuous variables, specified as a positive integer scalar or vector.
If
NumBins
is a scalar, then the function uses the same number of bins for each continuous variable.If
NumBins
is a vector, then the function usesNumBins(k)
number of bins for continuous variablek
.
Specify this value only when BinMethod
is
"equal-width"
or "equiprobable"
.
Example: NumBins=[10 25 10 15]
Data Types: single
| double
VariableNames
— Variable names
string array | cell array of character vectors
Variable names, specified as a string array or a cell array of character vectors.
You can specify VariableNames
to choose which variables to use in
table X
. That is, synthesizeTabularData
uses only the
variables in VariableNames
to generate synthetic data.
X
must be a table, andVariableNames
must be a subset ofX.Properties.VariableNames
.By default,
VariableNames
contains the names of all variables.
Example: VariableNames=["SepalLength","SepalWidth","PetalLength","PetalWidth"]
Data Types: string
| cell
CategoricalVariables
— List of categorical variables
positive integer vector | logical vector | string array | cell array of character vectors | "all"
List of the categorical variables, specified as one of the values in this table.
Value | Description |
---|---|
Positive integer vector | Each entry in the vector is an index
value indicating that the corresponding variable
is categorical. The index values are between 1 and
v, where v
is the number of variables listed in
|
Logical vector | A |
String array or cell array of character vectors | Each element in the array is the name of a
categorical variable. The names must match the
entries in
VariableNames . |
"all" | All variables are categorical. |
By default, if the variables are in a numeric matrix, the software assumes all the variables
are continuous. If the variables are in a table, the software assumes they are
categorical if they are logical vectors, categorical
vectors, character
arrays, string arrays, or cell arrays of character vectors. To identify any other
variables as categorical, specify them by using the
CategoricalVariables
name-value argument.
Do not specify discrete numeric variables as categorical variables. Use the
DiscreteNumericVariables
name-value argument instead.
Example: CategoricalVariables="all"
Data Types: single
| double
| logical
| string
| cell
DiscreteNumericVariables
— List of discrete numeric variables
[]
(default) | positive integer vector | logical vector | string array | cell array of character vectors | "all"
List of the discrete numeric variables, specified as one of the values in this table.
Value | Description |
---|---|
Positive integer vector | Each entry in the vector is an index value indicating that
the corresponding variable is a discrete numeric variable. The
index values are between 1 and v, where
v is the number of variables listed in
|
Logical vector | A |
String array or cell array of character vectors | Each element in the array is the name of a discrete numeric
variable. The names must match the entries in
VariableNames . |
"all" | All variables are discrete numeric variables. |
You cannot specify categorical variables as discrete numeric variables.
Example: DiscreteNumericVariables=[2 5]
Data Types: single
| double
| logical
| string
| cell
Options
— Options for computing in parallel and setting random streams
structure
Options for computing in parallel and setting random streams, specified as a
structure. Create the Options
structure using statset
. This table lists the option fields and their
values.
Field Name | Value | Default |
---|---|---|
UseParallel | Set this value to true to run computations in
parallel. | false |
UseSubstreams | Set this value to To compute
reproducibly, set | false |
Streams | Specify this value as a RandStream object or
cell array of such objects. Use a single object except when the
UseParallel value is true
and the UseSubstreams value is
false . In that case, use a cell array that
has the same size as the parallel pool. | If you do not specify Streams , then
synthesizeTabularData uses the default stream or
streams. |
Note
You need Parallel Computing Toolbox™ to run computations in parallel.
Example: Options=statset(UseParallel=true,UseSubstreams=true,Streams=RandStream("mlfg6331_64"))
Data Types: struct
Output Arguments
syntheticX
— Synthetic data set
numeric matrix | table
Synthetic data set, returned as a numeric matrix or a table.
syntheticX
and X
have the same data
type.
Algorithms
Estimate Multivariate Data Distribution by Binning
The synthesizeTabularData
function estimates the distribution of the multivariate
data set X
by performing these steps:
Bin each continuous variable using equiprobable or equal-width binning, as specified by the
BinMethod
andNumBins
name-value arguments.Encode the continuous variables using the bin indices.
One-hot encode all binned and discrete variables.
Compute the probability of each unique row in the encoded data set.
The synthesizeTabularData
function uses the computed probabilities to
generate synthetic data.
Generate Synthetic Data
The process for estimating the multivariate data distribution includes computing the
probability of each unique row in the one-hot encoded data set (after binning continuous
variables). The synthesizeTabularData
function uses this estimated
multivariate data distribution to generate synthetic observations. The function performs
these steps:
Use the previously computed probabilities to sample with replacement
n
rows from the unique rows in the encoded data set.Decode the sampled data to obtain the bin indices (for continuous variables) and categories (for discrete variables).
For the binned variables, uniformly sample from within the bin edges to obtain continuous values. If you use equiprobable binning (
BinMethod
) and the extreme bin widths are greater than 1.5 times the median of the nonextreme bin widths, then the function samples from the cumulative distribution function (cdf) in the extreme bins.
Alternative Functionality
Instead of calling the synthesizeTabularData
function to generate
synthetic data directly, you can first create a binningTabularSynthesizer
object using an existing data set, and then call the
synthesizeTabularData
object function to synthesize data using the object. By
creating an object, you can easily generate synthetic data multiple times without having to
relearn characteristics of the existing data set.
Extended Capabilities
Automatic Parallel Support
Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.
To run in parallel, specify the Options
name-value argument in the call to
this function and set the UseParallel
field of the
options structure to true
using
statset
:
Options=statset(UseParallel=true)
For more information about parallel computing, see Run MATLAB Functions with Automatic Parallel Support (Parallel Computing Toolbox).
Version History
Introduced in R2024b
MATLAB-Befehl
Sie haben auf einen Link geklickt, der diesem MATLAB-Befehl entspricht:
Führen Sie den Befehl durch Eingabe in das MATLAB-Befehlsfenster aus. Webbrowser unterstützen keine MATLAB-Befehle.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
