# detectdrift

Detect drifts between baseline and target data using permutation testing

## Syntax

``DDiagnostics = detectdrift(Baseline,Target)``
``DDiagnostics = detectdrift(Baseline,Target,Name=Value)``

## Description

example

````DDiagnostics = detectdrift(Baseline,Target)` performs Permutation Testing to detect drift for each variable in the `Baseline` and `Target` data sets and returns the results in `DDiagnostics`.`DDiagnostics` is a `DriftDiagnostics` object.```

example

````DDiagnostics = detectdrift(Baseline,Target,Name=Value)` specifies additional options using one or more of the name-value arguments. For example, you can specify the metrics to use for the variables or the maximum number of permutations.```

## Examples

collapse all

Generate baseline and target data with two variables, where the distribution parameters of the second variable change for target data.

```rng('default') % For reproducibility baseline = [normrnd(0,1,100,1),wblrnd(1.1,1,100,1)]; target = [normrnd(0,1,100,1),wblrnd(1.2,2,100,1)];```

Compare the two data sets for any drift.

`DDiagnostics = detectdrift(baseline,target)`
```DDiagnostics = DriftDiagnostics VariableNames: ["x1" "x2"] CategoricalVariables: [] DriftStatus: ["Stable" "Drift"] PValues: [0.2850 0.0030] ConfidenceIntervals: [2x2 double] MultipleTestDriftStatus: "Drift" DriftThreshold: 0.0500 WarningThreshold: 0.1000 Properties, Methods ```

DDiagnostics is a `DriftDiagnostics` object. `detectdrift` displays some of the object properties.

You can further display the confidence intervals for the estimated p-values.

`DDiagnostics.ConfidenceIntervals`
```ans = 2×2 0.2572 0.0006 0.3141 0.0087 ```

The lower bound of the confidence interval for the estimated p-value for the first variable is greater than the warning threshold value of 0.1. Hence, `detectdrift` concludes the target data for the first variable is stable compared to the baseline data. The upper bound of the confidence interval for the estimated p-value for the second variable is smaller than the drift threshold of 0.05, so the drift status for this variable is drift. `detectdrift` detects the shift in the distribution parameters.

`detectdrift` uses the default Bonferroni method for testing multiple hypotheses. It first divides the warning and drift thresholds by the number of p-values, which in this case is two. Then it checks any of the p-values are still lower than any of the thresholds. You can see that the second p-value is still lower than the modified drift threshold, so the software sets the `MultipleTestDriftStatus` to drift for overall data.

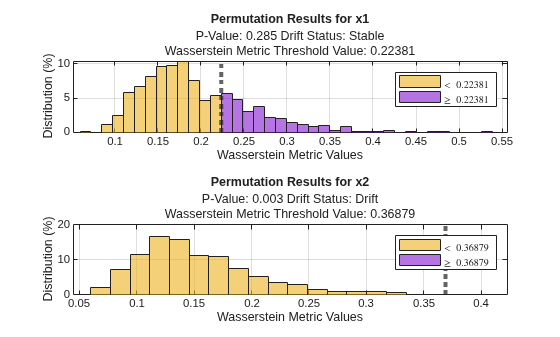

Visualize the permutation results for both variables.

```tiledlayout(1,2); ax1 = nexttile; plotPermutationResults(DDiagnostics,ax1,Variable="x1") ax2 = nexttile; plotPermutationResults(DDiagnostics,ax2,Variable="x2")```

Bars to the right of the dashed line show the metric values that are greater than the threshold, which is the initial metric value `detectdrift` computes using the baseline and target data for each variable. The amount of the bars greater than the threshold is much more for variable `x1`, which indicates that there is not a significant drift between baseline and target data for that variable.

Load the sample data.

`load humanactivity`

For details on the data set, enter `Description` at the command line. Assign the first 250 observations as baseline data and next 250 as target data.

```baseline = feat(1:250,:); target = feat(251:500,:);```

Test for drift on variables 5 to 10 using a warning threshold of 0.05 and a drift threshold of 0.01. All variables are continuous, so use the Kolmogorov-Smirnov metric for all variables. Use the False Discovery Rate method as the multiple test correction.

```DDiagnostics = detectdrift(baseline(:,5:10),target(:,5:10),WarningThreshold=0.05, ... DriftThreshold=0.01,ContinuousMetric="ks",MultipleTestCorrection="fdr")```
```DDiagnostics = DriftDiagnostics VariableNames: ["x1" "x2" "x3" "x4" "x5" "x6"] CategoricalVariables: [] DriftStatus: ["Drift" "Drift" "Drift" ... ] PValues: [1.0000e-03 1.0000e-03 1.0000e-03 0.8810 ... ] ConfidenceIntervals: [2x6 double] MultipleTestDriftStatus: "Drift" DriftThreshold: 0.0100 WarningThreshold: 0.0500 Properties, Methods ```

Display the confidence intervals for p-value estimates.

`DDiagnostics.ConfidenceIntervals`
```ans = 2×6 0.0000 0.0000 0.0000 0.8593 0.0055 0.0000 0.0056 0.0056 0.0056 0.9004 0.0196 0.0056 ```

The lower confidence bound of the p-value for the 8th variable (corresponding variable name `x4`) is greater than the warning threshold, hence `detectdrift` decides the drift status for this variable is `Stable`. The upper confidence bound of the p-value for the 9th variable (corresponding variable name `x5`) is greater than the drift threshold, but lower than the warning threshold. Hence, `detectdrift` decides the drift status for this variable is `Warning`. Confidence intervals of all other variables are smaller than the drift threshold, so their drift statuses are `Drift`. Based on the False Discovery Rate method for multiple test correction, the software decides the drift status for overall data is `Drift`.

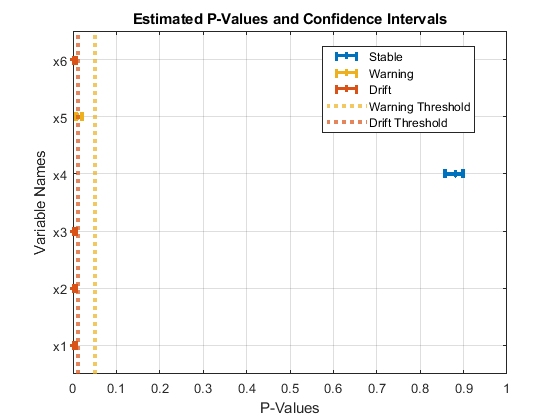

Visualize the p-values with the confidence intervals and corresponding drift status.

`plotDriftStatus(DDiagnostics)`

Load the data set NYCHousing2015.

`load NYCHousing2015`

The data set includes 10 variables with information on the sales of properties in New York City in 2015.

Remove outliers, convert the `datetime` array (`SALEDATE`) to the month numbers.

```idx = isoutlier(NYCHousing2015.SALEPRICE); NYCHousing2015(idx,:) = []; NYCHousing2015.SALEDATE = month(NYCHousing2015.SALEDATE);```

Define baseline and target data as information on the sales made in the months January and July, respectively.

```tbl = NYCHousing2015; baseline = tbl(tbl.SALEDATE==1,:); target = tbl(tbl.SALEDATE==7,:);```

Shuffle data.

```n = numel(baseline(:,1)); rng(1); % For reproducibility idx = randsample(n,n); baseline = baseline(idx,:); n = numel(target(:,1)); idx = randsample(n,n); target = target(idx,:);```

Test for potential drift between the baseline and target data. Specify the categorical variables and the metrics to use with each variable.

```DDiagnostics = detectdrift(baseline(1:1500,:),target(1:1500,:), ... VariableNames=["BOROUGH","BUILDINGCLASSCATEGORY","LANDSQUAREFEET","GROSSSQUAREFEET","SALEPRICE"], ... CategoricalVariables=["BOROUGH","BUILDINGCLASSCATEGORY"], ... Metrics=["Hellinger","Hellinger","ad","ks","energy"])```
```DDiagnostics = DriftDiagnostics VariableNames: ["BOROUGH" "BUILDINGCLASSCATEGORY" ... ] CategoricalVariables: [1 2] DriftStatus: ["Drift" "Stable" "Drift" ... ] PValues: [0.0260 0.1440 0.0070 0.0230 0.0110] ConfidenceIntervals: [2x5 double] MultipleTestDriftStatus: "Drift" DriftThreshold: 0.0500 WarningThreshold: 0.1000 Properties, Methods ```

`detectdrift` identifies drift between the baseline and target data for all variables, but `BUILDINGCLASSCATEGORY`.

Display the confidence intervals for the estimated p-values.

`DDiagnostics.ConfidenceIntervals`
```ans = 2×5 0.0171 0.1228 0.0028 0.0146 0.0055 0.0379 0.1673 0.0144 0.0343 0.0196 ```

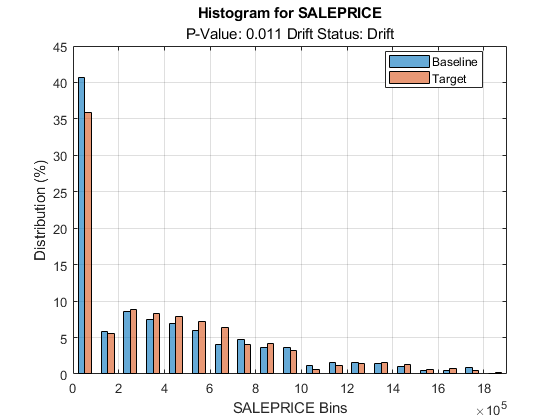

Plot histogram for `SALEPRICE`.

`plotHistogram(DDiagnostics,Variable="SALEPRICE")`

Histogram shows the shift in the sale prices for the month of July compared to January.

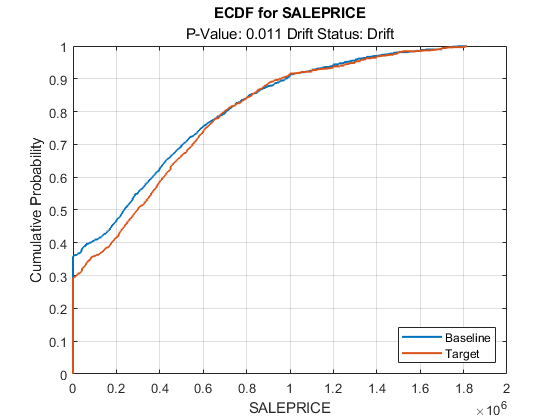

Plot the empirical cumulative distribution function for baseline and target data of `SALEPRICE`.

`plotEmpiricalCDF(DDiagnostics,Variable="SALEPRICE")`

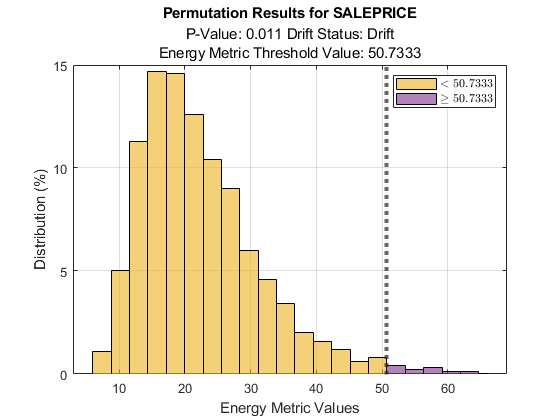

Plot the permutation results for `SALEPRICE`.

`plotPermutationResults(DDiagnostics,Variable="SALEPRICE")`

Generate baseline and target data with three variables, where the distribution parameters of the second and third variables change for target data.

```rng('default') % For reproducibility baseline = [normrnd(0,1,100,1),wblrnd(1.1,1,100,1),betarnd(1,2,100,1)]; target = [normrnd(0,1,100,1),wblrnd(1.2,2,100,1),betarnd(1.7,2.8,100,1)];```

Compute the initial metrics for all variables between the baseline and target data without estimating p-values.

`DDiagnostics = detectdrift(baseline,target,EstimatePValues=false)`
```DDiagnostics = DriftDiagnostics VariableNames: ["x1" "x2" "x3"] CategoricalVariables: [] Metrics: ["Wasserstein" "Wasserstein" "Wasserstein"] MetricValues: [0.2022 0.3468 0.0559] Properties, Methods ```

`detectdrift` only computes the initial metrics value for each variable using the baseline and target data. The properties associated with permutation testing and p-value estimation are either empty or contain `NaN`s.

`summary(DDiagnostics)`
``` MetricValue Metric ___________ _____________ x1 0.20215 "Wasserstein" x2 0.34676 "Wasserstein" x3 0.055922 "Wasserstein" ```

`summary` method only displays the metrics used and the initial metric value for each of the specified variables.

`plotDriftStatus` and `plotPermutationResults` do not produce plots and return warning messages. `plotEmpiricalCDF` and `plotHistogram` plot the ecdf and the histogram, respectively, for the first variable by default. They both return `NaN` for the p-value and drift status associated with the variable.

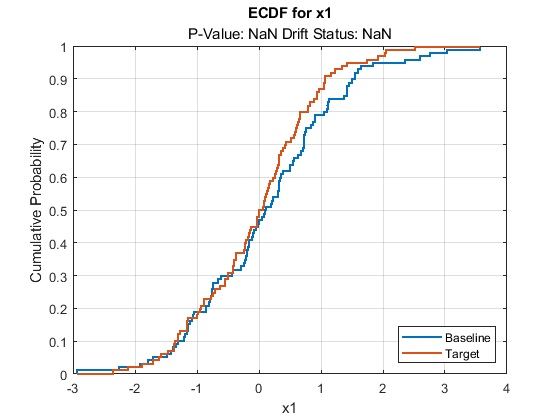

`plotEmpiricalCDF(DDiagnostics)`

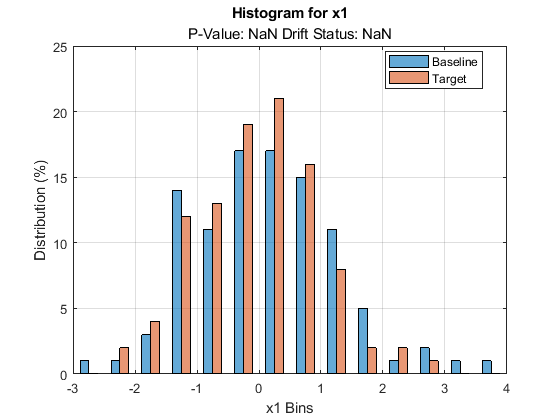

`plotHistogram(DDiagnostics)`

## Input Arguments

collapse all

Baseline data, specified as a numeric array, categorical array, or table. `Baseline` and `Target` data must have the same data type. When the input data is a categorical array, `detectdrift` treats each column as an independent categorical variable.

Data Types: `single` | `double` | `categorical` | `table`

Target data, specified as a numeric array, categorical array, or table. `Baseline` and `Target` data must have the same data type. When the input data is a categorical array, `detectdrift` treats each column as an independent categorical variable.

Data Types: `single` | `double` | `categorical` | `table`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `detectdrift(Baseline,Target,WarningThreshold=0.05,DriftThreshold=0.01,VariableNames=[''Weight'',''MPG''],ContinuousMetrics=''ad'')` sets the warning threshold to 0.05 and drift threshold to 0.01, specifies Weight and MPG as the variables to test for drift detection, and Anderson-Darling as the metric to use in testing all continuous variables.

Variables to analyze for drift, specified as a string, array of unique strings, character vector, or cell array of character vectors.

Example: `VariableNames=["x1","x3"]`

Data Types: `string` | `char` | `cell`

List of categorical variables, specified as `"all"`, a string, array of unique strings, character vector, cell array of unique character vectors, vector of integer indices, or vector of logical indices.

`detectdrift` treats the following as categorical variables: `ordinal` or `nominal` data types, or the `categorical` data type with the ordinal indicator set to true as categorical variables.

Example: `CategoricalVariables="Zone"`

Data Types: `single` | `double` | `logical` | `string` | `cell`

Threshold for detecting drift, specified as a scalar value from 0 to 1.

`detectdrift` uses the drift threshold together with warning threshold to determine the drift status. The `DriftThreshold` value must be strictly lower than `WarningThreshold` value.

If the confidence interval for an estimated p-value is (Lower,Upper), then `detectdrift` determines the drift status as follows.

Drift StatusCondition
DriftUpper < `DriftThreshold`
Warning`DriftThreshold` < Lower < `WarningThreshold` or `DriftThreshold` < Upper < `WarningThreshold`
StableLower > `WarningThreshold`

Example: `DriftThreshold=0.01`

Data Types: `single` | `double`

Threshold for potential drift warning, specified as a scalar value between 0 and 1.

`detectdrift` uses the warning threshold together with drift threshold to determine the drift status. `WarningThreshold` value must be strictly greater than `DriftThreshold` value.

If the confidence interval for an estimated p-value is (Lower,Upper), then `detectdrift` determines the drift status as follows.

Drift StatusCondition
DriftUpper < `DriftThreshold`
Warning`DriftThreshold` < Lower < `WarningThreshold` or `DriftThreshold` < Upper < `WarningThreshold`
StableLower > `WarningThreshold`

Example: `WarningThreshold=0.05`

Data Types: `single` | `double`

Maximum number of permutations, specified as a positive integer value. `detectdrift` increases the number of trials for permutation logarithmically according to a heuristic algorithm until it determines the drift status or reaches `MaxNumPermutations`. If `detectdrift` cannot determine the drift status by the end of the maximum number of permutations, then it sets the drift status to `"Warning"`.

Example: `MaxNumPermutations=1500`

Data Types: `single` | `double`

Metrics used to detect drift for each variable, specified as one of the following:

• String, string vector, character vector, or cell array of character vectors representing one or more of the built-in metrics.

Built-in metrics for continuous variables

ValueDefinition
`''wasserstein''`Wasserstein
`''energy''`Energy
`''ks''`Kolmogorov-Smirnov
`''ad''`Anderson-Darling

Built-in metrics for categorical variables

ValueDefinition
`''tv''`Total Variation
`''psi''`Population Stability Index
`''hellinger''`Hellinger
`''chi2''`Chi-Square
`''bhattacharyya''`Bhattarcharyya
• Function handle or a cell array of function handles. If you provide a function handle `FUN` as a metric, it is called as follows:

`FUN(BaselineVariable,TargetVariable)`,

where `BaselineVariable` is the variable in `Baseline` and `TargetVariable` is the variable in `Target`. Output of `FUN` must be a scalar representing the metric value.

• Structure or a cell array of structures, where each structure has a single field and its value is a function handle. If you pass a structure, `detectdrift` uses the field name as the metric name. If the function handle is anonymous, `detectdrift` names it as `'CustomMetric_i'`, where i is the position in the `Metrics` value.

`Metrics` must have one value for each variable specified for drift detection using `VariableNames` and its size must be equal to the size of `VariableNames`.

If you specify metrics using `Metrics`, you cannot specify them using either `ContinuousMetric` or `CategoricalMetric`.

Example: `Metrics=[''wasserstein'',''psi'',''hellinger'']`

Data Types: `string` | `cell` | `function_handle` | `struct`

Metric for drift detection in continuous variables, specified as one of the following:

• String or a character vector representing one or more of the built-in metrics.

Built-in metrics for continuous variables

ValueDefinition
`''wasserstein''`Wasserstein
`''energy''`Energy
`''ks''`Kolmogorov-Smirnov
`''ad''`Anderson-Darling
• Function handle called as follows:

`FUN(BaselineVariable,TargetVariable)`,

where `BaselineVariable` is the variable in `Baseline` and `TargetVariable` is the variable in `Target`. Output of `FUN` must be a scalar representing the metric value.

If the function handle is not anonymous, `detectdrift` extracts the metric name from the provided function handle. If it is an anonymous function handle, then it names the metric `'CustomContinuousMetric'`.

• Structure with a single field whose value is a function handle. In this case, `detectdrift` uses the field name as the metric name.

If you specify `ContinuousMetric`, then you cannot specify any other metrics using `Metrics`.

Example: `ContinuousMetric=''ks''`

Data Types: `string` | `char` | `function_handle` | `struct`

Metric for drift detection in categorical variables, specified as one of the following.

• String or a character vector representing one or more of the built-in metrics.

Built-in metrics for categorical variables

ValueDefinition
`''tv''`Total Variation
`''psi''`Population Stability Index
`''hellinger''`Hellinger
`''chi2''`Chi-Square
`''bhattacharyya''`Bhattarcharyya
• Function handle called as follows:

`FUN(BaselineVariable,TargetVariable)`,

where `BaselineVariable` is the variable in `Baseline` and `TargetVariable` is the variable in `Target`. Output of `FUN` must be a scalar representing the metric value.

If the function handle is not anonymous, `detectdrift` extracts the metric name from the provided function handle. If it is an anonymous function handle, then it names the metric `'CustomCategoricalMetric'`.

• Structure with a single field whose value is a function handle. In this case, `detectdrift` uses the field name as the metric name.

If you specify `CategoricalMetric`, then you cannot specify any other arguments using `Metrics`.

Example: `CategoricalMetric="chi2"`

Data Types: `string` | `char` | `function_handle` | `struct`

Correction method for multiple hypothesis tests, specified as one of the following.

• `"bonferroni"` - Bonferroni correction. If there are k variables specified for drift detection, `detectdrift` modifies the warning threshold and drift threshold by dividing them with k. Then, it checks if any of the p-values are smaller than the modified threshold values to decide the drift status.

• `"fdr"` - False discovery rate (FDR) method. `detectdrift` uses the Benjamini-Hochberg procedure to compute the false discovery rate. If there are k variables specified for drift detection, the method works in the following way:

1. Ranks the p-values corresponding to these variables.

2. Divides the ranks 1 to k by the number of variables k to obtain Q = [1/k, 2/k, 3/k ,…,k/k].

3. Modifies the warning and drift thresholds for each sorted p-value by multiplying the initial warning and drift threshold values with the corresponding q value; for example, modified warning threshold for rank 3 is (WarningThreshold)*3/k.

4. Checks if any of the sorted p-values is smaller than the corresponding modified warning or drift thresholds to decide on the drift status.

The multiple test correction methods provide a conservative estimate of the multivariable drift.

Example: `MultipleTestCorrection="fdr"`

Flag to run in parallel, specified as `true` or `false`. If you specify `UseParallel=true`, the `detectdrift` function executes for-loop iterations in parallel by using `parfor`. This option requires Parallel Computing Toolbox™

Example: `UseParallel=true`

Indicator to estimate the p-values during permutation testing, specified as either `true` or `false`. If you `EstimatePValues` as `false`, then `detectdrift` only computes the metrics.

Example: `EstimatePValues=false`

## Output Arguments

collapse all

Results of permutation testing for drift detection, specified as a `DriftDiagnostics` object. `detectdrift` displays the following properties.

Property NameDescription
`VariableNames`Variables analyzed for drift detection
`CategoricalVariables`Indices of categorical variables in the data
`DriftStatus`Drift status for each variable
`PValues`Estimated p-value for each variable
`ConfidenceIntervals`95% confidence interval bounds for the estimated p-values
`MultipleTestDriftStatus`Drift status for the overall data
`DriftThreshold`Threshold to determine the drift status
`WarningThreshold`Threshold to determine the warning status

For a full list of the properties and their descriptions, see the `DriftDiagnostics` reference page.

## Algorithms

collapse all

### Permutation Testing

`detectdrift` uses permutation testing to determine drift status for each variable in the `Baseline` data and its counterpart in the `Target` data. A permutation test is a nonparametric statistical significance test in which the distribution of a metric (test statistic) under the null hypothesis is obtained by computing the values of that metric under all possible rearrangements of a variable in `Baseline` and `Target`. Depending on the number of variables and observations, trying all possible permutations of a variable might be infeasible, hence `detectdrift` performs sufficiently many permutations to obtain a good estimate of the metric for the variable under consideration.

Under null hypothesis, i.e. no drift, many values of the metric recorded during permutation testing will be as extreme as or more extreme than the initial test statistic. If this is the case, it implies that with sufficiently high confidence, the observations of the specified variable in baseline data and in target data come from the same distribution. Hence no evidence of drift is found and `detectdrift` fails to reject the null hypothesis.

If the initial test statistic is identified as an outlier, then null hypothesis is rejected. This implies that with sufficiently high confidence, the observations of the specified variable in baseline data and in target data come from different distributions. Hence, drift is detected.

These are the steps that `detectdrift` takes in permutation testing:

• For a given variable with m observations in baseline data and n observations in target data, `detectdrift` computes an initial value of the metric from the original data.

• It then permutes the observations of the variable in baseline data and target data and separates them into two vectors with sizes m and n, respectively. Next, it computes the same metric value. `detectdrift` repeats this for `MaxNumPermutations` times to get a distribution of the specified metric.

• An estimate of the p-value is p = x/perm, where x is the number of times a metric value obtained from a permutation is greater than the value of the initial metric value, and perm is the number of permutations. With the Binomial distribution assumption for x, `detectdrift` estimates the 95% confidence interval for the p-value by using `[~,CI] = binofit(x,perm,0.05)`.

Given the confidence intervals (Lower, Upper) of the p-values, `detectdrift` decides on the drift status based on the following conditions:

Drift StatusCondition
DriftUpper < `DriftThreshold`
Warning`DriftThreshold` < Lower < `WarningThreshold` or `DriftThreshold` < Upper < `WarningThreshold`
StableLower > `WarningThreshold`

### Metrics

`detectdrift` uses the following metrics as test statistics in permutation testing for detecting drift between baseline and target data.

Metrics for Continuous Variables

After defining ${E}_{b}\left(x\right)$ as the empirical cumulative distribution function (ecdf) of the baseline data over the common domain, ${E}_{t}\left(x\right)$ as the ecdf of the target data over the common domain, $D\left(x\right)$ as the joint ecdf of all data, and w as the difference between the edges of the bins, `detectdrift` computes the metrics for continuous variables as follows.

• Wasserstein

`$W=\sum _{x}w*|{E}_{b}\left(x\right)-{E}_{t}\left(x\right)|$`
• Energy

`$En=\sqrt{2*\sum _{x}w*{|{E}_{b}\left(x\right)-{E}_{t}\left(x\right)|}^{2}}$`
• Kolmogorov-Smirnov

`$KS=\mathrm{max}|{E}_{b}\left(x\right)-{E}_{t}\left(x\right)|$`
• Anderson-Darling

`$AD={\sum _{x}\left(\frac{|{E}_{b}\left(x\right)-{E}_{t}\left(x\right)|}{\sqrt{\left(m+n\right)D\left(x\right)*\left(1-D\left(x\right)\right)}}\right)}^{2}$`

m and n are the number of observations in baseline data and target data, respectively.

Metrics for Categorical Variables

After defining ${H}_{b}\left(x\right)$ as the percentage of the baseline data in the bins determined by combining the baseline and target data (jointly considering them across the same domain) and ${H}_{t}\left(x\right)$ as the percentage of the baseline data in the bins determined by combining the baseline and target data, `detectdrift` computes the metrics for categorical variables in the following way.

Note that, for categorical data, `detectdrift` adds 0.5 correction factor to histogram bin counts for each bin to handle empty bins (categories). This is equivalent to the assumption that the parameter p, probability that value of the variable would be in that category, has the prior distribution Beta(0.5,0.5), i.e. Jefferys prior assumption for the distribution parameter.

• Total Variation

`$TV=0.5*\sum _{x}|{H}_{b}\left(x\right)-{H}_{t}\left(x\right)|$`
• Population Stability Index

`$PSI=\mathrm{max}\left(0,\sum _{x}\mathrm{log}\left(\frac{{H}_{t}\left(x\right)}{{H}_{b}\left(x\right)}\right)\left({H}_{t}\left(x\right)-{H}_{b}\left(x\right)\right)\right)$`
• Chi-Square

`${\chi }^{2}=\sum _{x}\frac{{\left({H}_{t}\left(x\right)-{H}_{b}\left(x\right)\right)}^{2}}{{H}_{b}\left(x\right)}$`
• Bhattarcharyya

`$B=\mathrm{max}\left(0,-\mathrm{log}\left(\mathrm{min}\left(1,\sum _{x}\sqrt{{H}_{b}\left(x\right)*{H}_{t}\left(x\right)}\right)\right)\right)$`
• Hellinger

`$H=\mathrm{max}\left(0,\sqrt{1-\left(\mathrm{min}\left(1,\sum _{x}\sqrt{{H}_{b}\left(x\right)*{H}_{t}\left(x\right)}\right)\right)}\right)$`

## References

[1] Benjamini, Yoav, and Yosef Hochberg. "Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing." Journal of the Royal Statistical Society, Series B (Methodological). Vol. 57, No. 1, pp. 289-300, 1995.

[2] Villani, Cédric. Topics in Optimal Transportation. Graduate Studies in Mathematics. Vol. 58, American Mathematical Society, 2000.

[3] Deza, Elena, and Michel Marie Deza. Encyclopedia of Distances, Springer Berlin Heidelberg, 2009.

## Version History

Introduced in R2022a
