Filterimplementierung

Einfrequenz-, Mehrfrequenz- und adaptive Filter

DSP System Toolbox™ umfasst Filterblöcke und System objects, mit denen Sie ein Streamingsignal in MATLAB^® und Simulink^® filtern können. Neben den konventionellen FIR- und IIR-Filtern bietet diese Toolbox zudem spezialisierte Filter wie Mehrfrequenz-Mehrstufen-Filter, Wave-Digital-Filter und Farrow-Filter.

Wichtige Themen

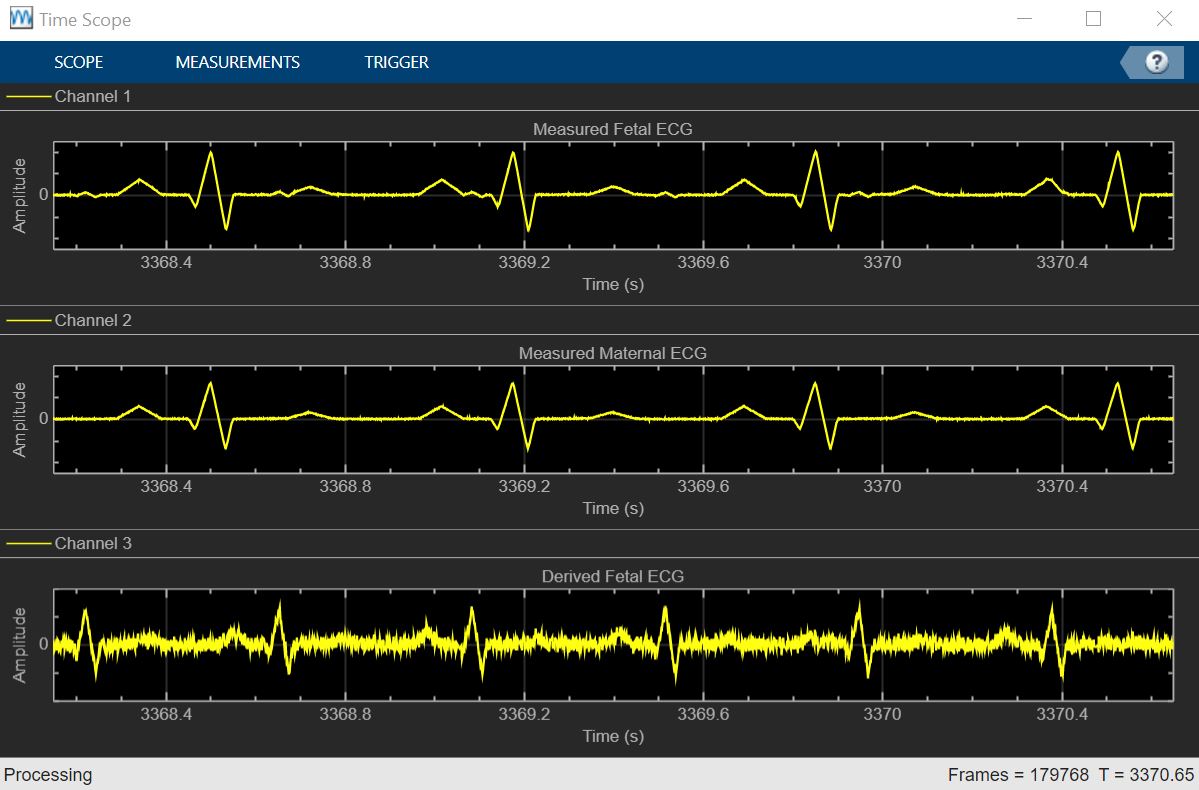

Enthaltene Beispiele

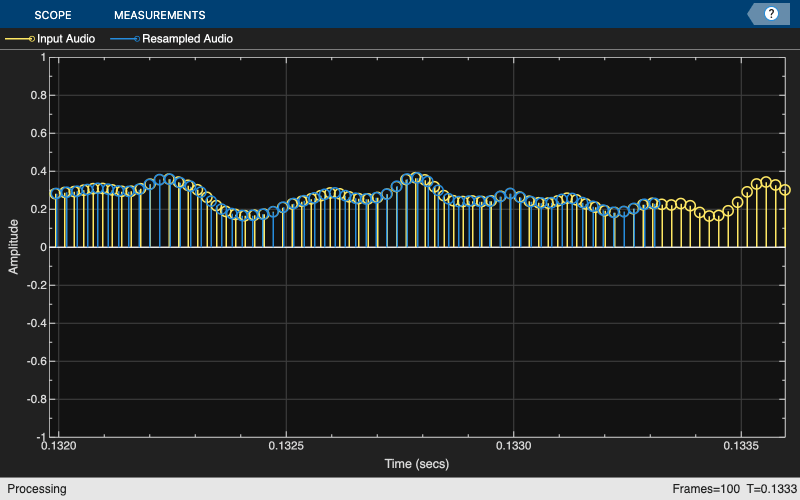

Multistage Rate Conversion

Design multistage rate conversion filters.

Script öffnen

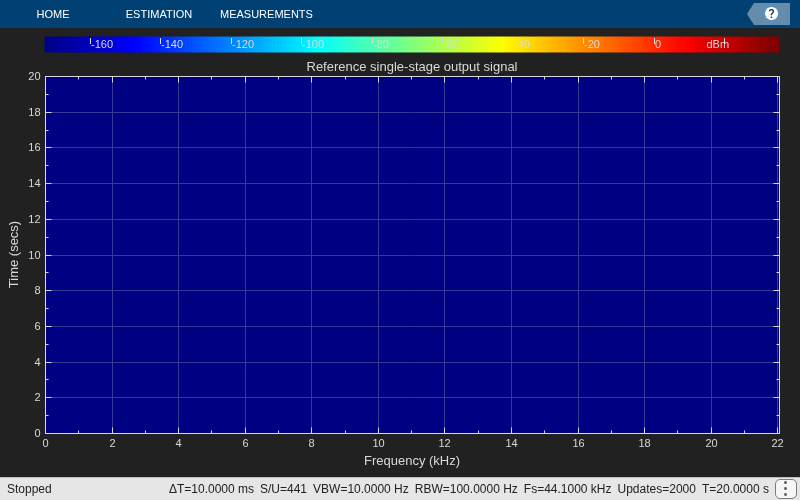

Multistage Rate Conversion Using FIR Rate Converter

Compare multistage rate conversion with single stage rate conversion using the dsp.FIRRateConverter object.

Live Script öffnen

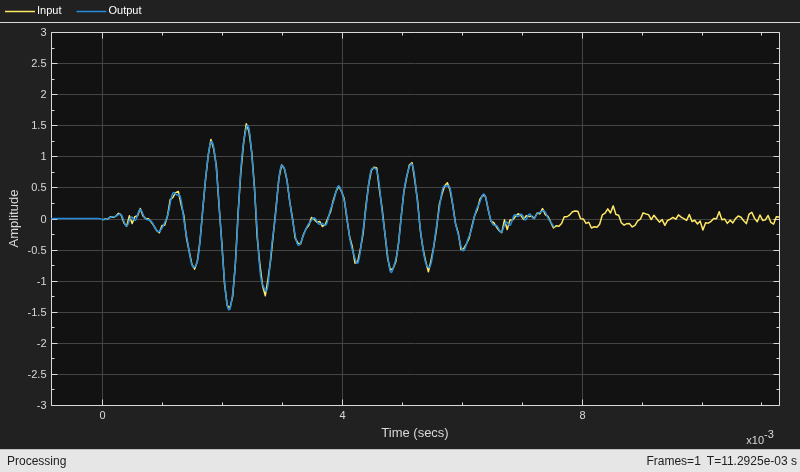

Time Delay and Scaling in Multirate DSP Filters

Effect of time delay and scaling in multirate filters. Use outputDelay function to calculate the time delay and scaling.

Live Script öffnen

Overlap-Add/Save

Filter a sinusoid with the Overlap-Add and Overlap-Save FFT methods using the Frequency-Domain FIR filter block.

Modell öffnen

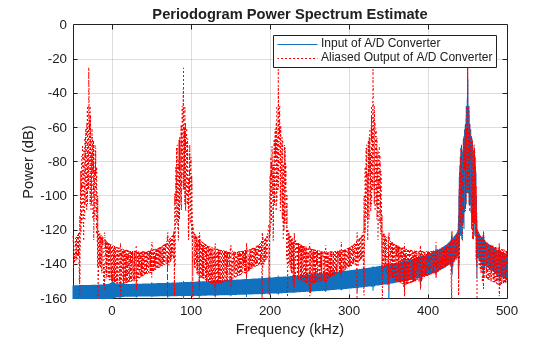

IF Subsampling with Complex Multirate Filters

Use complex multirate filters in the implementation of Digital Down-Converters (DDC). The DDC is a key component of digital radios. It performs the frequency translation necessary to convert the high input sample rates typically found at the output of an analog-to-digital (A/D) converter down to lower sample rates for further and easier processing. In this example, we will see how an audio signal modulated with a 450 kHz carrier frequency can be brought down to a 20 kHz sampling frequency. After a brief review of the conventional DDC architecture, we will describe an alternative solution known as Intermediate Frequency (IF) subsampling and we will compare the respective implementation cost of these two solutions. This example requires a Fixed-Point Designer™ license.
