semanticseg

Semantic image segmentation using deep learning

Syntax

C = semanticseg(I,network)

[C,score,allScores] = semanticseg(I,network)

[___] = semanticseg(I,network,roi)

pxds = semanticseg(ds,network)

[___] = semanticseg(___,Name=Value)

Description

C = semanticseg(I,network) returns a semantic segmentation of the input image using deep learning.

[C,score,allScores] = semanticseg(I,network) also returns the classification scores for each categorical label in C. The function returns the scores in an array that corresponds to each pixel or voxel in the input image.

[___] = semanticseg(I,network,roi) returns a semantic segmentation for a rectangular subregion of the input image.

pxds = semanticseg(ds,network) returns the semantic segmentation for a collection of images in ds, a datastore object.

The function supports parallel computing using multiple MATLAB^® workers. You can enable parallel computing using the Computer Vision Toolbox Preferences dialog.

[___] = semanticseg(___,Name=Value) specifies options using one or more name-value arguments in addition to any combination of arguments from previous syntaxes. For example, ExecutionEnvironment = "gpu" sets the hardware resource for processing images to gpu.

Examples

Semantic Image Segmentation

Overlay segmentation results on an image and display the results.

Load a pretrained network.

data = load('triangleSegmentationNetwork');
net = data.net

net =
  SeriesNetwork with properties:

         Layers: [10x1 nnet.cnn.layer.Layer]
     InputNames: {'imageinput'}
    OutputNames: {'classoutput'}

List the network layers.

net.Layers

ans =
  10x1 Layer array with layers:

     1   'imageinput'        Image Input                  32x32x1 images with 'zerocenter' normalization
     2   'conv_1'            2-D Convolution              64 3x3x1 convolutions with stride [1  1] and padding [1  1  1  1]
     3   'relu_1'            ReLU                         ReLU
     4   'maxpool'           2-D Max Pooling              2x2 max pooling with stride [2  2] and padding [0  0  0  0]
     5   'conv_2'            2-D Convolution              64 3x3x64 convolutions with stride [1  1] and padding [1  1  1  1]
     6   'relu_2'            ReLU                         ReLU
     7   'transposed-conv'   2-D Transposed Convolution   64 4x4x64 transposed convolutions with stride [2  2] and cropping [1  1  1  1]
     8   'conv_3'            2-D Convolution              2 1x1x64 convolutions with stride [1  1] and padding [0  0  0  0]
     9   'softmax'           Softmax                      softmax
    10   'classoutput'       Pixel Classification Layer   Class weighted cross-entropy loss with classes 'triangle' and 'background'

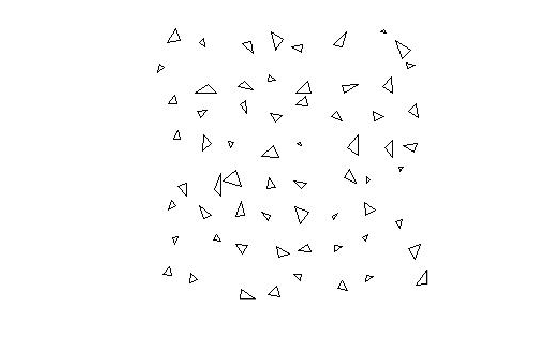

Read and display the test image.

I = imread('triangleTest.jpg');
figure
imshow(I)

Perform semantic image segmentation.

[C,scores] = semanticseg(I,net,'MiniBatchSize',32);

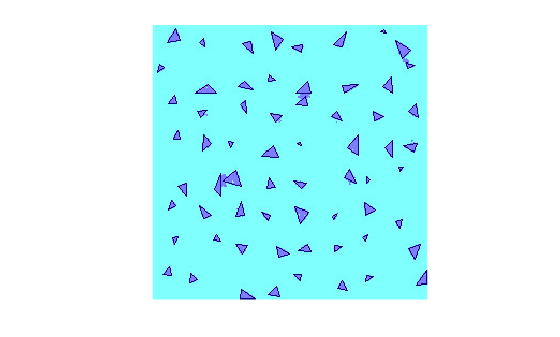

Overlay segmentation results on the image and display the results.

B = labeloverlay(I, C);
figure
imshow(B)

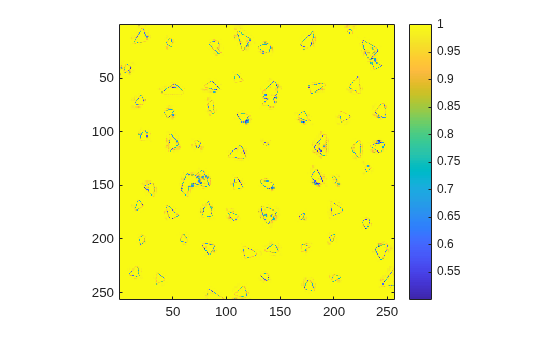

Display the classification scores.

figure
imagesc(scores)
axis square
colorbar

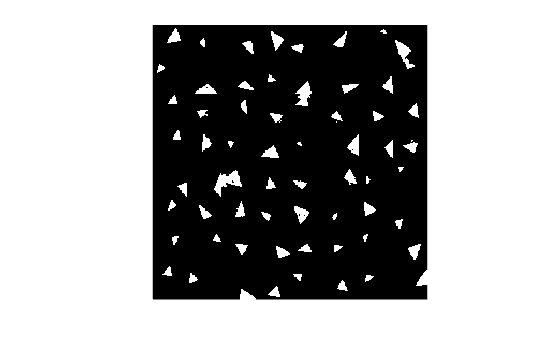

Create a binary mask with only the triangles.

BW = C == 'triangle';
figure
imshow(BW)

Evaluate Semantic Segmentation Test Set

Run semantic segmentation on a test set of images and compare the results against ground truth data.

Load a pretrained network.

data = load('triangleSegmentationNetwork');
net = data.net;

Load test images using imageDatastore.

dataDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
testImageDir = fullfile(dataDir,'testImages');
imds = imageDatastore(testImageDir)

imds =
  ImageDatastore with properties:

                       Files: {
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_001.jpg';
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_002.jpg';
                              ' .../toolbox/vision/visiondata/triangleImages/testImages/image_003.jpg'
                               ... and 97 more
                              }
                     Folders: {
                              ' .../build/matlab/toolbox/vision/visiondata/triangleImages/testImages'
                              }
    AlternateFileSystemRoots: {}
                    ReadSize: 1
                      Labels: {}
      SupportedOutputFormats: ["png"    "jpg"    "jpeg"    "tif"    "tiff"]
         DefaultOutputFormat: "png"
                     ReadFcn: @readDatastoreImage

Load ground truth test labels.

testLabelDir = fullfile(dataDir,'testLabels');
classNames = ["triangle" "background"];
pixelLabelID = [255 0];
pxdsTruth = pixelLabelDatastore(testLabelDir,classNames,pixelLabelID);

Run semantic segmentation on all of the test images with a batch size of 4. You can increase the batch size to increase throughput based on your systems memory resources.

pxdsResults = semanticseg(imds,net,'MiniBatchSize',4,'WriteLocation',tempdir);

Running semantic segmentation network
-------------------------------------
* Processed 100 images.

Compare the results against the ground truth.

metrics = evaluateSemanticSegmentation(pxdsResults,pxdsTruth)

Evaluating semantic segmentation results
----------------------------------------
* Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score.
* Processed 100 images.
* Finalizing... Done.
* Data set metrics:

    GlobalAccuracy    MeanAccuracy    MeanIoU    WeightedIoU    MeanBFScore
    ______________    ____________    _______    ___________    ___________

       0.90624          0.95085       0.61588      0.87529        0.40652

metrics =
  semanticSegmentationMetrics with properties:

              ConfusionMatrix: [2x2 table]
    NormalizedConfusionMatrix: [2x2 table]
               DataSetMetrics: [1x5 table]
                 ClassMetrics: [2x3 table]
                 ImageMetrics: [100x5 table]

Define Custom Pixel Classification Layer with Tversky Loss

This example shows how to define and create a custom pixel classification layer that uses Tversky loss.

This layer can be used to train semantic segmentation networks. To learn more about creating custom deep learning layers, see Define Custom Deep Learning Layers (Deep Learning Toolbox).

Tversky Loss

The Tversky loss is based on the Tversky index for measuring overlap between two segmented images [1]. The Tversky index ${\mathrm{TI}}_{\mathit{c}}$ between one image $\mathit{Y}$ and the corresponding ground truth $\mathit{T}$ is given by

${\mathrm{TI}}_{\mathit{c}}=\frac{{\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\mathrm{cm}}{\mathit{T}}_{\mathrm{cm}}}{{\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\mathrm{cm}}{\mathit{T}}_{\mathrm{cm}}+\alpha {\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\mathrm{cm}}{\mathit{T}}_{\bar{\mathrm{c}}\mathit{m}}+\beta {\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\bar{\mathrm{c}}\mathit{m}}{\mathit{T}}_{\mathrm{cm}}}$

• $\mathit{c}$ corresponds to the class and $\bar{\mathit{c}}$corresponds to not being in class $\mathit{c}$.

• $\mathit{M}$ is the number of elements along the first two dimensions of $\mathit{Y}$.

• $\alpha$ and $\beta$ are weighting factors that control the contribution that false positives and false negatives for each class make to the loss.

The loss $\mathit{L}$over the number of classes $\mathit{C}$ is given by

$$\mathit{L}=\sum _{\mathit{c}=1}^{\mathit{C}}1-{\mathrm{TI}}_{\mathit{c}}$$

Classification Layer Template

Copy the classification layer template into a new file in MATLAB®. This template outlines the structure of a classification layer and includes the functions that define the layer behavior. The rest of the example shows how to complete the tverskyPixelClassificationLayer.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer

   properties
      % Optional properties
   end

   methods

        function loss = forwardLoss(layer, Y, T)
            % Layer forward loss function goes here
        end

    end
end

Declare Layer Properties

By default, custom output layers have the following properties:

• Name – Layer name, specified as a character vector or a string scalar. To include this layer in a layer graph, you must specify a nonempty unique layer name. If you train a series network with this layer and Name is set to '', then the software automatically assigns a name at training time.

• Description – One-line description of the layer, specified as a character vector or a string scalar. This description appears when the layer is displayed in a Layer array. If you do not specify a layer description, then the software displays the layer class name.

• Type – Type of the layer, specified as a character vector or a string scalar. The value of Type appears when the layer is displayed in a Layer array. If you do not specify a layer type, then the software displays 'Classification layer' or 'Regression layer'.

Custom classification layers also have the following property:

• Classes – Classes of the output layer, specified as a categorical vector, string array, cell array of character vectors, or 'auto'. If Classes is 'auto', then the software automatically sets the classes at training time. If you specify a string array or cell array of character vectors str, then the software sets the classes of the output layer to categorical(str,str). The default value is 'auto'.

If the layer has no other properties, then you can omit the properties section.

The Tversky loss requires a small constant value to prevent division by zero. Specify the property, Epsilon, to hold this value. It also requires two variable properties Alpha and Beta that control the weighting of false positives and false negatives, respectively.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer

    properties(Constant)
       % Small constant to prevent division by zero.
       Epsilon = 1e-8;
    end

    properties
       % Default weighting coefficients for false positives and false negatives
       Alpha = 0.5;
       Beta = 0.5;
    end

    ...
end

Create Constructor Function

Create the function that constructs the layer and initializes the layer properties. Specify any variables required to create the layer as inputs to the constructor function.

Specify an optional input argument name to assign to the Name property at creation.

function layer = tverskyPixelClassificationLayer(name, alpha, beta)
    % layer =  tverskyPixelClassificationLayer(name) creates a Tversky
    % pixel classification layer with the specified name.

    % Set layer name
    layer.Name = name;

    % Set layer properties
    layer.Alpha = alpha;
    layer.Beta = beta;

    % Set layer description
    layer.Description = 'Tversky loss';
end

Create Forward Loss Function

Create a function named forwardLoss that returns the weighted cross entropy loss between the predictions made by the network and the training targets. The syntax for forwardLoss is loss = forwardLoss(layer,Y,T), where Y is the output of the previous layer and T represents the training targets.

For semantic segmentation problems, the dimensions of T match the dimension of Y, where Y is a 4-D array of size H-by-W-by-K-by-N, where K is the number of classes, and N is the mini-batch size.

The size of Y depends on the output of the previous layer. To ensure that Y is the same size as T, you must include a layer that outputs the correct size before the output layer. For example, to ensure that Y is a 4-D array of prediction scores for K classes, you can include a fully connected layer of size K or a convolutional layer with K filters followed by a softmax layer before the output layer.

function loss = forwardLoss(layer, Y, T)
    % loss = forwardLoss(layer, Y, T) returns the Tversky loss between
    % the predictions Y and the training targets T.

    Pcnot = 1-Y;
    Gcnot = 1-T;
    TP = sum(sum(Y.*T,1),2);
    FP = sum(sum(Y.*Gcnot,1),2);
    FN = sum(sum(Pcnot.*T,1),2);

    numer = TP + layer.Epsilon;
    denom = TP + layer.Alpha*FP + layer.Beta*FN + layer.Epsilon;

    % Compute Tversky index
    lossTIc = 1 - numer./denom;
    lossTI = sum(lossTIc,3);

    % Return average Tversky index loss
    N = size(Y,4);
    loss = sum(lossTI)/N;

end

Backward Loss Function

As the forwardLoss function fully supports automatic differentiation, there is no need to create a function for the backward loss.

For a list of functions that support automatic differentiation, see List of Functions with dlarray Support (Deep Learning Toolbox).

Completed Layer

The completed layer is provided in tverskyPixelClassificationLayer.m, which is attached to the example as a supporting file.

classdef tverskyPixelClassificationLayer < nnet.layer.ClassificationLayer
    % This layer implements the Tversky loss function for training
    % semantic segmentation networks.

    % References
    % Salehi, Seyed Sadegh Mohseni, Deniz Erdogmus, and Ali Gholipour.
    % "Tversky loss function for image segmentation using 3D fully
    % convolutional deep networks." International Workshop on Machine
    % Learning in Medical Imaging. Springer, Cham, 2017.
    % ----------


    properties(Constant)
        % Small constant to prevent division by zero.
        Epsilon = 1e-8;
    end

    properties
        % Default weighting coefficients for False Positives and False
        % Negatives
        Alpha = 0.5;
        Beta = 0.5;
    end


    methods

        function layer = tverskyPixelClassificationLayer(name, alpha, beta)
            % layer =  tverskyPixelClassificationLayer(name, alpha, beta) creates a Tversky
            % pixel classification layer with the specified name and properties alpha and beta.

            % Set layer name.
            layer.Name = name;

            layer.Alpha = alpha;
            layer.Beta = beta;

            % Set layer description.
            layer.Description = 'Tversky loss';
        end


        function loss = forwardLoss(layer, Y, T)
            % loss = forwardLoss(layer, Y, T) returns the Tversky loss between
            % the predictions Y and the training targets T.

            Pcnot = 1-Y;
            Gcnot = 1-T;
            TP = sum(sum(Y.*T,1),2);
            FP = sum(sum(Y.*Gcnot,1),2);
            FN = sum(sum(Pcnot.*T,1),2);

            numer = TP + layer.Epsilon;
            denom = TP + layer.Alpha*FP + layer.Beta*FN + layer.Epsilon;

            % Compute tversky index
            lossTIc = 1 - numer./denom;
            lossTI = sum(lossTIc,3);

            % Return average tversky index loss.
            N = size(Y,4);
            loss = sum(lossTI)/N;

        end
    end
end

GPU Compatibility

The MATLAB functions used in forwardLoss in tverskyPixelClassificationLayer all support gpuArray inputs, so the layer is GPU compatible.

Check Output Layer Validity

Create an instance of the layer.

layer = tverskyPixelClassificationLayer('tversky',0.7,0.3);

Check the validity of the layer by using checkLayer (Deep Learning Toolbox). Specify the valid input size to be the size of a single observation of typical input to the layer. The layer expects a H-by-W-by-K-by-N array inputs, where K is the number of classes, and N is the number of observations in the mini-batch.

numClasses = 2;
validInputSize = [4 4 numClasses];
checkLayer(layer,validInputSize, 'ObservationDimension',4)

Skipping GPU tests. No compatible GPU device found.

Skipping code generation compatibility tests. To check validity of the layer for code generation, specify the CheckCodegenCompatibility and ObservationDimension options.

Running nnet.checklayer.TestOutputLayerWithoutBackward
........
Done nnet.checklayer.TestOutputLayerWithoutBackward
__________

Test Summary:
	 8 Passed, 0 Failed, 0 Incomplete, 2 Skipped.
	 Time elapsed: 1.5764 seconds.

The test summary reports the number of passed, failed, incomplete, and skipped tests.

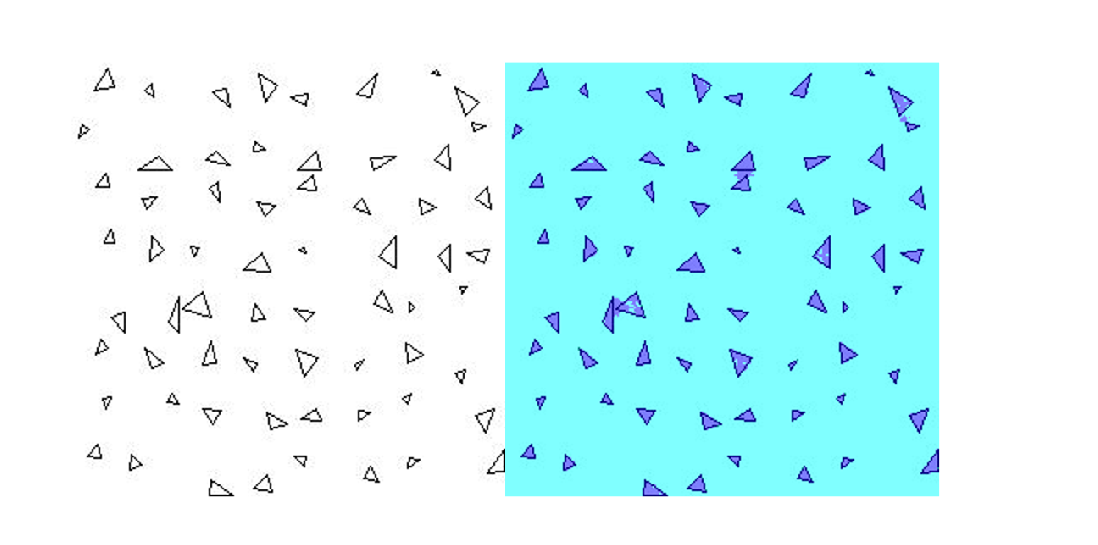

Use Custom Layer in Semantic Segmentation Network

Create a semantic segmentation network that uses the tverskyPixelClassificationLayer.

layers = [
    imageInputLayer([32 32 1])
    convolution2dLayer(3,64,'Padding',1)
    batchNormalizationLayer
    reluLayer
    maxPooling2dLayer(2,'Stride',2)
    convolution2dLayer(3,64,'Padding',1)
    reluLayer
    transposedConv2dLayer(4,64,'Stride',2,'Cropping',1)
    convolution2dLayer(1,2)
    softmaxLayer
    tverskyPixelClassificationLayer('tversky',0.3,0.7)];

Load training data for semantic segmentation using imageDatastore and pixelLabelDatastore.

dataSetDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
imageDir = fullfile(dataSetDir,'trainingImages');
labelDir = fullfile(dataSetDir,'trainingLabels');

imds = imageDatastore(imageDir);

classNames = ["triangle" "background"];
labelIDs = [255 0];
pxds = pixelLabelDatastore(labelDir, classNames, labelIDs);

Associate the image and pixel label data by using datastore combine.

ds = combine(imds,pxds);

Set the training options and train the network.

options = trainingOptions('adam', ...
    'InitialLearnRate',1e-3, ...
    'MaxEpochs',100, ...
    'LearnRateDropFactor',5e-1, ...
    'LearnRateDropPeriod',20, ...
    'LearnRateSchedule','piecewise', ...
    'MiniBatchSize',50);

net = trainNetwork(ds,layers,options);

Training on single CPU.
Initializing input data normalization.
|========================================================================================|
|  Epoch  |  Iteration  |  Time Elapsed  |  Mini-batch  |  Mini-batch  |  Base Learning  |
|         |             |   (hh:mm:ss)   |   Accuracy   |     Loss     |      Rate       |
|========================================================================================|
|       1 |           1 |       00:00:02 |       50.32% |       1.2933 |          0.0010 |
|      13 |          50 |       00:00:26 |       98.83% |       0.0988 |          0.0010 |
|      25 |         100 |       00:00:45 |       99.33% |       0.0547 |          0.0005 |
|      38 |         150 |       00:01:04 |       99.38% |       0.0472 |          0.0005 |
|      50 |         200 |       00:01:24 |       99.48% |       0.0401 |          0.0003 |
|      63 |         250 |       00:01:43 |       99.47% |       0.0384 |          0.0001 |
|      75 |         300 |       00:02:02 |       99.54% |       0.0349 |          0.0001 |
|      88 |         350 |       00:02:23 |       99.51% |       0.0352 |      6.2500e-05 |
|     100 |         400 |       00:02:41 |       99.56% |       0.0331 |      6.2500e-05 |
|========================================================================================|
Training finished: Max epochs completed.

Evaluate the trained network by segmenting a test image and displaying the segmentation result.

I = imread('triangleTest.jpg');
[C,scores] = semanticseg(I,net);

B = labeloverlay(I,C);
montage({I,B})

References

[1] Salehi, Seyed Sadegh Mohseni, Deniz Erdogmus, and Ali Gholipour. "Tversky loss function for image segmentation using 3D fully convolutional deep networks." International Workshop on Machine Learning in Medical Imaging. Springer, Cham, 2017.

Semantic Segmentation Using Dilated Convolutions

Train a semantic segmentation network using dilated convolutions.

A semantic segmentation network classifies every pixel in an image, resulting in an image that is segmented by class. Applications for semantic segmentation include road segmentation for autonomous driving and cancer cell segmentation for medical diagnosis. To learn more, see Getting Started with Semantic Segmentation Using Deep Learning.

Semantic segmentation networks like DeepLab [1] make extensive use of dilated convolutions (also known as atrous convolutions) because they can increase the receptive field of the layer (the area of the input which the layers can see) without increasing the number of parameters or computations.

Load Training Data

The example uses a simple dataset of 32-by-32 triangle images for illustration purposes. The dataset includes accompanying pixel label ground truth data. Load the training data using an imageDatastore and a pixelLabelDatastore.

dataFolder = fullfile(toolboxdir('vision'),'visiondata','triangleImages');
imageFolderTrain = fullfile(dataFolder,'trainingImages');
labelFolderTrain = fullfile(dataFolder,'trainingLabels');

Create an imageDatastore for the images.

imdsTrain = imageDatastore(imageFolderTrain);

Create a pixelLabelDatastore for the ground truth pixel labels.

classNames = ["triangle" "background"];
labels = [255 0];
pxdsTrain = pixelLabelDatastore(labelFolderTrain,classNames,labels)

pxdsTrain =
  PixelLabelDatastore with properties:

                       Files: {200x1 cell}
                  ClassNames: {2x1 cell}
                    ReadSize: 1
                     ReadFcn: @readDatastoreImage
    AlternateFileSystemRoots: {}

Create Semantic Segmentation Network

This example uses a simple semantic segmentation network based on dilated convolutions.

Create a data source for training data and get the pixel counts for each label.

ds = combine(imdsTrain,pxdsTrain);
tbl = countEachLabel(pxdsTrain)

tbl=2×3 table
         Name         PixelCount    ImagePixelCount
    ______________    __________    _______________

    {'triangle'  }         10326       2.048e+05
    {'background'}    1.9447e+05       2.048e+05

The majority of pixel labels are for background. This class imbalance biases the learning process in favor of the dominant class. To fix this, use class weighting to balance the classes. You can use several methods to compute class weights. One common method is inverse frequency weighting where the class weights are the inverse of the class frequencies. This method increases the weight given to under represented classes. Calculate the class weights using inverse frequency weighting.

numberPixels = sum(tbl.PixelCount);
frequency = tbl.PixelCount / numberPixels;
classWeights = 1 ./ frequency;

Create a network for pixel classification by using an image input layer with an input size corresponding to the size of the input images. Next, specify three blocks of convolution, batch normalization, and ReLU layers. For each convolutional layer, specify 32 3-by-3 filters with increasing dilation factors and pad the inputs so they are the same size as the outputs by setting the 'Padding' option to 'same'. To classify the pixels, include a convolutional layer with K 1-by-1 convolutions, where K is the number of classes, followed by a softmax layer and a pixelClassificationLayer with the inverse class weights.

inputSize = [32 32 1];
filterSize = 3;
numFilters = 32;
numClasses = numel(classNames);

layers = [
    imageInputLayer(inputSize)

    convolution2dLayer(filterSize,numFilters,'DilationFactor',1,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(filterSize,numFilters,'DilationFactor',2,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(filterSize,numFilters,'DilationFactor',4,'Padding','same')
    batchNormalizationLayer
    reluLayer

    convolution2dLayer(1,numClasses)
    softmaxLayer
    pixelClassificationLayer('Classes',classNames,'ClassWeights',classWeights)];

Train Network

Specify the training options.

options = trainingOptions('sgdm', ...
    'MaxEpochs', 100, ...
    'MiniBatchSize', 64, ...
    'InitialLearnRate', 1e-3);

Train the network using trainNetwork.

net = trainNetwork(ds,layers,options);

Training on single CPU.
Initializing input data normalization.
|========================================================================================|
|  Epoch  |  Iteration  |  Time Elapsed  |  Mini-batch  |  Mini-batch  |  Base Learning  |
|         |             |   (hh:mm:ss)   |   Accuracy   |     Loss     |      Rate       |
|========================================================================================|
|       1 |           1 |       00:00:00 |       91.62% |       1.6825 |          0.0010 |
|      17 |          50 |       00:00:13 |       88.56% |       0.2393 |          0.0010 |
|      34 |         100 |       00:00:26 |       92.08% |       0.1672 |          0.0010 |
|      50 |         150 |       00:00:37 |       93.17% |       0.1472 |          0.0010 |
|      67 |         200 |       00:00:49 |       94.15% |       0.1313 |          0.0010 |
|      84 |         250 |       00:00:59 |       94.47% |       0.1167 |          0.0010 |
|     100 |         300 |       00:01:12 |       95.04% |       0.1100 |          0.0010 |
|========================================================================================|
Training finished: Max epochs completed.

Test Network

Load the test data. Create an imageDatastore for the images. Create a pixelLabelDatastore for the ground truth pixel labels.

imageFolderTest = fullfile(dataFolder,'testImages');
imdsTest = imageDatastore(imageFolderTest);
labelFolderTest = fullfile(dataFolder,'testLabels');
pxdsTest = pixelLabelDatastore(labelFolderTest,classNames,labels);

Make predictions using the test data and trained network.

pxdsPred = semanticseg(imdsTest,net,'MiniBatchSize',32,'WriteLocation',tempdir);

Running semantic segmentation network
-------------------------------------
* Processed 100 images.

Evaluate the prediction accuracy using evaluateSemanticSegmentation.

metrics = evaluateSemanticSegmentation(pxdsPred,pxdsTest);

Evaluating semantic segmentation results
----------------------------------------
* Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score.
* Processed 100 images.
* Finalizing... Done.
* Data set metrics:

    GlobalAccuracy    MeanAccuracy    MeanIoU    WeightedIoU    MeanBFScore
    ______________    ____________    _______    ___________    ___________

       0.95237          0.97352       0.72081      0.92889        0.46416

For more information on evaluating semantic segmentation networks, see evaluateSemanticSegmentation.

Segment New Image

Read and display the test image triangleTest.jpg.

imgTest = imread('triangleTest.jpg');
figure
imshow(imgTest)

Segment the test image using semanticseg and display the results using labeloverlay.

C = semanticseg(imgTest,net);
B = labeloverlay(imgTest,C);
figure
imshow(B)

Input Arguments

I — Input image

numeric array

Input image, specified as one of the following.

Image Type	Data Format
Single 2-D grayscale image	2-D matrix of size H-by-W
Single 2-D color image or 2-D multispectral image	3-D array of size H-by-W-by-C. The number of color channels C is 3 for color images.
Series of P 2-D images	4-D array of size H-by-W-by-C-by-P. The number of color channels C is 1 for grayscale images and 3 for color images.
Single 3-D grayscale image with depth D	3-D array of size H-by-W-by-D
Single 3-D color image or 3-D multispectral image	4-D array of size H-by-W-by-D-by-C. The number of color channels C is 3 for color images.
Series of P 3-D images	5-D array of size H-by-W-by-D-by-C-by-P

The input image can also be a gpuArray (Parallel Computing Toolbox) containing one of the preceding image types (requires Parallel Computing Toolbox™).

Data Types: uint8 | uint16 | int16 | double | single | logical

network — Network

SeriesNetwork object | DAGNetwork object | dlnetwork object | taylorPrunableNetwork object

Network, specified as a SeriesNetwork (Deep Learning Toolbox), DAGNetwork (Deep Learning Toolbox), dlnetwork (Deep Learning Toolbox), or taylorPrunableNetwork (Deep Learning Toolbox) object.

roi — Region of interest

4-element numeric vector | 6-element vector

Region of interest, specified as one of the following.

Image Type	ROI Format
2-D image	4-element vector of the form [x,y,width,height]
3-D image	6-element vector of the form [x,y,z,width,height,depth]

The vector defines a rectangular or cuboidal region of interest fully contained in the input image. Image pixels outside the region of interest are assigned the <undefined> categorical label. If the input image consists of a series of images, then semanticseg applies the same roi to all images in the series.

ds — Collection of images

datastore object

Collection of images, specified as a datastore. The read function of the datastore must return a numeric array, cell array, or table. For cell arrays or tables with multiple columns, the function processes only the first column.

For more information, see Datastores for Deep Learning (Deep Learning Toolbox).

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ExecutionEnvironment="gpu" sets the hardware resource for processing images to "gpu".

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

OutputType — Returned segmentation type

"categorical" (default) | "double" | "uint8"

Returned segmentation type, specified as "categorical", "double", or "uint8". When you specify "double" or "uint8", the function returns the segmentation results as a label array containing label IDs. The IDs are integer values that correspond to the class names defined in the classification layer used in the input network.

You cannot use the OutputType property with an ImageDatastore object input.

MiniBatchSize — Group of images

128 (default) | integer

Group of images, specified as an integer. Images are grouped and processed together as a batch. Batches are used for processing a large collection of images and they improve computational efficiency. Increasing the 'MiniBatchSize' value increases the efficiency, but it also takes up more memory.

ExecutionEnvironment — Hardware resource

"auto" (default) | "gpu" | "cpu"

Hardware resource for processing images with a network, specified as "auto", "gpu", or "cpu".

ExecutionEnvironment	Description
"auto"	Use a GPU if available. Otherwise, use the CPU. The use of GPU requires Parallel Computing Toolbox and a CUDA® enabled NVIDIA® GPU. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox).
"gpu"	Use the GPU. If a suitable GPU is not available, the function returns an error message.
"cpu"	Use the CPU.

Acceleration — Performance optimization

"auto" (default) | "mex" | "none"

Performance optimization, specified as "auto", "mex", or "none".

Acceleration	Description
"auto"	Automatically apply a number of optimizations suitable for the input network and hardware resource.
"mex"	Compile and execute a MEX function. This option is available when using a GPU only. You must also have a C/C++ compiler installed. For setup instructions, see MEX Setup (GPU Coder).
"none"	Disable all acceleration.

The default option is "auto". If you use the "auto" option, then MATLAB does not ever generate a MEX function.

Using the Acceleration name-value argument options "auto" and "mex" can offer performance benefits, but at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using new input data.

The "mex" option generates and executes a MEX function based on the network and parameters used in the function call. You can have several MEX functions associated with a single network at one time. Clearing the network variable also clears any MEX functions associated with that network.

The "mex" option is only available when you are using a GPU. Using a GPU requires Parallel Computing Toolbox and a CUDA enabled NVIDIA GPU. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox). If Parallel Computing Toolbox or a suitable GPU is not available, then the function returns an error.

"mex" acceleration does not support all layers. For a list of supported layers, see Supported Layers (GPU Coder).

Classes — Classes into which pixels or voxels are classified

"auto" (default) | cell array of character vectors | string vector | categorical vector

Classes into which pixels or voxels are classified, specified as "auto", a cell array of character vectors, a string vector, or a categorical vector. If the value is a categorical vector Y, then the elements of the vector are sorted and ordered according to categories(Y).

If the network is a dlnetwork (Deep Learning Toolbox) object, then the number of classes specified by 'Classes' must match the number of channels in the output of the network predictions. By default, when 'Classes' has the value "auto", the classes are numbered from 1 through C, where C is the number of channels in the output layer of the network.

If the network is a SeriesNetwork (Deep Learning Toolbox) or DAGNetwork (Deep Learning Toolbox) object, then the number of classes specified by the Classes name-value argument must match the number of classes in the classification output layer. By default, when Classes has the value "auto", the classes are automatically set using the classification output layer.

WriteLocation — Folder location

pwd (current working folder) (default) | string scalar | character vector

Folder location, specified as pwd (your current working folder), a string scalar, or a character vector. The specified folder must exist and have write permissions.

This property applies only when using a datastore that can process images.

NamePrefix — Prefix applied to output filenames

"pixelLabel" (default) | string scalar | character vector

Prefix applied to output filenames, specified as a string scalar or character vector. The image files are named as follows:

• <prefix>_<N>.png, where N corresponds to the index of the input image file, imds.Files(N).

This property applies only when using a datastore that can process images.

OutputFolderName — Output folder name

"semanticsegOutput" (default) | string scalar | character vector

Output folder name for segmentation results, specified as a string scalar or a character vector. This folder is in the location specified by the value of the WriteLocation name-value argument.

If the output folder already exists, the function creates a new folder with the string "_1" appended to the end of the name. Set OutputFoldername to "" to write all the results to the folder specified by WriteLocation.

NameSuffix — Suffix to add to the output image filename

string scalar | character vector

Suffix to add to the output image filename, specified as a string scalar or a character vector. The function appends the specified suffix to the output filename as:

• <prefix>_<N><suffix>.png, where N corresponds to the index of the input image file, imds.Files(N).

If you do not specify the suffix, the function uses the input filenames as the output file suffixes. The function extracts the input filenames from the info output of the read object function of the datastore. When the datastore does not provide the filename, the function does not add a suffix.

Verbose — Display progress information

false or 0 (default) | true or 1

Display progress information, specified as a logical 0 (false) or 1 (true). Specify Verbose as true to display progress information. This property applies only when using a datastore that can process images.

UseParallel — Run parallel computations

"false" (default) | true

Run parallel computations , specified as "true" or "false".

To run in parallel, set 'UseParallel' to true or enable this by default using the Computer Vision Toolbox™ preferences.

For more information, see Parallel Computing Toolbox Support.

Output Arguments

C — Categorical labels

categorical array

Categorical labels, returned as a categorical array. The categorical array relates a label to each pixel or voxel in the input image. The images returned by readall(datastore) have a one-to-one correspondence with the categorical matrices returned by readall(pixelLabelDatastore). The elements of the label array correspond to the pixel or voxel elements of the input image. If you select an ROI, then the labels are limited to the area within the ROI. Image pixels and voxels outside the region of interest are assigned the <undefined> categorical label.

Image Type	Categorical Label Format
Single 2-D image	2-D matrix of size H-by-W. Element C(i,j) is the categorical label assigned to the pixel I(i,j).
Series of P 2-D images	3-D array of size H-by-W-by-P. Element C(i,j,p) is the categorical label assigned to the pixel I(i,j,p).
Single 3-D image	3-D array of size H-by-W-by-D. Element C(i,j,k) is the categorical label assigned to the voxel I(i,j,k).
Series of P 3-D images	4-D array of size H-by-W-by-D-by-P. Element C(i,j,k,p) is the categorical label assigned to the voxel I(i,j,k,p).

score — Confidence scores

numeric array

Confidence scores for each categorical label in C, returned as an array of values between 0 and 1. The scores represents the confidence in the predicted labels C. Higher score values indicate a higher confidence in the predicted label.

Image Type	Score Format
Single 2-D image	2-D matrix of size H-by-W. Element score(i,j) is the classification score of the pixel I(i,j).
Series of P 2-D images	3-D array of size H-by-W-by-P. Element score(i,j,p) is the classification score of the pixel I(i,j,p).
Single 3-D image	3-D array of size H-by-W-by-D. Element score(i,j,k) is the classification score of the voxel I(i,j,k).
Series of P 3-D images	4-D array of size H-by-W-by-D-by-P. Element score(i,j,k,p) is the classification score of the voxel I(i,j,k,p).

allScores — Scores for all label categories

numeric array

Scores for all label categories that the input network can classify, returned as a numeric array. The format of the array is described in the following table. L represents the total number of label categories.

Image Type	All Scores Format
Single 2-D image	3-D array of size H-by-W-by-L. Element allScores(i,j,q) is the score of the qth label at the pixel I(i,j).
Series of P 2-D images	4-D array of size H-by-W-by-L-by-P. Element allScores(i,j,q,p) is the score of the qth label at the pixel I(i,j,p).
Single 3-D image	4-D array of size H-by-W-by-D-by-L. Element allScores(i,j,k,q) is the score of the qth label at the voxel I(i,j,k).
Series of P 3-D images	5-D array of size H-by-W-by-D-by-L-by-P. Element allScores(i,j,k,q,p) is the score of the qth label at the voxel I(i,j,k,p).

pxds — Semantic segmentation results

PixelLabelDatastore object

Semantic segmentation results, returned as a pixelLabelDatastore object. The object contains the semantic segmentation results for all the images contained in the ds input object. The result for each image is saved as separate uint8 label matrices of PNG images. You can use read(pxds) to return the categorical labels assigned to the images in ds.

The images in the output of readall(ds) have a one-to-one correspondence with the categorical matrices in the output of readall(pxds).

Extended Capabilities

Automatic Parallel Support

Accelerate code by automatically running computation in parallel using Parallel Computing Toolbox™.

To run in parallel, set 'UseParallel' to true or enable this by default using the Computer Vision Toolbox preferences.

For more information, see Parallel Computing Toolbox Support.

Version History

Introduced in R2017b

R2023a: Output file location

The semanticseg function now writes output files to the folder specified by the WriteLocation and OutputFolderName name-value arguments as <WriteLocation>/<OutputFolderName>. Prior to R2023a, the function wrote output files directly into the location specified by WriteLocation. To get the same results as in previous releases, set the OutputFolderName name-value argument to "".
