labeloverlay
Overlay label matrix regions on 2-D image
Syntax
Description
computes the fused overlay image, B
= labeloverlay(___,Name=Value
)B
, using name-value arguments
to control aspects of the computation.
Examples
Read an image, then segment it by using the superpixels
function.
A = imread("kobi.png");
[L,N] = superpixels(A,20);

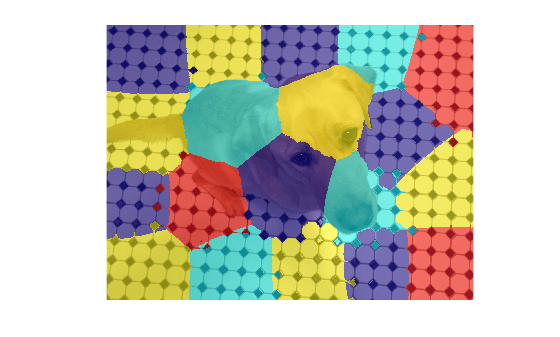

Fuse the original image with unique colors for each region in the segmented label matrix. Display the fused image. Some adjacent regions have similar colors, such as the shades of purple over the nose and an eye. Because the colors are similar, it is difficult to determine the boundary of the regions visually.
B = labeloverlay(A,L); imshow(B)
Improve the color contrast between neighboring regions by specifying the ColorAssignment
name-value argument as "contrasting-neighbors"
. Display the fused image. Only four high-contrast colors are used for labels in this fused image. The high color contrast improves the visibility of region boundaries.
C = labeloverlay(A,L,ColorAssignment="contrasting-neighbors");
imshow(C)

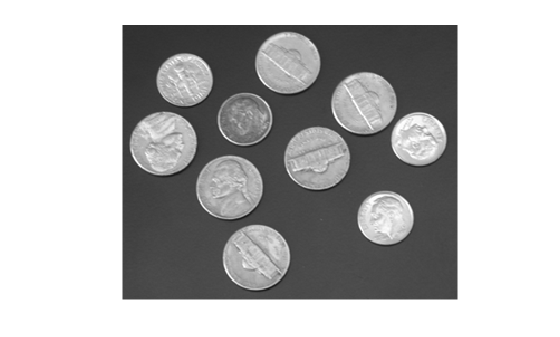

Read and display a grayscale image.
A = imread("coins.png");
imshow(A)

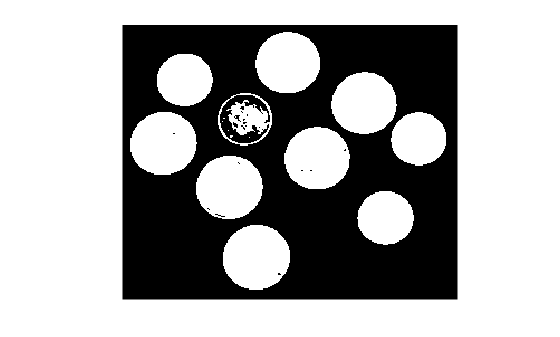

Create a mask using binary thresholding.
t = graythresh(A); BW = imbinarize(A,t); imshow(BW)

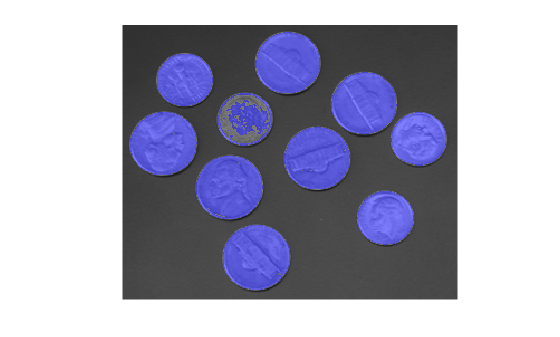

Fuse the mask with the original image. Display the fused image.
B = labeloverlay(A,BW); imshow(B)
Read an image and its segmented label image.
A = imread("yellowlily.jpg"); L = imread("yellowlily-segmented.png");
Convert the numeric label matrix to a categorical matrix. Specify the values and the names for the categories.
C = categorical(L,[1 2 3],["petal" "leaf" "dirt"]);

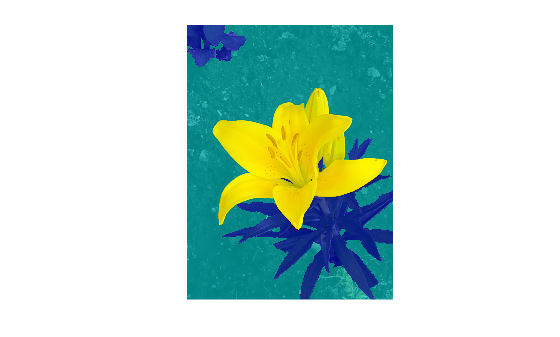

Fuse the categorical labels with the original image. Display the fused image.
B = labeloverlay(A,C); imshow(B)

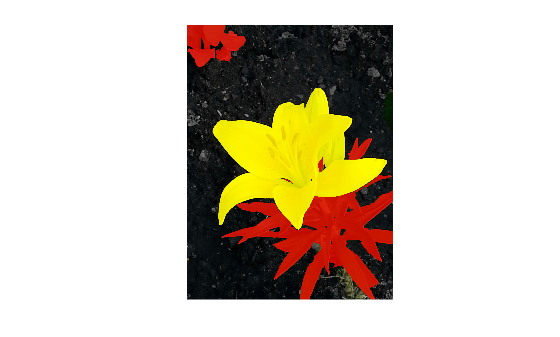

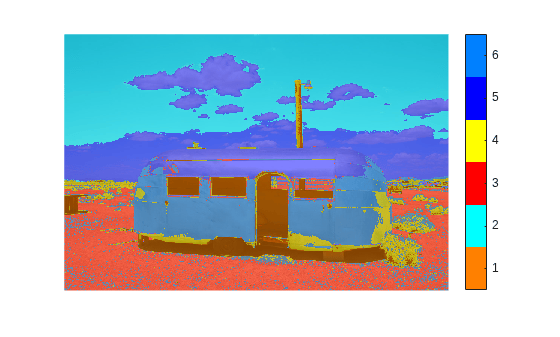

Fuse the original image with only two labels from the categorical segmentation. Change the colormap, increase the opacity of the label, and display the result.
B2 = labeloverlay(A,C,IncludedLabels=["petal" "leaf"], ... Colormap="autumn",Transparency=0.25); imshow(B2)
Input Arguments
Input image, specified as a 2-D grayscale or color image.
Data Types: single
| double
| int8
| int16
| uint8
| uint16
Labels, specified as a matrix of nonnegative integers.
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
Mask, specified as a logical matrix.
Data Types: logical
Category labels, specified as a categorical
matrix.
Data Types: categorical
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: labeloverlay(A,L,Colormap="hot")
displays labels in
colors from the "hot"
colormap.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: labeloverlay(A,L,"Colormap","hot")
displays labels in
colors from the "hot"
colormap.
Since R2025a
Color assignment, specified as one of the values in the table.
Value of Color Assignment | Description | Sample Output |
---|---|---|
"noshuffle" | Assign colormap colors to label matrix regions in numerical order. Each region has a unique color. |
|
"shuffle" | Assign colormap colors pseudorandomly. Each region has a unique color. |
|
"auto" | Assign colormap colors based on the format of
Colormap . By default,
labeloverlay shuffles the
color order when you specify a colormap by name, and
preserves the color order when you specify the
colormap as a numeric matrix. | Same as Same as
|
"contrasting-neighbors" | Assign a subset of colormap colors to maximize contrast between adjacent regions. Each color can correspond to multiple labels. |
|
Colormap, specified as one of these values:
An l-by-3 colormap. RGB triplets in each row of the colormap must be normalized to the range [0, 1]. l is the number of labels in label matrix
L
, binary maskBW
, or categorical matrixC
.A string or character vector corresponding to one of the valid inputs to the
colormap
function. By default,labeloverlay
shuffles the specified colormap so that adjacent labels are more distinct.
Note
If you also specify ColorAssignment
as
"contrasting-neighbors"
, then
labeloverlay
selects a subset of colors
from the colormap with high visual contrast.
Example: [0.2, 0.1, 0.5; 0.1, 0.5,
0.8]
Example: "hot"
Data Types: single
| double
| char
| string
Labels to display in the fused image, specified as one of the following:
An integer, or vector of integers, in the range
[0, max(L(:))]
. By default,labeloverlay
displays all nonzero labels.A string, or vector of strings, corresponding to labels in categorical matrix
C
. By default,labeloverlay
displays all defined categorical labels.
Any label not included in the vector is considered the background. For
example, in the vector [1 3 4]
, the value 2 would be
considered the background, if it existed as a label.
Example: [1 3 4]
Example: ["flower","stem"]
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| string
Transparency of displayed labels, specified as a number in the range [0, 1].
A value of
0
makes the colored labels completely opaque.A value of
1
makes the colored labels completely transparent.
Data Types: single
| double
Output Arguments
Fused image, returned as a numeric matrix of the same size as
A
.
Data Types: uint8
Version History
Introduced in R2017bThe new ColorAssignment
name-value argument enables you to
control how labeloverlay
assigns colors to label regions.
To ensure that adjacent regions have visually distinct colors, specify the value
"contrasting-neighbors"
.To force or prevent
labeloverlay
from shuffling the order of colors, specify the value"shuffle"
or"noshuffle"
, respectively.
See Also
imoverlay
| label2rgb
| imshowpair
Topics
- Get Started with Image Segmentation
- Get Started with Semantic Segmentation Using Deep Learning (Computer Vision Toolbox)
