Detect objects using Faster R-CNN deep learning detector


The fasterRCNNObjectDetector object detects objects from an image, using a Faster R-CNN (regions with convolution neural networks) object detector. To detect objects in an image, pass the trained detector to the detect function.

When using the detect function, use of a CUDA® enabled NVIDIA® GPU with compute capability 3.0 or higher is highly recommended. The GPU reduces computation time significantly. Usage of the GPU requires Parallel Computing Toolbox™.


Create a fasterRCNNObjectDetector object by calling the trainFasterRCNNObjectDetector function with training data (requires Deep Learning Toolbox™).

detector = trainFasterRCNNObjectDetector(trainingData,...)


expand all

This property is read-only.

Name of the classification model, specified as a character vector or string scalar. By default, the name is set to the heading of the second column of the trainingData table specified in the trainFasterRCNNObjectDetector function. You can modify this name after creating your fasterRCNNObjectDetector object.

This property is read-only.

Trained Fast R-CNN object detection network, specified as a DAGNetwork object. This object stores the layers that define the convolutional neural network used within the Faster R-CNN detector.

This property is read-only.

Size of anchor boxes, specified as an M-by-2 matrix, where each row is in the format [height width]. This value is set during training.

This property is read-only.

Names of the object classes that the Faster R-CNN detector was trained to find, specified as a cell array. This property is set by the trainingData input argument for the trainFasterRCNNObjectDetector function. Specify the class names as part of the trainingData table.

This property is read-only.

Minimum object size supported by the Faster R-CNN network, specified as a [height width] vector. The minimum size depends on the network architecture.

Object Functions

detectDetect objects using Faster R-CNN object detector


collapse all

This example shows how to train an object detector using a deep learning technique named Faster R-CNN (Regions with Convolutional Neural Networks).


Deep learning is a powerful machine learning technique that automatically learns image features for training robust object detectors. There are several techniques for object detection using deep learning such as Faster R-CNN and you only look once (YOLO) v2. This example trains a Faster R-CNN vehicle detector using the trainFasterRCNNObjectDetector function.

Object Detection using Deep Learning

Note: This example requires Computer Vision Toolbox™ and Deep Learning Toolbox™. Parallel Computing Toolbox™ is recommended to train the detector using a CUDA-capable NVIDIA™ GPU with compute capability 3.0.

Download Pretrained Detector

This example uses a pretrained detector to allow the example to run without having to wait for training to complete. If you want to train the detector with the trainFasterRCNNObjectDetector function, set the doTrainingAndEval variable to true. Otherwise, download the pretrained detector.

doTrainingAndEval = false;
if ~doTrainingAndEval && ~exist('fasterRCNNResNet50VehicleExample.mat','file')
    % Download pretrained detector.
    disp('Downloading pretrained detector (118 MB)...');
    pretrainedURL = '';

Load Dataset

This example uses a small vehicle data set that contains 295 images. Each image contains one or two labeled instances of a vehicle. A small data set is useful for exploring the Faster R-CNN training procedure, but in practice, more labeled images are needed to train a robust detector.

% Unzip vehicle dataset images.

% Load vehicle dataset ground truth.
data = load('vehicleDatasetGroundTruth.mat');
vehicleDataset = data.vehicleDataset;

The ground truth data is stored in a table. The first column contains the path to the image files. The remaining columns contain the ROI labels for vehicles.

% Display first few rows of the data set.
ans=4×2 table
             imageFilename               vehicle
    _______________________________    ____________

    'vehicleImages/image_00001.jpg'    [1×4 double]
    'vehicleImages/image_00002.jpg'    [1×4 double]
    'vehicleImages/image_00003.jpg'    [1×4 double]
    'vehicleImages/image_00004.jpg'    [1×4 double]

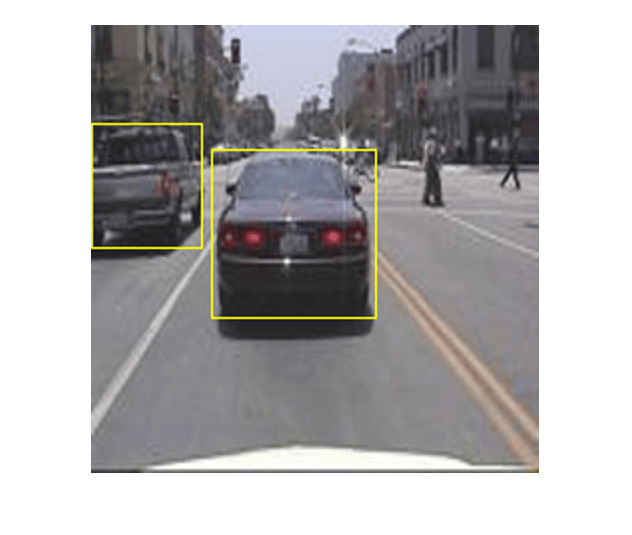

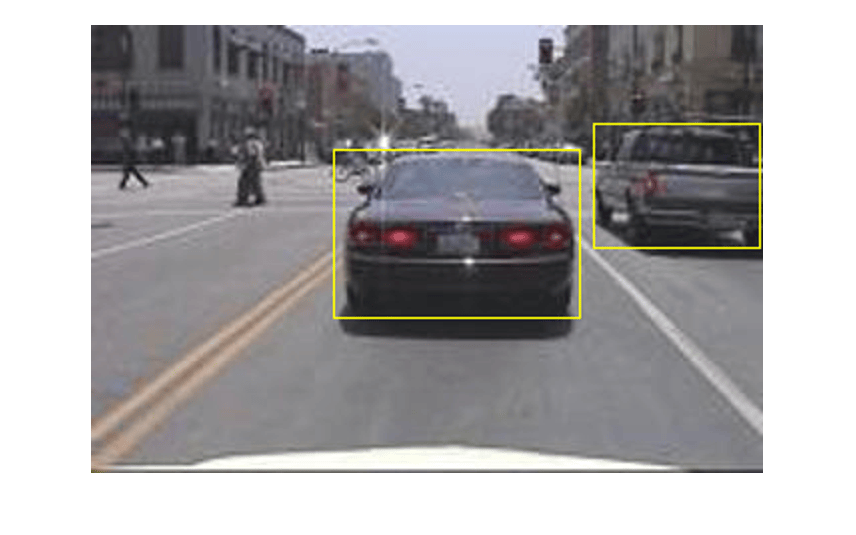

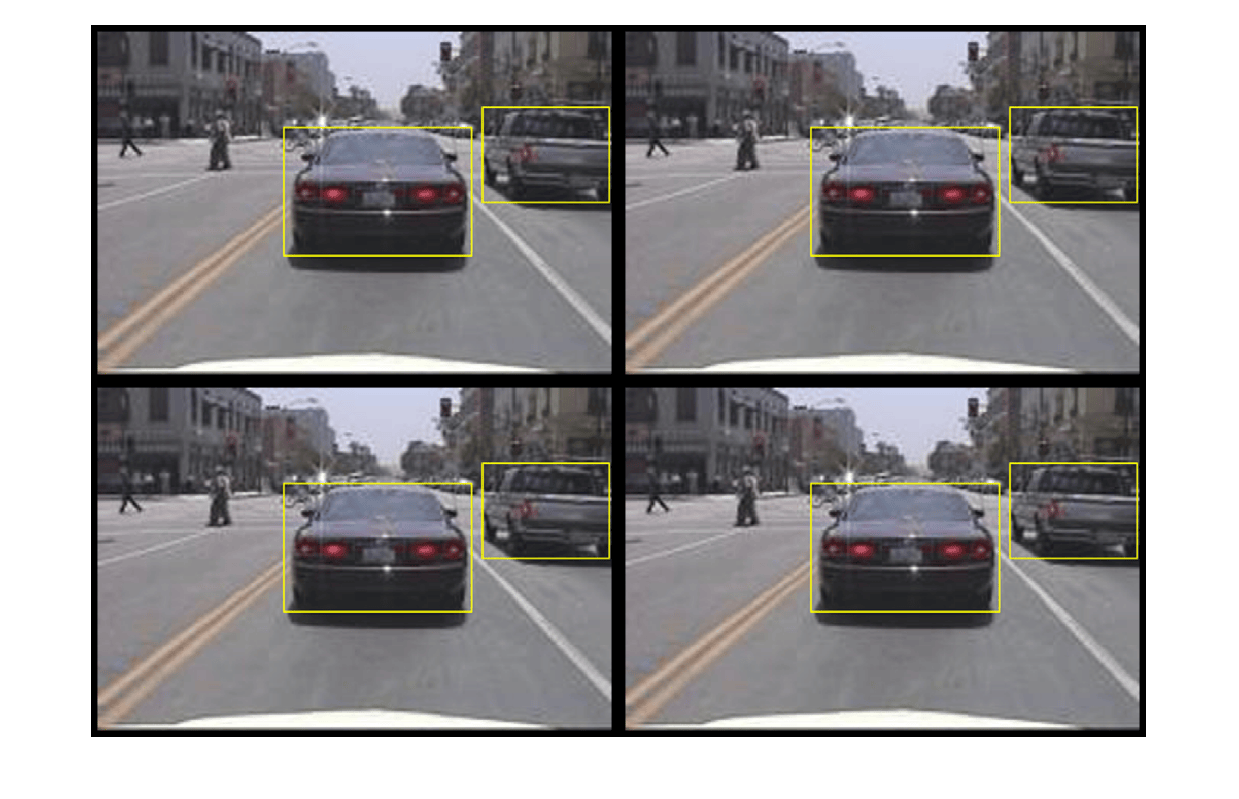

Display one of the images from the data set to understand the type of images it contains.

% Add the fullpath to the local vehicle data folder.
vehicleDataset.imageFilename = fullfile(pwd, vehicleDataset.imageFilename);

% Read one of the images.
I = imread(vehicleDataset.imageFilename{10});

% Insert the ROI labels.
I = insertShape(I, 'Rectangle', vehicleDataset.vehicle{10});

% Resize and display image.
I = imresize(I,3);

Split the data set into a training set for training the detector, and a test set for evaluating the detector. Select 60% of the data for training. Use the rest for evaluation.

% Set random seed to ensure example training reproducibility.

% Randomly split data into a training and test set.
shuffledIdx = randperm(height(vehicleDataset));
idx = floor(0.6 * height(vehicleDataset));
trainingData = vehicleDataset(shuffledIdx(1:idx),:);
testData = vehicleDataset(shuffledIdx(idx+1:end),:);

Configure Training Options

trainFasterRCNNObjectDetector trains the detector in four steps. The first two steps train the region proposal and detection networks used in Faster R-CNN. The final two steps combine the networks from the first two steps such that a single network is created for detection [1]. Specify the network training options for all steps using trainingOptions.

% Options for step 1.
options = trainingOptions('sgdm', ...
    'MaxEpochs', 5, ...
    'MiniBatchSize', 1, ...
    'InitialLearnRate', 1e-3, ...
    'CheckpointPath', tempdir);

The 'MiniBatchSize' property is set to 1 because the vehicle dataset has images with different sizes. The prevents them from being batched together for processing. Choose a MiniBatchSize greater than 1 if the training images are all the same size to reduce training time.

The 'CheckpointPath' property is set to a temporary location for all the training options. This name-value pair enables the saving of partially trained detectors during the training process. If training is interrupted, such as from a power outage or system failure, you can resume training from the saved checkpoint.

Train Faster R-CNN

The Faster R-CNN object detection network is composed of a feature extraction network followed by two sub-networks. The feature extraction network is typically a pretrained CNN such as ResNet-50 or Inception v3. The first sub-network following the feature extraction network is a region proposal network (RPN) trained to generate object proposals (object or background). The second sub-network is trained to predict the actual class of each proposal (car or person).

This example uses a pretrained ResNet-50 for feature extraction. Other pretrained networks such as MobileNet v2 or ResNet-18 can also be used depending on application requirements. The trainFasterRCNNObjectDetector function automatically adds the sub-networks required for object detection. You many also Create Faster R-CNN Object Detection Network

Train Faster R-CNN object detector if doTrainingAndEval is true. Otherwise, you can load a pretrained network.

if doTrainingAndEval
    % Train Faster R-CNN detector.
    %  * Use 'resnet50' as the feature extraction network.
    %  * Adjust the NegativeOverlapRange and PositiveOverlapRange to ensure
    %    training samples tightly overlap with ground truth.
    [detector, info] = trainFasterRCNNObjectDetector(trainingData, 'resnet50', options, ...
        'NegativeOverlapRange', [0 0.3], ...
        'PositiveOverlapRange', [0.6 1]);
    % Load pretrained detector for the example.
    pretrained = load('fasterRCNNResNet50VehicleExample.mat');
    detector = pretrained.detector;

% Note: This example verified on an Nvidia(TM) Titan X with 12 GB of GPU
% memory. Training this network took approximately 10 minutes using this setup.
% Training time varies depending on the hardware you use.

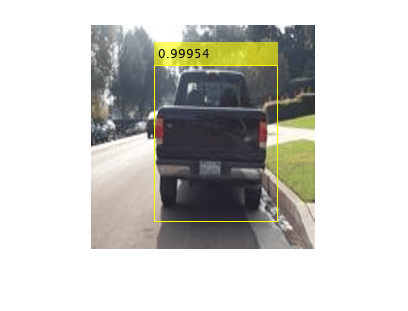

As a quick sanity check, run the detector on one test image.

% Read a test image.
I = imread(testData.imageFilename{1});

% Run the detector.
[bboxes,scores] = detect(detector,I);

% Annotate detections in the image.
I = insertObjectAnnotation(I,'rectangle',bboxes,scores);

Evaluate Detector Using Test Set

Evaluate the detector on a large set of images to measure the trained detector's performance. Computer Vision Toolbox™ provides object detector evaluation functions to measure common metrics such as average precision (evaluateDetectionPrecision) and log-average miss rates (evaluateDetectionMissRate). Here, the average precision metric is used. The average precision provides a single number that incorporates the ability of the detector to make correct classifications (precision) and the ability of the detector to find all relevant objects (recall).

The first step for detector evaluation is to collect the detection results by running the detector on the test set.

if doTrainingAndEval
    % Create a table to hold the bounding boxes, scores, and labels output by
    % the detector.
    numImages = height(testData);
    results = table('Size',[numImages 3],...
    % Run detector on each image in the test set and collect results.
    for i = 1:numImages
        % Read the image.
        I = imread(testData.imageFilename{i});
        % Run the detector.
        [bboxes, scores, labels] = detect(detector, I);
        % Collect the results.
        % Collect the results.
        results.Boxes{i} = bboxes;
        results.Scores{i} = scores;
        results.Labels{i} = labels;
    % Load pretrained detector for the example.
    pretrained = load('fasterRCNNResNet50VehicleExample.mat');
    results = pretrained.results;

% Extract expected bounding box locations from test data.
expectedResults = testData(:, 2:end);

% Evaluate the object detector using Average Precision metric.
[ap, recall, precision] = evaluateDetectionPrecision(results, expectedResults);

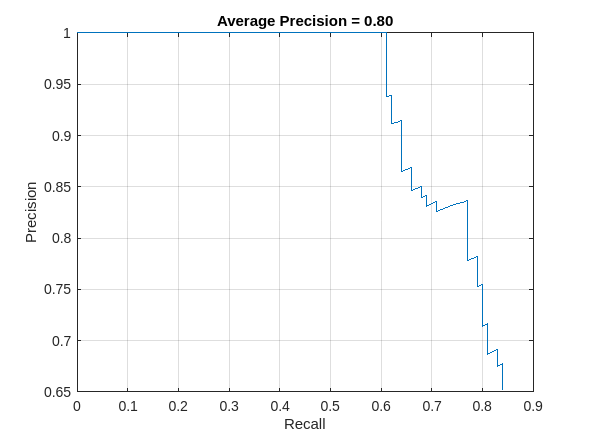

The precision/recall (PR) curve highlights how precise a detector is at varying levels of recall. Ideally, the precision would be 1 at all recall levels. The use of additional layers in the network can help improve the average precision, but might require additional training data and longer training time.

% Plot precision/recall curve
grid on
title(sprintf('Average Precision = %.2f', ap))


This example showed how to train a vehicle detector using Faster R-CNN. You can follow similar steps to train detectors for traffic signs, pedestrians, or other objects.


[1] Ren, S., K. He, R. Gershick, and J. Sun. "Faster R-CNN: Towards Real-Time Object Detection with Region Proposal Networks." IEEE Transactions of Pattern Analysis and Machine Intelligence. Vol. 39, Issue 6, June 2017, pp. 1137-1149.

[2] Girshick, R., J. Donahue, T. Darrell, and J. Malik. "Rich Feature Hierarchies for Accurate Object Detection and Semantic Segmentation." Proceedings of the 2014 IEEE Conference on Computer Vision and Pattern Recognition. Columbus, OH, June 2014, pp. 580-587.

[3] Girshick, R. "Fast R-CNN." Proceedings of the 2015 IEEE International Conference on Computer Vision. Santiago, Chile, Dec. 2015, pp. 1440-1448.

[4] Zitnick, C. L., and P. Dollar. "Edge Boxes: Locating Object Proposals from Edges." European Conference on Computer Vision. Zurich, Switzerland, Sept. 2014, pp. 391-405.

[5] Uijlings, J. R. R., K. E. A. van de Sande, T. Gevers, and A. W. M. Smeulders. "Selective Search for Object Recognition."_ International Journal of Computer Vision_. Vol. 104, Number 2, Sept. 2013, pp. 154-171.

Introduced in R2017a
