Import von FMU
Mithilfe des FMU-Blocks können Sie Ihre in FMUs enthaltenen Anwendungen in Simulink importieren. Dieser Block verfügt über zwei Modi zur Integration von FMUs, die Folgendes implementieren:
Eine FMI Co-Simulation Schnittstelle. Diese FMUs enthalten lokale Solver.
Eine Schnittstelle für den Austausch von FMI-Modellen. Diese FMUs enthalten keine lokalen Solver.
Informationen zum Exportieren Ihrer vorhandenen Simulink-Modelle als FMU finden Sie unter Create Standalone FMU (Simulink Compiler).
Blöcke
| FMU | Include Functional Mockup Unit (FMU) in model |
Funktionen
fmudialog.compileFMUSources | Generate binary for FMU with source code on current platform (Seit R2024a) |
fmudialog.createBusType | Create all FMU bus objects required for structured input or output ports in workspace |
fmudialog.createEnumType | Generate all enumeration classes required for FMU input or output ports |
fmudialog.createTypeObject | Generates enumeration and bus objects required for FMU input or output ports |
Themen
- Import FMUs
Import your FMU to Simulink.
- Implement an FMU Block
Implement a block in Simulink using your FMU.
- FMU Block Calling Sequences
Review calling sequences for Co-Simulation and Model Exchange FMU blocks.
- Debug FMU with Source Code Using External Debugger
Launch external debugger from Simulink to debug FMU with source code.
- Simulate FMU with Linux Binary on Windows (Simulink Compiler)
Simulate standalone cosimulation FMU 2.0 with Linux® binary on Windows®.
Enthaltene Beispiele
Importieren von Co-Simulation-FMU in Simulink
In diesem Beispiel wird dargestellt, wie mithilfe des FMI Import-Blocks eine FMU-Datei geladen wird. Die FMU-Datei unterstützt eine Ausführung im Co-Simulations-Modus. Die Simulink® Software unterstützt Wechsel zwischen den Simulationen, Parameterabstimmung und das Speichern von Zuständen für den FMU Import-Block, wenn die FMU selbst diese Funktionen unterstüzt.

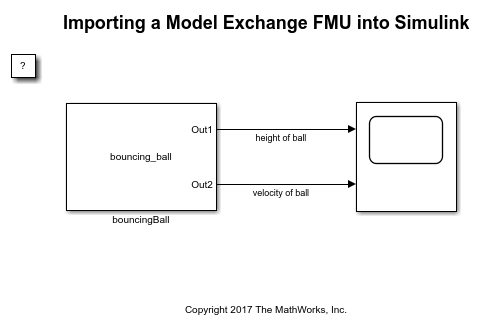

Importing a Model Exchange FMU into Simulink
Model showing how to use the FMU Import block to load an FMU file. The FMU file supports execution in Model Exchange mode.
Import and Simulate FMU with Time-Based Clocks in Simulink
Demonstrates the use of a Functional Mockup Unit (FMU) containing time-based clocks in Simulink®. You can import standalone co-simulation FMUs that implement the following types of time-based clocks as defined in the FMI 3.0 standard:
Simplify Interface for Structured Data with FMU Import Block
Use bus signals and structure parameters in an FMU block.
Simulate FMU with Enum Type Ports Using FMU Import Block
The example demonstrates how to use the FMU import block to simulate FMUs that have enumerated data type ports. The FMU import block enables the import of functional mockup units (FMUs) in Simulink®.
Capture Simulation State, Fast Restart, and Step Through Model Containing FMU
Use the internal states of a standalone cosimulation FMU to enhance the simulation capability of a model with fixed-step solver FMU in Simulink®. Internal states of an FMU enables you to stop and resume simulation using model operating points, perform iterative simulation using fast restart, and analyze your model using backward simulation stepping.
Integrate FMI APIs in Generated Code Using FMU Source Code or Binary
Generate code for FMU from source code or binary
