# solve

Solve optimization problem or equation problem

## Syntax

``sol = solve(prob)``
``sol = solve(prob,x0)``
``sol = solve(___,Name,Value)``
``[sol,fval] = solve(___)``
``[sol,fval,exitflag,output,lambda] = solve(___)``

## Description

Use `solve` to find the solution of an optimization problem or equation problem.

example

````sol = solve(prob)` solves the optimization problem or equation problem `prob`.```

example

````sol = solve(prob,x0)` solves `prob` starting from the point `x0`.```

example

````sol = solve(___,Name,Value)` modifies the solution process using one or more name-value pair arguments in addition to the input arguments in previous syntaxes.```
````[sol,fval] = solve(___)` also returns the objective function value at the solution using any of the input arguments in previous syntaxes.```

example

````[sol,fval,exitflag,output,lambda] = solve(___)` also returns an exit flag describing the exit condition, an `output` structure containing additional information about the solution process, and, for non-integer optimization problems, a Lagrange multiplier structure.```

## Examples

collapse all

Solve a linear programming problem defined by an optimization problem.

```x = optimvar('x'); y = optimvar('y'); prob = optimproblem; prob.Objective = -x - y/3; prob.Constraints.cons1 = x + y <= 2; prob.Constraints.cons2 = x + y/4 <= 1; prob.Constraints.cons3 = x - y <= 2; prob.Constraints.cons4 = x/4 + y >= -1; prob.Constraints.cons5 = x + y >= 1; prob.Constraints.cons6 = -x + y <= 2; sol = solve(prob)```
```Solving problem using linprog. Optimal solution found. ```
```sol = struct with fields: x: 0.6667 y: 1.3333 ```

Find a minimum of the `peaks` function, which is included in MATLAB®, in the region ${x}^{2}+{y}^{2}\le 4$. To do so, create optimization variables `x` and `y`.

```x = optimvar('x'); y = optimvar('y');```

Create an optimization problem having `peaks` as the objective function.

`prob = optimproblem("Objective",peaks(x,y));`

Include the constraint as an inequality in the optimization variables.

`prob.Constraints = x^2 + y^2 <= 4;`

Set the initial point for `x` to 1 and `y` to –1, and solve the problem.

```x0.x = 1; x0.y = -1; sol = solve(prob,x0)```
```Solving problem using fmincon. Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```
```sol = struct with fields: x: 0.2283 y: -1.6255 ```

Unsupported Functions Require `fcn2optimexpr`

If your objective or nonlinear constraint functions are not entirely composed of elementary functions, you must convert the functions to optimization expressions using `fcn2optimexpr`. See Convert Nonlinear Function to Optimization Expression and Supported Operations for Optimization Variables and Expressions.

To convert the present example:

```convpeaks = fcn2optimexpr(@peaks,x,y); prob.Objective = convpeaks; sol2 = solve(prob,x0)```
```Solving problem using fmincon. Local minimum found that satisfies the constraints. Optimization completed because the objective function is non-decreasing in feasible directions, to within the value of the optimality tolerance, and constraints are satisfied to within the value of the constraint tolerance. ```
```sol2 = struct with fields: x: 0.2283 y: -1.6255 ```

Compare the number of steps to solve an integer programming problem both with and without an initial feasible point. The problem has eight integer variables and four linear equality constraints, and all variables are restricted to be positive.

```prob = optimproblem; x = optimvar('x',8,1,'LowerBound',0,'Type','integer');```

Create four linear equality constraints and include them in the problem.

```Aeq = [22 13 26 33 21 3 14 26 39 16 22 28 26 30 23 24 18 14 29 27 30 38 26 26 41 26 28 36 18 38 16 26]; beq = [ 7872 10466 11322 12058]; cons = Aeq*x == beq; prob.Constraints.cons = cons;```

Create an objective function and include it in the problem.

```f = [2 10 13 17 7 5 7 3]; prob.Objective = f*x;```

Solve the problem without using an initial point, and examine the display to see the number of branch-and-bound nodes.

`[x1,fval1,exitflag1,output1] = solve(prob);`
```Solving problem using intlinprog. LP: Optimal objective value is 1554.047531. Cut Generation: Applied 8 strong CG cuts. Lower bound is 1591.000000. Branch and Bound: nodes total num int integer relative explored time (s) solution fval gap (%) 10000 1.02 0 - - 18027 1.68 1 2.906000e+03 4.509804e+01 21859 2.09 2 2.073000e+03 2.270974e+01 23546 2.24 3 1.854000e+03 1.180593e+01 24121 2.29 3 1.854000e+03 1.563342e+00 24294 2.30 3 1.854000e+03 0.000000e+00 Optimal solution found. Intlinprog stopped because the objective value is within a gap tolerance of the optimal value, options.AbsoluteGapTolerance = 0 (the default value). The intcon variables are integer within tolerance, options.IntegerTolerance = 1e-05 (the default value). ```

For comparison, find the solution using an initial feasible point.

```x0.x = [8 62 23 103 53 84 46 34]'; [x2,fval2,exitflag2,output2] = solve(prob,x0);```
```Solving problem using intlinprog. LP: Optimal objective value is 1554.047531. Cut Generation: Applied 8 strong CG cuts. Lower bound is 1591.000000. Relative gap is 59.20%. Branch and Bound: nodes total num int integer relative explored time (s) solution fval gap (%) 3627 0.62 2 2.154000e+03 2.593968e+01 5844 0.80 3 1.854000e+03 1.180593e+01 6204 0.88 3 1.854000e+03 1.455526e+00 6400 0.92 3 1.854000e+03 0.000000e+00 Optimal solution found. Intlinprog stopped because the objective value is within a gap tolerance of the optimal value, options.AbsoluteGapTolerance = 0 (the default value). The intcon variables are integer within tolerance, options.IntegerTolerance = 1e-05 (the default value). ```
`fprintf('Without an initial point, solve took %d steps.\nWith an initial point, solve took %d steps.',output1.numnodes,output2.numnodes)`
```Without an initial point, solve took 24294 steps. With an initial point, solve took 6400 steps. ```

Giving an initial point does not always improve the problem. For this problem, using an initial point saves time and computational steps. However, for some problems, an initial point can cause `solve` to take more steps.

Solve the problem

`$\underset{x}{\mathrm{min}}\left(-3{x}_{1}-2{x}_{2}-{x}_{3}\right)\phantom{\rule{0.2777777777777778em}{0ex}}subject\phantom{\rule{0.2777777777777778em}{0ex}}to\left\{\begin{array}{l}{x}_{3}\phantom{\rule{0.2777777777777778em}{0ex}}binary\\ {x}_{1},{x}_{2}\ge 0\\ {x}_{1}+{x}_{2}+{x}_{3}\le 7\\ 4{x}_{1}+2{x}_{2}+{x}_{3}=12\end{array}$`

without showing iterative display.

```x = optimvar('x',2,1,'LowerBound',0); x3 = optimvar('x3','Type','integer','LowerBound',0,'UpperBound',1); prob = optimproblem; prob.Objective = -3*x(1) - 2*x(2) - x3; prob.Constraints.cons1 = x(1) + x(2) + x3 <= 7; prob.Constraints.cons2 = 4*x(1) + 2*x(2) + x3 == 12; options = optimoptions('intlinprog','Display','off'); sol = solve(prob,'Options',options)```
```sol = struct with fields: x: [2x1 double] x3: 1 ```

Examine the solution.

`sol.x`
```ans = 2×1 0 5.5000 ```
`sol.x3`
```ans = 1 ```

Force `solve` to use `intlinprog` as the solver for a linear programming problem.

```x = optimvar('x'); y = optimvar('y'); prob = optimproblem; prob.Objective = -x - y/3; prob.Constraints.cons1 = x + y <= 2; prob.Constraints.cons2 = x + y/4 <= 1; prob.Constraints.cons3 = x - y <= 2; prob.Constraints.cons4 = x/4 + y >= -1; prob.Constraints.cons5 = x + y >= 1; prob.Constraints.cons6 = -x + y <= 2; sol = solve(prob,'Solver', 'intlinprog')```
```Solving problem using intlinprog. LP: Optimal objective value is -1.111111. Optimal solution found. No integer variables specified. Intlinprog solved the linear problem. ```
```sol = struct with fields: x: 0.6667 y: 1.3333 ```

Solve the mixed-integer linear programming problem described in Solve Integer Programming Problem with Nondefault Options and examine all of the output data.

```x = optimvar('x',2,1,'LowerBound',0); x3 = optimvar('x3','Type','integer','LowerBound',0,'UpperBound',1); prob = optimproblem; prob.Objective = -3*x(1) - 2*x(2) - x3; prob.Constraints.cons1 = x(1) + x(2) + x3 <= 7; prob.Constraints.cons2 = 4*x(1) + 2*x(2) + x3 == 12; [sol,fval,exitflag,output] = solve(prob)```
```Solving problem using intlinprog. LP: Optimal objective value is -12.000000. Optimal solution found. Intlinprog stopped at the root node because the objective value is within a gap tolerance of the optimal value, options.AbsoluteGapTolerance = 0 (the default value). The intcon variables are integer within tolerance, options.IntegerTolerance = 1e-05 (the default value). ```
```sol = struct with fields: x: [2x1 double] x3: 1 ```
```fval = -12 ```
```exitflag = OptimalSolution ```
```output = struct with fields: relativegap: 0 absolutegap: 0 numfeaspoints: 1 numnodes: 0 constrviolation: 0 message: 'Optimal solution found....' solver: 'intlinprog' ```

For a problem without any integer constraints, you can also obtain a nonempty Lagrange multiplier structure as the fifth output.

Create and solve an optimization problem using named index variables. The problem is to maximize the profit-weighted flow of fruit to various airports, subject to constraints on the weighted flows.

```rng(0) % For reproducibility p = optimproblem('ObjectiveSense', 'maximize'); flow = optimvar('flow', ... {'apples', 'oranges', 'bananas', 'berries'}, {'NYC', 'BOS', 'LAX'}, ... 'LowerBound',0,'Type','integer'); p.Objective = sum(sum(rand(4,3).*flow)); p.Constraints.NYC = rand(1,4)*flow(:,'NYC') <= 10; p.Constraints.BOS = rand(1,4)*flow(:,'BOS') <= 12; p.Constraints.LAX = rand(1,4)*flow(:,'LAX') <= 35; sol = solve(p);```
```Solving problem using intlinprog. LP: Optimal objective value is -1027.472366. Heuristics: Found 1 solution using ZI round. Upper bound is -1027.233133. Relative gap is 0.00%. Optimal solution found. Intlinprog stopped at the root node because the objective value is within a gap tolerance of the optimal value, options.AbsoluteGapTolerance = 0 (the default value). The intcon variables are integer within tolerance, options.IntegerTolerance = 1e-05 (the default value). ```

Find the optimal flow of oranges and berries to New York and Los Angeles.

`[idxFruit,idxAirports] = findindex(flow, {'oranges','berries'}, {'NYC', 'LAX'})`
```idxFruit = 1×2 2 4 ```
```idxAirports = 1×2 1 3 ```
`orangeBerries = sol.flow(idxFruit, idxAirports)`
```orangeBerries = 2×2 0 980.0000 70.0000 0 ```

This display means that no oranges are going to `NYC`, 70 berries are going to `NYC`, 980 oranges are going to `LAX`, and no berries are going to `LAX`.

List the optimal flow of the following:

`Fruit Airports`

` ----- --------`

` Berries NYC`

` Apples BOS`

` Oranges LAX`

`idx = findindex(flow, {'berries', 'apples', 'oranges'}, {'NYC', 'BOS', 'LAX'})`
```idx = 1×3 4 5 10 ```
`optimalFlow = sol.flow(idx)`
```optimalFlow = 1×3 70.0000 28.0000 980.0000 ```

This display means that 70 berries are going to `NYC`, 28 apples are going to `BOS`, and 980 oranges are going to `LAX`.

To solve the nonlinear system of equations

`$\begin{array}{l}\mathrm{exp}\left(-\mathrm{exp}\left(-\left({x}_{1}+{x}_{2}\right)\right)\right)={x}_{2}\left(1+{x}_{1}^{2}\right)\\ {x}_{1}\mathrm{cos}\left({x}_{2}\right)+{x}_{2}\mathrm{sin}\left({x}_{1}\right)=\frac{1}{2}\end{array}$`

using the problem-based approach, first define `x` as a two-element optimization variable.

`x = optimvar('x',2);`

Create the first equation as an optimization equality expression.

`eq1 = exp(-exp(-(x(1) + x(2)))) == x(2)*(1 + x(1)^2);`

Similarly, create the second equation as an optimization equality expression.

`eq2 = x(1)*cos(x(2)) + x(2)*sin(x(1)) == 1/2;`

Create an equation problem, and place the equations in the problem.

```prob = eqnproblem; prob.Equations.eq1 = eq1; prob.Equations.eq2 = eq2;```

Review the problem.

`show(prob)`
``` EquationProblem : Solve for: x eq1: exp((-exp((-(x(1) + x(2)))))) == (x(2) .* (1 + x(1).^2)) eq2: ((x(1) .* cos(x(2))) + (x(2) .* sin(x(1)))) == 0.5 ```

Solve the problem starting from the point `[0,0]`. For the problem-based approach, specify the initial point as a structure, with the variable names as the fields of the structure. For this problem, there is only one variable, `x`.

```x0.x = [0 0]; [sol,fval,exitflag] = solve(prob,x0)```
```Solving problem using fsolve. Equation solved. fsolve completed because the vector of function values is near zero as measured by the value of the function tolerance, and the problem appears regular as measured by the gradient. ```
```sol = struct with fields: x: [2x1 double] ```
```fval = struct with fields: eq1: -2.4070e-07 eq2: -3.8255e-08 ```
```exitflag = EquationSolved ```

View the solution point.

`disp(sol.x)`
``` 0.3532 0.6061 ```

Unsupported Functions Require `fcn2optimexpr`

If your equation functions are not composed of elementary functions, you must convert the functions to optimization expressions using `fcn2optimexpr`. For the present example:

```ls1 = fcn2optimexpr(@(x)exp(-exp(-(x(1)+x(2)))),x); eq1 = ls1 == x(2)*(1 + x(1)^2); ls2 = fcn2optimexpr(@(x)x(1)*cos(x(2))+x(2)*sin(x(1)),x); eq2 = ls2 == 1/2;```

## Input Arguments

collapse all

Optimization problem or equation problem, specified as an `OptimizationProblem` object or an `EquationProblem` object. Create an optimization problem by using `optimproblem`; create an equation problem by using `eqnproblem`.

Warning

The problem-based approach does not support complex values in an objective function, nonlinear equalities, or nonlinear inequalities. If a function calculation has a complex value, even as an intermediate value, the final result can be incorrect.

Example: ```prob = optimproblem; prob.Objective = obj; prob.Constraints.cons1 = cons1;```

Example: `prob = eqnproblem; prob.Equations = eqs;`

Initial point, specified as a structure with field names equal to the variable names in `prob`.

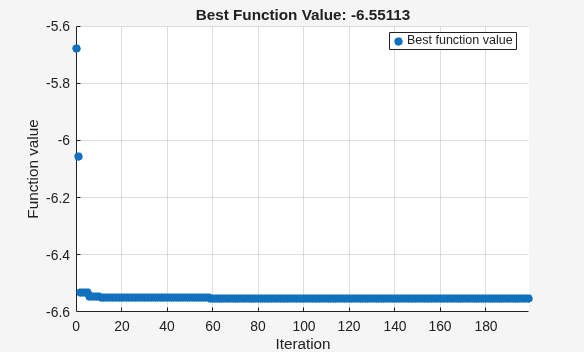

For some Global Optimization Toolbox solvers, `x0` can be a structure array representing multiple initial points. These solvers are:

For an example using `x0` with named index variables, see Create Initial Point for Optimization with Named Index Variables.

Example: If `prob` has variables named `x` and `y`: `x0.x = [3,2,17]; x0.y = [pi/3,2*pi/3]`.

Data Types: `struct`

### Name-Value Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `solve(prob,'Options',opts)`

Optimization options, specified as an object created by `optimoptions` or an options structure such as created by `optimset`.

Internally, the `solve` function calls a relevant solver as detailed in the `'solver'` argument reference. Ensure that `options` is compatible with the solver. For example, `intlinprog` does not allow options to be a structure, and `lsqnonneg` does not allow options to be an object.

For suggestions on options settings to improve an `intlinprog` solution or the speed of a solution, see Tuning Integer Linear Programming. For `linprog`, the default `'dual-simplex'` algorithm is generally memory-efficient and speedy. Occasionally, `linprog` solves a large problem faster when the `Algorithm` option is `'interior-point'`. For suggestions on options settings to improve a nonlinear problem's solution, see Options in Common Use: Tuning and Troubleshooting and Improve Results.

Example: ```options = optimoptions('intlinprog','Display','none')```

Optimization solver, specified as the name of a listed solver. For optimization problems, this table contains the available solvers for each problem type, including solvers from Global Optimization Toolbox. Details for equation problems appear below the optimization solver details.

For converting nonlinear problems with integer constraints using `prob2struct`, the resulting problem structure can depend on the chosen solver. If you do not have a Global Optimization Toolbox license, you must specify the solver. See Integer Constraints in Nonlinear Problem-Based Optimization.

The default solver for each optimization problem type is listed here.

Problem TypeDefault Solver
Linear Programming (LP)`linprog`
Mixed-Integer Linear Programming (MILP)`intlinprog`
Quadratic Programming (QP)`quadprog`
Second-Order Cone Programming (SOCP)`coneprog`
Linear Least Squares`lsqlin`
Nonlinear Least Squares`lsqnonlin`
Nonlinear Programming (NLP)

`fminunc` for problems with no constraints, otherwise `fmincon`

Mixed-Integer Nonlinear Programming (MINLP)`ga` (Global Optimization Toolbox)

In this table, means the solver is available for the problem type, x means the solver is not available.

Problem Type

LPMILPQPSOCPLinear Least SquaresNonlinear Least SquaresNLPMINLP
Solver
`linprog`

xxxxxxx
`intlinprog`

xxxxxx
`quadprog`

x

xxx
`coneprog`

xx

xxxx
`lsqlin`xxxx

xxx
`lsqnonneg`xxxx

xxx
`lsqnonlin`xxxx

xx
`fminunc`

x

x

x
`fmincon`

x

x
`patternsearch` (Global Optimization Toolbox)

x

x
`ga` (Global Optimization Toolbox)

`particleswarm` (Global Optimization Toolbox)

x

x

x
`simulannealbnd` (Global Optimization Toolbox)

x

x

x
`surrogateopt` (Global Optimization Toolbox)

Note

If you choose `lsqcurvefit` as the solver for a least-squares problem, `solve` uses `lsqnonlin`. The `lsqcurvefit` and `lsqnonlin` solvers are identical for `solve`.

Caution

For maximization problems (`prob.ObjectiveSense` is `"max"` or `"maximize"`), do not specify a least-squares solver (one with a name beginning `lsq`). If you do, `solve` throws an error, because these solvers cannot maximize.

For equation solving, this table contains the available solvers for each problem type. In the table,

• * indicates the default solver for the problem type.

• Y indicates an available solver.

• N indicates an unavailable solver.

Supported Solvers for Equations

Equation Type`lsqlin``lsqnonneg``fzero``fsolve``lsqnonlin`
Linear*NY (scalar only)YY
Linear plus bounds*YNNY
Scalar nonlinearNN*YY
Nonlinear systemNNN*Y
Nonlinear system plus boundsNNNN*

Example: `'intlinprog'`

Data Types: `char` | `string`

Indication to use automatic differentiation (AD) for nonlinear objective function, specified as `'auto'` (use AD if possible), `'auto-forward'` (use forward AD if possible), `'auto-reverse'` (use reverse AD if possible), or `'finite-differences'` (do not use AD). Choices including `auto` cause the underlying solver to use gradient information when solving the problem provided that the objective function is supported, as described in Supported Operations for Optimization Variables and Expressions. For an example, see Effect of Automatic Differentiation in Problem-Based Optimization.

Solvers choose the following type of AD by default:

• For a general nonlinear objective function, `fmincon` defaults to reverse AD for the objective function. `fmincon` defaults to reverse AD for the nonlinear constraint function when the number of nonlinear constraints is less than the number of variables. Otherwise, `fmincon` defaults to forward AD for the nonlinear constraint function.

• For a general nonlinear objective function, `fminunc` defaults to reverse AD.

• For a least-squares objective function, `fmincon` and `fminunc` default to forward AD for the objective function. For the definition of a problem-based least-squares objective function, see Write Objective Function for Problem-Based Least Squares.

• `lsqnonlin` defaults to forward AD when the number of elements in the objective vector is greater than or equal to the number of variables. Otherwise, `lsqnonlin` defaults to reverse AD.

• `fsolve` defaults to forward AD when the number of equations is greater than or equal to the number of variables. Otherwise, `fsolve` defaults to reverse AD.

Example: `'finite-differences'`

Data Types: `char` | `string`

Indication to use automatic differentiation (AD) for nonlinear constraint functions, specified as `'auto'` (use AD if possible), `'auto-forward'` (use forward AD if possible), `'auto-reverse'` (use reverse AD if possible), or `'finite-differences'` (do not use AD). Choices including `auto` cause the underlying solver to use gradient information when solving the problem provided that the constraint functions are supported, as described in Supported Operations for Optimization Variables and Expressions. For an example, see Effect of Automatic Differentiation in Problem-Based Optimization.

Solvers choose the following type of AD by default:

• For a general nonlinear objective function, `fmincon` defaults to reverse AD for the objective function. `fmincon` defaults to reverse AD for the nonlinear constraint function when the number of nonlinear constraints is less than the number of variables. Otherwise, `fmincon` defaults to forward AD for the nonlinear constraint function.

• For a general nonlinear objective function, `fminunc` defaults to reverse AD.

• For a least-squares objective function, `fmincon` and `fminunc` default to forward AD for the objective function. For the definition of a problem-based least-squares objective function, see Write Objective Function for Problem-Based Least Squares.

• `lsqnonlin` defaults to forward AD when the number of elements in the objective vector is greater than or equal to the number of variables. Otherwise, `lsqnonlin` defaults to reverse AD.

• `fsolve` defaults to forward AD when the number of equations is greater than or equal to the number of variables. Otherwise, `fsolve` defaults to reverse AD.

Example: `'finite-differences'`

Data Types: `char` | `string`

Indication to use automatic differentiation (AD) for nonlinear constraint functions, specified as `'auto'` (use AD if possible), `'auto-forward'` (use forward AD if possible), `'auto-reverse'` (use reverse AD if possible), or `'finite-differences'` (do not use AD). Choices including `auto` cause the underlying solver to use gradient information when solving the problem provided that the equation functions are supported, as described in Supported Operations for Optimization Variables and Expressions. For an example, see Effect of Automatic Differentiation in Problem-Based Optimization.

Solvers choose the following type of AD by default:

• For a general nonlinear objective function, `fmincon` defaults to reverse AD for the objective function. `fmincon` defaults to reverse AD for the nonlinear constraint function when the number of nonlinear constraints is less than the number of variables. Otherwise, `fmincon` defaults to forward AD for the nonlinear constraint function.

• For a general nonlinear objective function, `fminunc` defaults to reverse AD.

• For a least-squares objective function, `fmincon` and `fminunc` default to forward AD for the objective function. For the definition of a problem-based least-squares objective function, see Write Objective Function for Problem-Based Least Squares.

• `lsqnonlin` defaults to forward AD when the number of elements in the objective vector is greater than or equal to the number of variables. Otherwise, `lsqnonlin` defaults to reverse AD.

• `fsolve` defaults to forward AD when the number of equations is greater than or equal to the number of variables. Otherwise, `fsolve` defaults to reverse AD.

Example: `'finite-differences'`

Data Types: `char` | `string`

## Output Arguments

collapse all

Solution, returned as a structure. The fields of the structure are the names of the optimization variables. See `optimvar`.

Objective function value at the solution, returned as one of the following:

Problem TypeReturned Value(s)
Optimize scalar objective function f(x)Real number f(sol)
Least squaresReal number, the sum of squares of the residuals at the solution
Solve equationIf `prob.Equations` is a single entry: Real vector of function values at the solution, meaning the left side minus the right side of the equations
If `prob.Equations` has multiple named fields: Structure with same names as `prob.Equations`, where each field value is the left side minus the right side of the named equations

Tip

If you neglect to ask for `fval` for an objective defined as an optimization expression or equation expression, you can calculate it using

`fval = evaluate(prob.Objective,sol)`

If the objective is defined as a structure with only one field,

`fval = evaluate(prob.Objective.ObjectiveName,sol)`

If the objective is a structure with multiple fields, write a loop.

```fnames = fields(prob.Equations); for i = 1:length(fnames) fval.(fnames{i}) = evaluate(prob.Equations.(fnames{i}),sol); end```

Reason the solver stopped, returned as an enumeration variable. You can convert `exitflag` to its numeric equivalent using `double(exitflag)`, and to its string equivalent using `string(exitflag)`.

This table describes the exit flags for the `intlinprog` solver.

Exit Flag for `intlinprog`Numeric EquivalentMeaning
`OptimalWithPoorFeasibility``3`

The solution is feasible with respect to the relative `ConstraintTolerance` tolerance, but is not feasible with respect to the absolute tolerance.

`IntegerFeasible`2`intlinprog` stopped prematurely, and found an integer feasible point.
`OptimalSolution`

`1`

The solver converged to a solution `x`.

`SolverLimitExceeded`

`0`

`intlinprog` exceeds one of the following tolerances:

• `LPMaxIterations`

• `MaxNodes`

• `MaxTime`

• `RootLPMaxIterations`

See Tolerances and Stopping Criteria. `solve` also returns this exit flag when it runs out of memory at the root node.

`OutputFcnStop``-1``intlinprog` stopped by an output function or plot function.
`NoFeasiblePointFound`

`-2`

No feasible point found.

`Unbounded`

`-3`

The problem is unbounded.

`FeasibilityLost`

`-9`

Solver lost feasibility.

Exitflags `3` and `-9` relate to solutions that have large infeasibilities. These usually arise from linear constraint matrices that have large condition number, or problems that have large solution components. To correct these issues, try to scale the coefficient matrices, eliminate redundant linear constraints, or give tighter bounds on the variables.

This table describes the exit flags for the `linprog` solver.

Exit Flag for `linprog`Numeric EquivalentMeaning
`OptimalWithPoorFeasibility``3`

The solution is feasible with respect to the relative `ConstraintTolerance` tolerance, but is not feasible with respect to the absolute tolerance.

`OptimalSolution``1`

The solver converged to a solution `x`.

`SolverLimitExceeded``0`

The number of iterations exceeds `options.MaxIterations`.

`NoFeasiblePointFound``-2`

No feasible point found.

`Unbounded``-3`

The problem is unbounded.

`FoundNaN``-4`

`NaN` value encountered during execution of the algorithm.

`PrimalDualInfeasible``-5`

Both primal and dual problems are infeasible.

`DirectionTooSmall``-7`

The search direction is too small. No further progress can be made.

`FeasibilityLost``-9`

Solver lost feasibility.

Exitflags `3` and `-9` relate to solutions that have large infeasibilities. These usually arise from linear constraint matrices that have large condition number, or problems that have large solution components. To correct these issues, try to scale the coefficient matrices, eliminate redundant linear constraints, or give tighter bounds on the variables.

This table describes the exit flags for the `lsqlin` solver.

Exit Flag for `lsqlin`Numeric EquivalentMeaning
`FunctionChangeBelowTolerance``3`

Change in the residual is smaller than the specified tolerance `options.FunctionTolerance`. (`trust-region-reflective` algorithm)

`StepSizeBelowTolerance`

`2`

Step size smaller than `options.StepTolerance`, constraints satisfied. (`interior-point` algorithm)

`OptimalSolution``1`

The solver converged to a solution `x`.

`SolverLimitExceeded``0`

The number of iterations exceeds `options.MaxIterations`.

`NoFeasiblePointFound``-2`

For optimization problems, the problem is infeasible. Or, for the `interior-point` algorithm, step size smaller than `options.StepTolerance`, but constraints are not satisfied.

For equation problems, no solution found.

`IllConditioned``-4`

Ill-conditioning prevents further optimization.

`NoDescentDirectionFound``-8`

The search direction is too small. No further progress can be made. (`interior-point` algorithm)

This table describes the exit flags for the `quadprog` solver.

Exit Flag for `quadprog`Numeric EquivalentMeaning
`LocalMinimumFound``4`

Local minimum found; minimum is not unique.

`FunctionChangeBelowTolerance``3`

Change in the objective function value is smaller than the specified tolerance `options.FunctionTolerance`. (`trust-region-reflective` algorithm)

`StepSizeBelowTolerance`

`2`

Step size smaller than `options.StepTolerance`, constraints satisfied. (`interior-point-convex` algorithm)

`OptimalSolution``1`

The solver converged to a solution `x`.

`SolverLimitExceeded``0`

The number of iterations exceeds `options.MaxIterations`.

`NoFeasiblePointFound``-2`

The problem is infeasible. Or, for the `interior-point` algorithm, step size smaller than `options.StepTolerance`, but constraints are not satisfied.

`IllConditioned``-4`

Ill-conditioning prevents further optimization.

`Nonconvex`

`-6`

Nonconvex problem detected. (`interior-point-convex` algorithm)

`NoDescentDirectionFound``-8`

Unable to compute a step direction. (`interior-point-convex` algorithm)

This table describes the exit flags for the `coneprog` solver.

Exit Flag for `coneprog`Numeric EquivalentMeaning
`OptimalSolution``1`

The solver converged to a solution `x`.

`SolverLimitExceeded``0`

The number of iterations exceeds `options.MaxIterations`, or the solution time in seconds exceeded `options.MaxTime`.

`NoFeasiblePointFound``-2`

The problem is infeasible.

`Unbounded``-3`

The problem is unbounded.

`DirectionTooSmall`

`-7`

The search direction became too small. No further progress could be made.

`Unstable``-10`

The problem is numerically unstable.

This table describes the exit flags for the `lsqcurvefit` or `lsqnonlin` solver.

Exit Flag for `lsqnonlin`Numeric EquivalentMeaning
`SearchDirectionTooSmall ``4`

Magnitude of search direction was smaller than `options.StepTolerance`.

`FunctionChangeBelowTolerance``3`

Change in the residual was less than `options.FunctionTolerance`.

`StepSizeBelowTolerance`

`2`

Step size smaller than `options.StepTolerance`.

`OptimalSolution``1`

The solver converged to a solution `x`.

`SolverLimitExceeded``0`

Number of iterations exceeded `options.MaxIterations` or number of function evaluations exceeded `options.MaxFunctionEvaluations`.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`NoFeasiblePointFound``-2`

For optimization problems, problem is infeasible: the bounds `lb` and `ub` are inconsistent.

For equation problems, no solution found.

This table describes the exit flags for the `fminunc` solver.

Exit Flag for `fminunc`Numeric EquivalentMeaning
`NoDecreaseAlongSearchDirection``5`

Predicted decrease in the objective function is less than the `options.FunctionTolerance` tolerance.

`FunctionChangeBelowTolerance``3`

Change in the objective function value is less than the `options.FunctionTolerance` tolerance.

`StepSizeBelowTolerance`

`2`

Change in `x` is smaller than the `options.StepTolerance` tolerance.

`OptimalSolution``1`

Magnitude of gradient is smaller than the `options.OptimalityTolerance` tolerance.

`SolverLimitExceeded``0`

Number of iterations exceeds `options.MaxIterations` or number of function evaluations exceeds `options.MaxFunctionEvaluations`.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`Unbounded``-3`

Objective function at current iteration is below `options.ObjectiveLimit`.

This table describes the exit flags for the `fmincon` solver.

Exit Flag for `fmincon`Numeric EquivalentMeaning
`NoDecreaseAlongSearchDirection``5`

Magnitude of directional derivative in search direction is less than 2*`options.OptimalityTolerance` and maximum constraint violation is less than `options.ConstraintTolerance`.

`SearchDirectionTooSmall``4`

Magnitude of the search direction is less than 2*`options.StepTolerance` and maximum constraint violation is less than `options.ConstraintTolerance`.

`FunctionChangeBelowTolerance``3`

Change in the objective function value is less than `options.FunctionTolerance` and maximum constraint violation is less than `options.ConstraintTolerance`.

`StepSizeBelowTolerance`

`2`

Change in `x` is less than `options.StepTolerance` and maximum constraint violation is less than `options.ConstraintTolerance`.

`OptimalSolution``1`

First-order optimality measure is less than `options.OptimalityTolerance`, and maximum constraint violation is less than `options.ConstraintTolerance`.

`SolverLimitExceeded``0`

Number of iterations exceeds `options.MaxIterations` or number of function evaluations exceeds `options.MaxFunctionEvaluations`.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`NoFeasiblePointFound``-2`

No feasible point found.

`Unbounded``-3`

Objective function at current iteration is below `options.ObjectiveLimit` and maximum constraint violation is less than `options.ConstraintTolerance`.

This table describes the exit flags for the `fsolve` solver.

Exit Flag for `fsolve`Numeric EquivalentMeaning
`SearchDirectionTooSmall``4`

Magnitude of the search direction is less than `options.StepTolerance`, equation solved.

`FunctionChangeBelowTolerance``3`

Change in the objective function value is less than `options.FunctionTolerance`, equation solved.

`StepSizeBelowTolerance`

`2`

Change in `x` is less than `options.StepTolerance`, equation solved.

`OptimalSolution``1`

First-order optimality measure is less than `options.OptimalityTolerance`, equation solved.

`SolverLimitExceeded``0`

Number of iterations exceeds `options.MaxIterations` or number of function evaluations exceeds `options.MaxFunctionEvaluations`.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`NoFeasiblePointFound``-2`

Converged to a point that is not a root.

`TrustRegionRadiusTooSmall``-3`

Equation not solved. Trust region radius became too small (`trust-region-dogleg` algorithm).

This table describes the exit flags for the `fzero` solver.

Exit Flag for `fzero`Numeric EquivalentMeaning
`OptimalSolution``1`

Equation solved.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`FoundNaNInfOrComplex``-4`

`NaN`, `Inf`, or complex value encountered during search for an interval containing a sign change.

`SingularPoint``-5`

Might have converged to a singular point.

`CannotDetectSignChange``-6`Did not find two points with opposite signs of function value.

This table describes the exit flags for the `patternsearch` solver.

Exit Flag for `patternsearch`Numeric EquivalentMeaning
`SearchDirectionTooSmall``4`

The magnitude of the step is smaller than machine precision, and the constraint violation is less than `ConstraintTolerance`.

`FunctionChangeBelowTolerance``3`

The change in `fval` and the mesh size are both less than the specified tolerance, and the constraint violation is less than `ConstraintTolerance`.

`StepSizeBelowTolerance`

`2`

Change in `x` and the mesh size are both smaller than `StepTolerance`, and the constraint violation is less than `ConstraintTolerance`.

`SolverConvergedSuccessfully``1`

Without nonlinear constraints — The magnitude of the mesh size is less than the specified tolerance, and the constraint violation is less than `ConstraintTolerance`.

With nonlinear constraints — The magnitude of the complementarity measure (defined after this table) is less than `sqrt(ConstraintTolerance)`, the subproblem is solved using a mesh finer than `MeshTolerance`, and the constraint violation is less than `ConstraintTolerance`.

`SolverLimitExceeded``0`

The maximum number of function evaluations or iterations is reached.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`NoFeasiblePointFound``-2`

No feasible point found.

In the nonlinear constraint solver, the complementarity measure is the norm of the vector whose elements are ciλi, where ci is the nonlinear inequality constraint violation, and λi is the corresponding Lagrange multiplier.

This table describes the exit flags for the `ga` solver.

Exit Flag for `ga`Numeric EquivalentMeaning
`MinimumFitnessLimitReached``5`

Minimum fitness limit `FitnessLimit` reached and the constraint violation is less than `ConstraintTolerance`.

`SearchDirectionTooSmall``4`

The magnitude of the step is smaller than machine precision, and the constraint violation is less than `ConstraintTolerance`.

`FunctionChangeBelowTolerance``3`

Value of the fitness function did not change in `MaxStallGenerations` generations and the constraint violation is less than `ConstraintTolerance`.

`SolverConvergedSuccessfully``1`

Without nonlinear constraints — Average cumulative change in value of the fitness function over `MaxStallGenerations` generations is less than `FunctionTolerance`, and the constraint violation is less than `ConstraintTolerance`.

With nonlinear constraints — Magnitude of the complementarity measure (see Complementarity Measure (Global Optimization Toolbox)) is less than `sqrt(ConstraintTolerance)`, the subproblem is solved using a tolerance less than `FunctionTolerance`, and the constraint violation is less than `ConstraintTolerance`.

`SolverLimitExceeded``0`

Maximum number of generations `MaxGenerations` exceeded.

`OutputFcnStop``-1`

Stopped by an output function or plot function.

`NoFeasiblePointFound``-2`

No feasible point found.

`StallTimeLimitExceeded``-4`

Stall time limit `MaxStallTime` exceeded.

`TimeLimitExceeded``-5`

Time limit `MaxTime` exceeded.

This table describes the exit flags for the `particleswarm` solver.

Exit Flag for `particleswarm`Numeric EquivalentMeaning
`SolverConvergedSuccessfully``1`

Relative change in the objective value over the last `options.MaxStallIterations` iterations is less than `options.FunctionTolerance`.

`SolverLimitExceeded``0`

Number of iterations exceeded `options.MaxIterations`.

`OutputFcnStop``-1`

Iterations stopped by output function or plot function.

`NoFeasiblePointFound``-2`

Bounds are inconsistent: for some `i`, `lb(i)` > `ub(i)`.

`Unbounded``-3`

Best objective function value is below `options.ObjectiveLimit`.

`StallTimeLimitExceeded``-4`

Best objective function value did not change within `options.MaxStallTime` seconds.

`TimeLimitExceeded``-5`

Run time exceeded `options.MaxTime` seconds.

This table describes the exit flags for the `simulannealbnd` solver.

Exit Flag for `simulannealbnd`Numeric EquivalentMeaning
`ObjectiveValueBelowLimit``5`

Objective function value is less than `options.ObjectiveLimit`.

`SolverConvergedSuccessfully``1`

Average change in the value of the objective function over `options.MaxStallIterations` iterations is less than `options.FunctionTolerance`.

`SolverLimitExceeded``0`

Maximum number of generations `MaxGenerations` exceeded.

`OutputFcnStop``-1`

Optimization terminated by an output function or plot function.

`NoFeasiblePointFound``-2`

No feasible point found.

`TimeLimitExceeded``-5`

Time limit exceeded.

This table describes the exit flags for the `surrogateopt` solver.

Exit Flag for `surrogateopt`Numeric EquivalentMeaning
`BoundsEqual``10`

Problem has a unique feasible solution due to one of the following:

• All upper bounds `ub` (Global Optimization Toolbox) are equal to the lower bounds `lb` (Global Optimization Toolbox).

• The linear equality constraints ```Aeq*x = beq``` and the bounds have a unique solution point.

`surrogateopt` returns the feasible point and function value without performing any optimization.

`FeasiblePointFound``3`Feasible point found. Solver stopped because too few new feasible points were found to continue.
`ObjectiveLimitAttained``1`

The objective function value is less than `options.ObjectiveLimit`. This exit flag takes precedence over exit flag `10` when both apply.

`SolverLimitExceeded``0`

The number of function evaluations exceeds `options.MaxFunctionEvaluations` or the elapsed time exceeds `options.MaxTime`. If the problem has nonlinear inequalities, the solution is feasible.

`OutputFcnStop``-1`

The optimization is terminated by an output function or plot function.

`NoFeasiblePointFound``-2`

No feasible point is found due to one of the following:

• A lower bound `lb(i)` exceeds a corresponding upper bound `ub(i)`. Or one or more `ceil(lb(i))` exceeds a corresponding `floor(ub(i))` for i in `intcon` (Global Optimization Toolbox). In this case, `solve` returns ```x = []``` and `fval = []`.

• `lb = ub` and the point `lb` is infeasible. In this case, `x = lb`, and ```fval = objconstr(x).Fval```.

• The linear and, if present, integer constraints are infeasible together with the bounds. In this case, `solve` returns ```x = []``` and `fval = []`.

• The bounds, integer, and linear constraints are feasible, but no feasible solution is found with nonlinear constraints. In this case, `x` is the point of least maximum infeasibility of nonlinear constraints, and `fval = objconstr(x).Fval`.

Information about the optimization process, returned as a structure. The output structure contains the fields in the relevant underlying solver output field, depending on which solver `solve` called:

`solve` includes the additional field `Solver` in the `output` structure to identify the solver used, such as `'intlinprog'`.

When `Solver` is a nonlinear Optimization Toolbox™ solver, `solve` includes one or two extra fields describing the derivative estimation type. The `objectivederivative` and, if appropriate, `constraintderivative` fields can take the following values:

• `"reverse-AD"` for reverse automatic differentiation

• `"forward-AD"` for forward automatic differentiation

• `"finite-differences"` for finite difference estimation

• `"closed-form"` for linear or quadratic functions

Lagrange multipliers at the solution, returned as a structure.

Note

`solve` does not return `lambda` for equation-solving problems.

For the `intlinprog` and `fminunc` solvers, `lambda` is empty, `[]`. For the other solvers, `lambda` has these fields:

• `Variables` – Contains fields for each problem variable. Each problem variable name is a structure with two fields:

• `Lower` – Lagrange multipliers associated with the variable `LowerBound` property, returned as an array of the same size as the variable. Nonzero entries mean that the solution is at the lower bound. These multipliers are in the structure `lambda.Variables.variablename.Lower`.

• `Upper` – Lagrange multipliers associated with the variable `UpperBound` property, returned as an array of the same size as the variable. Nonzero entries mean that the solution is at the upper bound. These multipliers are in the structure `lambda.Variables.variablename.Upper`.

• `Constraints` – Contains a field for each problem constraint. Each problem constraint is in a structure whose name is the constraint name, and whose value is a numeric array of the same size as the constraint. Nonzero entries mean that the constraint is active at the solution. These multipliers are in the structure `lambda.Constraints.constraintname`.

Note

Elements of a constraint array all have the same comparison (`<=`, `==`, or `>=`) and are all of the same type (linear, quadratic, or nonlinear).

## Algorithms

collapse all

### Conversion to Solver Form

Internally, the `solve` function solves optimization problems by calling a solver. For the default solver for the problem and supported solvers for the problem, see the `'solver'` argument.

Before `solve` can call a solver, the problems must be converted to solver form, either by `solve` or some other associated functions or objects. This conversion entails, for example, linear constraints having a matrix representation rather than an optimization variable expression.

The first step in the algorithm occurs as you place optimization expressions into the problem. An `OptimizationProblem` object has an internal list of the variables used in its expressions. Each variable has a linear index in the expression, and a size. Therefore, the problem variables have an implied matrix form. The `prob2struct` function performs the conversion from problem form to solver form. For an example, see Convert Problem to Structure.

For nonlinear optimization problems, `solve` uses automatic differentiation to compute the gradients of the objective function and nonlinear constraint functions. These derivatives apply when the objective and constraint functions are composed of Supported Operations for Optimization Variables and Expressions and do not use the `fcn2optimexpr` function. When automatic differentiation does not apply, solvers estimate derivatives using finite differences. For details of automatic differentiation, see Automatic Differentiation Background.

For the default and allowed solvers that `solve` calls, depending on the problem objective and constraints, see `'solver'`. You can override the default by using the `'solver'` name-value pair argument when calling `solve`.

For the algorithm that `intlinprog` uses to solve MILP problems, see intlinprog Algorithm. For the algorithms that `linprog` uses to solve linear programming problems, see Linear Programming Algorithms. For the algorithms that `quadprog` uses to solve quadratic programming problems, see Quadratic Programming Algorithms. For linear or nonlinear least-squares solver algorithms, see Least-Squares (Model Fitting) Algorithms. For nonlinear solver algorithms, see Unconstrained Nonlinear Optimization Algorithms and Constrained Nonlinear Optimization Algorithms.

For nonlinear equation solving, `solve` internally represents each equation as the difference between the left and right sides. Then `solve` attempts to minimize the sum of squares of the equation components. For the algorithms for solving nonlinear systems of equations, see Equation Solving Algorithms. When the problem also has bounds, `solve` calls `lsqnonlin` to minimize the sum of squares of equation components. See Least-Squares (Model Fitting) Algorithms.

Note

If your objective function is a sum of squares, and you want `solve` to recognize it as such, write it as either `norm(expr)^2` or `sum(expr.^2)`, and not as `expr'*expr` or any other form. The internal parser recognizes a sum of squares only when represented as a square of a norm or an explicit sums of squares. For details, see Write Objective Function for Problem-Based Least Squares. For an example, see Nonnegative Linear Least Squares, Problem-Based.

### Automatic Differentiation

Automatic differentiation (AD) applies to the `solve` and `prob2struct` functions under the following conditions:

When AD AppliesAll Constraint Functions SupportedOne or More Constraints Not Supported
Objective Function SupportedAD used for objective and constraintsAD used for objective only

When these conditions are not satisfied, `solve` estimates gradients by finite differences, and `prob2struct` does not create gradients in its generated function files.

Solvers choose the following type of AD by default:

• For a general nonlinear objective function, `fmincon` defaults to reverse AD for the objective function. `fmincon` defaults to reverse AD for the nonlinear constraint function when the number of nonlinear constraints is less than the number of variables. Otherwise, `fmincon` defaults to forward AD for the nonlinear constraint function.

• For a general nonlinear objective function, `fminunc` defaults to reverse AD.

• For a least-squares objective function, `fmincon` and `fminunc` default to forward AD for the objective function. For the definition of a problem-based least-squares objective function, see Write Objective Function for Problem-Based Least Squares.

• `lsqnonlin` defaults to forward AD when the number of elements in the objective vector is greater than or equal to the number of variables. Otherwise, `lsqnonlin` defaults to reverse AD.

• `fsolve` defaults to forward AD when the number of equations is greater than or equal to the number of variables. Otherwise, `fsolve` defaults to reverse AD.

Note

To use automatic derivatives in a problem converted by `prob2struct`, pass options specifying these derivatives.

```options = optimoptions('fmincon','SpecifyObjectiveGradient',true,... 'SpecifyConstraintGradient',true); problem.options = options;```

Currently, AD works only for first derivatives; it does not apply to second or higher derivatives. So, for example, if you want to use an analytic Hessian to speed your optimization, you cannot use `solve` directly, and must instead use the approach described in Supply Derivatives in Problem-Based Workflow.

## Compatibility Considerations

expand all

Errors starting in R2018b

## Extended Capabilities

Introduced in R2017b
