Point region of interest


The Point object is a point region-of-interest (ROI).

To draw the ROI, position the pointer on the image and then click and release. For more information about using the ROI, including keyboard shortcuts, see Tips.



To create a Point object, use the images.roi.Point creation function. After creating the object, call the draw object function to begin drawing. As a convenience, you can also use the drawpoint function to create a Point ROI. The drawpoint function creates the ROI object and automatically calls the draw object function.


roi = images.roi.Point creates an instance of the Point ROI object with default properties.

roi = images.roi.Point(ax) creates a Point ROI object in the axes specified by ax.

roi = images.roi.Point(___,Name,Value) sets properties using name-value pairs. For example, images.roi.Point('Color','y') sets the color of the Point object to yellow. You can specify multiple name-value pairs. Enclose each property name in single quotes.

Input Arguments

expand all

Parent of ROI, specified as an Axes object or a UIAxes object. For information about using an ROI in a UIAxes, including important limitations, see Using ROIs in Apps Created with App Designer.


expand all

ROI color, specified as a MATLAB® ColorSpec (Color Specification).

Example: 'green'

Example: 'g'

Example: [0 1 0]

Context menu, specified as a ContextMenu object. Use this property to display a custom context menu when you right-click the ROI. You can create a custom context menu by using the uicontextmenu function and then configuring context menu properties.

ROI can be interactively deleted via a context menu, specified as true or false. When the value is true (default), you can delete the ROI via the context menu. To disable this context menu item, set this property to false. When the value is set to false, you can still delete the ROI by calling the delete function specifying the handle to the ROI as the input.

Area of the axes in which you can interactively place the ROI, specified as one of the values in this table.

'auto'The drawing area is the current axes limits (default).
'unlimited'The drawing area has no boundary and ROIs can be drawn or dragged to extend beyond the axes limits.
[x,y,w,h]The drawing area is restricted to a rectangular region beginning at (x,y), and extending to width w and height h.

Visibility of the ROI handle in the Children property of the parent, specified as one of the values in this table.

'on'The object handle is always visible (default).
'off'The object handle is hidden at all times.
'callback' The object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line.

Interactivity of the ROI, specified as one of the values in this table.

'all'The ROI is fully interactable (default).
'none'The ROI is not interactable, and no drag points are visible.
'translate'The ROI can be translated (moved) within the drawing area but not reshaped.

ROI label, specified as a character vector or string. By default, the ROI has no label ('').

Visibility of the ROI label, specified as one of these values:

'on'Label is visible when the ROI is visible and the Label property is nonempty (default).
'hover'Label is visible only when the mouse hovers over the ROI.
'off'Label is not visible.

Width of the ROI edge, specified as a positive numeric scalar in points. The default value is three times the number of points per screen pixel.

ROI parent, specified as an Axes or UIAxes object. For information about using an ROI in a UIAxes, including important limitations, see Using ROIs in Apps Created with App Designer.

Position of the ROI, specified as a 1-by-2 numeric array of the form [x y], where x and y specify the location of the point. You can modify this property by drawing or moving the point.

Selection state of the ROI, specified as the logical value true or false. You can also set this property interactively. For example, clicking on the ROI selects the ROI and sets this property to true. Similarly, pressing the Ctrl key and clicking the ROI deselects the ROI and sets the value of this property to false.

Color of the ROI when selected, specified as a MATLAB ColorSpec (Color Specification). The intensities must be in the range [0,1]. If 'SelectedColor' is set to 'none', then the value of Color defines the color of the ROI for all states, selected or not.

Example: 'green'

Example: 'g'

Example: [0 1 0]

Color of the ROI stripe, specified as a MATLAB ColorSpec (Color Specification) value. By default, the edge of an ROI is solid colored. If you specify StripeColor, the ROI edge is striped. The striping consists of a combination of the value specified by 'Color' and this value.

Example: 'green'

Example: 'g'

Example: [0 1 0]

Tag to associate with the ROI, specified as a character vector or string. Use the tag value to find the ROI object in a hierarchy of objects using the findobj function.

Data to associate with the ROI, specified as any MATLAB data. For example, you can specify a scalar, vector, matrix, cell array, string, character array, table, or structure. MATLAB does not use this data.

ROI visibility, specified as 'on' or 'off', or as numeric or logical 1 (true) or 0 (false). A value of 'on' is equivalent to true, and 'off' is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

'on'Display the ROI (default).
'off'Hide the ROI without deleting it. You still can access the properties of an invisible ROI.

Object Functions

addlistenerCreate event listener bound to event source
beginDrawingFromPointBegin drawing ROI from specified point
bringToFrontBring ROI to front of Axes stacking order
drawBegin drawing ROI interactively
waitBlock MATLAB command line until ROI operation is finished


collapse all

Read an image into the workspace and display it.

I = imread('baby.jpg');

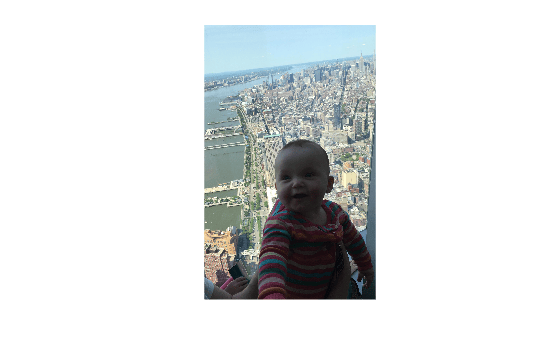

Create a point ROI on the image, using the 'Position' property to specify the location. For programmatically created ROIs, if you want the ROI drawn in a specific axes, you must specify that axes as an input argument. Otherwise, an instance of the images.roi.Point class is created but not displayed. In this example, specify the current axes (gca) to draw the ROI on the image in that axes.

h = images.roi.Point(gca,'Position',[400 650]);

Read an image into the workspace.

I = imread('cameraman.tif');

Display the image.


Draw a Point ROI on the image. Because this example specifies the length and location of the ROI, you do not have to call the draw method to enable interactive drawing.

roi = images.roi.Point(gca,'Position',[40 65]);

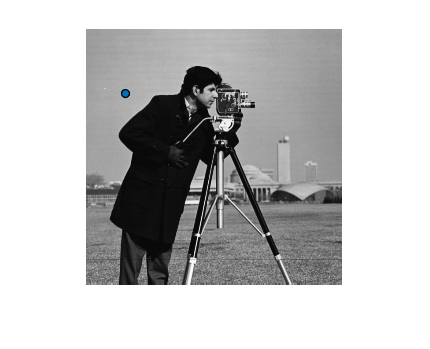

Set up listeners for ROI moving events. When you move it, the ROI sends notifications of these events and executes the callback function you specify.


The allevents callback function displays at the command line the previous position and the current position of the ROI.

function allevents(src,evt)
evname = evt.EventName;
            disp(['ROI moving Previous Position: ' mat2str(evt.PreviousPosition)]);
            disp(['ROI moving Current Position: ' mat2str(evt.CurrentPosition)]);
            disp(['ROI moved Previous Position: ' mat2str(evt.PreviousPosition)]);
            disp(['ROI moved Current Position: ' mat2str(evt.CurrentPosition)]);

More About

expand all


  • The ROI supports the following interactivity, including keyboard shortcuts.

    BehaviorKeyboard shortcut
    Cancel drawing ROI.Press Esc. The function returns a valid ROI object with an empty Position field.
    Move the ROI.Position the pointer over the ROI. The pointer changes to a circle. Click and drag to move the ROI.
    Delete the ROI.Position the pointer over the point, right-click, and then choose Delete Point from the context menu. You can also delete the ROI programmatically using the delete object method.
  • For information about using an ROI in an app created with App Designer, see Using ROIs in Apps Created with App Designer.

Compatibility Considerations

expand all

Not recommended starting in R2020a

Introduced in R2018b
