dsp.TransferFunctionEstimator

Estimate transfer function

Description

The `dsp.TransferFunctionEstimator` System object™ computes the transfer function of a system, using the Welch's averaged periodogram method.

To implement the transfer function estimation object:

1. Create the `dsp.TransferFunctionEstimator` object and set its properties.

2. Call the object with arguments, as if it were a function.

Creation

Syntax

``tfe = dsp.TransferFunctionEstimator``
``tfe = dsp.TransferFunctionEstimator(Name,Value)``

Description

````tfe = dsp.TransferFunctionEstimator` returns a transfer function estimator object, that computes the transfer function of real or complex signals. This System object uses the periodogram method and Welch’s averaged, modified periodogram method.```

example

````tfe = dsp.TransferFunctionEstimator(Name,Value)` returns a transfer function estimator object with each specified property set to the specified value. Unspecified properties have default values.```

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the `release` function unlocks them.

If a property is tunable, you can change its value at any time.

Specify the source of the FFT length value as either `'Auto'` or `'Property'`. If you set this property to `'Auto'`, the transfer function estimator sets the FFT length to the input frame size. If you set this property to `'Property'`, then specify the number of FFT points using the `FFTLength` property.

Specify the length of the FFT that the transfer function estimator uses to compute spectral estimates as a positive, integer scalar.

Dependencies

This property applies when you set the `FFTLengthSource` property to `'Property'`.

Data Types: `double`

Specify a window function for the transfer function estimator as one of `'Rectangular'`, `'Chebyshev'`, ```'Flat Top'```, `'Hamming'`, `'Hann'`, or `'Kaiser'`.

Specify the side lobe attenuation of the window as a real, positive scalar, in decibels (dB).

Dependencies

This property applies when you set the `Window` property to `'Chebyshev'` or `'Kaiser'`.

Data Types: `double`

Specify the frequency range of the transfer function estimator as one of `'twosided'`, `'onesided'`, or `'centered'`.

If you set the `FrequencyRange` to `'onesided'`, the transfer function estimator computes the one-sided transfer function of real input signals, `x` and `y`. If the FFT length, NFFT, is even, the length of the transfer function estimate is `NFFT/2+1` and is computed over the interval `[0, SampleRate/2]`. If NFFT is odd, the length of the transfer function estimate is equal to `(NFFT+1)/2`, and the interval is `[0, SampleRate/2]`.

If `FrequencyRange` is set to `'twosided'`, the transfer function estimator computes the two-sided transfer function of complex or real input signals, `x` and `y`. The length of the transfer function estimate is equal to NFFT and is computed over ```[0, SampleRate]```.

If you set the `FrequencyRange` to `'centered'`, the transfer function estimator computes the centered two-sided transfer function of complex or real input signals, `x` and `y`. The length of the transfer function estimate is equal to NFFT and it is computed over `[-SampleRate/2, SampleRate/2]` for even lengths, and `[-SampleRate/2, SampleRate/2]` for odd lengths.

Specify the averaging method as `'Running'` or `'Exponential'`. In the running averaging method, the object computes an equally weighted average of a specified number of spectrum estimates defined by the `SpectralAverages` property. In the exponential method, the object computes the average over samples weighted by an exponentially decaying forgetting factor.

Specify the number of spectral averages as a positive, integer scalar. The transfer function estimator computes the current estimate by averaging the last N estimates, where N is the number of spectral averages defined in the `SpectralAverages` property.

Dependencies

This property applies when you set `AveragingMethod` to `'Running'`.

Data Types: `double`

Specify the exponential weighting forgetting factor as a scalar value greater than zero and smaller than or equal to one.

Tunable: Yes

Dependencies

This property applies when you set `AveragingMethod` to `'Exponential'`.

Data Types: `single` | `double`

Specify `true` to compute and output the magnitude squared coherence estimate using Welch’s averaged, modified periodogram method. The magnitude squared coherence estimate has values between 0 and 1 that indicate the correspondence at each frequency between two input signals. If you specify `false`, the magnitude squared coherence estimate is not computed.

Usage

Syntax

``tfeEst = tfe(x,y)``
``[tfeEst,cxy] = tfe(x,y)``

Description

example

````tfeEst = tfe(x,y)` computes the transfer function estimate, `tfeEst`, of the system with input `x` and output `y` using Welch's averaged periodogram method.```
````[tfeEst,cxy] = tfe(x,y)` also computes the magnitude squared coherence estimate, `cxy`, of the system.```

Input Arguments

expand all

First data input, specified as a vector or a matrix. `x` and `y` must have the same size and data type.

Data Types: `single` | `double`
Complex Number Support: Yes

Second data input, specified as a vector or a matrix. `x` and `y` must have the same size and data type.

Data Types: `single` | `double`
Complex Number Support: Yes

Output Arguments

expand all

Transfer function estimate of the system for which `x` and `y` are the input and output signals, respectively.

The estimate, `tfeEst`, is equal to `pxy`./`pxx`, where `pxy` is the cross-power spectral density of `x` and `y`, and `pxx` is the power spectral density of `x`.

The transfer function estimate has the same size and data type as the input.

Data Types: `single` | `double`
Complex Number Support: Yes

Magnitude squared coherence estimate of the system, returned as a vector or a matrix.

The coherence estimate, `cxy`, is equal to `(abs(pxy).^2)./(pxx.*pyy)`, where `pxy` is the cross power spectral density of `x` and `y`, `pxx` is the power spectral density of `x`, and `pyy` is the power spectral density of `y`. For coherence to be estimated, the `OutputCoherence` property must be set to `true`.

The coherence estimate has the same size and data type as the input.

Data Types: `single` | `double`

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named `obj`, use this syntax:

`release(obj)`

expand all

 `getFrequencyVector` Vector of frequencies at which estimation is done `getRBW` Resolution bandwidth of spectrum
 `step` Run System object algorithm `release` Release resources and allow changes to System object property values and input characteristics `reset` Reset internal states of System object

Examples

collapse all

Note: If you are using R2016a or an earlier release, replace each call to the object with the equivalent `step` syntax. For example, `obj(x)` becomes `step(obj,x)`.

Generate a sine wave. Use the `dsp.TransferFunctionEstimator` System object™ to estimate the system transfer function and the `dsp.ArrayPlot` System object to display it.

```sin = dsp.SineWave('Frequency',100,'SampleRate',1000); sin.SamplesPerFrame = 1000; tfe = dsp.TransferFunctionEstimator('FrequencyRange','centered'); aplot = dsp.ArrayPlot('PlotType','Line','XOffset',-500,'YLimits',... [-120 5],'YLabel','Frequency Response (dB)',... 'XLabel','Frequency (Hz)',... 'Title','System Transfer Function'); ```

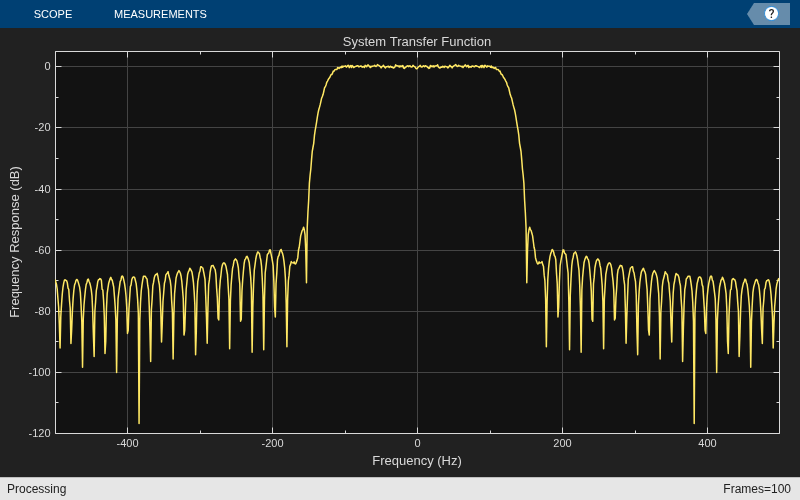

Create an FIR Filter System object of order 64 and (normalized) cutoff frequency of 1/4. Add random noise to the sine wave. Step through the System objects to obtain the data streams, and plot the log of the magnitude of the transfer function.

```firFilt = dsp.FIRFilter('Numerator',fir1(64,1/4)); for ii = 1:100 x = sin() + 0.05*randn(1000,1); y = firFilt(x); Txy = tfe(x,y); aplot(20*log10(abs(Txy))) end ```

expand all

References

[1] Hayes, Monson H. Statistical Digital Signal Processing and Modeling. Hoboken, NJ: John Wiley & Sons, 1996

[2] Kay, Steven M. Modern Spectral Estimation: Theory and Application. Englewood Cliffs, NJ: Prentice Hall, 1999

[3] Stoica, Petre and Randolph L. Moses. Spectral Analysis of Signals. Englewood Cliffs, NJ: Prentice Hall, 2005

[4] Welch, P. D. ``The use of fast Fourier transforms for the estimation of power spectra: A method based on time averaging over short modified periodograms,'' IEEE Transactions on Audio and Electroacoustics, Vol. 15, pp. 70–73, 1967.

Extended Capabilities

Introduced in R2013b
