Permute Matrix

Reorder matrix rows or columns

  • Library:
  • Simulink / Matrix Operations

  • Permute Matrix block

Description

The Permute Matrix block reorders the rows or columns of an M-by-N input matrix A as specified by indexing input P.

Ports

Input

expand all

Input matrix, specified as a scalar, vector, or matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated

Index matrix, specified as a scalar or vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | enumerated

Output

expand all

Output signal, specified as a vector or matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated

Parameters

expand all

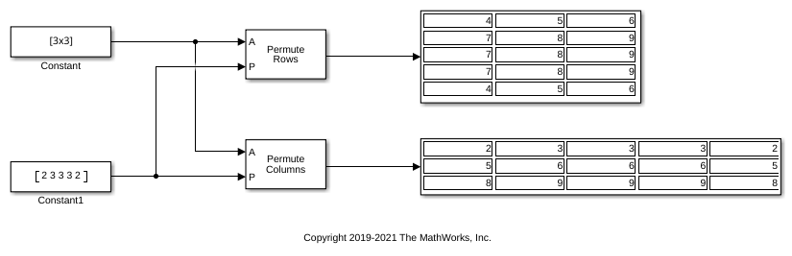

Method of constructing the output matrix by permuting rows or columns of the input.

When the Permute parameter is set to:

  • Rows –– The block uses the rows of A to create a matrix that has the same column dimension. Input P is a length-L vector whose elements determine where each row from A must be placed in the L-by-N output matrix.

    y = [A(P(1),:) ; A(P(2),:) ; A(P(3),:) ; ... ; A(P(end),:)] % Equivalent MATLAB code

    For row permutation, the block treats the length-M unoriented vector input at the port A as an M-by-1 matrix.

  • Columns –– The block uses the columns of A to create a matrix that has the same row dimension. Input P is a length-L vector whose elements determine where each column from A must be placed in the M-by-L output matrix.

    % Equivalent MATLAB code y = [A(:,P(1)) A(:,P(2)) A(:,P(3)) ... A(:,P(end))]

    For column permutation, the block treats the length-N unoriented vector input at port A as a 1-by-N matrix.

Programmatic Use

Block Parameter: mode
Type: character vector, string
Values:' Columns' | 'Rows'
Default: ' Columns'

When set to One-based, a value of 1 in the permutation vector P refers to the first row or column of the input matrix A. When set to Zero-based, a value of 0 in P refers to the first row or column of A.

Programmatic Use

Block Parameter: ZeroOneIdxMode
Type: character vector, string
Values:' Zero-based' | 'One-based'
Default: 'One-based'

Response to an invalid index value. When an index value in input P references a nonexistent row or column of matrix A, the block reacts as specified in this parameter. These options are available:

  • Clip index –– Clip the index to the nearest valid value (1 or M for row permutation and 1 or N for column permutation) and do not issue an alert. Example: For a 3-by-7 input matrix, a column index of 9 is clipped to 7 and a row index of -2 is clipped to 1.

  • Clip and warn –– Display a warning message in the MATLAB® Command Window and clip the index as described in the preceding bullet.

  • Generate error –– Display an error dialog box and terminate the simulation.

Tunable: Yes

Programmatic Use

Block Parameter: errmode
Type: character vector, string
Values: 'Clip index' | 'Clip and warn' | 'Generate error'
Default: 'Clip index'

Option to display an error dialog box and terminate the simulation when the length of the permutation vector P is not equal to the number of rows or columns of the input matrix A.

You can choose to open an error dialog box and terminate the simulation by setting this parameter to on.

Programmatic Use

Block Parameter: checkDims
Type: character vector, string
Values: 'off' | 'on'
Default: 'off'

Block Characteristics

Data Types

Boolean | double | enumerated | fixed point | integer | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

Extended Capabilities

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
