# Chirp Signal

Generate sine wave with increasing frequency

Libraries:

## Description

The Chirp Signal block generates a sine wave whose frequency increases at a linear rate with time. You can use this block for spectral analysis of nonlinear systems. The block generates a scalar or vector output.

The parameters, Initial frequency, Target time, and Frequency at target time, determine the block's output. You can specify any or all of these variables as scalars or arrays. All the parameters specified as arrays must have the same dimensions. The block expands scalar parameters to have the same dimensions as the array parameters. The block output has the same dimensions as the parameters unless you select the Interpret vector parameters as 1-D check box. If you select this check box and the parameters are row or column vectors, the block outputs a vector (1-D array) signal.

## Examples

expand all

This example shows how to track the running minimum value of a signal generated by the Chirp Signal block.

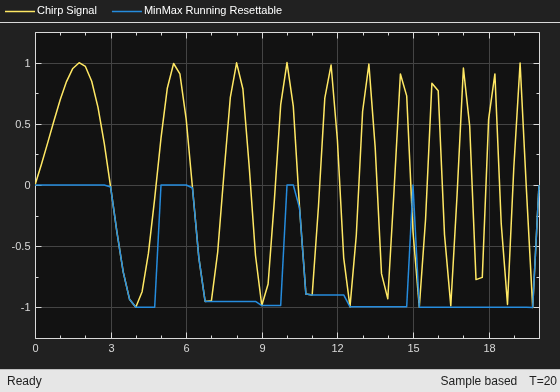

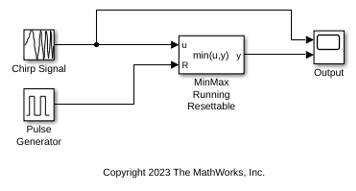

The Chirp Signal block generates a sine wave whose frequency increases at a linear rate with time. The MinMax Running Resettable block tracks the minimum value of that chirp signal over time. The running minimum value is reset every 5 seconds by the Pulse Generator block.

## Limitations

• The start time of the simulation must be 0. To confirm this value, go to the Solver pane in the Configuration Parameters dialog box and view the Start time field.

• Suppose that you use a Chirp Signal block in an enabled subsystem. Whenever the subsystem is enabled, the block output matches what would appear if the subsystem were enabled throughout the simulation.

## Ports

### Output

expand all

Sine wave whose frequency increases at a linear rate with time. The chirp signal can be a scalar, vector, matrix, or N-D array.

Data Types: double

## Parameters

expand all

The initial frequency of the signal, specified as a scalar, vector, matrix, or N-D array.

#### Programmatic Use

 Block Parameter: f1 Type: character vector Values: scalar | vector | matrix | N-D array Default: '0.1'

Time, in seconds, at which the frequency reaches the Frequency at target time parameter value. You specify the Target time as a scalar, vector, matrix, or N-D array. After the target time is reached, the frequency continues to change at the same rate.

#### Programmatic Use

 Block Parameter: T Type: character vector Values: scalar | vector | matrix | N-D array Default: '100'

Frequency, in Hz, of the signal at the target time, specified as a scalar, vector, matrix, or N-D array.

#### Programmatic Use

 Block Parameter: f2 Type: character vector Values: scalar | vector | matrix | N-D array Default: '1'

When you select this check box, any column or row matrix values you specify for the Initial frequency, Target time, and Frequency at target time parameters result in a vector output whose elements are the elements of the row or column. For more information, see Determine the Output Dimensions of Source Blocks.

#### Programmatic Use

 Block Parameter: VectorParams1D Type: character vector Values: 'on' | 'off' Default: 'on'

## Block Characteristics

 Data Types double Direct Feedthrough no Multidimensional Signals no Variable-Size Signals no Zero-Crossing Detection no
