## Determine Signal Dimensions

Simulink^{®} blocks can output one-dimensional, two-dimensional, or
multidimensional signals. The Simulink user interface and documentation generally refer to 1-D signals as
*vectors* and 2-D or multidimensional signals as
*matrices*. A one-element array is frequently referred to
as a *scalar*. A *row vector* is a 2-D array
that has one row. A *column vector* is a 2-D array that has one
column.

A one-dimensional (1-D) signal consists of a series of one-dimensional arrays output at a frequency of one array (vector) per simulation time step.

A two-dimensional (2-D) signal consists of a series of two-dimensional arrays output at a frequency of one 2-D array (matrix) per block sample time.

A multidimensional signal consists of a series of multidimensional (two or more dimensions) arrays output at a frequency of one array per block sample time. You can specify multidimensional arrays with any valid MATLAB

^{®}multidimensional expression, such as [4 3]. See Multidimensional Arrays for information on multidimensional arrays.

Simulink blocks vary in the dimensionality of the signals they can accept or output. Some blocks can accept or output signals of any dimension. Some can accept or output only scalar or vector signals.

**Note**

Simulink does not support dynamic signal dimensions during a simulation. That is, the dimension of a signal must remain constant while a simulation is executing. However, you can change the size of a signal during a simulation. See Variable-Size Signal Basics.

If a block can emit nonscalar signals, the dimensions of the signals that the block outputs depend on the block parameters, if the block is a source block; otherwise, the output dimensions depend on the dimensions of the block input and parameters.

To determine the dimensions that a signal ultimately uses for simulation, first
update the block diagram (for example, by pressing **Ctrl+D**). Then,
choose one of these techniques:

Display the dimensions directly on the block diagram. Use this technique to trace signal dimensions along a path of blocks. In the model, on the

**Debug**tab, select**Information Overlays**>**Signal Dimensions**).Inspect the dimensions in the Model Data Editor, which shows you information in a searchable, sortable table. In the table, the right side of each cell in the

**Dimensions**column shows the true dimensions of the corresponding signal line in the model.

### Simulink Blocks that Support Multidimensional Signals

The Simulink Block Data Type Support table includes a column identifying the blocks with multi-dimension signal support.

In the MATLAB command line, enter

`showblockdatatypetable`

.A separate window with the Simulink Block Data Type Support table opens.

In the Block column, locate the name of a Simulink block. Columns to the right are data types or features. An

**X**in a column indicates support for that feature.

Simulink supports signals with up to 32 dimensions. Do not use signals with more than 32 dimensions.

### Determine the Output Dimensions of Source Blocks

A *source* block is a block that has no inputs. Examples
of source blocks include the Constant block and the
Sine Wave block. See Sources for a
complete listing of Simulink source blocks. The output dimensions of a source block are the
same as those of its output value parameters if the block **Interpret vector parameters as 1-D** parameter is
off (that is, not selected in the block parameter dialog box). If the
**Interpret vector parameters as 1-D**
parameter is on, the output dimensions equal the output value parameter
dimensions unless the parameter dimensions are N-by-1 or 1-by-N. In the
latter case, the block outputs a vector signal of width N.

As an example of how the output value parameters and **Interpret vector parameters as 1-D** parameter of a source
block determine the dimensionality of its output, consider the
Constant block. This block outputs a constant signal
equal to its **Constant value** parameter. The
following table illustrates how the dimensionality of the **Constant value** parameter and the setting of the
**Interpret vector parameters as 1-D**
parameter determine the dimensionality of the block output.

Constant Value | Interpret vector parameters as 1-D | Output |
---|---|---|

scalar | off | one-element array |

scalar | on | one-element array |

1-by-N matrix | off | 1-by-N matrix |

1-by-N matrix | on | N-element vector |

N-by-1 matrix | off | N-by-1 matrix |

N-by-1 matrix | on | N-element vector |

M-by-N matrix | off | M-by-N matrix |

M-by-N matrix | on | M-by-N matrix |

Simulink source blocks allow you either to specify the dimensions of the signals that they output or specify values from which Simulink infers the dimensions. You can therefore use the source blocks to introduce signals of various dimensions into your model.

### Determine the Output Dimensions of Nonsource Blocks

If a block has inputs, the dimensions of its outputs are, after scalar expansion, the same as those of its inputs. For more information, see Signal and Parameter Dimension Rules.

### Signal and Parameter Dimension Rules

When creating a Simulink model, you must observe the following rules regarding signal and parameter dimensions.

#### Block Parameter Dimension Rule

In general, block parameters must have the same dimensions as the dimensions of the inputs to the block. Simulink performs some processing that provides flexibility relating to that general rule.

A block can have scalar parameters corresponding to nonscalar inputs. In this case, Simulink expands a scalar parameter to have the same dimensions as the corresponding input (see Scalar Expansion of Inputs and Parameters).

If an input is a vector, the corresponding parameter can be either an N-by-1 or a 1-by-N matrix. In this case, Simulink applies the N matrix elements to the corresponding elements of the input vector. This exception allows use of MATLAB row or column vectors, which are actually 1-by-N or N-by-1 matrices, respectively, to specify parameters that apply to vector inputs.

#### Vector or Matrix Input Conversion Rules

Simulink converts vectors to row or column matrices and row or column matrices to vectors under the following circumstances:

If a vector signal is connected to an input that requires a matrix, Simulink converts the vector to a one-row or one-column matrix.

If a one-column or one-row matrix is connected to an input that requires a vector, Simulink converts the matrix to a vector.

If the inputs to a block consist of a mixture of vectors and matrices and the matrix inputs all have one column or one row, Simulink converts the vectors to matrices having one column or one row, respectively.

**Note**You can configure Simulink to display a warning or error message if a vector or matrix conversion occurs during a simulation. See Vector/matrix block input conversion for more information.

### Scalar Expansion of Inputs and Parameters

**
***Scalar expansion* is the conversion of a
scalar value into a nonscalar array. Many Simulink blocks support scalar expansion of inputs and parameters.
Block-specific descriptions indicate whether Simulink applies scalar expansion to block inputs and
parameters.

Scalar expansion of inputs refers to the expansion of scalar inputs to match the dimensions of other nonscalar inputs or nonscalar parameters. When the input to a block is a mix of scalar and nonscalar signals, Simulink expands the scalar inputs into nonscalar signals having the same dimensions as the other nonscalar inputs. For example, a scalar of 4 is expanded to the vector [4 4 4] if the associated nonscalar has a dimension of 3.

Scalar expansion of parameters refers to the expansion of scalar block parameters to match the dimensions of nonscalar inputs.

Input(s) | Associated Block Parameter | Scalar Expansion |
---|---|---|

Scalar | Nonscalar | Input expanded to match parameter dimensions. |

Nonscalar | Scalar | Scalar parameter expanded to match number of elements of input. |

Combination of scalar and nonscalar | No corresponding parameter | Scalar inputs expanded to match dimensions of largest nonscalar input. See Scalar and Nonscalar Inputs and No Associated Parameter. |

#### Scalar Input and Nonscalar Parameter

In this example, the Constant block input to the Gain block is scalar.
The Gain block **Gain** parameter is a nonscalar.
Simulink expands the scalar input to match the dimensions of a
nonscalar **Gain** parameter, as reflected in the
simulation results in the Display block.

#### Nonscalar Input and Scalar Parameter

In this example, the Constant block input to the Gain block is
nonscalar. The Gain block **Gain** parameter is a
scalar. Simulink expands the scalar parameter to match the dimensions of
a nonscalar input from the Constant block, as reflected in the
simulation results in the Display block.

#### Scalar and Nonscalar Inputs and No Associated Parameter

In this example, the Constant1 block input to the Sum block is
nonscalar, and the Constant2 block input is scalar. The Sum block has
no associated parameter. Simulink expands the scalar input from Constant2 to match to the
dimensions of the nonscalar Constant1 block input. The input is
expanded to the vector `[3 3 3]`

.

### Get Compiled Port Dimensions

These examples show how to use the `CompiledPortDimensions`

parameter to obtain dimensions of port signals of blocks in a Simulink model during compilation. For nonbus signals, dimensions of port signals represent dimensions of signals associated with the querying port. For buses, dimensions of port signals consist of the type of bus associated with the querying port, the number of signals carried by the bus, and the dimensions of those signals. To display signal dimensions, in the Simulink Editor, on the **Debug** tab, click **Information Overlays** > **Signals** >**Signal Dimensions**. For more information on signal dimensions, see Signal Dimensions.

**Get Compiled Port Dimensions for Nonbus Signal**

Get the dimensions of port signals of a Constant block when querying the output port of the Constant block. As the block outputs a nonbus signal, `OutSig`

, the dimensions of the port signals represented by the `dim`

array are the dimensions of the nonbus output signal.

Step through the `ex_nonBusPortDim`

model programmatically using `SimulationCommand`

.

open_system('ex_nonBusPortDim.slx') set_param('ex_nonBusPortDim','SimulationCommand','start') set_param('ex_nonBusPortDim','SimulationCommand','pause')

Store the block name in a variable programmatically using the `PortHandles `

parameter. Then, use the `CompiledPortDimensions`

parameter to obtain the dimensions.

gcb='ex_nonBusPortDim/Constant'; ph= get_param(gcb,'PortHandles'); dim= get_param(ph.Outport,'CompiledPortDimensions')

`dim = `*1×3*
2 2 3

For nonbus signals, the result is an array where the first element is `2`

, which is the number of dimensions of `OutSig`

. The next two elements are `2`

and `3`

, which are the values of dimensions.

To stop the simulation programmatically, use `SimulationCommand`

.

set_param('ex_nonBusPortDim','SimulationCommand','stop')

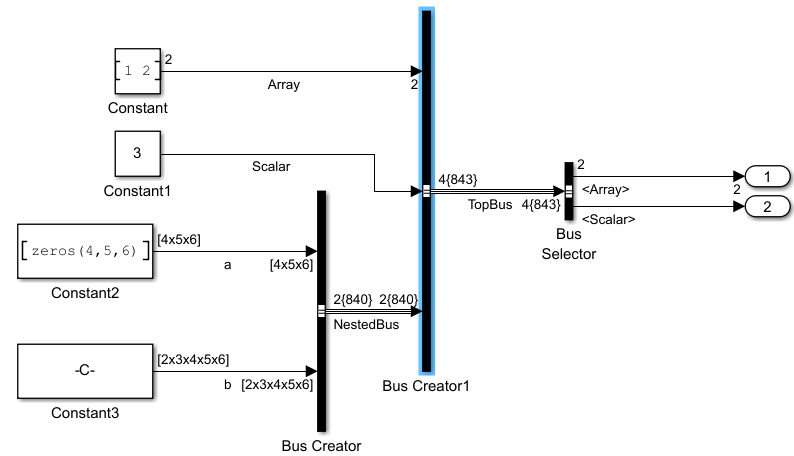

**Get Compiled Port Dimensions for Virtual Bus**

**Virtual Bus at Bus Creator block Input Port**

Get the dimensions of port signal at the output port of `Bus Creator1`

block. In `ex_virtualBusPortDim`

model, `Bus Creator1`

block receives a virtual bus (`NestedBus`

) at one of its input ports and outputs a virtual bus. The dimensions of the port signals represented by the `dim `

array consist of the type of bus associated with the output port of Bus Creator1 block, the number of signals carried by the bus, and the dimensions of those signals.

Step through the `ex_virtualBusPortDim `

model programmatically using `SimulationCommand`

.

open_system('ex_virtualBusPortDim.slx') set_param('ex_virtualBusPortDim','SimulationCommand','start') set_param('ex_virtualBusPortDim','SimulationCommand','pause')

Store the block name in a variable programmatically using the `PortHandles`

parameter. Then, use the `CompiledPortDimensions`

parameter to obtain the dimensions.

gcb='ex_virtualBusPortDim/Bus Creator1'; ph= get_param(gcb,'PortHandles'); dim= get_param(ph.Outport,'CompiledPortDimensions')

`dim = `*1×16*
-2 4 1 2 1 1 3 4 5 6 5 2 3 4 5 6

For buses, the results include extra elements. The first element is `-2`

, which indicates that the output port of `Bus Creator1`

block corresponds to a virtual bus. The second element is `4`

, which is the number of leaf nodes. The subsequent elements follow the same pattern as nonbus signals.

The output port of the first leaf node has

`1`

dimension, and the value in that dimension is`2`

.The output port of the second leaf node has

`1`

dimension, and the value in that dimension is`1`

.The output port of the third leaf node has

`3`

dimensions, and the values in those dimensions are`4 5 6`

.The output port of the fourth leaf node has

`5`

dimensions, and the values in those dimensions are`2 3 4 5 6`

.

To stop the simulation programmatically, use `SimulationCommand`

.

set_param('ex_virtualBusPortDim','SimulationCommand','stop')

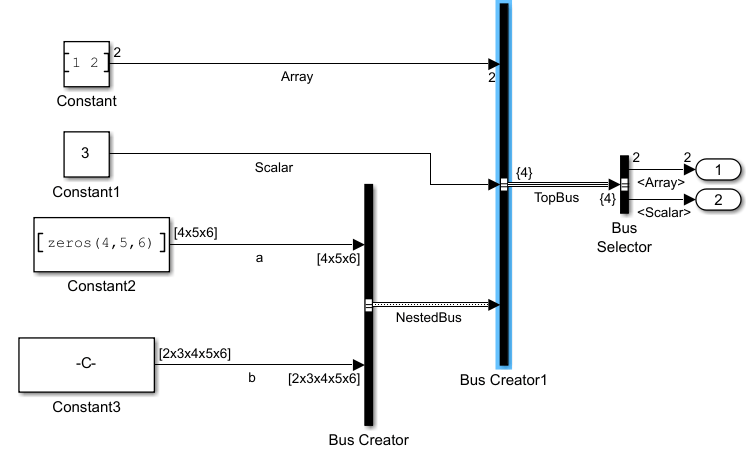

**Nonvirtual Bus at Bus Creator block Input Port**

Suppose the `NestedBus`

in the previous section is a nonvirtual bus instead of a virtual bus. To set up `Bus Creator`

block to generate nonvirtual bus, double click on the block and open the block dialog box. In the dialog box, from the **Output data type** drop-down options, select `Bus : <object name>`

and set the `<object name>`

to `NestedBus`

. Then select the **Output as nonvirtual bus** checkbox. Save the model and repeat the steps used in the previous section.

Observe the following dimensions of port signals at the output port of `Bus Creator1`

block.

`dim =`

` -2 3 1 2 1 1 1 1`

When querying dimensions, nonvirtual buses are treated as scalars. The first element is `-2`

, which indicates that the output port of Bus Creator1 block corresponds to a virtual bus. The second element in the `dim`

array is `3`

, which indicates three leaf nodes instead of four leaf nodes because the nonvirtual bus is treated as scalar. The subsequent elements follow the same pattern as nonbus signals.

The output port of the first leaf node has

`1`

dimension, and the value in that dimension is`2`

.The output port of the second leaf node has

`1`

dimension, and the value in that dimension is`1`

.The third leaf node corresponds to the Bus Creator block that outputs the nonvirtual bus,

`NestedBus`

. The output port of the third leaf node has`1`

dimension, and the value in that dimension is`1`

.

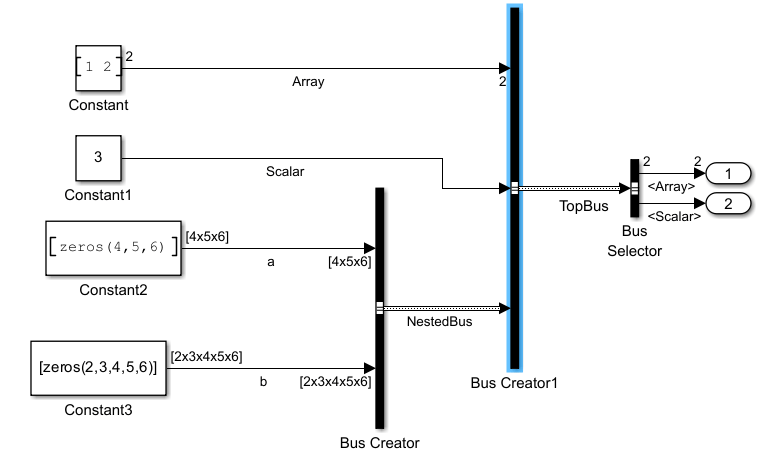

**Get Compiled Port Dimensions for Nonvirtual Bus**

Get the dimensions of port signals at the output port of `Bus Creator1`

block. In `ex_nonvirtualBusPortDim`

model, `Bus Creator1`

block receives a nonvirtual bus (`NestedBus`

) at one of its input ports and outputs a nonvirtual bus (`TopBus`

).

Step through the `ex_nonvirtualBusPortDim`

using `SimulationCommand`

.

open_system('ex_nonvirtualBusPortDim.slx') set_param('ex_nonvirtualBusPortDim','SimulationCommand','start') set_param('ex_nonvirtualBusPortDim','SimulationCommand','pause')

Store the block name in a variable programmatically using the `PortHandles`

parameter. Then, use the `CompiledPortDimensions`

parameter to obtain the dimensions.

gcb='ex_nonvirtualBusPortDim/Bus Creator1'; ph= get_param(gcb,'PortHandles'); dim= get_param(ph.Outport,'CompiledPortDimensions')

`dim = `*1×2*
1 1

The output shows `1`

element with a dimension of `1`

since nonvirtual buses are treated as scalar when querying dimensions.

To stop the simulation programmatically, use `SimulationCommand`

.

set_param('ex_nonvirtualBusPortDim','SimulationCommand','stop')
