plotPulse

R2026b

Plot measured voltage for specific pulse index over time

Since R2025a

collapse all in page

Syntax

plotPulse(myHppcTest,pulseIndices)
plotPulse(myHppcTest,pulseIndices,Name=Value)
chart = plotPulse(___)

Description

plotPulse(myHppcTest,pulseIndices) plots the measured voltage over time for the pulse index pulseIndices. The indices refer to the tabulated pulses in the TestSummary property table of the HPPCTest object, myHppcTest.

example

plotPulse(myHppcTest,pulseIndices,Name=Value) plots the measured voltage over time for the pulse index pulseIndices and specifies options using one or more name-value arguments.

chart = plotPulse(___) returns a VoltageVerificationChart object.

Examples

collapse all

This example shows how to plot the measured voltage for a pulse at a specific index inside a hybrid pulse power characterization (HPPC) test data.

Open the DownloadBatteryData example and load the required HPPC data obtained for a BAK 2.9 Ah battery cell at 25 °C. This data consists of a table with three columns. The columns of the table refer to time, voltage, and current values, respectively.

openExample("simscapebattery/DownloadBatteryDataExample")
load("testDataBAKcells/hppcDataBAKcell25degC.mat")

Store the HPPC data inside an HPPCTest object by using the hppcTest function. You can use this object to view the data, add or edit breakpoints, add or remove pulses, and include additional information such as state of charge and capacity. The HPPC data is a table, so you must also specify each column name by using the TimeVariable, VoltageVariable, and CurrentVariable arguments. These names must match the names of the columns in the hppcData table.

hppcExp = hppcTest(hppcData,...
    TimeVariable="time (s)",...
    VoltageVariable="voltage (V)",...
    CurrentVariable="current (A)");

Analyze the TestSummary property of the hppcExp object. This property contains a summary of the HPPC test that shows all the identified pulses and related data, returned as a table.

hppcExp.TestSummary
ans =

  18×13 table

    PulseID    Directionality      SOC          HPPCData         PulseDuration    PseudoOCV_V    MaximumVoltage    MinimumVoltage    Current_A    C_rate    PulseStartIndex    PulseEndIndex    Temperature_degC
    _______    ______________    _______    _________________    _____________    ___________    ______________    ______________    _________    ______    _______________    _____________    ________________

       1        "Discharge"            1    {701×6 timetable}         30            4.1745           4.1745            3.7846         -6.1869     1.8976           354              1055               25
       2        "Discharge"      0.90376    {701×6 timetable}         30            4.0837           4.0837            3.7479          -6.187     1.8977          2702              3403               25
       3        "Discharge"      0.80754    {702×6 timetable}         30            4.0132           4.0132            3.6652         -6.1867     1.8975          5049              5751               25
       4        "Discharge"      0.71133    {701×6 timetable}         30            3.9226           3.9226            3.5775         -6.1868     1.8976          7398              8099               25
       5        "Discharge"      0.61512    {701×6 timetable}         30             3.846            3.846            3.4942         -6.1868     1.8976          9746             10447               25
       6        "Discharge"      0.51891    {701×6 timetable}         30            3.7353           3.7353            3.4001         -6.1871     1.8977         12094             12795               25
       7        "Discharge"       0.4227    {701×6 timetable}         30              3.65             3.65            3.3236         -6.1867     1.8975         14442             15143               25
       8        "Discharge"      0.32649    {701×6 timetable}         30            3.6015           3.6015            3.2652         -6.1869     1.8976         16790             17491               25
       9        "Discharge"      0.23028    {701×6 timetable}         30            3.5507           3.5507            3.1931         -6.1869     1.8976         19138             19839               25
      10        "Charge"         0.98415    {502×6 timetable}         10            4.1158           4.3889            4.1158          4.6393      1.423          1055              1557               25
      11        "Charge"         0.88793    {502×6 timetable}         10             4.057           4.3001             4.057          4.6406     1.4233          3403              3905               25
      12        "Charge"         0.79172    {502×6 timetable}         10            3.9674           4.2113            3.9674          4.6394      1.423          5751              6253               25
      13        "Charge"         0.69551    {502×6 timetable}         10            3.8751           4.1175            3.8751          4.6396      1.423          8099              8601               25
      14        "Charge"          0.5993    {502×6 timetable}         10            3.7905           4.0355            3.7905          4.6396      1.423         10447             10949               25
      15        "Charge"         0.50309    {502×6 timetable}         10            3.6936           3.9339            3.6936          4.6405     1.4233         12795             13297               25
      16        "Charge"         0.40688    {502×6 timetable}         10            3.6224           3.8602            3.6224          4.6396      1.423         15143             15645               25
      17        "Charge"         0.31066    {502×6 timetable}         10            3.5695           3.8109            3.5695          4.6397     1.4231         17491             17993               25
      18        "Charge"         0.21445    {502×6 timetable}         10            3.5098           3.7597            3.5098          4.6397     1.4231         19839             20341               25

Plot the data of the sixth pulse using the plotPulse function. The plot shows the measured voltage of the sixth pulse in the TestSummary property table of the hppcExp object.

plotPulse(hppcExp,6)

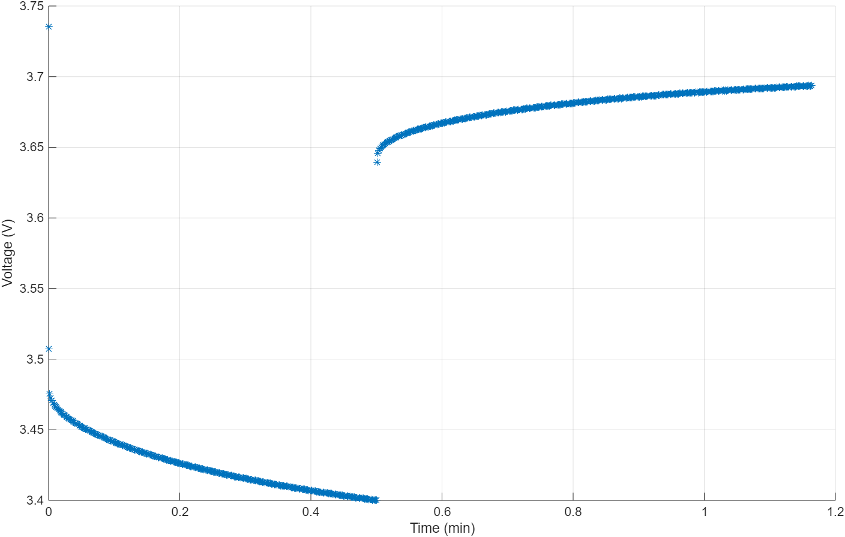

Plot of the HPPC test voltage of the sixth pulse. The X axis represents time, in minutes. The Y axis represents the voltage, in volts.

Input Arguments

collapse all

HPPC test container to plot, specified as an HPPCTest object.

Indices of the tabulated pulses inside the TestSummary property table of the HPPCTest object, specified as a scalar or vector. Specify this argument as a vector to visualize multiple pulses at once inside a grid layout.

Data Types: double

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: plot(myTest,SimulatedVoltageVisible="on")

Visibility of the simulation voltage, specified as "off", "on", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

Visibility of the chart axes, specified as "off", "on", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

Since R2026b

Visibility of chart axes toolbar, specified as "on" or "off", or as numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type matlab.lang.OnOffSwitchState.

  • "on" — Display the toolbar.

  • "off" — Do not display the toolbar.

The plot function also accepts all properties of the ChartContainer class as name-value arguments. For a list of these properties, see matlab.graphics.chartcontainer.ChartContainer.

Output Arguments

collapse all

Chart for visualizing the measured and simulated voltage of pulses, returned as a VoltageVerificationChart object.

Version History

Introduced in R2025a
