sbiofitmixed

Fit nonlinear mixed-effects model (requires Statistics and Machine Learning Toolbox software)

collapse all in page

Syntax

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo)
fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing)
fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName)
fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName,opt)
fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName,opt,variants)
fitResults = sbiofitmixed(___,Name,Value)
[fitResults,simDataI,simDataP] = sbiofitmixed(_)

Description

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo) performs nonlinear mixed-effects estimation using the SimBiology® model sm and returns a NLMEResults object fitResults.

grpData is a groupedData object specifying the data to fit. ResponseMap defines the mapping between the model components and response data in grpData. covEstiminfo is a CovariateModel object or an array of estimatedInfo objects that defines the parameters to be estimated.

If the model contains active doses and variants, they are applied during the simulation.

example

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing) uses the dosing information specified by a matrix of SimBiology dose objects dosing instead of using the active doses of the model sm if there are any.

example

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName) uses the estimation function specified by functionName that must be either 'nlmefit' or 'nlmefitsa'.

example

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName,opt) uses the additional options specified by opt for the estimation function functionName.

example

fitResults = sbiofitmixed(sm,grpData,ResponseMap,covEstiminfo,dosing,functionName,opt,variants) applies variant objects specified as variants instead of using any active variants of the model.

example

fitResults = sbiofitmixed(___,Name,Value) uses additional options specified by one or more name-value arguments.

[fitResults,simDataI,simDataP] = sbiofitmixed(_) returns a vector of results objects fitResults, vector of simulation results simDataI using individual-specific parameter estimates, and vector of simulation results simDataP using population parameter estimates.

Note

  • sbiofitmixed unifies sbionlmefit and sbionlmefitsa estimation functions. Use sbiofitmixed to perform nonlinear mixed-effects modeling and estimation.

  • sbiofitmixed simulates the model using a SimFunction object, which automatically accelerates simulations by default. Hence it is not necessary to run sbioaccelerate before you call sbiofitmixed.

Examples

collapse all

Open Live Script

This example uses data collected on 59 preterm infants given phenobarbital during the first 16 days after birth [1]. Each infant received an initial dose followed by one or more sustaining doses by intravenous bolus administration. A total of between 1 and 6 concentration measurements were obtained from each infant at times other than dose times, for a total of 155 measurements. Infant weights and APGAR scores (a measure of newborn health) were also recorded.

Load the data.

load pheno.mat ds

Convert the dataset to a groupedData object, a container for holding tabular data that is divided into groups. It can automatically identify commonly used variable names as the grouping variable or independent (time) variable. Display the properties of the data and confirm that GroupVariableName and IndependentVariableName are correctly identified as 'ID' and 'TIME', respectively.

data = groupedData(ds);
data.Properties
ans = struct with fields:
                Description: ''
                   UserData: []
             DimensionNames: {'Observations'  'Variables'}
              VariableNames: {'ID'  'TIME'  'DOSE'  'WEIGHT'  'APGAR'  'CONC'}
              VariableTypes: ["double"    "double"    "double"    "double"    "double"    "double"]
       VariableDescriptions: {}
              VariableUnits: {}
         VariableContinuity: []
                   RowNames: {}
           CustomProperties: [1×1 matlab.tabular.CustomProperties]
          GroupVariableName: 'ID'
    IndependentVariableName: 'TIME'

Create a simple one-compartment PK model with bolus dosing and linear clearance to fit such data. Use the PKModelDesign object to construct the model. Each compartment is defined by a name, dosing type, a clearance type, and whether or not the dosing requires a lag parameter. After constructing the model, you can also get a PKModelMap object map that lists the names of species and parameters in the model that are most relevant for fitting.

pkmd = PKModelDesign;
addCompartment(pkmd,'Central','DosingType','Bolus',...
                    'EliminationType','linear-clearance',...
                    'HasResponseVariable',true,'HasLag',false);
[onecomp, map] = pkmd.construct;

Describe the experimentally measured response by mapping the appropriate model component to the response variable. In other words, indicate which species in the model corresponds to which response variable in the data. The PKModelMap property Observed indicates that the relevant species in the model is Drug_Central, which represents the drug concentration in the system. The relevant data variable is CONC, which you visualized previously.

map.Observed
ans = 1×1 cell array
    {'Drug_Central'}

Map the Drug_Central species to the CONC variable.

responseMap = 'Drug_Central = CONC';

The parameters to estimate in this model are the volume of the central compartment Central and the clearance rate Cl_Central. The PKModelMap property Estimated lists these relevant parameters. The underlying algorithm of sbiofit assumes parameters are normally distributed, but this assumption may not be true for biological parameters that are constrained to be positive, such as volume and clearance. Specify a log transform for the estimated parameters so that the transformed parameters follow a normal distribution. Use an estimatedInfo object to define such transforms and initial values (optional).

map.Estimated
ans = 2×1 cell
    {'Central'   }
    {'Cl_Central'}

Define such estimated parameters, appropriate transformations, and initial values.

estimatedParams = estimatedInfo({'log(Central)','log(Cl_Central)'},'InitialValue',[1 1]);

Each infant received a different schedule of dosing. The amount of drug is listed in the data variable DOSE. To specify these dosing during fitting, create dose objects from the data. These objects use the property TargetName to specify which species in the model receives the dose. In this example, the target species is Drug_Central, as listed by the PKModelMap property Dosed.

map.Dosed
ans = 1×1 cell array
    {'Drug_Central'}

Create a sample dose with this target name and then use the createDoses method of groupedData object data to generate doses for each infant based on the dosing data DOSE.

sampleDose = sbiodose('sample','TargetName','Drug_Central');
doses = createDoses(data,'DOSE','',sampleDose);

Fit the model.

[nlmeResults,simI,simP] = sbiofitmixed(onecomp,data,responseMap,estimatedParams,doses,'nlmefit');

Visualize the fitted results using individual-specific parameter estimates.

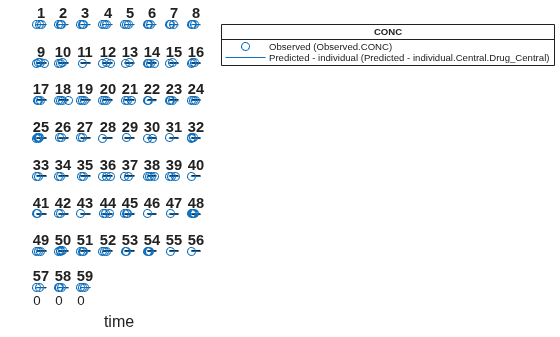

plot(nlmeResults,'ParameterType','individual');

Figure contains 65 axes objects. Axes object 1 is empty. Axes object 2 is empty. Axes object 3 is empty. Axes object 4 is empty. Axes object 5 is empty. Axes object 6 with title 59 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 58 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 57 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 56 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 55 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 54 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 53 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 52 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 51 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 50 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 49 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 48 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 47 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 46 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 45 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 44 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 43 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 42 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 41 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 40 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 39 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 38 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 37 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 36 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 35 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 31 with title 34 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 32 with title 33 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 33 with title 32 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 34 with title 31 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 35 with title 30 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 36 with title 29 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 37 with title 28 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 38 with title 27 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 39 with title 26 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 40 with title 25 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 41 with title 24 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 42 with title 23 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 43 with title 22 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 44 with title 21 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 45 with title 20 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 46 with title 19 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 47 with title 18 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 48 with title 17 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 49 with title 16 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 50 with title 15 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 51 with title 14 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 52 with title 13 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 53 with title 12 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 54 with title 11 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 55 with title 10 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 56 with title 9 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 57 with title 8 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 58 with title 7 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 59 with title 6 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 60 with title 5 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 61 with title 4 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 62 with title 3 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 63 with title 2 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 64 with title 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 65 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted - individual (Predicted - individual.Central.Drug_Central), Observed (Observed.CONC).

Visualize the fitted results using population parameter estimates.

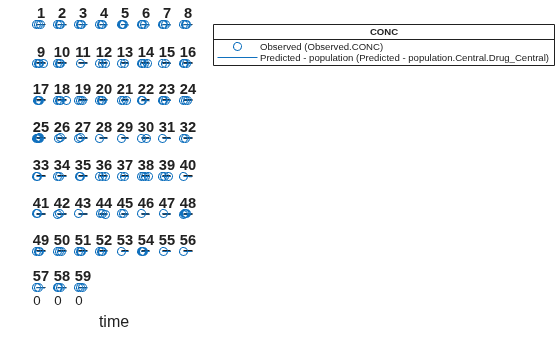

plot(nlmeResults,'ParameterType','population');

Figure contains 65 axes objects. Axes object 1 is empty. Axes object 2 is empty. Axes object 3 is empty. Axes object 4 is empty. Axes object 5 is empty. Axes object 6 with title 59 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 58 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 57 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 56 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 55 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 54 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 53 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 52 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 51 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 50 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 49 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 48 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 47 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 46 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 45 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 44 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 43 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 42 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 41 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 40 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 39 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 38 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 37 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 36 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 35 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 31 with title 34 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 32 with title 33 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 33 with title 32 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 34 with title 31 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 35 with title 30 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 36 with title 29 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 37 with title 28 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 38 with title 27 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 39 with title 26 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 40 with title 25 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 41 with title 24 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 42 with title 23 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 43 with title 22 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 44 with title 21 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 45 with title 20 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 46 with title 19 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 47 with title 18 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 48 with title 17 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 49 with title 16 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 50 with title 15 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 51 with title 14 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 52 with title 13 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 53 with title 12 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 54 with title 11 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 55 with title 10 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 56 with title 9 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 57 with title 8 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 58 with title 7 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 59 with title 6 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 60 with title 5 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 61 with title 4 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 62 with title 3 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 63 with title 2 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 64 with title 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 65 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted - population (Predicted - population.Central.Drug_Central), Observed (Observed.CONC).

Display the variation of estimated parameters using boxplot.

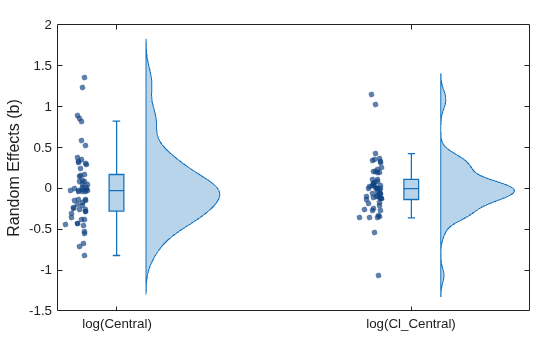

boxplot(nlmeResults)

Figure contains an axes object. The axes object contains an object of type boxchart.

Compare the model predictions to the actual data.

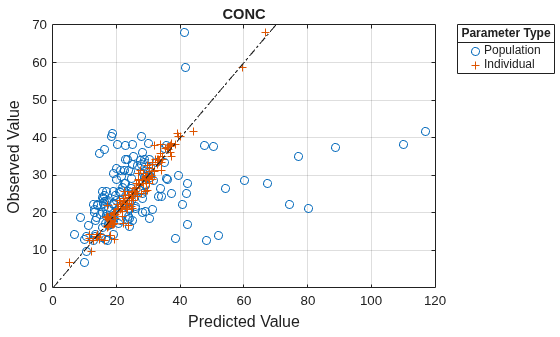

plotActualVersusPredicted(nlmeResults)

Figure contains 2 axes objects. Axes object 1 contains 3 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 2 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Individual, Population.

Plot the distribution of residuals.

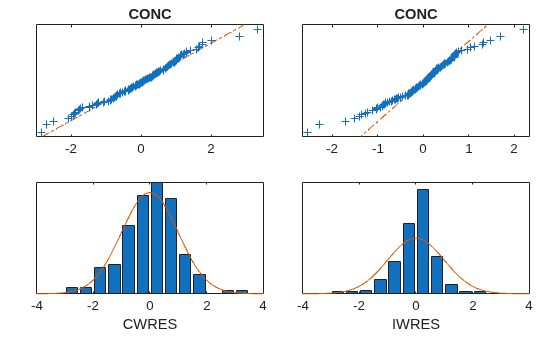

plotResidualDistribution(nlmeResults)

Figure contains 4 axes objects. Axes object 1 contains 2 objects of type bar, line. Axes object 2 contains 2 objects of type bar, line. Axes object 3 with title IWRES contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title CWRES contains 3 objects of type line. One or more of the lines displays its values using only markers

Plot residuals for each response using the model predictions on x-axis.

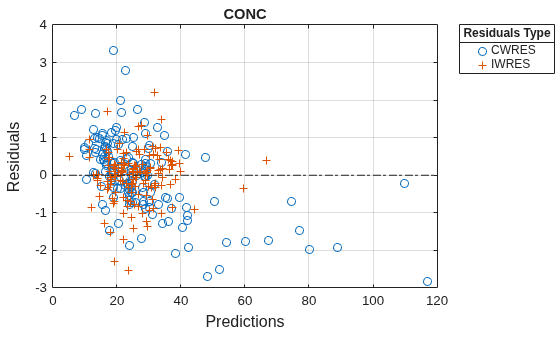

plotResiduals(nlmeResults,'Predictions')

Figure contains 2 axes objects. Axes object 1 contains 3 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 2 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent IWRES, CWRES.

Input Arguments

collapse all

SimBiology model, specified as a SimBiology model object. The active configset object of the model contains solver settings for simulation. Any active doses and variants are applied to the model during simulation unless specified otherwise using the dosing and variants input arguments, respectively.

Data to fit, specified as a groupedData object.

The name of the time variable must be defined in the IndependentVariableName property of grpData. For instance, if the time variable name is 'TIME', then specify it as follows.

grpData.Properties.IndependentVariableName = 'TIME';

grpData must have at least two groups, and the name of grouping variable name must be defined in the GroupVariableName property of grpData. For example, if the grouping variable name is 'GROUP', then specify it as follows.

grpData.Properties.GroupVariableName = 'GROUP';
A group usually refers to a set of measurements that represent a single time course, often corresponding to a particular individual or experimental condition.

Note

sbiofitmixed uses the categorical function to identify groups. If any group values are converted to the same value by categorical, then those observations are treated as belonging to the same group. For instance, if some observations have no group information (that is, empty character vector), then categorical converts empty character vectors to <undefined>, and these observations are treated as one group.

Mapping information of model components to grpData, specified as a character vector, string, string vector, or cell array of character vectors.

Each character vector or string is an equation-like expression, similar to assignment rules in SimBiology. It contains the name (or qualified name) of a quantity (species, compartment, or parameter) or an observable object in the model sm, followed by the character '=' and the name of a variable in grpData. For clarity, white spaces are allowed between names and '='.

For example, if you have the concentration data 'CONC' in grpData for a species 'Drug_Central', you can specify it as follows.

ResponseMap = 'Drug_Central = CONC';

To name a species unambiguously, use the qualified name, which includes the name of the compartment. To name a reaction-scoped parameter, use the reaction name to qualify the parameter.

If the model component name or grpData variable name is not a valid MATLAB® variable name, surround it by square brackets, such as:

ResponseMap = '[Central 1].Drug = [Central 1 Conc]';

If a variable name itself contains square brackets, you cannot use it in the expression to define the mapping information.

An error is issued if any (qualified) name matches two components of the same type. However, you can use a (qualified) name that matches two components of different types, and the function first finds the species with the given name, followed by compartments and then parameters.

Estimated parameters, specified as a vector of estimatedInfo objects or a CovariateModel object that defines the estimated parameters in the model sm, their initial estimates (optional), and their relationship to group-specific covariates included in grpData (optional). If this is a vector of estimatedInfo objects, then no covariates are used, and all parameters are estimated with group-specific random effects.

You can also specify parameter transformations if necessary. Supported transforms are log, logit, and probit. For details, see EstimatedInfo object and CovariateModel object.

If covEstiminfo is a vector of estimatedInfo objects, the CategoryVariableName property of each of these objects is ignored.

Dosing information, specified as an empty array ([] or {}), 2-D matrix or cell vector of dose objects (ScheduleDose object or RepeatDose object).

If you omit the dosing input, the function applies the active doses of the model if there are any.

If you specify the input as empty [] or {}, no doses are applied during simulation, even if the model has active doses.

For a matrix of dose objects, it must have a single row or one row per group in the input data. If it has a single row, the same doses are applied to all groups during simulation. If it has multiple rows, each row is applied to a separate group, in the same order as the groups appear in the input data. Multiple columns are allowed so that you can apply multiple dose objects to each group.

Note

As of R2021b, doses in the columns are no longer required to have the same configuration. If you previously created default (dummy) doses to fill in the columns, these default doses have no effect and indicate no dosing.

For a cell vector of doses, it must have one element or one element per group in the input data. Each element must be [] or a vector of doses. Each element of the cell is applied to a separate group, in the same order as the groups appear in the input data.

In addition to manually constructing dose objects using sbiodose, if the input groupedData object has dosing information, you can use the createDoses method to construct doses.

Estimation function name, specified as a character vector or string. Choices are 'nlmefit' or 'nlmefitsa'. For the summary supported methods and fitting options, see Supported Methods for Parameter Estimation in SimBiology.

Options specific to the estimation function, specified as a structure.

The structure can contain fields and default values that are the name-value arguments accepted by nlmefit (Statistics and Machine Learning Toolbox) and nlmefitsa (Statistics and Machine Learning Toolbox), except the following that are not supported.

  • 'FEConstDesign'

  • 'FEGroupDesign’

  • 'FEObsDesign'

  • 'FEParamsSelect'

  • 'ParamTransform'

  • 'REConstDesign'

  • 'REGroupDesign'

  • 'REObsDesign'

  • 'Vectorization'

'REParamsSelect' is only supported when you provide a vector of estimatedInfo objects when specifying the estimated parameters.

Use the statset (Statistics and Machine Learning Toolbox) function only to set the 'Options' field of the structure (opt), as follows.

opt.Options = statset('Display','iter','TolX',1e-3,'TolFun',1e-3);

For other supported name-value arguments (see nlmefit (Statistics and Machine Learning Toolbox) and nlmefitsa (Statistics and Machine Learning Toolbox)), set them as follows.

opt.ApproximationType = 'LME';

Variants, specified as an empty array ([] or {}) or vector of variant objects.

If you

  • Omit this input argument, the function applies the active variants of the model if there are any.

  • Specify this input as empty, no variants are used even if the model has active variants.

  • Specify this input as a vector of variants, the function applies the specified variants to all simulations, and the model active variants are not used.

  • Specify this input as a vector of variants and also specify the Variants name-value argument, the function applies the variants specified in this input argument before applying the ones specified in the name-value argument.

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'UseParallel',true,'ProgressPlot',true specifies to run the simulations in parallel and show the progress of parameter estimation.

Since R2025a

Error model to use for estimation, specified as one of the following: "constant", "proportional", "combined", "exponential".

The following details apply:

  • You can specify only one error model.

  • If you specify a table, it must contain a single variable that matches one of the supported error model names.

Four built-in error models are available. Each model defines the error using a standard mean-zero and unit-variance (Gaussian) variable e, simulation results f, and one or two parameters a and b.

  • "constant": y=f+ae

  • "proportional": y=f+b|f|e

  • "combined": y=f+(a+b|f|)e

  • "exponential": y=f∗exp(ae)

For more details, see Error Models.

Note

If you use a proportional or combined error model during data fitting, avoid specifying data points at times where the solution (simulation result) is zero or the steady state is zero. Otherwise, you can run into division-by-zero problems. To avoid those problems, remove those data points from the data set.

Flag to enable parallelization, specified as a numeric or logical 1 (true) or 0 (false). If true and Parallel Computing Toolbox™ is available, the function performs parameter estimation in parallel.

Flag to show the progress of parameter estimation, specified as a numeric or logical 1 (true) or 0 (false). If true, a new figure opens containing plots.

Plots show the values of fixed effects parameters (theta), the estimates of the variance parameters, that is, the diagonal elements of the covariance matrix of the random effects (Ψ), and the log-likelihood. For details, see Progress Plot.

Group-specific variants, specified as an empty array ([] or {}), 2-D matrix or cell vector of variant objects. These variants let you specify parameter values for specific groups during fitting. The software applies these group-specific variants after active variants or the variants input argument. If the value is empty ([] or {}), no group-specific variants are applied.

For a matrix of variant objects, the number of rows must be one or must match the number of groups in the input data. The ith row of variant objects is applied to the simulation of the ith group. The variants are applied in order from the first column to the last. If this matrix has only one row of variants, they are applied to all simulations.

For a cell vector of variant objects, the number of cells must be one or must match the number of groups in the input data. Each element must be [] or a vector of variants. If this cell vector has a single cell containing a vector of variants, they are applied to all simulations. If the cell vector has multiple cells, the variants in the ith cell are applied to the simulation of the ith group.

In addition to manually constructing variant objects using sbiovariant, if the input groupedData object has variant information, you can use createVariants to construct variants.

Output Arguments

collapse all

Estimation results, returned as an NLMEResults object.

Simulation results, returned as a vector of SimData objects representing simulation results for each group (or individual) using fixed-effect and random-effect estimates (individual-specific parameter estimates).

The states reported in simDataI are the states that were included in the ResponseMap input argument as well as any other states listed in the StatesToLog property of the runtime options (RuntimeOptions) of the SimBiology model sm.

Simulation results, returned as a vector of SimData objects representing simulation results for each group (or individual) using only fixed-effect estimates (population parameter estimates).

The states reported in simDataP are the states that were included in the ResponseMap input argument as well as any other states listed in the StatesToLog property of the runtime options (RuntimeOptions) of the SimBiology model sm.

References

[1] Grasela Jr, T.H., Donn, S.M. (1985) Neonatal population pharmacokinetics of phenobarbital derived from routine clinical data. Dev Pharmacol Ther. 8(6), 374–83.

Extended Capabilities

expand all

Version History

Introduced in R2014a
