CovariateModel

Define relationship between parameters and covariates

Description

A CovariateModel object defines the relationship between estimated parameters and covariates.

Use a CovariateModel object as an input argument to sbiofitmixed to fit a model with covariate dependencies. Before using the CovariateModel object, set the FixedEffectValues property to specify the initial estimates for the fixed effects.

Creation

Description

CovModelObj= CovariateModel creates an empty CovariateModel object.

example

CovModelObj= CovariateModel(E) creates a CovariateModel object with its Expression property set to E, which defines the relationships between estimated parameters and one or more covariates.

example

Input Arguments

expand all

Expression to define the parameter-covariate relationships, specified as a character vector, string, string vector, or cell array of character vectors.

Denote fixed effects with the prefix theta, and random effects with the prefix eta. The expression must be in the form: parameterName = relationship. Here is an example, "volume = theta1 + theta2*weight". For details on additional requirements, see the Expression property.

If a model component name or covariate name is not a valid MATLAB® variable name, surround it by square brackets when referring to it in the expression. For example, if the name of a species is DNA polymerase+, write [DNA polymerase+]. If a covariate name itself contains square brackets, you cannot use it in the expression.

This table illustrates expression formats for some common parameter-covariate relationships.

Parameter-Covariate RelationshipExpression Format
Linear with random effectCl = theta1 + theta2*WEIGHT + eta1
Exponential without random effectCl = exp(theta_Cl + theta_Cl_WT*WEIGHT)
Exponential, WEIGHT centered by mean, has random effectCl = exp(theta1 + theta2*(WEIGHT - mean(WEIGHT)) + eta1)
Exponential, log(WEIGHT), which is equivalent to power modelCl = exp(theta1 + theta2*log(WEIGHT) + eta1)
Exponential, dependent on WEIGHT and AGE, has random effectCl = exp(theta1 + theta2*WEIGHT + theta3*AGE + eta1)
Inverse of probit, dependent on WEIGHT and AGE, has random effectCl = probitinv(theta1 + theta2*WEIGHT + theta3*AGE + eta1)
Inverse of logit, dependent on WEIGHT and AGE, has random effectCl = logitinv(theta1 + theta2*WEIGHT + theta3*AGE + eta1)

Tip

To simultaneously fit data from multiple dose levels, use a CovariateModel object as an input argument to sbiofitmixed, and omit the random effect (eta) from the Expression property in the CovariateModel object.

Properties

expand all

This property is read-only.

Labels for covariates in the Expression property of the object, returned as a cell array of character vectors.

Data Types: cell

Relationships between parameters being estimated and covariates, returned as a cell array of character vectors.

The Expression property must meet the following requirements:

  • The expressions are valid MATLAB code.

  • Each expression is linear with a transformation.

  • There is exactly one expression for each parameter.

  • In each expression, a covariate is used in at most one term.

  • In each expression, there is at most one random effect (eta)

  • Fixed effect (theta) and random effect (eta) names are unique within and across expressions. That is, each covariate has its own fixed effect.

For examples of some common parameter-covariate relationships, see E.

Tip

  • To simultaneously fit data from multiple dose levels, use a CovariateModel object as an input argument to sbiofitmixed, and omit the random effect (eta) from the Expression property in the CovariateModel object.

  • Use the getCovariateData method to view the covariate data when writing equations for the Expression property of a CovariateModel object.

  • Use the verify method to check that the Expression property of a CovariateModel object meets the conditions described previously.

Data Types: cell

This property is read-only.

Descriptions of fixed effects in the Expression property of the object, returned as a cell array of character vectors.

Each character vector describes the role of a fixed effect in the expression equation. For example, consider the following expression: Cl=eθ1+θ2×WEIGHT+θ3×AGE+η1

At the command line, you can create a CovariateModel object using that expression.

cm = CovariateModel("Cl = exp(theta1 + theta2*WEIGHT + theta3*AGE + eta1)");
cm.FixedEffectDescription
ans =

  3×1 cell array

    {'Cl'       }
    {'Cl/WEIGHT'}
    {'Cl/AGE'   }

In this example, the description for the fixed effect theta1 is 'Cl', which indicates it is the intercept for the parameter Cl. Also, the description for the fixed effect theta2 is 'Cl/WEIGHT', which indicates it is the slope of the line that defines the relationship between the parameter Cl and the covariate WEIGHT. The description of theta3 is 'Cl/AGE'.

Data Types: cell

This property is read-only.

Names of fixed effects in the Expression property of the object, returned as a cell array of character vectors. The names are denoted with the prefix theta.

Data Types: cell

Values for initial estimates of fixed effects in the Expression property of the object, returned as a structure. Each field contains the value of the initial estimate for each fixed effect (theta).

Tip

You must set this property before using the CovariateModel object as input to sbionlmefit or sbionlmefitsa. Use the constructDefaultFixedEffectValues method to create a structure of fixed-effect (theta) initial estimate values, which are set to a default of zero. Then edit the structure to change the initial estimate values. Then set the structure as the value of this property. For an example, see Specify a Covariate Model.

Data Types: struct

This property is read-only.

Names of parameters in the Expression property of the object, returned as a cell array of character vectors.

Data Types: cell

This property is read-only.

Names of random effects in the Expression property of the object, returned as a cell array of character vectors. Each name is denoted with the prefix eta.

Data Types: cell

Object Functions

constructDefaultFixedEffectValuesCreate structure containing initial estimates fixed effects needed for fit
verifyCheck covariate model for errors

Examples

collapse all

Create an empty CovariateModel object.

covModel = CovariateModel;

Set its Expression property to define the relationships between parameters (Cl, V, and k) and covariate (w). You must use theta as a prefix for all fixed effects and eta for random effects.

covModel.Expression = ["Cl = theta1 + theta2*w + eta1","V = theta3 + eta2","k = theta4 + eta3"];

Display the names of fixed effects.

covModel.FixedEffectNames
ans = 4x1 cell
    {'theta1'}
    {'theta3'}
    {'theta4'}
    {'theta2'}

The FixedEffectDescription property displays which fixed effects correspond to which parameter. For instance, theta1 is the fixed effect for the Cl parameter, and theta2 is the fixed effect for the weight covariate that has a correlation with Cl parameter, denoted as Cl/w.

covModel.FixedEffectDescription
ans = 4x1 cell
    {'Cl'  }
    {'V'   }
    {'k'   }
    {'Cl/w'}

Specify initial estimates for the fixed effects. Create a default structure containing initial estimates using the constructDefaultFixedEffectValues function.

initialEstimates = constructDefaultFixedEffectValues(covModel)
initialEstimates = struct with fields:
    theta1: 0
    theta3: 0
    theta4: 0
    theta2: 0

Update the initial estimate value of each fixed effects.

initialEstimates.theta1 = 1.20;
initialEstimates.theta2 = 0.30;
initialEstimates.theta3 = 0.90;
initialEstimates.theta4 = 0.10;

Update the FixedEffectValues property to use the updated initial estimates.

covModel.FixedEffectValues = initialEstimates;

Check the covariate model for errors.

verify(covModel)

Estimate nonlinear mixed-effects parameters using clinical pharmacokinetic data collected from 59 infants. Evaluate the fitted model given new data or dosing information.

Load Data

This example uses data collected on 59 preterm infants given phenobarbital during the first 16 days after birth [1]. ds is a table containing the concentration-time profile data and covariate information for each infant (or group).

load pheno.mat ds

Convert to groupedData

Convert the data to the groupedData format for parameter estimation.

data = groupedData(ds);

Display the first few rows of data.

data(1:5,:)
ans =

  5x6 groupedData

    ID    TIME    DOSE    WEIGHT    APGAR    CONC
    __    ____    ____    ______    _____    ____

    1        0     25      1.4        7       NaN
    1        2    NaN      1.4        7      17.3
    1     12.5    3.5      1.4        7       NaN
    1     24.5    3.5      1.4        7       NaN
    1       37    3.5      1.4        7       NaN

Visualize Data

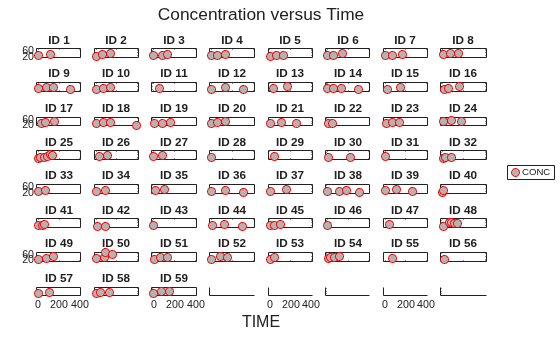

Display the data in a trellis plot.

t = sbiotrellis(data, 'ID', 'TIME', 'CONC', 'marker', 'o',...
       'markerfacecolor', [.7 .7 .7], 'markeredgecolor', 'r', ...
       'linestyle', 'none');
t.plottitle = 'Concentration versus Time';

Figure contains 64 axes objects. Axes object 1 with title ID 1 contains a line object which displays its values using only markers. Axes object 2 with title ID 2 contains a line object which displays its values using only markers. Axes object 3 with title ID 3 contains a line object which displays its values using only markers. Axes object 4 with title ID 4 contains a line object which displays its values using only markers. Axes object 5 with title ID 5 contains a line object which displays its values using only markers. Axes object 6 with title ID 6 contains a line object which displays its values using only markers. Axes object 7 with title ID 7 contains a line object which displays its values using only markers. Axes object 8 with title ID 8 contains a line object which displays its values using only markers. Axes object 9 with title ID 9 contains a line object which displays its values using only markers. Axes object 10 with title ID 10 contains a line object which displays its values using only markers. Axes object 11 with title ID 11 contains a line object which displays its values using only markers. Axes object 12 with title ID 12 contains a line object which displays its values using only markers. Axes object 13 with title ID 13 contains a line object which displays its values using only markers. Axes object 14 with title ID 14 contains a line object which displays its values using only markers. Axes object 15 with title ID 15 contains a line object which displays its values using only markers. Axes object 16 with title ID 16 contains a line object which displays its values using only markers. Axes object 17 with title ID 17 contains a line object which displays its values using only markers. Axes object 18 with title ID 18 contains a line object which displays its values using only markers. Axes object 19 with title ID 19 contains a line object which displays its values using only markers. Axes object 20 with title ID 20 contains a line object which displays its values using only markers. Axes object 21 with title ID 21 contains a line object which displays its values using only markers. Axes object 22 with title ID 22 contains a line object which displays its values using only markers. Axes object 23 with title ID 23 contains a line object which displays its values using only markers. Axes object 24 with title ID 24 contains a line object which displays its values using only markers. Axes object 25 with title ID 25 contains a line object which displays its values using only markers. Axes object 26 with title ID 26 contains a line object which displays its values using only markers. Axes object 27 with title ID 27 contains a line object which displays its values using only markers. Axes object 28 with title ID 28 contains a line object which displays its values using only markers. Axes object 29 with title ID 29 contains a line object which displays its values using only markers. Axes object 30 with title ID 30 contains a line object which displays its values using only markers. Axes object 31 with title ID 31 contains a line object which displays its values using only markers. Axes object 32 with title ID 32 contains a line object which displays its values using only markers. Axes object 33 with title ID 33 contains a line object which displays its values using only markers. Axes object 34 with title ID 34 contains a line object which displays its values using only markers. Axes object 35 with title ID 35 contains a line object which displays its values using only markers. Axes object 36 with title ID 36 contains a line object which displays its values using only markers. Axes object 37 with title ID 37 contains a line object which displays its values using only markers. Axes object 38 with title ID 38 contains a line object which displays its values using only markers. Axes object 39 with title ID 39 contains a line object which displays its values using only markers. Axes object 40 with title ID 40 contains a line object which displays its values using only markers. Axes object 41 with title ID 41 contains a line object which displays its values using only markers. Axes object 42 with title ID 42 contains a line object which displays its values using only markers. Axes object 43 with title ID 43 contains a line object which displays its values using only markers. Axes object 44 with title ID 44 contains a line object which displays its values using only markers. Axes object 45 with title ID 45 contains a line object which displays its values using only markers. Axes object 46 with title ID 46 contains a line object which displays its values using only markers. Axes object 47 with title ID 47 contains a line object which displays its values using only markers. Axes object 48 with title ID 48 contains a line object which displays its values using only markers. Axes object 49 with title ID 49 contains a line object which displays its values using only markers. Axes object 50 with title ID 50 contains a line object which displays its values using only markers. Axes object 51 with title ID 51 contains a line object which displays its values using only markers. Axes object 52 with title ID 52 contains a line object which displays its values using only markers. Axes object 53 with title ID 53 contains a line object which displays its values using only markers. Axes object 54 with title ID 54 contains a line object which displays its values using only markers. Axes object 55 with title ID 55 contains a line object which displays its values using only markers. Axes object 56 with title ID 56 contains a line object which displays its values using only markers. Axes object 57 with title ID 57 contains a line object which displays its values using only markers. Axes object 58 with title ID 58 contains a line object which displays its values using only markers. Axes object 59 with title ID 59 contains a line object which displays its values using only markers. This object represents CONC. Axes object 60 is empty. Axes object 61 is empty. Axes object 62 is empty. Axes object 63 is empty. Axes object 64 is empty.

Create a One-Compartment PK Model

Create a simple one-compartment PK model, with bolus dose administration and linear clearance elimination, to fit the data.

pkmd = PKModelDesign;
addCompartment(pkmd,'Central','DosingType','Bolus',...
                    'EliminationType','linear-clearance',...
                    'HasResponseVariable',true,'HasLag',false);
onecomp = pkmd.construct;

Map model species to response data.

responseMap = 'Drug_Central = CONC';

Define Estimated Parameters

The parameters to estimate in this model are the volume of the central compartment (Central) and the clearance rate (Cl_Central). sbiofitmixed calculates fixed and random effects for each parameter. The underlying algorithm computes normally distributed random effects, which might violate constraints for biological parameters that are always positive, such as volume and clearance. Therefore, specify a transform for the estimated parameters so that the transformed parameters follow a normal distribution. The resulting model is

log(Vi)=log(ϕV,i)=θV+ηV,i

and

log(Cli)=log(ϕCl,i)=θCl+ηCl,i,

where θ, eta, and ϕ are the fixed effects, random effects, and estimated parameter values respectively, calculated for each infant (group) i. Some arbitrary initial estimates for V (volume of central compartment) and Cl (clearance rate) are used here in the absence of better empirical data.

estimatedParams = estimatedInfo({'log(Central)','log(Cl_Central)'},'InitialValue',[1 1]);

Define Dosing

All infants were given the drug, represented by the Drug_Central species, where the dosing schedule varies among infants. The amount of drug is listed in the data variable DOSE. You can automatically generate dose objects from the data and use them during fitting. In this example, Drug_Central is the target species that receives the dose.

sampleDose = sbiodose('sample','TargetName','Drug_Central');
doses = createDoses(data,'DOSE','',sampleDose);

Fit the Model

Use sbiofitmixed to fit the one-compartment model to the data.

nlmeResults = sbiofitmixed(onecomp,data,responseMap,estimatedParams,doses,'nlmefit');

Visualize Results

Visualize the fitted results using individual-specific parameter estimates.

plot(nlmeResults,'ParameterType','individual');

Figure contains 65 axes objects. Axes object 1 is empty. Axes object 2 is empty. Axes object 3 is empty. Axes object 4 is empty. Axes object 5 is empty. Axes object 6 with title 59 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 58 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 57 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 56 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 55 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 54 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 53 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 52 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 51 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 50 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 49 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 48 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 47 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 46 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 45 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 44 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 43 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 42 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 41 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 40 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 39 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 38 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 37 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 36 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 35 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 31 with title 34 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 32 with title 33 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 33 with title 32 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 34 with title 31 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 35 with title 30 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 36 with title 29 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 37 with title 28 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 38 with title 27 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 39 with title 26 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 40 with title 25 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 41 with title 24 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 42 with title 23 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 43 with title 22 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 44 with title 21 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 45 with title 20 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 46 with title 19 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 47 with title 18 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 48 with title 17 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 49 with title 16 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 50 with title 15 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 51 with title 14 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 52 with title 13 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 53 with title 12 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 54 with title 11 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 55 with title 10 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 56 with title 9 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 57 with title 8 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 58 with title 7 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 59 with title 6 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 60 with title 5 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 61 with title 4 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 62 with title 3 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 63 with title 2 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 64 with title 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 65 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted - individual (Predicted - individual.Central.Drug_Central), Observed (Observed.CONC).

Use New Dosing Data to Simulate the Fitted Model

Suppose you want to predict how infants 1 and 2 would have responded under different dosing amounts. You can predict their responses as follows.

Create new dose objects with new dose amounts.

dose1 = doses(1);
dose1.Amount = dose1.Amount*2;
dose2 = doses(2);
dose2.Amount = dose2.Amount*1.5;

Use the predict function to evaluate the fitted model using the new dosing data. If you want response predictions at particular times, provide the new output time vector. Use the 'ParameterType' option to specify individual or population parameters to use. By default, predict uses the population parameters when you specify output times.

timeVec = [0:25:400];
newResults = predict(nlmeResults,timeVec,[dose1;dose2],'ParameterType','population');

Visualize the predicted responses while overlapping the experimental data for infants 1 and 2.

figure;
subplot(2,1,1)
plot(data.TIME(data.ID == 1),data.CONC(data.ID == 1),'bo')
hold on
plot(newResults(1).Time,newResults(1).Data,'b')
hold off
ylabel('Concentration')
legend('Observation(CONC)','Prediction')
subplot(2,1,2)
plot(data.TIME(data.ID == 2),data.CONC(data.ID == 2),'rx')
hold on
plot(newResults(2).Time,newResults(2).Data,'r')
hold off
legend('Observation(CONC)','Prediction')
ylabel('Concentration')
xlabel('Time')

Figure contains 2 axes objects. Axes object 1 with ylabel Concentration contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Observation(CONC), Prediction. Axes object 2 with xlabel Time, ylabel Concentration contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Observation(CONC), Prediction.

Create a Covariate Model for the Covariate Dependencies

Suppose there is a correlation between volume and weight, and possibly volume and APGAR score. Consider the effect of weight by modeling two of these covariate dependencies: the volume of central (Central) and the clearance rate (Cl_Central) vary with weight. The model becomes

log(Vi)=log(ϕV,i)=θV+θV/weight*weighti+ηV,i

and

log(Cli)=log(ϕCl,i)=θCl+θCl/weight*weighti+ηCl,i

Use the CovariateModel object to define the covariate dependencies. For details, see Specify a Covariate Model.

covModel = CovariateModel;
covModel.Expression = ({'Central = exp(theta1 + theta2*WEIGHT + eta1)',...
                        'Cl_Central = exp(theta3 + theta4*WEIGHT + eta2)'});

Use constructDefaultInitialEstimate to create an initialEstimates struct.

initialEstimates = covModel.constructDefaultFixedEffectValues;

Use the FixedEffectNames property to display the thetas (fixed effects) defined in the model.

covModel.FixedEffectNames
ans = 4x1 cell
    {'theta1'}
    {'theta3'}
    {'theta2'}
    {'theta4'}

Use the FixedEffectDescription property to show the descriptions of corresponding fixed effects (thetas) used in the covariate expression. For example, theta2 is the fixed effect for the weight covariate that correlates with the volume (Central), denoted as 'Central/WEIGHT'.

disp('Fixed Effects Description:');
Fixed Effects Description:
disp(covModel.FixedEffectDescription);
    {'Central'          }
    {'Cl_Central'       }
    {'Central/WEIGHT'   }
    {'Cl_Central/WEIGHT'}

Set the initial guesses for the fixed-effect parameter values for Central and Cl_Central using the values estimated from fitting the base model.

initialEstimates.theta1 = nlmeResults.FixedEffects.Estimate(1);
initialEstimates.theta3 = nlmeResults.FixedEffects.Estimate(2);
covModel.FixedEffectValues = initialEstimates;

Fit the Model

nlmeResults_cov = sbiofitmixed(onecomp,data,responseMap,covModel,doses,'nlmefit');

Display Fitted Parameters and Covariances

disp('Estimated Fixed Effects:');
Estimated Fixed Effects:
disp(nlmeResults_cov.FixedEffects);
       Name            Description         Estimate    StandardError
    __________    _____________________    ________    _____________

    {'theta1'}    {'Central'          }    -0.45664      0.078933
    {'theta3'}    {'Cl_Central'       }     -5.9519        0.1177
    {'theta2'}    {'Central/WEIGHT'   }     0.52948      0.047342
    {'theta4'}    {'Cl_Central/WEIGHT'}     0.61954      0.071386
disp('Estimated Covariance Matrix:');
Estimated Covariance Matrix:
disp(nlmeResults_cov.RandomEffectCovarianceMatrix);
              eta1        eta2
            ________    ________

    eta1    0.046503           0
    eta2           0    0.041609

Visualize Results

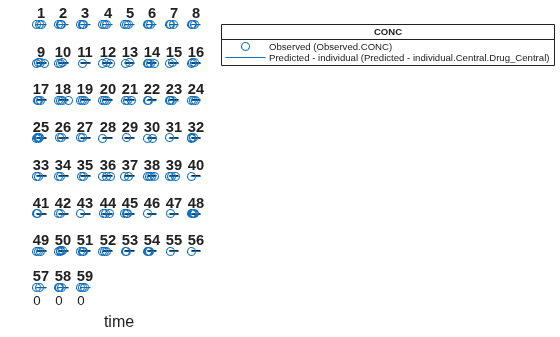

Visualize the fitted results using individual-specific parameter estimates.

plot(nlmeResults_cov,'ParameterType','individual');

Figure contains 65 axes objects. Axes object 1 is empty. Axes object 2 is empty. Axes object 3 is empty. Axes object 4 is empty. Axes object 5 is empty. Axes object 6 with title 59 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 58 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 57 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 56 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 55 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 54 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 53 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 52 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 51 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 50 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 49 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 48 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 47 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 46 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 45 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 44 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 43 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 42 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 41 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 40 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 39 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 38 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 37 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 36 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 35 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 31 with title 34 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 32 with title 33 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 33 with title 32 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 34 with title 31 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 35 with title 30 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 36 with title 29 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 37 with title 28 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 38 with title 27 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 39 with title 26 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 40 with title 25 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 41 with title 24 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 42 with title 23 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 43 with title 22 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 44 with title 21 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 45 with title 20 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 46 with title 19 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 47 with title 18 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 48 with title 17 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 49 with title 16 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 50 with title 15 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 51 with title 14 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 52 with title 13 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 53 with title 12 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 54 with title 11 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 55 with title 10 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 56 with title 9 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 57 with title 8 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 58 with title 7 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 59 with title 6 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 60 with title 5 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 61 with title 4 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 62 with title 3 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 63 with title 2 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 64 with title 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 65 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted - individual (Predicted - individual.Central.Drug_Central), Observed (Observed.CONC).

Use New Covariate Data to Evaluate the Fitted Model

Suppose you want to explore the responses of infants 1 and 2 using different covariate data, namely WEIGHT. You can do this by specifying the new WEIGHT data. The ID variable of the data corresponds to individual infants.

newData = data(data.ID == 1 | data.ID == 2,:);
newData.WEIGHT(newData.ID == 1) = 1.3;
newData.WEIGHT(newData.ID == 2) = 1.4;

Simulate the responses of infants 1 and 2 using the new covariate data.

[newResults_cov, newEstimates] = predict(nlmeResults_cov,newData,[dose1;dose2]);

newEstimates contains the updated parameter estimates for each individual (infants 1 and 2) after the model is reevaluated using the new covariate data.

newEstimates
newEstimates=4×3 table
    Group         Name         Estimate
    _____    ______________    _________

      1      {'Central'   }       2.5596
      1      {'Cl_Central'}    0.0065965
      2      {'Central'   }       1.7123
      2      {'Cl_Central'}    0.0064806

Compare to the estimated values from the original fit using the old covariate data.

nlmeResults_cov.IndividualParameterEstimates( ...
            nlmeResults_cov.IndividualParameterEstimates.Group == '1' | ...
            nlmeResults_cov.IndividualParameterEstimates.Group == '2',:)
ans=4×3 table
    Group         Name         Estimate
    _____    ______________    _________

      1      {'Central'   }       2.6988
      1      {'Cl_Central'}    0.0070181
      2      {'Central'   }       1.8054
      2      {'Cl_Central'}    0.0068948

Visualize the new simulation results together with the experimental data for infant 1 and 2.

figure;
subplot(2,1,1);
plot(data.TIME(data.ID == 1),data.CONC(data.ID == 1),'bo')
hold on
plot(newResults_cov(1).Time,newResults_cov(1).Data,'b')
hold off
ylabel('Concentration')
legend('Observation(CONC)','Prediction','Location','NorthEastOutside')
subplot(2,1,2)
plot(data.TIME(data.ID == 2),data.CONC(data.ID == 2),'rx')
hold on
plot(newResults_cov(2).Time,newResults_cov(2).Data,'r')
hold off
legend('Observation(CONC)','Prediction','Location','NorthEastOutside')
ylabel('Concentration')
xlabel('Time')

Figure contains 2 axes objects. Axes object 1 with ylabel Concentration contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Observation(CONC), Prediction. Axes object 2 with xlabel Time, ylabel Concentration contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Observation(CONC), Prediction.

References

[1] Grasela, T. H. Jr., and S. M. Donn. "Neonatal population pharmacokinetics of phenobarbital derived from routine clinical data." Dev Pharmacol Ther 1985:8(6). 374-83.

This example uses data collected on 59 preterm infants given phenobarbital during the first 16 days after birth. Each infant received an initial dose followed by one or more sustaining doses by intravenous bolus administration. A total of between 1 and 6 concentration measurements were obtained from each infant at times other than dose times, for a total of 155 measurements. Infant weights and APGAR scores (a measure of newborn health) were also recorded. Data was described in [1], a study funded by the NIH/NIBIB grant P41-EB01975.

Load the data.

load pheno.mat ds

Visualize the data.

t = sbiotrellis(ds,'ID','TIME','CONC','marker','o','markerfacecolor',[.7 .7 .7],'markeredgecolor','r','linestyle','none');
t.plottitle = 'States versus Time';

Figure contains 64 axes objects. Axes object 1 with title ID 1 contains a line object which displays its values using only markers. Axes object 2 with title ID 2 contains a line object which displays its values using only markers. Axes object 3 with title ID 3 contains a line object which displays its values using only markers. Axes object 4 with title ID 4 contains a line object which displays its values using only markers. Axes object 5 with title ID 5 contains a line object which displays its values using only markers. Axes object 6 with title ID 6 contains a line object which displays its values using only markers. Axes object 7 with title ID 7 contains a line object which displays its values using only markers. Axes object 8 with title ID 8 contains a line object which displays its values using only markers. Axes object 9 with title ID 9 contains a line object which displays its values using only markers. Axes object 10 with title ID 10 contains a line object which displays its values using only markers. Axes object 11 with title ID 11 contains a line object which displays its values using only markers. Axes object 12 with title ID 12 contains a line object which displays its values using only markers. Axes object 13 with title ID 13 contains a line object which displays its values using only markers. Axes object 14 with title ID 14 contains a line object which displays its values using only markers. Axes object 15 with title ID 15 contains a line object which displays its values using only markers. Axes object 16 with title ID 16 contains a line object which displays its values using only markers. Axes object 17 with title ID 17 contains a line object which displays its values using only markers. Axes object 18 with title ID 18 contains a line object which displays its values using only markers. Axes object 19 with title ID 19 contains a line object which displays its values using only markers. Axes object 20 with title ID 20 contains a line object which displays its values using only markers. Axes object 21 with title ID 21 contains a line object which displays its values using only markers. Axes object 22 with title ID 22 contains a line object which displays its values using only markers. Axes object 23 with title ID 23 contains a line object which displays its values using only markers. Axes object 24 with title ID 24 contains a line object which displays its values using only markers. Axes object 25 with title ID 25 contains a line object which displays its values using only markers. Axes object 26 with title ID 26 contains a line object which displays its values using only markers. Axes object 27 with title ID 27 contains a line object which displays its values using only markers. Axes object 28 with title ID 28 contains a line object which displays its values using only markers. Axes object 29 with title ID 29 contains a line object which displays its values using only markers. Axes object 30 with title ID 30 contains a line object which displays its values using only markers. Axes object 31 with title ID 31 contains a line object which displays its values using only markers. Axes object 32 with title ID 32 contains a line object which displays its values using only markers. Axes object 33 with title ID 33 contains a line object which displays its values using only markers. Axes object 34 with title ID 34 contains a line object which displays its values using only markers. Axes object 35 with title ID 35 contains a line object which displays its values using only markers. Axes object 36 with title ID 36 contains a line object which displays its values using only markers. Axes object 37 with title ID 37 contains a line object which displays its values using only markers. Axes object 38 with title ID 38 contains a line object which displays its values using only markers. Axes object 39 with title ID 39 contains a line object which displays its values using only markers. Axes object 40 with title ID 40 contains a line object which displays its values using only markers. Axes object 41 with title ID 41 contains a line object which displays its values using only markers. Axes object 42 with title ID 42 contains a line object which displays its values using only markers. Axes object 43 with title ID 43 contains a line object which displays its values using only markers. Axes object 44 with title ID 44 contains a line object which displays its values using only markers. Axes object 45 with title ID 45 contains a line object which displays its values using only markers. Axes object 46 with title ID 46 contains a line object which displays its values using only markers. Axes object 47 with title ID 47 contains a line object which displays its values using only markers. Axes object 48 with title ID 48 contains a line object which displays its values using only markers. Axes object 49 with title ID 49 contains a line object which displays its values using only markers. Axes object 50 with title ID 50 contains a line object which displays its values using only markers. Axes object 51 with title ID 51 contains a line object which displays its values using only markers. Axes object 52 with title ID 52 contains a line object which displays its values using only markers. Axes object 53 with title ID 53 contains a line object which displays its values using only markers. Axes object 54 with title ID 54 contains a line object which displays its values using only markers. Axes object 55 with title ID 55 contains a line object which displays its values using only markers. Axes object 56 with title ID 56 contains a line object which displays its values using only markers. Axes object 57 with title ID 57 contains a line object which displays its values using only markers. Axes object 58 with title ID 58 contains a line object which displays its values using only markers. Axes object 59 with title ID 59 contains a line object which displays its values using only markers. This object represents CONC. Axes object 60 is empty. Axes object 61 is empty. Axes object 62 is empty. Axes object 63 is empty. Axes object 64 is empty.

Create a one-compartment PK model with bolus dosing and linear clearance to model such data.

pkmd = PKModelDesign;
pkmd.addCompartment('Central','DosingType','Bolus','EliminationType','linear-clearance',...
                    'HasResponseVariable',true,'HasLag',false);
onecomp = pkmd.construct;

Suppose there is a correlation between the volume of the central compartment (Central) and the weight of infants. You can define this parameter-covariate relationship using a covariate model that can be described as

log(Vi)=θV+θVWEIGHTWEIGHTi+ηV,i,

where, for each ith infant, V is the volume, θs (thetas) are fixed effects, η (eta) represents random effects, and WEIGHT is the covariate.

covM = CovariateModel;
covM.Expression = {'Central = exp(theta1+theta2*WEIGHT+eta1)'};

Define the fixed and random effects. The column names of each table must have the names of fixed effects and random effects, respectively.

thetas = table(1.4,0.05,'VariableNames',{'theta1','theta2'});
eta1 = table(0.2,'VariableNames',{'eta1'});

Change the group label ID to GROUP as required by the sbiosampleparameters function.

ds.Properties.VariableNames{'ID'} = 'GROUP';

Generate parameter values for the volumes of central compartments Central based on the covariate model for all infants in the data set.

phi = sbiosampleparameters(covM.Expression,thetas,eta1,ds);

You can then simulate the model using the sampled parameter values. For convenience, use the function-like interface provided by a SimFunction object.

First, construct a SimFunction object using the createSimFunction method, specifying the volume (Central) as the parameter, and the drug concentration in the compartment (Drug_Central) as the output of the SimFunction object, and the dosed species.

f = createSimFunction(onecomp,covM.ParameterNames,'Drug_Central','Drug_Central');

The data set ds contains dosing information for each infant, and the groupedData object provides a convenient way to extract such dosing information. Convert ds to a groupedData object and extract dosing information.

grpData = groupedData(ds);
doses = createDoses(grpData,'DOSE');

Simulate the model using the sampled parameter values from phi and the extracted dosing information of each infant, and plot the results. The ith run uses the ith parameter value in phi and dosing information of the ith infant.

t = sbiotrellis(f(phi,200,doses.getTable),[],'TIME','Drug_Central');
% Resize the figure.
t.hFig.Position(:) = [100 100 1280 800];

Figure contains 64 axes objects. Axes object 1 with title Run 1 contains an object of type line. Axes object 2 with title Run 2 contains an object of type line. Axes object 3 with title Run 3 contains an object of type line. Axes object 4 with title Run 4 contains an object of type line. Axes object 5 with title Run 5 contains an object of type line. Axes object 6 with title Run 6 contains an object of type line. Axes object 7 with title Run 7 contains an object of type line. Axes object 8 with title Run 8 contains an object of type line. Axes object 9 with title Run 9 contains an object of type line. Axes object 10 with title Run 10 contains an object of type line. Axes object 11 with title Run 11 contains an object of type line. Axes object 12 with title Run 12 contains an object of type line. Axes object 13 with title Run 13 contains an object of type line. Axes object 14 with title Run 14 contains an object of type line. Axes object 15 with title Run 15 contains an object of type line. Axes object 16 with title Run 16 contains an object of type line. Axes object 17 with title Run 17 contains an object of type line. Axes object 18 with title Run 18 contains an object of type line. Axes object 19 with title Run 19 contains an object of type line. Axes object 20 with title Run 20 contains an object of type line. Axes object 21 with title Run 21 contains an object of type line. Axes object 22 with title Run 22 contains an object of type line. Axes object 23 with title Run 23 contains an object of type line. Axes object 24 with title Run 24 contains an object of type line. Axes object 25 with title Run 25 contains an object of type line. Axes object 26 with title Run 26 contains an object of type line. Axes object 27 with title Run 27 contains an object of type line. Axes object 28 with title Run 28 contains an object of type line. Axes object 29 with title Run 29 contains an object of type line. Axes object 30 with title Run 30 contains an object of type line. Axes object 31 with title Run 31 contains an object of type line. Axes object 32 with title Run 32 contains an object of type line. Axes object 33 with title Run 33 contains an object of type line. Axes object 34 with title Run 34 contains an object of type line. Axes object 35 with title Run 35 contains an object of type line. Axes object 36 with title Run 36 contains an object of type line. Axes object 37 with title Run 37 contains an object of type line. Axes object 38 with title Run 38 contains an object of type line. Axes object 39 with title Run 39 contains an object of type line. Axes object 40 with title Run 40 contains an object of type line. Axes object 41 with title Run 41 contains an object of type line. Axes object 42 with title Run 42 contains an object of type line. Axes object 43 with title Run 43 contains an object of type line. Axes object 44 with title Run 44 contains an object of type line. Axes object 45 with title Run 45 contains an object of type line. Axes object 46 with title Run 46 contains an object of type line. Axes object 47 with title Run 47 contains an object of type line. Axes object 48 with title Run 48 contains an object of type line. Axes object 49 with title Run 49 contains an object of type line. Axes object 50 with title Run 50 contains an object of type line. Axes object 51 with title Run 51 contains an object of type line. Axes object 52 with title Run 52 contains an object of type line. Axes object 53 with title Run 53 contains an object of type line. Axes object 54 with title Run 54 contains an object of type line. Axes object 55 with title Run 55 contains an object of type line. Axes object 56 with title Run 56 contains an object of type line. Axes object 57 with title Run 57 contains an object of type line. Axes object 58 with title Run 58 contains an object of type line. Axes object 59 with title Run 59 contains an object of type line. This object represents Drug_Central. Axes object 60 is empty. Axes object 61 is empty. Axes object 62 is empty. Axes object 63 is empty. Axes object 64 is empty.

Version History

Introduced in R2011b
