plotReflectivityMap

Plots reflectivity map

Since R2024a

collapse all in page

Syntax

plotReflectivityMap(surface)

plotReflectivityMap(surface,Parent=HAX)

HAX = plotReflectivityMap(___)

Description

example

plotReflectivityMap(surface) plots the reflectivity map indices relative to the size and domain of the surface, where surface is a LandSurface or SeaSurface.

plotReflectivityMap(surface,Parent=HAX) specifies the plot axes, HAX, for the reflectivity plot of the surface, where surface is a LandSurface or SeaSurface.

HAX = plotReflectivityMap(___) returns the handle to the axes in the figure.

Examples

collapse all

Plot Reflectivity Map for Land Surface

Open Live Script

This example shows how to plot the reflectivity map for a land surface composed of woods and rolling hills.

Create Land Surface and Plot

Create a land surface composed of two different materials and plot the reflectivity map.

% Create a scenario
scene = radarScenario;

% Specify custom reflectivity table with two surface types
load("heightMap.mat")
bnds        = [-50 50; -50 50];
grazTable   = 20:0.1:60;
freqTable   = [1e9 10e9];
numSurfaces = 2;
reflTypes   = zeros(numel(grazTable),numel(freqTable), ...
    numSurfaces);
reflTypes(:,:,1) = landreflectivity("Woods", ...
    grazTable,freqTable);
reflTypes(:,:,2) = landreflectivity("RollingHills", ...
    grazTable,freqTable);
reflMap           = ones(size(hmap));
reflMap(hmap > 4) = 2;
refl = surfaceReflectivity("Custom", ...
    Frequency=freqTable, ...
    GrazingAngle=grazTable,Reflectivity=reflTypes);

% Create land surface
srf = landSurface(scene,Terrain=hmap,Boundary=bnds, ...
    RadarReflectivity=refl,ReflectivityMap=reflMap);

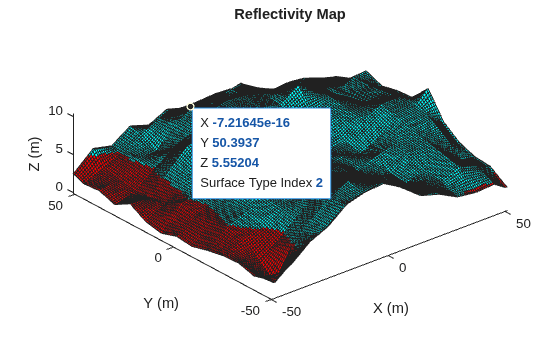

% Plot reflectivity map
plotReflectivityMap(srf)
