# issatisfied

Constraint satisfaction of an optimization problem at a set of points

Since R2024a

## Syntax

``allsat = issatisfied(prob,pts)``
``allsat = issatisfied(prob,pts,tol)``
``[allsat,sat] = issatisfied(___)``

## Description

example

````allsat = issatisfied(prob,pts)` returns a logical vector whose length is the number of points in `pts`. An entry in `allsat` is `true` if all the constraints in `prob` are satisfied to within the default tolerance of `1e-6` for the corresponding point in `pts`. Otherwise, the entry is `false`.```

example

````allsat = issatisfied(prob,pts,tol)` returns `true` when the constraints at a point are satisfied to within the value `tol`, and `false` otherwise.```

example

````[allsat,sat] = issatisfied(___)`, for any previous input argument combinations, also returns an `OptimizationValues` object `sat`. This object's `Constraints` properties are logical indications of the constraint satisfactions for the associated constraints at the corresponding point in `pts`.```

## Examples

collapse all

Create an optimization problem with several linear and nonlinear constraints.

```x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;```

Create 100 test points randomly.

```rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);```

Convert the points to an `OptimizationValues` object for the problem, and determine where all the constraints are satisfied among the points.

```vals = optimvalues(prob,x=xvals,y=yvals); allsat = issatisfied(prob,vals);```

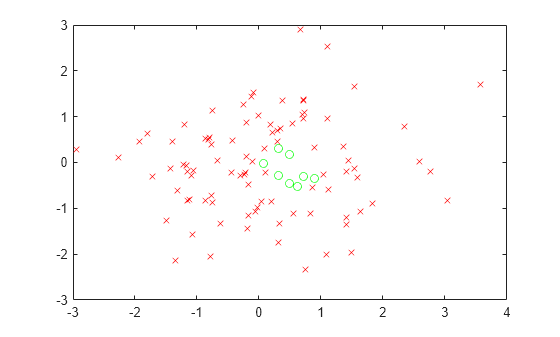

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

```xsat = xvals(allsat); ysat = yvals(allsat); xnosat = xvals(~allsat); ynosat = yvals(~allsat); plot(xsat,ysat,"go",xnosat,ynosat,"rx")```

Create an optimization problem with several linear and nonlinear constraints.

```x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;```

Create 100 test points randomly.

```rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);```

Convert the points to an `OptimizationValues` object for the problem, and determine where all the constraints are satisfied among the points.

```vals = optimvalues(prob,x=xvals,y=yvals); allsat = issatisfied(prob,vals);```

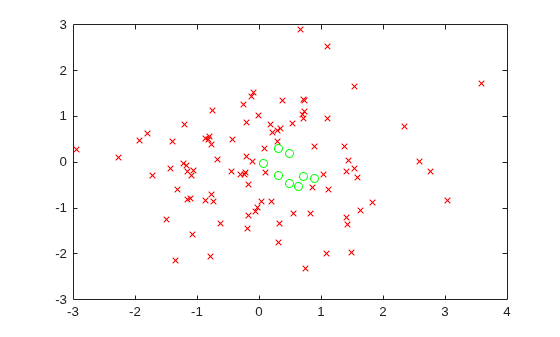

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

```xsat = xvals(allsat); ysat = yvals(allsat); xnosat = xvals(~allsat); ynosat = yvals(~allsat); plot(xsat,ysat,"go",xnosat,ynosat,"rx")```

Determine which points are feasible with respect to a tolerance of 1 rather than the default 1e-6.

```tol = 1; allsat1 = issatisfied(prob,vals,tol);```

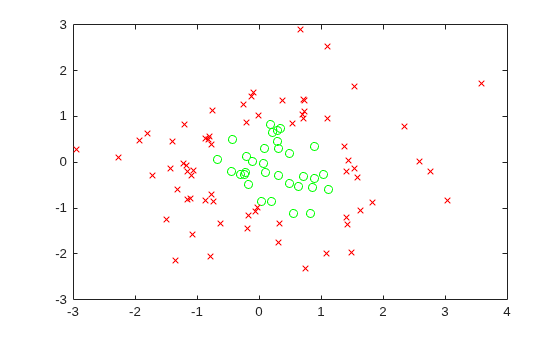

Plot the feasible (satisfied) points with green circles and the infeasible points with red x marks.

```xsat1 = xvals(allsat1); ysat1 = yvals(allsat1); xnosat1 = xvals(~allsat1); ynosat1 = yvals(~allsat1); plot(xsat1,ysat1,"go",xnosat1,ynosat1,"rx")```

With a looser definition of constraint satisfaction, more points are feasible.

Create an optimization problem with several linear and nonlinear constraints.

```x = optimvar("x"); y = optimvar("y"); obj = (10*(y - x^2))^2 + (1 - x)^2; cons1 = x^2 + y^2 <= 1; cons2 = x + y >= 0; cons3 = y <= sin(x); cons4 = 2*x + 3*y <= 2.5; prob = optimproblem(Objective=obj); prob.Constraints.cons1 = cons1; prob.Constraints.cons2 = cons2; prob.Constraints.cons3 = cons3; prob.Constraints.cons4 = cons4;```

Create 100 test points randomly.

```rng default % For reproducibility xvals = randn(1,100); yvals = randn(1,100);```

Convert the points to an `OptimizationValues` object for the problem.

`vals = optimvalues(prob,x=xvals,y=yvals);`

Evaluate the constraints at the points. `issatisfied` evaluates all the constraint satisfactions at all the test points simultaneously.

`[~,sat] = issatisfied(prob,vals);`

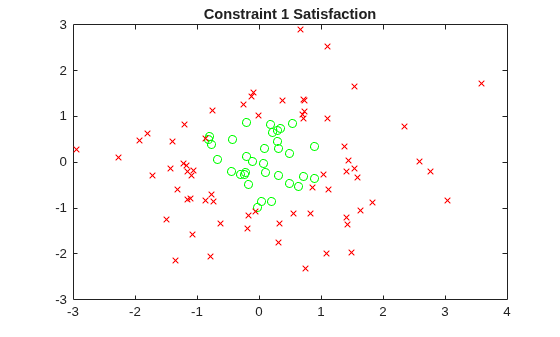

Plot the feasible (satisfied) points for the first constraint with green circles and the infeasible points with red x marks.

```x1sat = xvals(sat.cons1); y1sat = yvals(sat.cons1); x1nosat = xvals(~sat.cons1); y1nosat = yvals(~sat.cons1); plot(x1sat,y1sat,"go",x1nosat,y1nosat,"rx") title("Constraint 1 Satisfaction")```

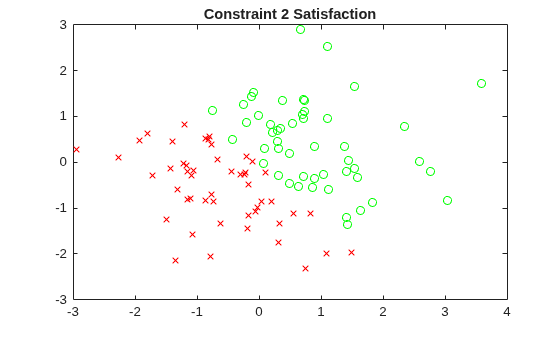

Repeat this process for the other three constraints.

```x2sat = xvals(sat.cons2); y2sat = yvals(sat.cons2); x2nosat = xvals(~sat.cons2); y2nosat = yvals(~sat.cons2); plot(x2sat,y2sat,"go",x2nosat,y2nosat,"rx") title("Constraint 2 Satisfaction")```

```x3sat = xvals(sat.cons3); y3sat = yvals(sat.cons3); x3nosat = xvals(~sat.cons3); y3nosat = yvals(~sat.cons3); plot(x3sat,y3sat,"go",x3nosat,y3nosat,"rx") title("Constraint 3 Satisfaction")```

```x4sat = xvals(sat.cons4); y4sat = yvals(sat.cons4); x4nosat = xvals(~sat.cons4); y4nosat = yvals(~sat.cons4); plot(x4sat,y4sat,"go",x4nosat,y4nosat,"rx") title("Constraint 4 Satisfaction")```

The plots show the different regions of satisfaction for each constraint.

## Input Arguments

collapse all

Optimization problem, specified as an `OptimizationProblem` object. Create `prob` using `optimproblem`. The `issatisfied` function evaluates the objectives and constraints in the properties of `prob` at the points in `pts`.

Example: `prob = optimproblem(Objective=obj,Constraints=constr)`

Points to evaluate for `prob`, specified as a structure or an `OptimizationValues` object.

• The field names in `pts` must match the corresponding variable names in the objective and constraint expressions in `prob`.

• The values in `pts` must be numeric arrays of the same size as the corresponding variables in `prob`.

If you use a structure for `pts`, then `pts` can contain only one point. In other words, if you want to evaluate multiple points simultaneously, `pts` must be an `OptimizationValues` object.

Example: `pts = optimvalues(prob,x=xval,y=yval)`

Tolerance for constraint satisfaction, specified as a nonnegative scalar. A constraint is considered to be satisfied if it evaluates to no more than `tol`. Otherwise, the constraint is unsatisfied.

For example, if `c(x)` is a nonlinear inequality constraint function, then when `c(pt)``tol`, `issatisfied` returns `true` for that constraint at the point `pt`. Similarly, if `ceq(x)` is a nonlinear equality constraint function, then when `abs(ceq(pt))``tol`, `issatisfied` returns `true` for that constraint at the point `pt`.

Data Types: `double`

## Output Arguments

collapse all

Indication that all constraints are satisfied at the given points, returned as a logical vector. `allsat(i)` corresponds to the query point `pts(i)`. The returned value is `true` if all values of the constraint functions are no more than `tol`.

Indication that a constraint is satisfied at the given points, returned as an `OptimizationValues` vector. Index into `sat` using the constraint names. For example, if a constraint is named `mycons`, then `sat.mycons` is a logical array with `true` values for satisfied constraints.

collapse all

### Constraint Expression Values

For a constraint expression at a point `pt`:

• If the constraint is `L <= R`, the constraint value is `evaluate(L,pt)``evaluate(R,pt)`.

• If the constraint is `L >= R`, the constraint value is `evaluate(R,pt)``evaluate(L,pt)`.

• If the constraint is `L == R`, the constraint value is `abs(evaluate(L,pt) – evaluate(R,pt))`.

Generally, a constraint is considered to be satisfied (or feasible) at a point if the constraint value is less than or equal to a tolerance.

## Version History

Introduced in R2024a
