interpolate

Interpolate points along path

Since R2019b

Syntax

interpolate(path,numStates)

Description

interpolate(path,numStates) inserts a number of states in the path and ensures the distribution of all the points in the path to be uniform. The function preserves all the existing states in the path. The value of numStates must be greater than or equal to the number of existing states in the path.

Examples

Create navPath Based on Multiple Waypoints

Create a navPath object based on multiple waypoints in a Dubins space.

dubinsSpace = stateSpaceDubins([0 25; 0 25; -pi pi])

dubinsSpace =
  stateSpaceDubins with properties:

   SE2 Properties
                 Name: 'SE2 Dubins'
          StateBounds: [3x2 double]
    NumStateVariables: 3

   Dubins Vehicle Properties
     MinTurningRadius: 1

pathobj = navPath(dubinsSpace)

pathobj =
  navPath with properties:

      StateSpace: [1x1 stateSpaceDubins]
          States: [0x3 double]
       NumStates: 0
    MaxNumStates: Inf

waypoints = [8 10 pi/2;
             7 14 pi/4;
             10 17 pi/2;
             10 10 -pi];
append(pathobj,waypoints)

Interpolate that path so that it contains exactly 250 points.

interpolate(pathobj,250)

Visualize the interpolated path and the original waypoints.

figure
grid on
axis equal
hold on
plot(pathobj.States(:,1),pathobj.States(:,2),".b")
plot(waypoints(:,1),waypoints(:,2),"*r","MarkerSize",10)

Calculate length of path.

len = pathLength(pathobj);
disp("Path length = " + num2str(len))

Path length = 19.4722

Create navPath Based on Multiple Waypoints in SE(3) State Space

Load a 3-D occupancy map of a city block into the workspace. Specify the threshold to consider cells as obstacle-free.

mapData = load("dMapCityBlock.mat");
omap = mapData.omap;
omap.FreeThreshold = 0.5;

Inflate the occupancy map to add a buffer zone for safe operation around the obstacles.

inflate(omap,1)

Create an SE(3) state space object with bounds for state variables.

ss = stateSpaceSE3([0 220;0 220;0 100;inf inf;inf inf;inf inf;inf inf]);

Create a navPath object based on multiple waypoints in an SE(3) state space.

path = navPath(ss);
waypoints = [40 180 15 0.7 0.2 0 0.1;
             55 120 20 0.6 0.2 0 0.1;
             100 100 25 0.5 0.2 0 0.1;
             130 90 30 0.4 0 0.1 0.6;
             150 33 35 0.3 0 0.1 0.6];
append(path,waypoints)

Interpolate that path so that it contains exactly 250 points.

interpolate(path,250)

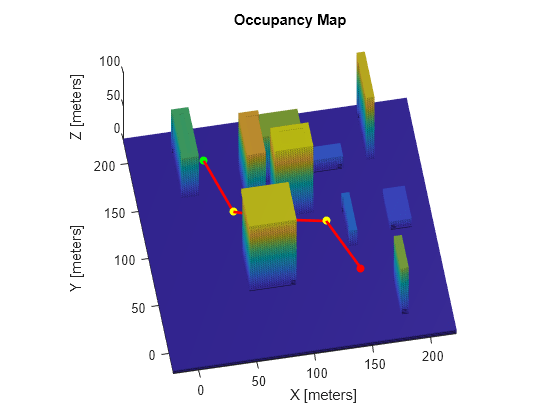

Visualize the interpolated path and the original waypoints.

show(omap)
axis equal
view([-10 55])
hold on
% Start state
scatter3(waypoints(1,1),waypoints(1,2),waypoints(1,3),"g","filled")
% Goal state
scatter3(waypoints(end,1),waypoints(end,2),waypoints(end,3),"r","filled")
% Intermediate waypoints
scatter3(waypoints(2:end-1,1),waypoints(2:end-1,2), ...
         waypoints(2:end-1,3),"y","filled")
% Path
plot3(path.States(:,1),path.States(:,2),path.States(:,3), ...
      "r-",LineWidth=2)

Calculate length of path.

len = pathLength(path);
disp("Path length = " + num2str(len))

Path length = 204.1797

Input Arguments

path — Path object

navpath object

Path object, specified as a navPath object.

numStates — Number of states

nonnegative integer

Number of states inserted in the path, specified as a nonnegative integer. Its value must be greater than or equal to the number of existing states in the path.

Data Types: double
