Display image with scaled colors

`imagesc(C)`

`imagesc(x,y,C)`

`imagesc('CData',C)`

`imagesc('XData',x,'YData',y,'CData',C)`

`imagesc(___,Name,Value)`

`imagesc(___,clims)`

`imagesc(ax,___)`

`im = imagesc(___)`

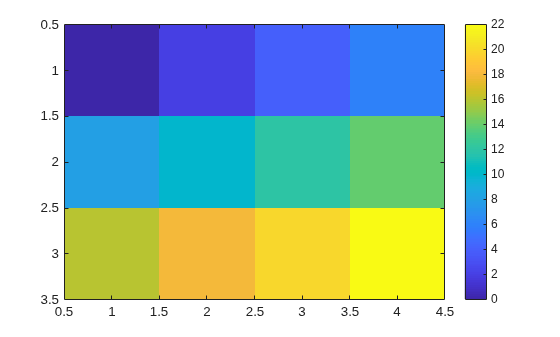

`imagesc(`

displays the data in array
`C`

)`C`

as an image that uses the full range of colors in the
colormap. Each element of `C`

specifies the color for one
pixel of the image. The resulting image is an
`m`

-by-`n`

grid of pixels where
`m`

is the number of rows and `n`

is the
number of columns in `C`

. The row and column indices of the
elements determine the centers of the corresponding pixels.

`imagesc(`

specifies
the image location. Use `x`

,`y`

,`C`

)`x`

and `y`

to
specify the locations of the corners corresponding to `C(1,1)`

and `C(m,n)`

.
To specify both corners, set `x`

and `y`

as
two-element vectors. To specify the first corner and let `imagesc`

determine
the other, set `x`

and `y`

as scalar
values. The image is stretched and oriented as applicable.

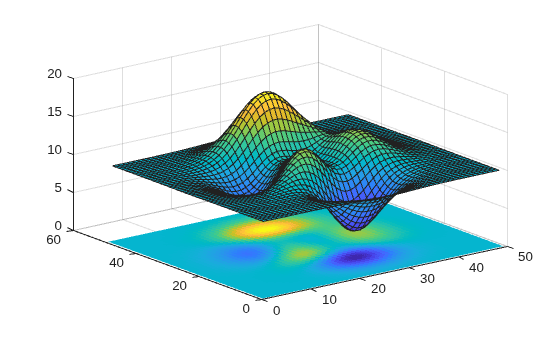

`imagesc('CData',`

adds the image to
the current axes without replacing existing plots. This syntax is the low-level
version of `C`

)`imagesc(C)`

. For more information, see High-Level Versus Low-Level Version.

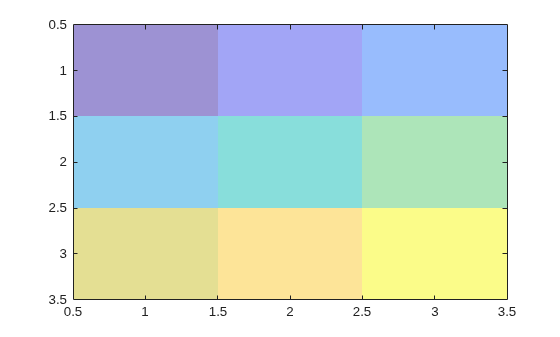

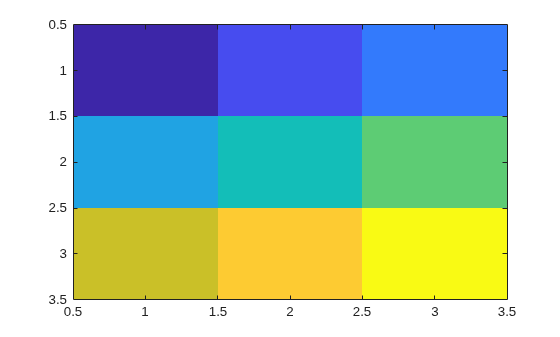

`imagesc(___,`

specifies image properties using one or more name-value pair arguments. You can
specify name-value pair arguments after any of the input argument combinations
in the previous syntaxes. For a list of image properties and descriptions, see
Image Properties.`Name,Value`

)

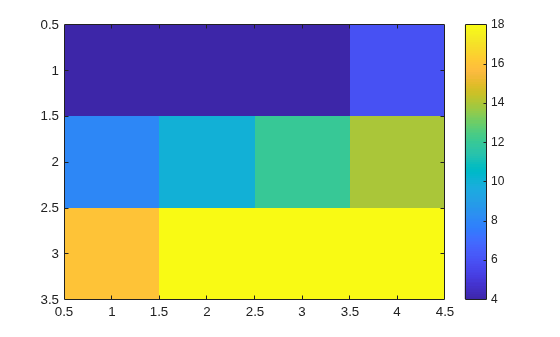

`imagesc(___,`

specifies the data values that map to the first and last elements of the
colormap. Specify `clims`

)`clims`

as a two-element vector of the form
`[cmin cmax]`

, where values less than or equal to
`cmin`

map to the first color in the colormap and values
greater than or equal to `cmax`

map to the last color in the
colormap. Specify `clims`

after name-value pair
arguments.

`imagesc(`

creates the image in the
axes specified by `ax`

,___)`ax`

instead of in the current axes
(`gca`

). Specify the axes as the first input
argument.

To read image data into MATLAB from graphics files in various standard formats, such as TIFF, use

`imread`

. To write MATLAB image data to graphics files, use`imwrite`

. The`imread`

and`imwrite`

functions support various graphics file formats and compression schemes.To view or set the color limits of the axes, you can use the

`caxis`

function.
