sinh
Hyperbolic sine
Syntax
Description
Examples
Create a vector and calculate the hyperbolic sine of each value.
X = [0 pi 2*pi 3*pi]; Y = sinh(X)
Y = 1×4
103 ×
0 0.0115 0.2677 6.1958

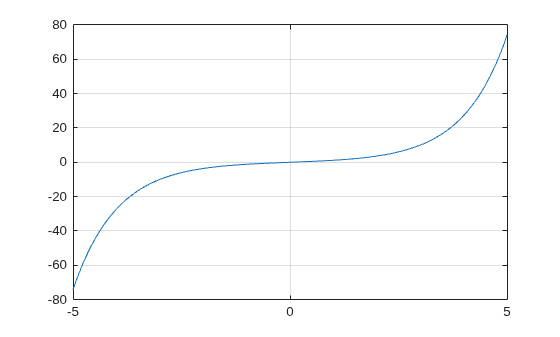

Plot the hyperbolic sine over the domain .
x = -5:0.01:5;
y = sinh(x);
plot(x,y)
grid on
The hyperbolic sine satisfies the identity . In other words, is half the difference of the functions and . Verify this by plotting the functions.

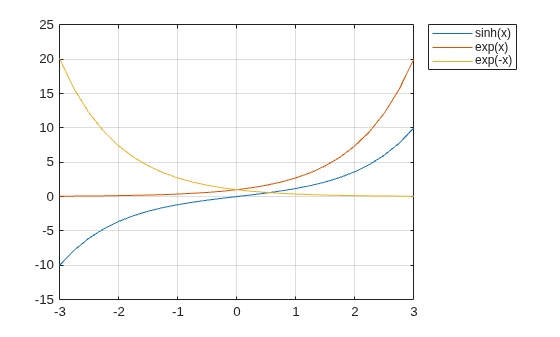

Create a vector of values between -3 and 3 with a step of 0.25. Calculate and plot the values of sinh(x)
, exp(x)
, and exp(-x)
. As expected, the sinh
curve is positive where exp(x)
is large, and negative where exp(-x)
is large.
x = -3:0.25:3; y1 = sinh(x); y2 = exp(x); y3 = exp(-x); plot(x,y1,x,y2,x,y3) grid on legend('sinh(x)','exp(x)','exp(-x)','Location','bestoutside')
Input Arguments
Input angles in radians, specified as a scalar, vector, matrix, multidimensional array, table, or timetable.
Data Types: single
| double
| table
| timetable
Complex Number Support: Yes
More About
The hyperbolic sine of an angle x can be expressed in terms of exponential functions as
In terms of the traditional sine function with a complex argument, the identity is
Extended Capabilities
The
sinh
function fully supports tall arrays. For more information,
see Tall Arrays.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
The sinh
function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a gpuArray
(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).
This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).
Version History
Introduced before R2006aThe sinh
function can calculate on all variables within a table or
timetable without indexing to access those variables. All variables must have data types
that support the calculation. For more information, see Direct Calculations on Tables and Timetables.
