acos

Inverse cosine in radians

Syntax

Y = acos(X)

Description

Y = acos(X) returns the Inverse Cosine (cos^-1) of the elements of X in radians. The function accepts both real and complex inputs.

• For real values of X in the interval [-1, 1], acos(X) returns values in the interval [0, π].

• For real values of X outside the interval [-1,1] and for complex values of X, acos(X) returns complex values.

Examples

Inverse Cosine of Value

Find the inverse cosine of a value.

y = acos(0)

y =
1.5708

Inverse Cosine of Vector of Complex Values

Find the inverse cosine of the elements of vector x. The acos function acts on x element-wise.

x = [0.5i 1+3i -2.2+i];
y = acos(x)

y = 1×3 complex

   1.5708 - 0.4812i   1.2632 - 1.8642i   2.6799 - 1.5480i

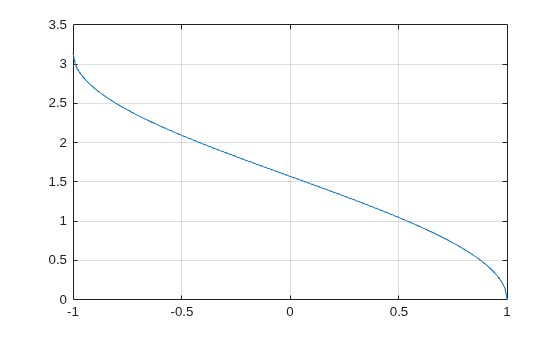

Plot Inverse Cosine Function

Plot the inverse cosine function over the intervals $$-1\le x\le 1$$.

x = -1:.01:1;
plot(x,acos(x))
grid on

Input Arguments

X — Cosine of angle

scalar | vector | matrix | multidimensional array | table | timetable

Cosine of angle, specified as a scalar, vector, matrix, multidimensional array, table, or timetable. The acos operation is element-wise when X is nonscalar.

Data Types: single | double | table | timetable
Complex Number Support: Yes

More About

Inverse Cosine

The inverse cosine is defined as

$${\cos }^{-1}(z)=-i\log \left[z+i{\left(1-z^2\right)}^{1/2}\right].$$

Extended Capabilities

Tall Arrays

Calculate with arrays that have more rows than fit in memory.

The acos function fully supports tall arrays. For more information, see Tall Arrays.

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Generates an error during simulation and returns NaN in generated code when the input value X is real, but the output should be complex. To get the complex result, make the input value complex by passing in complex(X).

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• Generates an error during simulation and returns NaN in generated code when the input value X is real, but the output should be complex. To get the complex result, make the input value complex by passing in complex(X).

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The acos function supports GPU array input with these usage notes and limitations:

• If the output of the function running on the GPU can be complex, then you must explicitly specify its input arguments as complex. For more information, see Work with Complex Numbers on a GPU (Parallel Computing Toolbox).

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Distributed Arrays

Partition large arrays across the combined memory of your cluster using Parallel Computing Toolbox™.

This function fully supports distributed arrays. For more information, see Run MATLAB Functions with Distributed Arrays (Parallel Computing Toolbox).

Version History

Introduced in R2006a

R2023a: Perform calculations directly on tables and timetables

The acos function can calculate on all variables within a table or timetable without indexing to access those variables. All variables must have data types that support the calculation. For more information, see Direct Calculations on Tables and Timetables.
