imoverlay

Burn binary mask into 2-D image

Description

example

B = imoverlay(A,BW) fills the grayscale or RGB input image, A, with a solid color where the input binary mask, BW, is true.

B = imoverlay(___,color) lets you specify the color that imoverlay uses to fill the image. color is a valid MATLAB® color specification.

Examples

collapse all

Read grayscale image into the workspace.

A = imread('cameraman.tif');

Read binary image into the workspace.

BW = imread('text.png');

Burn the binary image into the grayscale image, choosing the color to be used.

B = imoverlay(A,BW,'yellow');

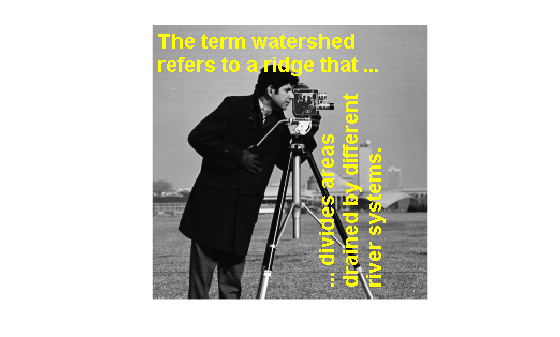

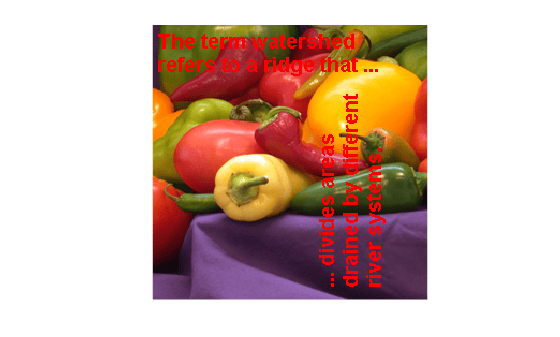

Display the result.

figure
imshow(B)

Input Arguments

collapse all

Input image, specified as a real, nonsparse 2-D matrix.

Data Types: single | double | int16 | uint8 | uint16 | logical

Mask image, specified 2-D logical matrix the same size as A.

Data Types: single | double | int16 | uint8 | uint16 | logical

Color used for the overlay, specified as a MATLAB color specification. For example, if you want to specify the color red, you could use any of the following specifications: 'red','r', or [1 0 0].

Output Arguments

collapse all

Output image, returned as a 2-D matrix of class uint8.

Extended Capabilities

Introduced in R2016a
