geometricTransform3d
3-D geometric transformation object
Description
A geometricTransform3d
object defines a custom 3-D geometric
transformation using point-wise mapping functions.
Creation
Description
creates a tform
= geometricTransform3d(inverseFcn)geometricTransform3d
object and sets the value of inverse
mapping function property, InverseFcn
to
inverseFcn
.
also sets the value of forward mapping function property, tform
= geometricTransform3d(inverseFcn,forwardFcn)ForwardFcn
to forwardFcn
.
Properties
InverseFcn
— Inverse mapping function
function handle
Inverse mapping function, specified as a function handle. The function must accept and return coordinates as an n-by-3 numeric matrix representing the packed (x,y,z) coordinates of n points.
For more information about function handles, see Create Function Handle.
Example:
ifcn = @(xyz) [xyz(:,1).^2,xyz(:,2).^2,xyz(:,3).^2];
ForwardFcn
— Forward mapping function
function handle
Forward mapping function, specified as a function handle. The function must accept and return coordinates as an n-by-3 numeric matrix representing the packed (x,y,z) coordinates of n points.
For more information about function handles, see Create Function Handle.
Example:
ffcn = @(xyz)
[sqrt(xyz(:,1)),sqrt(xyz(:,2)),sqrt(xyz(:,3))];
Object Functions
transformPointsForward | Apply forward geometric transformation |
transformPointsInverse | Apply inverse geometric transformation |
Examples
Transform Packed Coordinates Using Custom 3-D Transformation
Specify the packed (x,y,z) coordinates of five input points. The packed coordinates are stored as a 5-by-3 matrix, where the first, second, and third columns contain the x-, y-, and z- coordinates,respectively.
XYZ = [5 25 20;10 5 25;15 10 5;20 15 10;25 20 15];
Define an inverse mapping function that accepts and returns points in packed (x,y,z) format.
inverseFcn = @(c) [c(:,1)+c(:,2),c(:,1)-c(:,2),c(:,3).^2];
Create a 3-D geometric transformation object, tform
, that stores this inverse mapping function.
tform = geometricTransform3d(inverseFcn)
tform = geometricTransform3d with properties: InverseFcn: @(c)[c(:,1)+c(:,2),c(:,1)-c(:,2),c(:,3).^2] ForwardFcn: [] Dimensionality: 3
Apply the inverse transformation of this 3-D geometric transformation to the input points.
UVW = transformPointsInverse(tform,XYZ)
UVW = 5×3
30 -20 400
15 5 625
25 5 25
35 5 100
45 5 225
Transform Coordinate Arrays Using Custom 3-D Transformation
Specify the x-, y- and the z-coordinate vectors of five points to transform.
x = [3 5 7 9 11]; y = [2 4 6 8 10]; z = [5 9 13 17 21];
Define the inverse and forward mapping functions that accept and return points in packed (x,y,z) format.
inverseFcn = @(c)[c(:,1).^2,c(:,2).^2,c(:,3).^2]; forwardFcn = @(c)[sqrt(c(:,1)),sqrt(c(:,2)),sqrt(c(:,3))];
Create a 3-D geometric transformation object, tform
, that stores these inverse and forward mapping functions.
tform = geometricTransform3d(inverseFcn,forwardFcn)
tform = geometricTransform3d with properties: InverseFcn: @(c)[c(:,1).^2,c(:,2).^2,c(:,3).^2] ForwardFcn: @(c)[sqrt(c(:,1)),sqrt(c(:,2)),sqrt(c(:,3))] Dimensionality: 3
Apply the inverse transformation of this 3-D geometric transformation to the input points.
[u,v,w] = transformPointsInverse(tform,x,y,z)
u = 1×5
9 25 49 81 121
v = 1×5
4 16 36 64 100
w = 1×5
25 81 169 289 441
Apply the forward geometric transform to the transformed points u
, v
, and w
.
[x,y,z] = transformPointsForward(tform,u,v,w)
x = 1×5
3 5 7 9 11
y = 1×5
2 4 6 8 10
z = 1×5
5 9 13 17 21
Transform 3-D Volumetric Image Using Custom 3-D Transformation
Define an inverse mapping function that performs reflection about horizontal axis. The function must accept and return packed (x,y,z) coordinates, where the first, second, and third columns contain the x-, y-, and z-coordinates, respectively.
inverseFcn = @(xyz)[xyz(:,1),-xyz(:,2),xyz(:,3)];
Create a 3-D geometric transformation object, tform
, that stores this inverse mapping function.
tform = geometricTransform3d(inverseFcn)
tform = geometricTransform3d with properties: InverseFcn: @(xyz)[xyz(:,1),-xyz(:,2),xyz(:,3)] ForwardFcn: [] Dimensionality: 3
Load and display an MRI volume to be transformed.
s = load('mri');
mriVolume = squeeze(s.D);
Use imwarp
to apply the inverse geometric transform to the input MRI volume.
[mriVolumeTransformed] = imwarp(mriVolume,tform,'nearest','SmoothEdges',true);

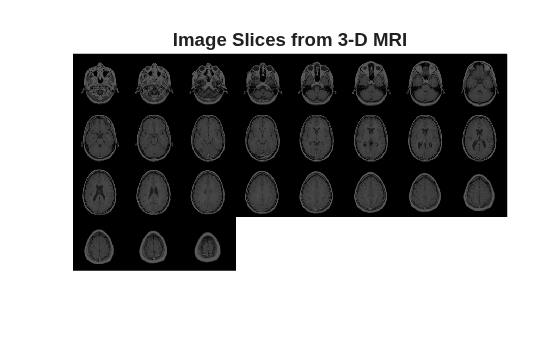

Display the image slices from the input MRI volume as montage.
montage(mriVolume,'Size',[4 8],'BackgroundColor','w') title('Image Slices from 3-D MRI','FontSize',14)

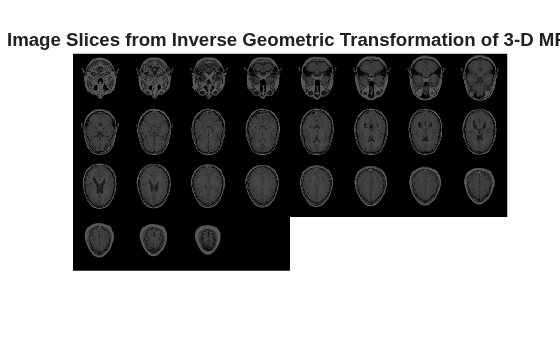

Display the image slices from the transformed MRI volume as a montage. The transformed image slices are the reflection of the input image slices across the x-axis.
montage(mriVolumeTransformed,'Size',[4 8],'BackgroundColor','w') title('Image Slices from Inverse Geometric Transformation of 3-D MRI','FontSize',14)
Version History
