# ssregest

Estimate state-space model by reduction of regularized ARX model

## Syntax

``sys = ssregest(tt,nx)``
``sys = ssregest(u,y,nx,'Ts',Ts)``
``sys = ssregest(data,nx)``
``sys = ssregest(___,nx,Name,Value)``
``sys = ssregest(___,opt)``
``[sys,x0] = ssregest(___)``

## Description

### Estimate State-Space Model

example

````sys = ssregest(tt,nx)` estimates a discrete-time state-space model by reduction of a regularized ARX model, using the all the input and output signals in the timetable `tt`. You can use this syntax for SISO and MIMO systems. The function assumes that the last variable in the timetable is the single output signal. You can also use this syntax to estimate a time-series model if `tt` contains a single variable that represents the sole output.For MIMO systems and for timetables that contain more variables than you plan to use for estimation, you must also use name-value arguments to specify the names of the input and output channels you want. For more information, see `tt`.To estimate a continuous-time model, set `'Ts'` to `0` using name-value syntax.```

example

````sys = ssregest(u,y,nx,'Ts',Ts)` uses the time-domain input and output signals in the comma-separated matrices `u`,`y` and the model sample time `Ts`. The software assumes that the data sample time is also `Ts` seconds. You can use this syntax for SISO, MISO, and MIMO systems.Estimating continuous-time models from matrix-based data is not recommended.```
````sys = ssregest(data,nx)` uses the time-domain or frequency-domain data in the data object `data`. Use this syntax especially when you want to estimate a state-space model using frequency-domain or frequency-response data, or when you want to take advantage of the additional information, such as data sample time or experiment labeling, that data objects provide.```

example

````sys = ssregest(___,nx,Name,Value)` incorporates additional model options specified by one or more name-value arguments. For example, specify input and output signal variable names that correspond with the variables to use for MIMO timetable data using ```sys = ssregest(data,nx,'InputName',["u1","u2"],'OutputName',["y1","y3"])```. Use the `'Form'`, `'Feedthrough'`, and `'DisturbanceModel'` name-value arguments to modify the default behavior of the A, B, C, D, and K matrices.```

example

````sys = ssregest(___,opt)` specifies estimation options that configure the estimation objective, ARX orders, and order reduction options. This syntax can include any of the input argument combinations in the previous syntaxes.```

### Return Estimated Initial States

example

````[sys,x0] = ssregest(___)` returns the value of initial states computed during estimation. This syntax can include any of the input argument combinations in the previous syntaxes.```

## Examples

collapse all

Load the time-domain estimation data, which is contained in the timetable `tt`.

`load sdata2.mat tt2;`

Identify a third-order state-space model.

`sys = ssregest(tt2,3);`

Load estimation data, which is contained in the input/output matrix pair `umat2` and `ymat2`.

`load sdata2.mat umat2 ymat2`

Estimate a third-order state-space model with input delay. Specify the sample time `Ts` as 0.1.

`sys = ssregest(umat2,ymat2,3,'InputDelay',2,'Ts',0.1);`

`load iddata2 z2;`

Specify the order of the regularized ARX model used by the software during estimation. Also, set the estimation focus to simulation.

`opt = ssregestOptions('ARXOrder',[100 100 1],'Focus','simulation');`

Identify a third-order state-space model.

`sys = ssregest(z2,3,opt);`

`load iddata2 z2;`

Obtain the initial state values when identifying a third-order state-space model.

`[sys,x0] = ssregest(z2,3);`

`load regularizationExampleData eData;`

Create a transfer function model used for generating the estimation data (true system).

`trueSys = idtf([0.02008 0.04017 0.02008],[1 -1.561 0.6414],1);`

Obtain regularized impulse response (FIR) model.

```opt = impulseestOptions('RegularizationKernel','DC'); m0 = impulseest(eData,70,opt);```

Convert the model into a state-space model and reduce the model order.

`m1 = balred(idss(m0),15);`

Obtain a second state-space model using regularized reduction of an ARX model.

`m2 = ssregest(eData,15);`

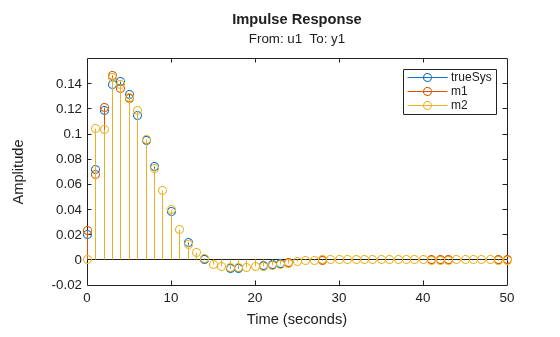

Compare the impulse responses of the true system and the estimated models.

```impulse(trueSys,m1,m2,50); legend('trueSys','m1','m2');```

## Input Arguments

collapse all

Estimation data, specified as a uniformly sampled `timetable` that contains variables representing input and output channels or, for multiexperiment data, a cell array of timetables.

#### Use Entire Timetable

If you want to use all the variables in `tt` as input or output channels, and the variables are organized so that the set of input channel variables is followed by the set of output channel variables, then:

• For SISO systems, specify `tt` as an Ns-by-2 timetable, where Ns is the number of samples and the two timetable variables represent the measured input channel and output channel respectively.

• For MIMO systems, specify `tt` as an Ns-by-(Nu+Ny) timetable, where Nu is the number of inputs and Ny is the number of outputs. The first Nu variables must contain the input channels and the remaining Ny variables must contain the output channels.

When you are estimating state space or transfer function models, you must also explicitly specify the input and output channels, as the following section describes.

• For multiexperiment data, specify data as an Ne-by-1 cell array of timetables, where Ne is the number of experiments. The sample times of all the experiments must match.

#### Use Selected Variables from Timetable

If you want to explicitly identify the input and output channels, such as when you want to use only a subset of the available channels, when the input and output channel variables are intermixed, or when you are estimating a MIMO state-space or transfer function model, use the `'InputName'` and `'OutputName'` name-value arguments to specify which variables to use as inputs and outputs.

For example, suppose that `tt` contains six channel variables: `"u1"`, `"u2"`, `"u3"`, and `"y1"`, `"y2"`, `"y3"`. For estimation, you want to use the variables `"u1"` and `"u2"` as the inputs and the variables `"y1"` and `"y3"` as the outputs. Use the following command to perform the estimation:

```sys = ssregest(tt,__,'InputName',["u1" "u2"],'OutputName',["y1" "y3"])```

#### Use Timetable to Estimate Time Series Models

If you want to estimate a time series model rather than an input/output model, use only output variables from `tt`. You can either specify `tt` to contain only the output variables that you want, or extract the output variables from `tt` if `tt` also contains input variables. The specification approach is similar to that for input/output model estimation.

• For a single-output system, specify `tt` as an Ns-by-1 timetable.

• For a multivariate system, specify `tt` as an Ns-by-(Ny) timetable. Even if you plan to use all the variables in `tt`, you must specify all of them using the `'OutputName'` name-value argument so that the software does not interpret them as input variables.

For a timetable `tt` that has variables beyond what you want to use, such as input variables or additional output variables, specify both the output variables you want to use and, in `'InputName'`, an empty array.

For example, suppose that `tt` contains six variables: `"u1"`, `"u2"`, `"u3"`, and `"y1"`, `"y2"`, `"y3"`. For time series estimation, you want to use the output variables `"y1"` and `"y3"`. Use the following command to perform the estimation:

```sys = ssregest(tt,__,'OutputName',["y1" "y3"],'InputName',[])```

Estimation data, specified for SISO systems as a comma-separated pair of Ns-by-1 real-valued matrices that contain uniformly sampled input and output time-domain signal values. Here, Ns is the number of samples.

For MIMO systems, specify `u`,`y` as an input/output matrix pair with the following dimensions:

• `u`Ns-by-Nu, where Nu is the number of inputs.

• `y`Ns-by-Ny, where Ny is the number of outputs.

For multiexperiment data, specify `u`,`y` as a pair of 1-by-Ne cell arrays, where Ne is the number of experiments. The sample times of all the experiments must match.

For time series data, which contains only outputs and no inputs, specify `y` only.

#### Limitations

Estimation data object, specified as an `iddata` object, an `frd` object, or an `idfrd` object that contains uniformly sampled input and output values. For time series models, `data` can contain only output values. By default, the software sets the sample time of the model to the sample time of the estimation data.

For multiexperiment data, the sample times and intersample behavior of all the experiments must match.

For time-domain estimation, `data` must be an `iddata` object containing the input and output signal values.

For frequency-domain estimation, `data` can be one of the following:

• Recorded frequency response data (`frd` (Control System Toolbox) or `idfrd`)

• `iddata` object with properties specified as follows:

• `InputData` — Fourier transform of the input signal

• `OutputData` — Fourier transform of the output signal

• `Domain``'Frequency'`

• `Ts` — Nonzero

Order of the estimated model, specified as a positive scalar or vector.

If `nx` is a vector, then `ssregest` creates a plot which you can use to choose a suitable model order. The plot shows the Hankel singular values for models of chosen values in the vector. States with relatively small Hankel singular values can be safely discarded. A default choice is suggested in the plot.

You can also specify `nx = 'best'`, as in `ssregest(data,'best')`, in which case the optimal order is chosen automatically in the 1:10 range.

Estimation options for `ssregest`, specified as an options set you create using `ssregestOptions`.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `sys = ssregest(z2,3,'InputDelay',2)` specifies a delay of 2 sampling periods.

Sample time of the model, specified as 0 or equal to the sample time of `data`.

For continuous-time models, use `Ts = 0`. For discrete-time models, specify `Ts` as a positive scalar whose value is equal to the data sample time.

Input delay for each input channel, specified as a numeric vector. For continuous-time systems, specify input delays in the time unit stored in the `TimeUnit` property. For discrete-time systems, specify input delays in integer multiples of the sample time `Ts`. For example, `InputDelay = 3` means a delay of three sampling periods.

For a system with `Nu` inputs, set `InputDelay` to an `Nu`-by-1 vector. Each entry of this vector is a numerical value that represents the input delay for the corresponding input channel.

You can also set `InputDelay` to a scalar value to apply the same delay to all channels.

Type of canonical form of `sys`, specified as one of the following values:

• `'modal'` — Obtain `sys` in modal form.

• `'companion'` — Obtain `sys` in companion form.

• `'free'` — All entries of the A, B and C matrices are treated as free.

• `'canonical'` — Obtain `sys` in the observability canonical form [1].

Use the `Form`, `Feedthrough` and `DisturbanceModel` name-value pair arguments to modify the default behavior of the A, B, C, D, and K matrices.

Direct feedthrough from input to output, specified as a logical vector of length Nu, where Nu is the number of inputs. If `Feedthrough` is specified as a logical scalar, it is applied to all the inputs.

Use the `Form`, `Feedthrough` and `DisturbanceModel` name-value pair arguments to modify the default behavior of the A, B, C, D, and K matrices.

Specify whether to estimate the K matrix which specifies the noise component, specified as one of the following values:

• `'none'` — Noise component is not estimated. The value of the K matrix is fixed to zero value.

• `'estimate'` — The K matrix is treated as a free parameter.

`DisturbanceModel` must be `'none'` when using frequency-domain data.

Use the `Form`, `Feedthrough` and `DisturbanceModel` name-value pair arguments to modify the default behavior of the A, B, C, D, and K matrices.

## Output Arguments

collapse all

Estimated state-space model of order `nx`, returned as an `idss` model object. The model represents:

`$\begin{array}{l}\stackrel{˙}{x}\left(t\right)=Ax\left(t\right)+Bu\left(t\right)+Ke\left(t\right)\\ y\left(t\right)=Cx\left(t\right)+Du\left(t\right)+e\left(t\right)\end{array}$`

A, B, C, D, and K are state-space matrices. u(t) is the input, y(t) is the output, e(t) is the disturbance and x(t) is the vector of `nx` states.

All the entries of A, B, C, and K are free estimable parameters by default. D is fixed to zero by default, meaning that there is no feedthrough, except for static systems (`nx=0`).

Information about the estimation results and options used is stored in the `Report` property of the model. `Report` has the following fields:

Report FieldDescription
`Status`

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation.

`Method`

Estimation command used.

`InitialState`

Handling of initial states during estimation, returned as one of the following values:

• `'zero'` — The initial state was set to zero.

• `'estimate'` — The initial state was treated as an independent estimation parameter.

This field is especially useful when the `InitialState` option in the estimation option set is `'auto'`.

`ARXOrder`

ARX model orders, returned as a matrix of nonnegative integers `[na nb nk]`.

`Fit`

Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:

FieldDescription
`FitPercent`

Normalized root mean squared error (NRMSE) measure of how well the response of the model fits the estimation data, expressed as the percentage fitpercent = 100(1-NRMSE).

`LossFcn`

Value of the loss function when the estimation completes.

`MSE`

Mean squared error (MSE) measure of how well the response of the model fits the estimation data.

`FPE`

Final prediction error for the model.

`AIC`

Raw Akaike Information Criteria (AIC) measure of model quality.

`AICc`

Small-sample-size corrected AIC.

`nAIC`

Normalized AIC.

`BIC`

Bayesian Information Criteria (BIC).

`Parameters`

Estimated values of model parameters.

`OptionsUsed`

Option set used for estimation. If no custom options were configured, this is a set of default options. See `ssregestOptions` for more information.

`RandState`

State of the random number stream at the start of estimation. Empty, `[]`, if randomization was not used during estimation. For more information, see `rng`.

`DataUsed`

Attributes of the data used for estimation, returned as a structure with the following fields.

FieldDescription
`Name`

Name of the data set.

`Type`

Data type.

`Length`

Number of data samples.

`Ts`

Sample time.

`InterSample`

Input intersample behavior, returned as one of the following values:

• `'zoh'` — Zero-order hold maintains a piecewise-constant input signal between samples.

• `'foh'` — First-order hold maintains a piecewise-linear input signal between samples.

• `'bl'` — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

`InputOffset`

Offset removed from time-domain input data during estimation. For nonlinear models, it is `[]`.

`OutputOffset`

Offset removed from time-domain output data during estimation. For nonlinear models, it is `[]`.

For more information on using `Report`, see Estimation Report.

Initial states computed during estimation, returned as a scalar. If `data` contains multiple experiments, then `x0` is a matrix with each column corresponding to an experiment.

This value is also stored in the `Parameters` field of the model’s `Report` property.

collapse all

### Modal Form

In modal form, A is a block-diagonal matrix. The block size is typically 1-by-1 for real eigenvalues and 2-by-2 for complex eigenvalues. However, if there are repeated eigenvalues or clusters of nearby eigenvalues, the block size can be larger.

For example, for a system with eigenvalues $\left({\lambda }_{1},\sigma ±j\omega ,{\lambda }_{2}\right)$, the modal A matrix is of the form

`${A}_{m}=\left[\begin{array}{cccc}{\lambda }_{1}& 0& 0& 0\\ 0& \sigma & \omega & 0\\ 0& -\omega & \sigma & 0\\ 0& 0& 0& {\lambda }_{2}\end{array}\right].$`

### Companion Form

In the companion realization, the characteristic polynomial of the system appears explicitly in the rightmost column of the A matrix.

For a system with characteristic polynomial

`$P\left(s\right)={s}^{n}+{\alpha }_{n-1}{s}^{n-1}+{\alpha }_{n-2}{s}^{n-2}+\dots +{\alpha }_{1}s+{\alpha }_{0},$`

the corresponding companion A matrix is

The companion transformation requires that the system be controllable from the first input. The companion form is poorly conditioned for most state-space computations; avoid using it when possible.

## Tips

• `ssregest` function provides improved accuracy than `n4sid` for short, noisy data sets.

• For some problems, the quality of fit using `n4sid` is sensitive to options, such as `N4Horizon`, whose values can be difficult to determine. In comparison, the quality of fit with `ssregest` is less sensitive to its options, which makes `ssregest` simpler to use.

## Algorithms

`ssregest` estimates a regularized ARX model and converts the ARX model to a state-space model. The software then uses balanced model reduction techniques to reduce the state-space model to the specified order.

## References

[1] Ljung, L. System Identification: Theory For the User, Second Edition, Appendix 4A, pp 132-134, Upper Saddle River, N.J: Prentice Hall, 1999.

## Version History

Introduced in R2014a
