# nlarx

Estimate parameters of nonlinear ARX model

## Syntax

sys = nlarx(Data,Orders)
sys = nlarx(Data,Orders,Nonlinearity)
sys = nlarx(Data,Orders,Nonlinearity,Name,Value)
sys = nlarx(Data,LinModel)
sys = nlarx(Data,LinModel,Nonlinearity)
sys = nlarx(Data,LinModel,Nonlinearity,Name,Value)
sys = nlarx(Data,sys0)
sys = nlarx(___,Options)

## Description

example

sys = nlarx(Data,Orders) estimates a nonlinear ARX model to fit the given estimation data using the specified orders and a default wavelet network nonlinearity estimator.

example

sys = nlarx(Data,Orders,Nonlinearity) specifies the nonlinearity to use for model estimation.

example

sys = nlarx(Data,Orders,Nonlinearity,Name,Value) specifies additional attributes of the estimated model using one or more Name,Value pair arguments. These attributes include the nonlinear and custom regressor structure, and the data properties of the idnlarx model.

example

sys = nlarx(Data,LinModel) uses a linear ARX model, LinModel, to specify the model orders and the initial values of the linear coefficients of the model.

sys = nlarx(Data,LinModel,Nonlinearity) specifies the nonlinearity to use for model estimation.

sys = nlarx(Data,LinModel,Nonlinearity,Name,Value) specifies additional attributes of the idnlarx model structure using one or more Name,Value pair arguments.

example

sys = nlarx(Data,sys0) refines the parameters of the nonlinear ARX model, sys0.

Use this syntax to:

• Update the parameters of a previously estimated model to improve the fit to the estimation data. In this case, the estimation algorithm uses the parameters of sys0 as initial guesses.

• Estimate the parameters of a model previously created using the idnlarx constructor. Prior to estimation, you can configure the model properties using dot notation.

example

sys = nlarx(___,Options) specifies additional configuration options for the model estimation. Use Options with any of the previous syntaxes.

## Examples

collapse all

Create an iddata object from the estimation data with a sample time of 0.2 min.

Ts = 0.2;
z = iddata(y,u,Ts);

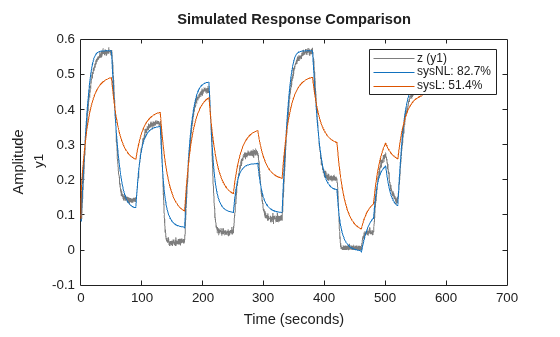

Estimate the nonlinear ARX model.

sys = nlarx(z,[4 4 1]);

Create time and data arrays.

dt = 0.01;
t = 0:dt:10;
y = 10*sin(2*pi*t)+rand(size(t));

Create an iddata object with no input signal specified.

z = iddata(y',[],dt);

Estimate the nonlinear ARX model.

sys = nlarx(z,2);

Create an iddata object from the estimation data.

z = iddata(y,u,0.2);

Create a wavelet network nonlinearity estimator with 5 units.

NL = wavenet('NumberOfUnits',5);

Estimate the nonlinear ARX model.

sys = nlarx(z,[4 4 1],NL);

Generating a custom network nonlinearity requires the definition of a user-defined unit function.

Define the unit function and save it as gaussunit.m.

% Copyright 2015 The MathWorks, Inc.

function [f, g, a] = gaussunit(x)
f = exp(-x.*x);
if nargout>1
g = -2*x.*f;
a = 0.2;
end

Create a custom network nonlinearity using the gaussunit function.

H = @gaussunit;
CNet = customnet(H);

Estimate a nonlinear ARX model using the custom network.

sys = nlarx(z1,[1 2 1],CNet);

Create an iddata object.

z = iddata(y,u,0.02,'Name','Motorized Camera','TimeUnit','s');

z is an iddata object with 6 inputs and 2 outputs.

Specify the model orders.

Orders = [ones(2,2),2*ones(2,6),ones(2,6)];

Specify different nonlinearity estimators for each output channel.

NL = [wavenet('NumberOfUnits',2),linear];

Estimate the nonlinear ARX model.

sys = nlarx(z,Orders,NL);

Load the estimation data and create an iddata object.

z = iddata(y,u,0.02);

Specify the model orders.

Orders = [ones(2,2),2*ones(2,6),ones(2,6)];

Estimate a nonlinear ARX model using a sigmoidnet nonlinearity with 4 units for all output channels.

m = nlarx(z,Orders,sigmoidnet('numberOfUnits',4));

Create a cell array with two custom regressors.

C = {'y1(t-1)^2','y1(t-2)*u1(t-3)'};

Estimate a nonlinear ARX model with custom regressors and no standard regressors.

sys = nlarx(z1,[0 0 0],'linear','CustomRegressors',C);

Define a custom regressor object for y1(t-1)^2.

C1 = customreg(@(x)x^2,{'y1'},[1]);

Define a custom regressor object for y1(t-2)*u1(t-3).

C2 = customreg(@(x,y)x*y,{'y1','u1'},[2 3]);

Create a custom regressor object array.

C = [C1,C2];

Estimate a nonlinear ARX model with custom regressors.

sys = nlarx(z1,[0 0 0],'linear','CustomRegressors',C);

List the model regressors.

getreg(sys);
Regressors:
y1(t-1)^2
y1(t-2)*u1(t-3)

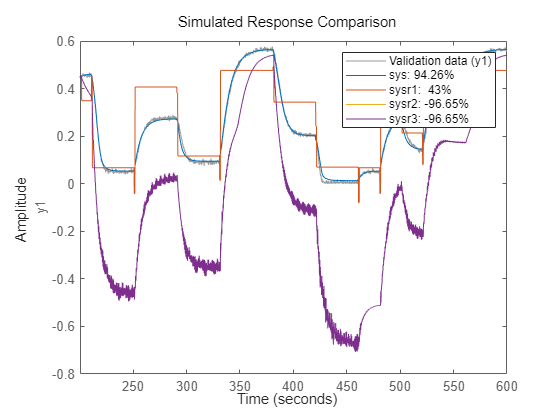

Estimate a Nonlinear ARX model using the 'search' option.

sys = nlarx(z1,[4 4 1],'sigmoidnet','NonlinearRegressors','search');

List the model nonlinear regressor indices.

sys.NonlinearRegressors
ans = 1×4

3     5     6     7

List all of the model regressors.

getreg(sys)
Regressors:
y1(t-1)
y1(t-2)
y1(t-3)
y1(t-4)
u1(t-1)
u1(t-2)
u1(t-3)
u1(t-4)

The optimum set of nonlinear regressors for this model includes y1(t-3), u1(t-1), u1(t-2), and u1(t-3).

Create a sigmoid network nonlinearity estimator with no linear term.

SNL = sigmoidnet('LinearTerm','off');

Estimate the nonlinear ARX model.

sys = nlarx(z1,[2 2 1],SNL);

Detrend the data.

Tr = getTrend(ThrottleData);
Tr.OutputOffset = 15;
DetrendedData = detrend(ThrottleData,Tr);

Estimate the linear ARX model.

LinearModel = arx(DetrendedData,[2 1 1]);

Estimate the nonlinear ARX model using the linear model. The model orders, delays, and linear parameters of NonlinearModel are derived from LinearModel.

NonlinearModel = nlarx(ThrottleData,LinearModel);

Create an idnlarx model.

sys = idnlarx([2 2 1]);

Configure the model using dot notation to set the following parameters:

• Use a sigmoid network nonlinearity

• Search for an optimum nonlinear regressor subset

sys.Nonlinearity = 'sigmoidnet';
sys.NonlinearRegressors = 'search';

Estimate a nonlinear ARX model with the structure and properties specified in the idnlarx object.

sys = nlarx(z1,sys);

If an estimation stops at a local minimum, you can perturb the model using init and reestimate the model.

Estimate the initial nonlinear model using specific nonlinear regressors.

sys1 = nlarx(z1,[4 2 1],'sigmoidnet','NonlinearRegressors',[1:3]);

Randomly perturb the model parameters to avoid local minima.

sys2 = init(sys1);

Estimate the new nonlinear model with the perturbed values.

sys2 = nlarx(z1,sys2);

Create an iddata object from the estimation data.

z = iddata(y,u,0.2);

Create an nlarxOptions option set specifying a simulation error minimization objective and a maximum of 50 estimation iterations.

opt = nlarxOptions;
opt.Focus = 'simulation';
opt.SearchOptions.MaxIterations = 50;

Estimate the nonlinear ARX model.

sys = nlarx(z,[4 4 1],'sigmoidnet',opt);

Create a sigmoidnet nonlinearity with 30 units, and specify the model orders.

NL = sigmoidnet('NumberOfUnits',30);
Orders = [1 2 1];

Create an estimation option set and set the estimation search method to lm.

opt = nlarxOptions('SearchMethod','lm');

Estimate an unregularized model.

sys = nlarx(nldata,Orders,NL,opt);

Configure the regularization Lambda parameter.

opt.Regularization.Lambda = 1e-8;

Estimate a regularized model.

sysR = nlarx(nldata,Orders,NL,opt);

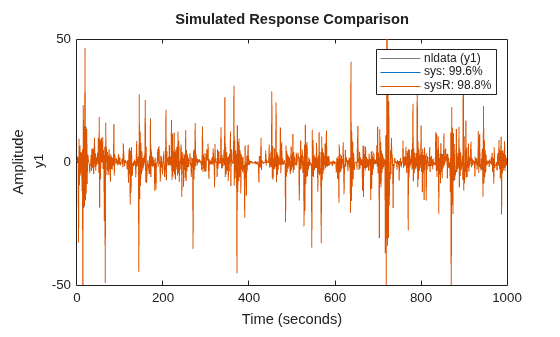

Compare the two models.

compare(nldata,sys,sysR)

The large negative fit result for the unregularized model indicates a poor fit to the data. Estimating a regularized model produces a significantly better result.

## Input Arguments

collapse all

Time-domain estimation data, specified as an iddata object. Data can have one or more output channels and zero or more input channels. Data must be uniformly sampled and cannot contain missing (NaN) samples.

Model orders and delays for defining the regressor configuration, specified as a 1-by-3 vector, [na nb nk].

For a model with ny output channels and nu input channels:

• na is an ny-by-ny matrix, where na(i,j) specifies the number of regressors from the jth output used to predict the ith output.

• nb is an ny-by-nu matrix, where nb(i,j) specifies the number of regressors from the jth input used to predict the ith output.

• nk is an ny-by-nu matrix, where nk(i,j) specifies the lag in the jth input used to predict the ith output.

na = [1 2; 2 3]
nb = [1 2 3; 2 3 1];
nk = [2 0 3; 1 0 5];

The estimation data for this system has three inputs (u1, u2, u3) and two outputs (y1, y2). Consider the regressors used to predict output, y2(t):

• Since na(2,:) is [2 3], the contributing regressors from the outputs are:

• y1(t-1) and y1(t-2)

• y2(t-1), y2(t-2), and y2(t-3)

• Since nb(2,:) is [2 3 1] and nk(2,:) is [1 0 5], the contributing regressors from the inputs are:

• u1(t-1) and u1(t-2)

• u2(t), u2(t-1), and u2(t-2)

• u3(t-5)

### Note

The minimum lag for regressors based on output variables is always 1, while the minimum lag for regressors based on input variables is dictated by nk. Use getreg to view the complete set of regressors used by the nonlinear ARX model.

Nonlinearity estimator, specified as one of the following:

 'wavenet' or wavenet object Wavelet network 'sigmoidnet' or sigmoidnet object Sigmoid network 'treepartition' or treepartition object Binary-tree 'linear' or [] or linear object Linear function neuralnet object Neural network — Requires Deep Learning Toolbox™. customnet object Custom network — Similar to sigmoidnet, but with a user-defined replacement for the sigmoid function.

Specifying a character vector, for example 'sigmoidnet', creates a nonlinearity estimator object with default settings. Alternatively, you can specify nonlinearity estimator settings in two ways:

• Use the associated nonlinearity estimator function with Name-Value pair arguments.

NL = sigmoidnet('NumberOfUnits',10);
• Create and modify a default nonlinearity estimator object.

NL = sigmoidnet;
NL.NumberOfUnits = 10;

For ny output channels, you can specify nonlinear estimators individually for each channel by setting Nonlinearity to an ny-by-1 array of nonlinearity estimator objects. To specify the same nonlinearity for all outputs, specify Nonlinearity as a character vector or a single nonlinearity estimator object.

Example: 'sigmoidnet' specifies a sigmoid network nonlinearity with a default configuration.

Example: treepartition('NumberOfUnits',5) specifies a binary-tree nonlinearity with 5 terms in the binary tree expansion.

Example: [wavenet('NumberOfUnits',10);sigmoidnet] specifies different nonlinearity estimators for two output channels.

Discrete time input-output polynomial model of ARX structure, specified as an idpoly model. Create this object using the idpoly constructor or estimate it using the arx command.

Nonlinear ARX model, specified as an idnlarx model. sys0 can be:

• A model previously estimated using nlarx. The estimation algorithm uses the parameters of sys0 as initial guesses. In this case, use init to slightly perturb the model properties to avoid being trapped in local minima.

sys = init(sys);
sys = nlarx(data,sys);
• A model previously created using idnlarx and with properties set using dot notation. Use this method to avoid complicated Name-Value pair syntax when configuring multiple model properties. For example, use

sys1 = idnlarx([4 3 1]);
sys1.Nonlinearity = 'treepartition';
sys1.CustomRegressors = {'sin(u1(t-1))'};
sys1.NonlinearRegressors = 'search';
sys2 = nlarx(data,sys1);

in place of the equivalent

sys2 = nlarx(data,[4,3,1],'treepartition','CustomRegressors',...
{'sin(u1(t-1))'},'NonlinearRegressors','search');

Estimation options for nonlinear ARX model identification, specified as an nlarxOptions option set.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'NonlinearRegressors','output' specifies that only the regressors containing output variables are used as inputs to the nonlinear block of the model.

Independent variable name, specified as the comma-separated pair consisting of 'TimeVariable' and a character vector. For example, 't'.

Regressors constructed from combinations of inputs and outputs, specified as the comma-separated pair consisting of 'CustomRegressors' and one of the following for single-output systems:

• Cell array of character vectors. For example:

• {'y1(t-3)^3','y2(t-1)*u1(t-3)','sin(u3(t-2))'}

Each character vector must represent a valid formula for a regressor contributing towards the prediction of the model output. The formula must be written using the input and output names and the time variable name as variables.

• Array of custom regressor objects, created using customreg or polyreg.

For a model with ny outputs, specify an ny-by-1 cell array of customreg object arrays or character arrays.

These regressors are in addition to the standard regressors based on Orders.

Example: 'CustomRegressors',{'y1(t-3)^3','y2(t-1)*u1(t-3)'}

Example: 'CustomRegressors',{'sin(u3(t-2))'}

Subset of regressors that enter as inputs to the nonlinear block of the model, specified as the comma-separated pair consisting of 'NonlinearRegressors' and one of the following values:

• 'all' — All regressors

• 'output' — Regressors containing output variables

• 'input' — Regressors containing input variables

• 'standard' — Standard regressors

• 'custom' — Custom regressors

• 'search' — The estimation algorithm performs a search for the best regressor subset. This is useful when you want to reduce a large number of regressors entering the nonlinear function block of the nonlinearity estimator. This option must be applied to all output models simultaneously.

• [] — No regressors. This creates a linear-in-regressor model.

• Vector of regressor indices. To determine the number and order of regressors, use getreg.

For a model with multiple outputs, specify a cell array of ny elements, where ny is the number of output channels. For each output, specify one of the preceding options. Alternatively, to apply the same regressor subset to all model outputs, specify [] or any of the character vector options alone, for example 'standard'.

Example: 'NonlinearRegressors','search' performs a best regressor search for the only output of a single output model, or all of the outputs of a multiple output model.

Example: 'NonlinearReg','input' applies only input regressors to the inputs of the nonlinear function.

Example: 'NonlinearRegressors',{'input','output'} applies input regressors to the first output, and output regressors to the second output of a model with two outputs.

## Output Arguments

collapse all

Nonlinear ARX model that fits the given estimation data, returned as an idnlarx object. This model is created using the specified model orders, nonlinearity estimator, and estimation options.

Information about the estimation results and options used is stored in the Report property of the model. The contents of Report depend upon the choice of nonlinearity and estimation focus you specified for nlarx. Report has the following fields:

Report FieldDescription
Status

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation.

Method

Estimation command used.

Fit

Quantitative assessment of the estimation, returned as a structure. See Loss Function and Model Quality Metrics for more information on these quality metrics. The structure has the following fields:

FieldDescription
FitPercent

Normalized root mean squared error (NRMSE) measure of how well the response of the model fits the estimation data, expressed as a percentage.

LossFcn

Value of the loss function when the estimation completes.

MSE

Mean squared error (MSE) measure of how well the response of the model fits the estimation data.

FPE

Final prediction error for the model.

AIC

Raw Akaike Information Criteria (AIC) measure of model quality.

AICc

Small sample-size corrected AIC.

nAIC

Normalized AIC.

BIC

Bayesian Information Criteria (BIC).

Parameters

Estimated values of model parameters.

OptionsUsed

Option set used for estimation. If no custom options were configured, this is a set of default options. See nlarxOptions for more information.

RandState

State of the random number stream at the start of estimation. Empty, [], if randomization was not used during estimation. For more information, see rng in the MATLAB® documentation.

DataUsed

Attributes of the data used for estimation, returned as a structure with the following fields:

FieldDescription
Name

Name of the data set.

Type

Data type.

Length

Number of data samples.

Ts

Sample time.

InterSample

Input intersample behavior, returned as one of the following values:

• 'zoh' — Zero-order hold maintains a piecewise-constant input signal between samples.

• 'foh' — First-order hold maintains a piecewise-linear input signal between samples.

• 'bl' — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

InputOffset

Offset removed from time-domain input data during estimation. For nonlinear models, it is [].

OutputOffset

Offset removed from time-domain output data during estimation. For nonlinear models, it is [].

Termination

Termination conditions for the iterative search used for prediction error minimization. Structure with the following fields:

FieldDescription
WhyStop

Reason for terminating the numerical search.

Iterations

Number of search iterations performed by the estimation algorithm.

FirstOrderOptimality

$\infty$-norm of the gradient search vector when the search algorithm terminates.

FcnCount

Number of times the objective function was called.

UpdateNorm

Norm of the gradient search vector in the last iteration. Omitted when the search method is 'lsqnonlin' or 'fmincon'.

LastImprovement

Criterion improvement in the last iteration, expressed as a percentage. Omitted when the search method is 'lsqnonlin' or 'fmincon'.

Algorithm

Algorithm used by 'lsqnonlin' or 'fmincon' search method. Omitted when other search methods are used.

For estimation methods that do not require numerical search optimization, the Termination field is omitted.

## Algorithms

collapse all

### Nonlinear ARX Model Structure

A nonlinear ARX model consists of model regressors and a nonlinearity estimator. The nonlinearity estimator comprises both linear and nonlinear functions that act on the model regressors to give the model output. This block diagram represents the structure of a nonlinear ARX model in a simulation scenario.

The software computes the nonlinear ARX model output y in two stages:

1. It computes regressor values from the current and past input values and past output data.

In the simplest case, regressors are delayed inputs and outputs, such as u(t-1) and y(t-3). These kind of regressors are called standard regressors. You specify the standard regressors using the model orders and delay. For more information, see Nonlinear ARX Model Orders and Delay. You can also specify custom regressors, which are nonlinear functions of delayed inputs and outputs. For example, u(t-1)*y(t-3). To create a set of polynomial type regressors, use polyreg.

By default, all regressors are inputs to both the linear and the nonlinear function blocks of the nonlinearity estimator. You can choose a subset of regressors as inputs to the nonlinear function block.

2. It maps the regressors to the model output using the nonlinearity estimator block. The nonlinearity estimator block can include linear and nonlinear blocks in parallel. For example:

$F\left(x\right)={L}^{T}\left(x-r\right)+d+g\left(Q\left(x-r\right)\right)$

Here, x is a vector of the regressors, and r is the mean of the regressors x. ${L}^{T}\left(x\right)+d$ is the output of the linear function block and is affine when d ≠ 0. d is a scalar offset. $g\left(Q\left(x-r\right)\right)$ represents the output of the nonlinear function block. Q is a projection matrix that makes the calculations well conditioned. The exact form of F(x) depends on your choice of the nonlinearity estimator. You can select from available nonlinearity estimators, such as tree-partition networks, wavelet networks, and multilayer neural networks. You can also exclude either the linear or the nonlinear function block from the nonlinearity estimator.

When estimating a nonlinear ARX model, the software computes the model parameter values, such as L, r, d, Q, and other parameters specifying g.

Resulting nonlinear ARX models are idnlarx objects that store all model data, including model regressors and parameters of the nonlinearity estimator. For more information about these objects, see Nonlinear Model Structures.

Get trial now
