Deep Signal Anomaly Detector
Libraries:
DSP System Toolbox /
AI
Description
The Deep Signal Anomaly Detector block detects real-time signal anomalies in Simulink® using a trained long short-term memory (LSTM) autoencoder or a trained long short-term memory (LSTM) forecaster (since R2024b) deep learning network model.
You must first create and train a detector object in MATLAB® using the deepSignalAnomalyDetector
function, and then configure the block to use this
model in Simulink. To configure the block, specify the path to the detector model in the block
dialog box. For more information on these steps, see User Workflow.
Note
This block additionally requires a Deep Learning Toolbox™ license.
Examples
Detect Anomalies in Sinusoidal Signal
Use the Deep Signal Anomaly Detector block to detect anomalies in a sinusoidal signal. The block uses a detector that has been trained on a set of sinusoidal signals of constant frequency and amplitude. Use the time scope to plot the input, anomaly flag, and the window loss.

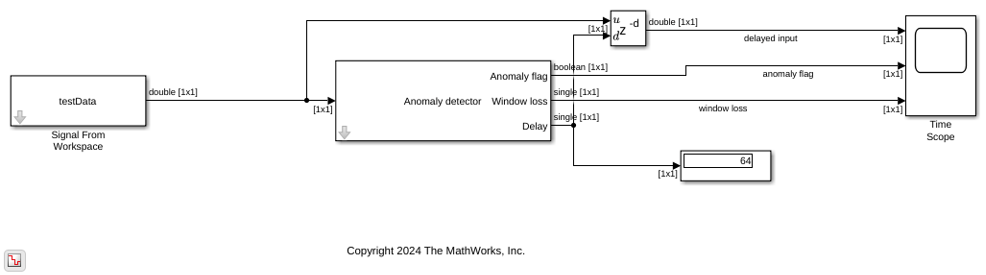

Open the detectAnomaliesSingleChannel.slx
model. The input is a single-channel sinusoidal signal. The Deep Signal Anomaly Detector block reads the post-processing parameters from the detector MAT-file. As you can see in the Parameter values from MAT-file section in the block dialog box, the window length WL is 1 and the overlap length OL is 0. The hop size is 1. The threshold value is approximately 0.06.

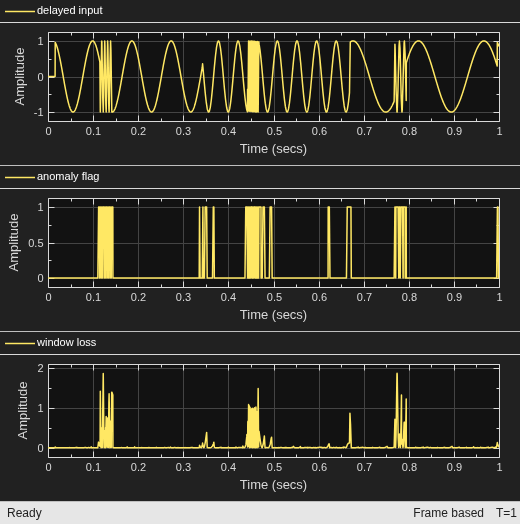

Run the model. The first plot shows the delayed input signal. The delay value is equal to the number of samples the Deep Signal Anomaly Detector block outputs through the Delay port. To align the input with the anomaly flag and window loss, use a Delay block, set the Delay length parameter to Input
, and provide the delay estimate as the delay input to the Delay block.
The second plot shows the anomalies in the signal. A value of 1 indicates the presence of an anomaly. The third plot shows the aggregate window loss.
When the window loss is greater than the threshold, the block flags the region as having an anomaly. In this case, since the window length is 1, the block detects point anomalies. The block turns on the anomaly flag for every sample where the window loss is greater than the threshold value. This makes the anomaly plot look very noisy.
Increasing Window Length
To make the anomaly plot look less noisy, increase the window length in the Deep Signal Anomaly Detector block to 40. To do that, set the Parameters for post-processing parameter to Specify on dialog
. Set Window length to 40 and Overlap length to 39. Set the threshold to the default value obtained from the MAT-file.

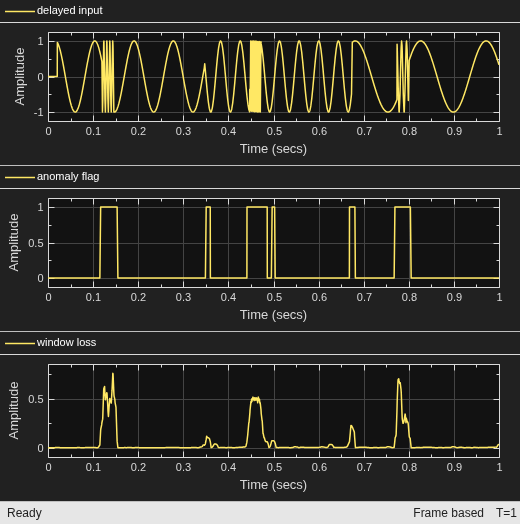

Run the model. The anomaly plot looks much smoother. However, there are still some regions where the window loss value is low (around 0.1) and the block detects these regions as anomalies.
Increasing Threshold

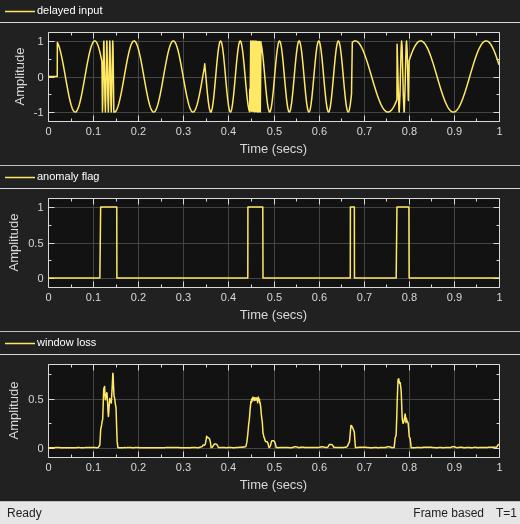

To filter out anomalies that have a relatively lower window loss, increase the threshold value to 0.15. To be called an anomaly, the aggregate window loss must now be greater than 0.15. Increasing the threshold value removes the unintended anomaly detections and further smoothens the plot.
Detect Anomalies in Multichannel Sinusoidal Signal

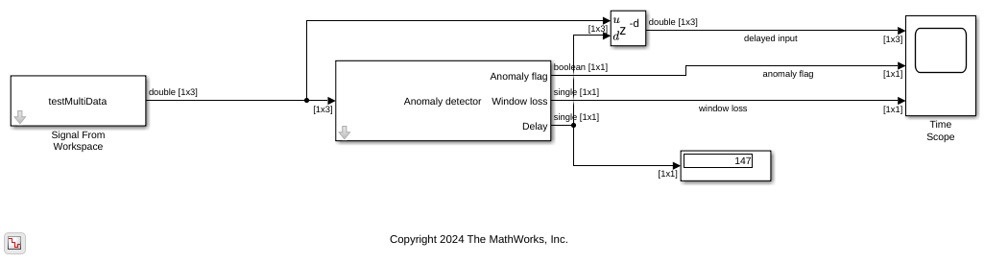

Open the detectAnomaliesMultiChannel.slx
model.
The input is a multichannel sinusoidal signal. If one of the channels has an anomaly, the Deep Signal Anomaly Detector block assumes the presence of the anomaly across all input channels and returns a scalar value at the Anomaly flag port. The block uses a window length WL of 40 and an overlap length OL of 39. The hop size is 1.

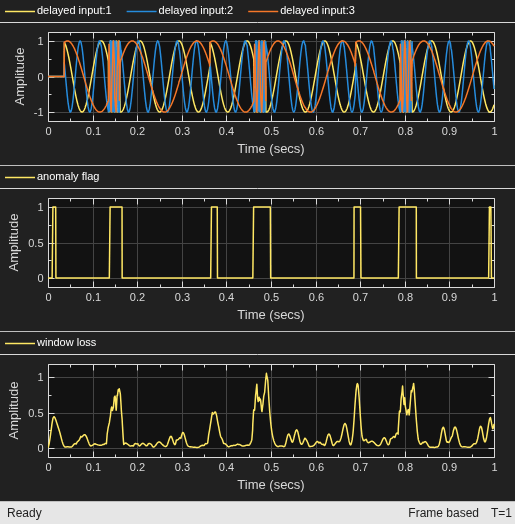

Run the model. The first plot shows the delayed input signal. The second plot shows the presence of an anomaly in the signal. The third plot shows the corresponding aggregate window loss.
Observe from the time scope that the presence of an anomaly is uniform across all channels and the block provides a single-channel output for the window loss and anomaly flag, corresponding to all the channels of the input.

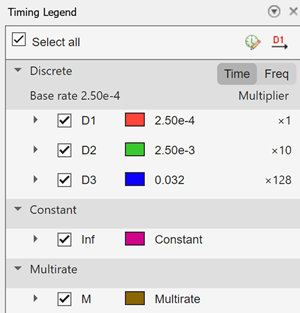

The sample time of the input and output ports is the same. You can confirm this from the color of the signals in the model. The delay port always has a constant sample time.
Changing Hop Size
Change the hop size in the Deep Signal Anomaly Detector block and note the effect on the sample time of the output ports Anomaly flag and Window loss.
Decrease the overlap length to 30. The hop size is now 10. Run the model again. View the sample time of the two output ports in the timing legend. To view the timing legend, in the Debug tab of the Simulink model toolstrip, click Information Overlays > Timing Legend. The timing legend shows that the sample time of the output ports is 10 times the sample time of the input port. For every 10 input samples, the block produces 1 output sample. To change the sample time at the output port, adjust the hop size accordingly. For more information on sample time at the block ports, see Sample- and Frame-Based Concepts.
Detect Independent Anomalies in Multichannel Sinusoidal Signal
Since R2024b
This example trains the LSTM forecaster network model and imports the model into a Deep Signal Anomaly Detector block. The Deep Signal Anomaly Detector block assumes that for multichannel inputs, the presence of anomaly is uniform across channels. To detect anomalies in multichannel signals where the presence of anomaly in each channel is uncorrelated, you can use a separate block for each channel of input. This example uses two such blocks to detect anomalies in the two channels of the input sinusoidal signal.
Train Model
Load the train and test data file sineWaveData.mat
. The train data contains 40 single-channel sinusoidal signals of different frequencies with no noise. The test data contains two-channel sinusoidal signal with noise or anomaly. The presence of an anomaly is independent on both channels.
Train the deep signal anomaly detector model using the 'lstmforecaster'
method. Export the saved detector model and parameters to the LSTMForecasterModel
MAT file. This MAT file is provided with the example.
You can use this code to train the detector model using the train data.
load sineWaveData.mat plot(dataTest); anomalyDetector = deepSignalAnomalyDetector(1,'lstmforecaster',WindowLength=10); opts = trainingOptions("adam",MaxEpochs=300); trainDetector(anomalyDetector,dataTrain,opts) saveModel(anomalyDetector,'LSTMForecasterModel');
Open and Run Model

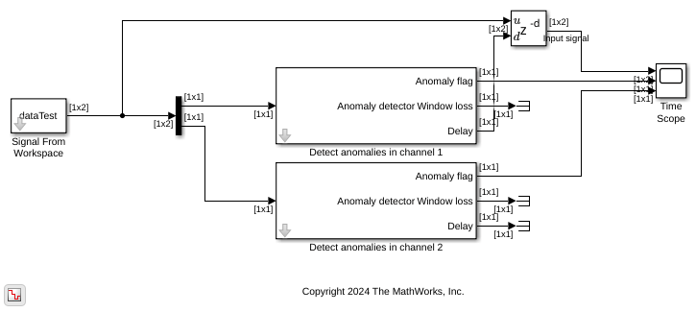

Open the detectIndependentAnomalies
Simulink model. The two Deep Signal Anomaly Detector blocks in the model import the LSTMForecasterModel
MAT file. The blocks also import post-processing parameters such as the window length, overlap length, threshold, and window loss aggregation from the MAT file. The input to the model is the test data which contains independent anomalies on both its channels.

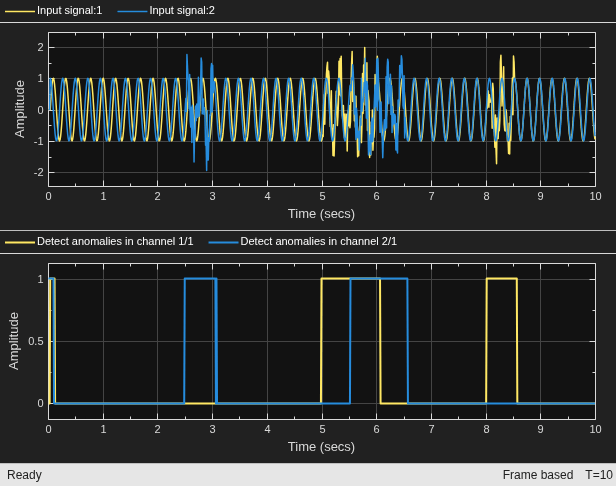

Run the detectIndependentAnomalies
Simulink model. The two Deep Signal Anomaly Detector blocks detect anomalies in the two input channels separately and return a scalar value at the Anomaly flag port. The first plot shows the two channels of the sinusoidal signal with the anomalies. The second plot shows the output of the Anomaly flag port. As you can see, the LSTM forecaster model accurately detects the presence of an anomaly on both the channels.
Extended Examples
Fault Detection and Localization in Three-Phase Power Transmission Using Deep Signal Anomaly Detector in Simulink
Detect faults in three-phase power transmission using the Deep Signal Anomaly Detector block.
Detect Anomalies in ECG Data Using Wavelet Scattering and LSTM Autoencoder in Simulink
Use wavelet scattering and deep learning network to detect anomalies in ECG signals.
Real-Time Noise Detection on Raspberry Pi Using Deep Signal Anomaly Detector
Detect the presence of noise on a Raspberry Pi device.
Ports
Input
Input — Input signal
vector | matrix
Specify the input signal through this port as a vector or a matrix.
When the input has multiple channels, the block assumes that the presence of an anomaly is uniform across all input channels and generates a single-channel output for anomaly detection.
This port is unnamed until you enable the Threshold port.
Data Types: single
| double
Threshold — Detection threshold value
nonnegative scalar
Specify the detection threshold value as a nonnegative scalar. The block uses this value as the threshold for the window loss to detect anomalies.
Dependencies
To enable this port, set:
Parameters for post-processing to
Specify on dialog
.Threshold source to
Input port
.
Data Types: single
| double
Output
Anomaly flag — Anomaly flag
logical scalar
Anomaly flag, returned as a logical scalar:
1
–– Anomaly is present in the input data.0
–– No anomaly is present in the input data.
When the input has multiple channels, the block assumes that the presence of an anomaly is uniform across all input channels, and generates a single-channel output for the anomaly detection.
The sample time at this port equals Ts × HS, where Ts is the sample time (or the sample period) at the input port, and HS is the hop size between adjacent windows. Hop size equals WL − OL, where WL is the window length and OL is the overlap length. For more information on block samples times, see Sample- and Frame-Based Concepts.
Data Types: Boolean
Window loss — Aggregate window loss
scalar
Aggregate window loss, returned as a scalar. The block computes this value using the Window length, Overlap length, and Window loss aggregation parameters.
The block uses the aggregate window loss to detect the anomalies. For more information, see Algorithms.
The sample time at this port equals Ts × HS, where Ts is the sample time (or the sample period) at the input port and HS is the hop size between adjacent windows. Hop size equals WL − OL, where WL is the window length and OL is the overlap length. For more information on block samples times, see Sample- and Frame-Based Concepts.
Data Types: single
Delay — Delay estimate
scalar
Estimate of the delay between the input and output signals in samples, returned as a scalar. To align the input data with the anomaly flag and window loss, apply this delay estimate to the input before further processing. For an example, see Detect Anomalies in Sinusoidal Signal.
The output at this port is always a scalar and the sample time of this port is always constant.
Dependencies
To enable this port, select the Enable delay port check box in the block dialog box.
Data Types: single
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Detector MAT-file path — Path to detector MAT-file
untitled.mat
(default) | MAT-file name
Specify the path to the MAT-file that you generated using the saveModel
function. This MAT-file contains the trained LSTM autoencoder or LSTM forecaster deep
learning network model and parameters used for post-processing such as the window
length, overlap length, detection threshold, and window loss aggregation.
Parameters for post-processing — Source for post-processing parameters
Read from MAT-file
(default) | Specify on dialog
Specify the source for the post-processing parameters as one of these:
Read from MAT-file
–– The block uses the default parameters read from the MAT-file.Specify on dialog
–– Specify the parameters in the block dialog box.
The goal of post-processing is to detect the signal anomalies and determine the window loss that is a measure of how well the block reconstructs the data.
Window length — Window length
1
(default) | positive integer
Specify the window length WL the block uses in post-processing as a positive integer. By default, the block uses a window length of one sample and an overlap length of zero samples between adjoining windows. This setting detects point anomalies. Increase the window length to aggregate the window loss over a larger range of the signal.
Dependencies
To enable this parameter, set Parameters for post-processing
to Specify on dialog
.
Overlap length — Overlap length between adjoining windows
0
(default) | nonnegative integer
Specify the overlap length OL between adjoining windows as a nonnegative integer. The block obtains one detection per input sample when OL is WL − 1, that is, a hop size of 1 sample. Hop size is the difference between the window length and overlap length, WL − OL. If you want to downsample the output by a factor of the hop size HS, set OL to WL − HS.
Dependencies
To enable this parameter, set Parameters for post-processing
to Specify on dialog
.
Threshold source — Source of detection threshold value
Dialog
(default) | Input port
Specify the source of detection threshold as one of these:
Dialog
–– Specify the threshold value in the block dialog box using the Threshold parameter.Input port
–– Specify the threshold value through the Threshold input port.
Dependencies
To enable this parameter, set Parameters for post-processing
to Specify on dialog
.
Threshold — Detection threshold value
0.01
(default) | nonnegative scalar
Specify the detection threshold value as a nonnegative scalar. The block computes the loss for each window based on the statistic method you specify in the Window loss aggregation parameter. To set the anomaly flag, the block compares the aggregate window loss to the threshold value you specify in this parameter. If the window loss is greater than the threshold value, the block sets the anomaly flag to 1 and sets it to 0 otherwise. A lower threshold value results in the block classifying more samples as anomalies. Adjust the threshold value based on the window loss observed in anomalous and non-anomalous regions.
Tunable: Yes
Dependencies
To enable this parameter, set:
Parameters for post-processing to
Specify on dialog
.Threshold source to
Dialog
.
Window loss aggregation — Statistic method to aggregate window loss
Mean
(default) | Max
| Min
| Median
Specify the statistic method the block uses to aggregate the sample loss in each window segment as one of these:
Mean
Max
Min
Median
Dependencies
To enable this parameter, set Parameters for post-processing
to Specify on dialog
.
Parameter values from MAT-file — Display post-processing parameter values from MAT-file
text box
This parameter is read-only.
Display the post-processing parameter values the block reads from the MAT-File. The display parameters are:
Window length
Overlap length
Threshold
Window loss aggregation
Use these values as a baseline if you want to adjust the post-processing parameters
by setting Parameters for post-processing to Specify
on dialog
.
Dependencies
To enable this parameter, set Parameters for post-processing
to Read from MAT-file
.
Enable delay port — Output estimated delay
off
(default) | on
Select this check box to enable the Delay output port. The block outputs the estimated delay in samples between the input and the reconstructed signals through this port.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
More About
User Workflow
Complete these steps to train the detector model in MATLAB and configure the Deep Signal Anomaly Detector block to use this model in Simulink:
Use the
deepSignalAnomalyDetector
function withModelType
set to"lstmautoencoder"
or"lstmforecaster"
(since R2024b) to create the anomaly detector objectdeepSignalAnomalyDetectorLSTM
.detector = deepSignalAnomalyDetector(1,"lstmautoencoder")
(since R2024b)detector = deepSignalAnomalyDetector(1,"lstmforecaster")
Train the detector using the
trainDetector
function by providing data that contains no anomalies.trainDetector(detector,Data)
Export the trained model and detector parameters to a MAT-file using the
saveModel
function. The generated MAT-file contains the trained deep learning model and parameters used for post-processing such as window length, overlap length, detection threshold, and window loss aggregation.saveModel(detector,"filename.mat")
Load the detector model and parameters into the Deep Signal Anomaly Detector block by specifying the path of the generated MAT-file in the Detector MAT-file path parameter
You can specify the parameters for post-processing in the block dialog box to override the default detector parameters that the block reads from the MAT-file. The goal of post-processing is to detect signal anomalies and determine the window loss which is a measure of how well the block reconstructs the data. For more details, see Algorithms.
For examples that shows this workflow in detail, see Detect Anomalies in ECG Data Using Wavelet Scattering and LSTM Autoencoder in Simulink and Detect Independent Anomalies in Multichannel Sinusoidal Signal.
Algorithms
The Deep Signal Anomaly Detector block first buffers the input into frames and then tries to reconstruct the buffered signal using the trained network. The block processes the difference between the input and the reconstructed frames to obtain the window loss and anomaly flags. The block can also output an estimate of the delay (in samples) the input signal goes through as the trained network reconstructs this signal. For the LSTM Forecaster model, the block omits the buffering of the input signal, thereby reducing the delay added to the input signal. (since R2024b)
Trained Network
Train the deep signal anomaly detector network in MATLAB using the steps described in User Workflow.
Load the detector MAT-file into the Deep Signal Anomaly Detector block through the Detector MAT-file path parameter. The block uses this network in Simulink.
Pass the input signal with anomalies to the trained network. The trained networks reconstructs this signal. The block algorithm computes the difference between the input signal and the reconstructed signal. The block uses this difference for post-processing.
Post-processing
In post-processing, the block detects signal anomalies and determines the window loss which is a measure of how well the block reconstructs the data.
Here are the steps the block implements:
Computing the point loss by computing the absolute square of the difference between the input and reconstructed signal.
When the input is a multiple channel signal, the block combines the losses across all channels by computing the mean of the losses from all channels.
Computing the aggregate window loss using the Window length, Overlap length, and Window loss aggregation parameters. You can specify the window length and overlap length in the block dialog box, or the block inherits these values from the detector parameters in the MAT-file.
To set the anomaly flag, the block compares the window loss to the threshold value you specify in the Threshold parameter. If the window loss is greater than the threshold value, the block sets the anomaly flag to 1, else to 0. A lower threshold value results in the block classifying more samples as anomalies. Adjust the threshold value based on the window loss observed in the anomalous and non-anomalous regions.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports library-free code generation and does not support the rapid accelerator mode (Simulink).
Version History
Introduced in R2024aR2024b: Support for LSTM forecaster model
The Deep Signal Anomaly Detector block now supports the LSTM forecaster
model. To generate this model, when creating the signal anomaly detector using the deepSignalAnomalyDetector
function, set ModelType
to
"lstmforecaster"
.
