Design parametric equalizer

`[`

specifies options using one or more `B`

,`A`

] =
designParamEQ(___,`Name,Value`

)`Name,Value`

pair
arguments.

Specify the filter order, peak gain in dB, normalized center frequencies, and normalized bandwidth of the bands of your parametric equalizer.

N = [2, ... 4]; gain = [6, ... -4]; centerFreq = [0.25, ... 0.75]; bandwidth = [0.12, ... 0.1];

Generate the filter coefficients using the specified parameters.

[B,A] = designParamEQ(N,gain,centerFreq,bandwidth,"Orientation","row");

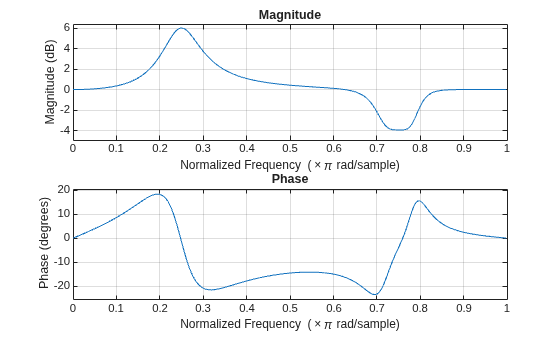

Visualize your filter design.

fvtool([B,A]);

Design a second-order sections (SOS) parametric equalizer using `designParamEQ`

and filter an audio stream.

Construct audio file reader and audio device writer System objects. Use the sample rate of the reader as the sample rate of the writer. Call `setup`

to reduce the computational load of initialization in an audio stream loop.

frameSize = 256; fileReader = dsp.AudioFileReader("RockGuitar-16-44p1-stereo-72secs.wav","SamplesPerFrame",frameSize); sampleRate = fileReader.SampleRate; deviceWriter = audioDeviceWriter("SampleRate",sampleRate); setup(fileReader) setup(deviceWriter,ones(frameSize,2))

Play the audio signal through your device.

count = 0; while count < 2500 audio = fileReader(); deviceWriter(audio); count = count + 1; end reset(fileReader)

Design an SOS parametric equalizer suitable for use with `dsp.BiquadFilter`

.

N = [4,4]; gain = [-25,35]; centerFreq = [0.01,0.5]; bandwidth = [0.35,0.5]; [B,A] = designParamEQ(N,gain,centerFreq,bandwidth);

Visualize your filter design. Call `designParamEQ`

with the same design specifications. Specify the output orientation as `"row"`

so that it is suitable for use with `fvtool`

.

[Bvisualize,Avisualize] = designParamEQ(N,gain,centerFreq,bandwidth,"Orientation","row"); fvtool([Bvisualize,Avisualize], ... "Fs",fileReader.SampleRate, ... "FrequencyScale","Log");

Create a biquad filter.

myFilter = dsp.BiquadFilter( ... "SOSMatrixSource","Input port", ... "ScaleValuesInputPort",false);

Create a spectrum analyzer to visualize the original audio signal and the audio signal passed through your parametric equalizer.

scope = dsp.SpectrumAnalyzer( ... "SampleRate",sampleRate, ... "PlotAsTwoSidedSpectrum",false, ... "FrequencyScale","Log", ... "FrequencyResolutionMethod","WindowLength", ... "WindowLength",frameSize, ... "Title","Original and Equalized Signals", ... "ShowLegend",true, ... "ChannelNames",{'Original Signal','Equalized Signal'});

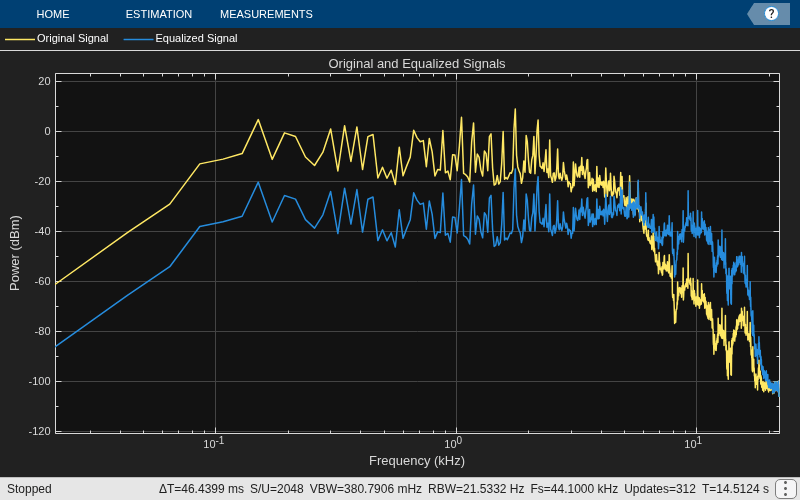

Play the filtered audio signal and visualize the original and filtered spectrums.

setup(scope,ones(frameSize,2)) count = 0; while count < 2500 originalSignal = fileReader(); equalizedSignal = myFilter(originalSignal,B,A); scope([originalSignal(:,1),equalizedSignal(:,1)]); deviceWriter(equalizedSignal); count = count + 1; end

As a best practice, release your objects once done.

release(deviceWriter) release(fileReader) release(scope)

Design a fourth-order sections (FOS) parametric equalizer using `designParamEQ`

and filter an audio stream.

Construct audio file reader and audio device writer System objects. Use the sample rate of the reader as the sample rate of the writer. Call `setup`

to reduce the computational load of initialization in an audio stream loop.

frameSize = 256; fileReader = dsp.AudioFileReader( ... "RockGuitar-16-44p1-stereo-72secs.wav", ... "SamplesPerFrame",frameSize); sampleRate = fileReader.SampleRate; deviceWriter = audioDeviceWriter( ... "SampleRate",sampleRate); setup(fileReader) setup(deviceWriter,ones(frameSize,2))

Play the audio signal through your device.

count = 0; while count < 2500 x = fileReader(); deviceWriter(x); count = count + 1; end reset(fileReader)

Design FOS parametric equalizer coefficients.

N = [2,4]; gain = [5,10]; centerFreq = [0.025,0.65]; bandwidth = [0.025,0.35]; mode = "fos"; [B,A] = designParamEQ(N,gain,centerFreq,bandwidth,mode,"Orientation","row");

Construct FOS IIR filters.

myFilter = dsp.FourthOrderSectionFilter(B,A);

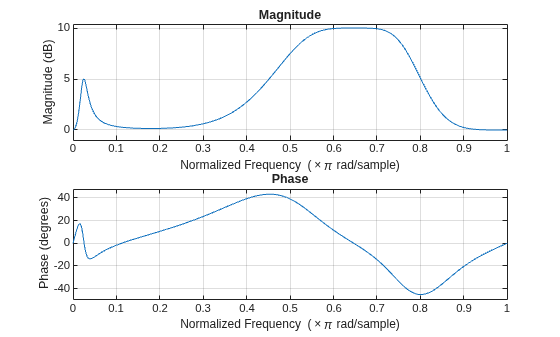

Visualize the frequency response of your parametric equalizer.

fvtool(myFilter)

Construct a spectrum analyzer to visualize the original audio signal and the audio signal passed through your parametric equalizer.

scope = dsp.SpectrumAnalyzer( ... "SampleRate",sampleRate, ... "PlotAsTwoSidedSpectrum",false, ... "FrequencyScale","Log", ... "FrequencyResolutionMethod","WindowLength", ... "WindowLength",frameSize, ... "Title","Original and Equalized Signals", ... "ShowLegend",true, ... "ChannelNames",{'Original Signal','Equalized Signal'});

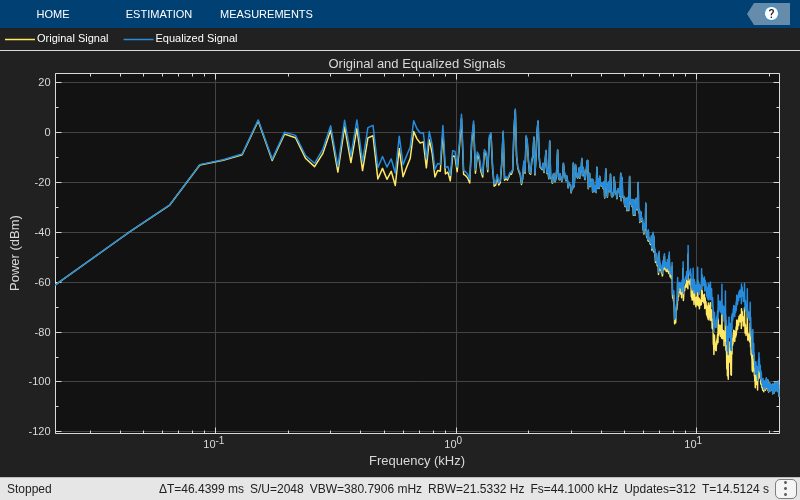

Play the filtered audio signal and visualize the original and filtered spectrums.

setup(scope,ones(frameSize,2)); count = 0; while count < 2500 x = fileReader(); y = myFilter(x); scope([x(:,1),y(:,1)]); deviceWriter(y); count = count + 1; end

As a best practice, release your objects once done.

release(fileReader) release(deviceWriter) release(scope)

`N`

— Filter orderscalar | row vector

Filter order, specified as a scalar or row vector the same length
as `centerFreq`

. Elements of the vector must be even
integers.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`gain`

— Peak gain (dB)scalar | row vector

Peak gain in dB, specified as a scalar or row vector the same
length as `centerFreq`

. Elements of the vector must
be real-valued.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`centerFreq`

— Normalized center frequency of equalizer bandsscalar | row vector

Normalized center frequency of equalizer bands, specified as
a scalar or row vector of real values in the range 0 to 1, where 1
corresponds to the Nyquist frequency (π rad/sample). If `centerFreq`

is
specified as a row vector, separate equalizers are designed for each
element of `centerFreq`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`bandwidth`

— Normalized bandwidthscalar | row vector

Normalized bandwidth, specified as a scalar or row vector the
same length as `centerFreq`

. Elements of the vector
are specified as real values in the range 0 to 1, where 1 corresponds
to the Nyquist frequency (π rad/sample).

Normalized bandwidth is measured at gain/2 dB.
If gain is set to `-Inf`

(notch filter), normalized
bandwidth is measured at the 3 dB attenuation point: $$10\times {\mathrm{log}}_{10}\left(0.5\right)$$.

To convert octave bandwidth to normalized bandwidth, calculate
the associated *Q*-factor as

$$Q=\frac{\sqrt{{2}^{\left(octave\text{\hspace{0.17em}}bandwidth\right)}}}{{2}^{\left(octave\text{\hspace{0.17em}}bandwidth\right)}-1}\text{\hspace{0.17em}}.$$

Then convert to bandwidth

$$bandwidth=\frac{centerFreq}{Q}\text{\hspace{0.17em}}.$$

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`mode`

— Design mode`'sos'`

(default) | `'fos'`

Design mode, specified as `'sos'`

or `'fos'`

.

`'sos'`

–– Implements your equalizer as cascaded second-order filters.`'fos'`

–– Implements your equalizer as cascaded fourth-order filters. Because fourth-order sections do not require the computation of roots, they are generally more computationally efficient.

**Data Types: **`char`

| `string`

Specify optional
comma-separated pairs of `Name,Value`

arguments. `Name`

is
the argument name and `Value`

is the corresponding value.
`Name`

must appear inside quotes. You can specify several name and value
pair arguments in any order as
`Name1,Value1,...,NameN,ValueN`

.

`'Orientation',"row"`

`'Orientation'`

— Orientation of returned filter coefficients`"column"`

(default) | `"row"`

Orientation of returned filter coefficients, specified as the
comma-separated pair consisting of `'Orientation'`

and
`"column"`

or `"row"`

:

Set

`'Orientation'`

to`"row"`

for interoperability with**FVTool**,`dsp.DynamicFilterVisualizer`

, and`dsp.FourthOrderSectionFilter`

.Set

`'Orientation'`

to`"column"`

for interoperability with`dsp.BiquadFilter`

.

**Data Types: **`char`

| `string`

`B`

— Numerator filter coefficientsmatrix

Numerator filter coefficients, returned as a matrix. The size and interpretation of
`B`

depends on the `Orientation`

and `mode`

:

If

`'Orientation'`

is set to`"column"`

and`mode`

is set to`"sos"`

, then`B`

is returned as an*L*-by-3 matrix. Each column corresponds to the numerator coefficients of your cascaded second-order sections.If

`'Orientation'`

is set to`"column"`

and`mode`

is set to`"fos"`

, then`B`

is returned as an*L*-by-5 matrix. Each column corresponds to the numerator coefficients of your cascaded fourth-order sections.If

`'Orientation'`

is set to`"row"`

and`mode`

is set to`"sos"`

, then`B`

is returned as a 3-by-*L*matrix. Each row corresponds to the numerator coefficients of your cascaded second-order sections.If

`'Orientation'`

is set to`"row"`

and`mode`

is set to`"fos"`

, then`B`

is returned as a 5-by-*L*matrix. Each row corresponds to the numerator coefficients of your cascaded fourth-order sections.

`A`

— Denominator filter coefficientsmatrix

Denominator filter coefficients, returned as a matrix. The size and interpretation of
`A`

depends on the `Orientation`

and `mode`

:

If

`'Orientation'`

is set to`"column"`

and`mode`

is set to`"sos"`

, then`A`

is returned as an*L*-by-2 matrix. Each column corresponds to the denominator coefficients of your cascaded second-order sections.`A`

does not include the leading unity coefficients.If

`'Orientation'`

is set to`"column"`

and`mode`

is set to`"fos"`

, then`A`

is returned as an*L*-by-4 matrix. Each column corresponds to the denominator coefficients of your cascaded fourth-order sections.`A`

does not include the leading unity coefficients.If

`'Orientation'`

is set to`"row"`

and`mode`

is set to`"sos"`

, then`A`

is returned as a 3-by-*L*matrix. Each row corresponds to the denominator coefficients of your cascaded second-order sections.If

`'Orientation'`

is set to`"row"`

and`mode`

is set to`"fos"`

, then`A`

is returned as a 5-by-*L*matrix. Each row corresponds to the denominator coefficients of your cascaded fourth-order sections.

[1] Orfanidis, Sophocles J.
"High-Order Digital Parametric Equalizer Design." *Journal of the
Audio Engineering Society.* Vol. 53, November 2005, pp.
1026–1046.
