sparameters

Calculate S-parameters for antenna or array

Syntax

sobj = sparameters(object,freq)

[___] = sparameters(___,Z0)

[___] = sparameters(___,UseParallel=true)

[___,sweepobj] = sparameters(___,SweepOption=Value)

sobj = sparameters(filename)

sobj = sparameters(data,freq)

sobj = sparameters(data,freq,Z0)

sobj = sparameters(netparamobj)

sobj = sparameters(netparamobj,Z0)

Description

sobj = sparameters(object,freq) calculates the complex S-parameter for an antenna or array over specified frequency values.

[___] = sparameters(___,Z0) calculates the complex S-parameter of antenna or array using Z0 reference impedance.

[___] = sparameters(___,UseParallel=true) uses the parallel pool to calculate S-parameter of antenna or array for each frequency. To use this feature, you need a Parallel Computing Toolbox™ license.

[___,sweepobj] = sparameters(___,SweepOption=Value) uses frequency sweep interpolation method to calculate S-parameter of antenna or array, and also returns the type of interpolation method and rational fit parameters.

sobj = sparameters(filename) creates an S-parameter object sobj by importing data from the Touchstone file specified by filename.

sobj = sparameters(data,freq) creates an S-parameter object from the S-parameter data data, and frequencies freq.

sobj = sparameters(data,freq,Z0) creates an S-parameter object from the S-parameter data data, and frequencies freq, with a Z0 reference impedance.

sobj = sparameters(netparamobj) converts the network parameter object, netparamobj, to S-parameter object with the default reference impedance.

sobj = sparameters(netparamobj,Z0) converts the network parameter object netparamobj to S-parameter object with a Z0 reference impedance.

Examples

Calculate S-Parameter Matrix For Antenna

Calculate the complex s-parameters for a default dipole at 70MHz frequency.

 h = dipole

h =
  dipole with properties:

        Length: 2
         Width: 0.1000
    FeedOffset: 0
     Conductor: [1×1 metal]
          Tilt: 0
      TiltAxis: [1 0 0]
          Load: [1×1 lumpedElement]

 sparameters(h,70e6)

ans =
  sparameters with properties:

      Impedance: 50
       NumPorts: 1
     Parameters: 0.1872 - 0.0028i
    Frequencies: 70000000

Calculate S-parameter Matrix For Array

Calculate the complex s-parameters for a default rectangular array at 70MHz frequency.

h = rectangularArray

h =
  rectangularArray with properties:

           Element: [1×1 dipole]
              Size: [2 2]
        RowSpacing: 2
     ColumnSpacing: 2
           Lattice: 'Rectangular'
    AmplitudeTaper: 1
        PhaseShift: 0
              Tilt: 0
          TiltAxis: [1 0 0]

s = sparameters(h,70e6);
s.Parameters

ans = 4×4 complex

   0.3044 - 0.0811i  -0.0579 - 0.2369i  -0.0580 - 0.2369i  -0.0248 - 0.0707i
  -0.0579 - 0.2369i   0.3045 - 0.0812i  -0.0248 - 0.0707i  -0.0580 - 0.2370i
  -0.0580 - 0.2369i  -0.0248 - 0.0707i   0.3044 - 0.0811i  -0.0579 - 0.2369i
  -0.0248 - 0.0707i  -0.0580 - 0.2370i  -0.0579 - 0.2369i   0.3045 - 0.0812i

Extract and Plot S-Parameters data from Touchstone File

Extract S-parameters from corrugatedconicalhorn.s2p touchstone file.

sobj = sparameters("corrugatedconicalhorn.s2p");
display(sobj)

sobj =
  sparameters with properties:

      Impedance: 50
       NumPorts: 1
     Parameters: [1×1×11 double]
    Frequencies: [11×1 double]

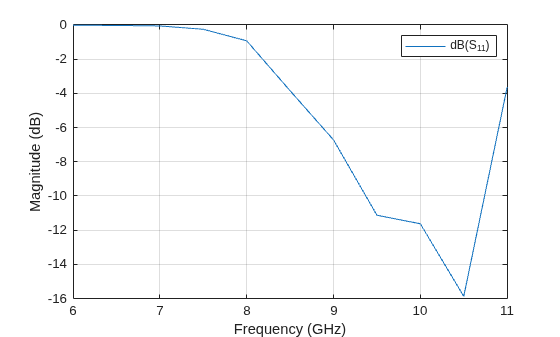

Plot the S-parameters data using rfplot function.

rfplot(sobj)

Comparison of S-parameter Calculation using Full-Frequency and Interpolated Sweeps

This example compares S-parameter calculations using full-frequency and interpolated sweep methods.

Create Antenna

Use the design function to create a microstrip patch antenna operating at a frequency of 1.9 GHz.

antenna = design(patchMicrostrip,1.9e9);

Calculate S-parameters

Calculate S-parameters of the antenna using three sweep options, over a frequency range of 1.8 GHz to 2.2 GHz.

First use a full-frequency sweep with 100 frequency points. Observe the computation time.

freq = linspace(1.8e9,2.2e9,100);
tic
Sfull = sparameters(antenna,freq,SweepOption="direct");
toc

Elapsed time is 79.424480 seconds.

Next, use interpolated frequency sweep. Observe the computation time.

freqinterp = [1.8e9, 2.2e9];
tic
Sinterp = sparameters(antenna,freqinterp,SweepOption="interp");
toc

Elapsed time is 8.790354 seconds.

Next, use interpolation-with-gradient frequency sweep. Observe the computation time.

tic
Sinterpgrad = sparameters(antenna,freqinterp,SweepOption="interpWithGrad");
toc

Elapsed time is 37.328457 seconds.

Visualize S-parameters

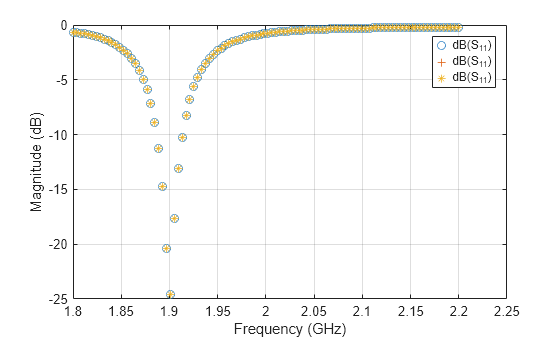

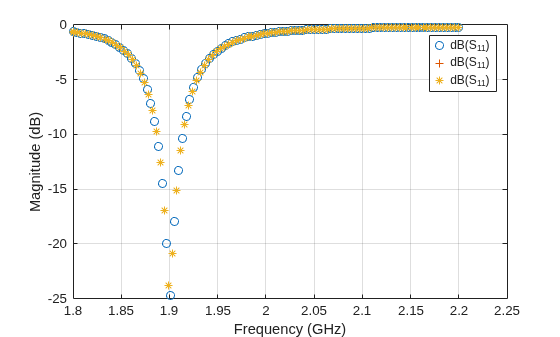

Plot the ${\mathit{S}}_{11}$ of all three calculation methods.

figure
rfplot(Sfull,1,1,'o');
hold on
rfplot(Sinterp,1,1,'+');
rfplot(Sinterpgrad,1,1,'*');
hold off

Input Arguments

object — Antenna or array to calculate S-parameters

antenna object | array object | custom 2-D mesh or geometry object | pcbStack object | installedAntenna object | measuredAntenna object

Antenna or array to calculate S-parameters, specified as one of the following options:

• Antenna object from the antenna catalog.

• Array object from the array catalog.

• pcbStack object.

• Array of pcbStack object.

• installedAntenna object.

• measuredAntenna object.

Example: dipole

Example: linearArray

Example: array(pcbStack,"linear")

freq — Frequency to calculate S-parameters

positive scalar | positive vector

Frequency to calculate S-parameters, specified as a scalar for a single frequency or a vector for a frequency range in Hertz. For vector frequencies, specify the values in lowest to highest order.

You must specify this argument as a two or more element vector when using frequency sweep interpolation. Elements of this vector represent the frequency range of interest.

Example: [500e6 550e6 600e6]

Z0 — Reference impedance in Ohms

50 (default) | positive real scalar

Reference impedance in Ohms, specified as a positive real scalar. You cannot specify Z0 if you are importing data from a file. The argument Z0 is optional and is stored in the Impedance property.

data — S-parameter data

array of complex numbers

S-parameter data, specified as an array of complex numbers, of size N-by-N-by-K where K represents number of frequency points.

netparamobj — Network parameter object

network parameter object

Network parameter object. The network parameter objects are of the type: sparameters (RF Toolbox), yparameters (RF Toolbox), zparameters (RF Toolbox), gparameters (RF Toolbox), hparameters (RF Toolbox), abcdparameters (RF Toolbox), and tparameters (RF Toolbox).

Example: S1 = sparameters(Y1,100). Y1 is a parameter object. This example converts Y-parameters to S-parameters at 100 ohms.

filename — Touchstone data file

character vector | string scalar

Touchstone data file, specified as a character vector, that contains network parameter data. filename can be the name of a file on the MATLAB^® path or the full path to a file.

Example: sobj = sparameters("defaultbandpass.s2p");

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: sobj = sparameters(antenna,freq,UseParallel=true)

UseParallel — Option to enable parallel pool

false or 0 (default) | true or 1

Option to enable parallel pool, specified as a logical value. The default value is false. Set the flag to true or 1 to enable the parallel pool. Use parallel pool to speedup the S-parameter calculations at multiple frequencies for computationally large antennas and arrays. To use this feature, you need a license to the Parallel Computing Toolbox.

Example: UseParallel=true

Data Types: logical

SweepOption — Sweep interpolation method

"direct" (default) | "interp" | "interpWithGrad" | frequencySweep object

Sweep interpolation method, specified as one of the following options:

• "direct" — Computes S-parameters at each specified frequency point.

• "interp" — Interpolates sweep using rational fitting to compute S-parameters with the minimum possible set of frequency points within the specified frequency range.

• "interpWithGrad" — Interpolates sweep using rational fitting with gradient calculations to compute S-parameters with the minimum possible set of frequency points within the specified frequency range.

• frequencySweep object — Interpolates sweep using manually set parameters such as error tolerance, number of frequency points, and number of iterations.

The interpolating fast frequency sweep uses rational fitting by specifying two or more frequency points that define the frequency range of interest.

To use this feature, you need an RF Toolbox™ license in addition to the Antenna Toolbox™ license.

Example: s = sparameters(patchMicrostrip,[0.8e9,1.2e9],SweepOption="interp")

Data Types: string

Output Arguments

sobj — S-parameter data

S-parameter object

S-parameter data, returned as an object. disp(sobj) returns the properties of the object:

• NumPorts — Number of ports, specified as an integer. The function calculates this value automatically when you create the object.

• Frequencies — S-parameter frequencies, specified as a K-by-1 vector of positive real numbers sorted from smallest to largest. The function sets this property from the filename or freq input arguments.

• Parameters — S-parameter data, specified as an N-by-N-by-K array of complex numbers. The function sets this property from the filename or data input arguments.

• Impedance — Reference impedance in ohms, specified as a positive real scalar. The function sets this property from the filename or Z0 input arguments. If no reference impedance is provided, the function uses a default value of 50.

sweepobj — Frequency sweep interpolation parameters

frequencySweep object (default)

Frequency sweep interpolation parameters, returned as a frequencySweep object.

Version History

Introduced in R2015a

R2025a: Use frequency sweep interpolation to calculate S-parameters

Use the new SweepOption name-value argument to interpolate frequency sweep for the S-parameter calculations. Supported interpolation methods are rational fitting, and rational fitting with gradient.
