Antenna and Array Analysis
Perform port, surface, and field (space around the antenna) analysis of antennas and arrays. Use plane waves to excite an antenna to simulate a receiving antenna. Use Antenna Toolbox™ functions to read and write data from MSI Planet antenna files. Design and tune geometric properties of antennas in the antenna catalog to resonate at a particular frequency.
|Create plane wave excitation environment for antenna or array
|Input impedance of antenna or scan impedance of array
|Return loss of antenna or scan return loss of array
|Calculate S-parameters for antennas and antenna arrays
|Voltage standing wave ratio (VSWR) of antenna or array element
|Calculate current at feed for antenna or array
|Radiation efficiency of antenna (Since R2021a)
|Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
|Azimuth plane radiation pattern of antenna or array
|Elevation plane radiation pattern of antenna or array
|Beamwidth of antenna
|Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
|Axial ratio of antenna
|Calculate phase shift values for arrays or multi-feed PCB stack
|Calculate and plot radar cross section (RCS) of platform, antenna, or array (Since R2019b)
|Direction of arrival of signal (Since R2022a)
- Field Calculation in Antennas
Field calculation in metal antennas and metal-dielectric antennas.
- Antenna Modeling and Analysis
Construct, visualize and analyze antenna elements.

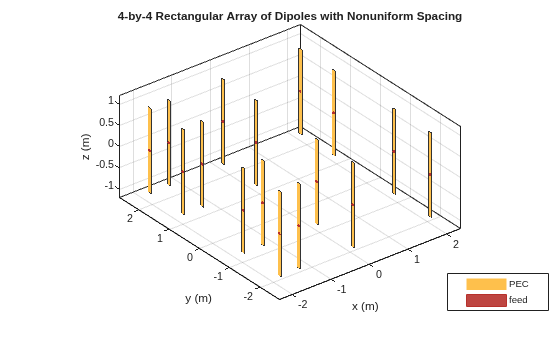

- Array Modeling and Analysis
Construct, visualize, and analyze an antenna array.
- Infinite Array Analysis
This example shows the use of infinite array analysis to model the behavior of a single element - the unit cell embedded in the array - .
