dSPACE ACE Kit Support from Simulink Coder
Develop and test real-time control systems with these bundled academic offerings that consist of both hardware and software
Capabilities and Features
dSPACE ACE Kits, exclusively for academic use, provide ready-to-use rapid control prototyping (RCP) and hardware-in-the-loop (HIL) systems for high-end real-time applications. You can program the kits using Simulink, Simulink Coder, and Model-Based Design. There are a wide range of kit options that provide capabilities and benefits such as cost savings, compactness and modularity, robustness for in-field or in-vehicle experiments, and powerful simulator systems for HIL applications. dSPACE also offers ClassRoom Kits and Research Software Kits – academic software licenses especially tailored to classroom instruction or research at universities.
dSPACE ACE Kits for academia include:
- Comprehensive controller or processor hardware
- Adapter cables

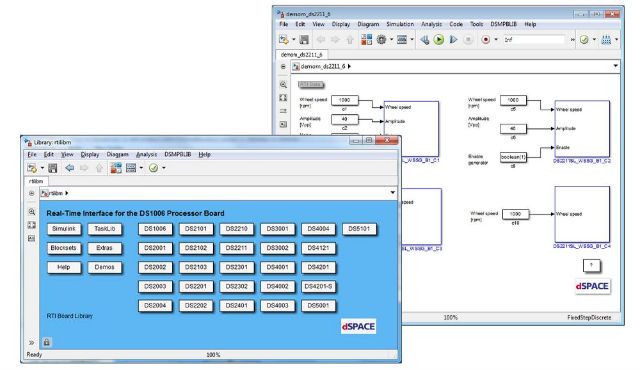

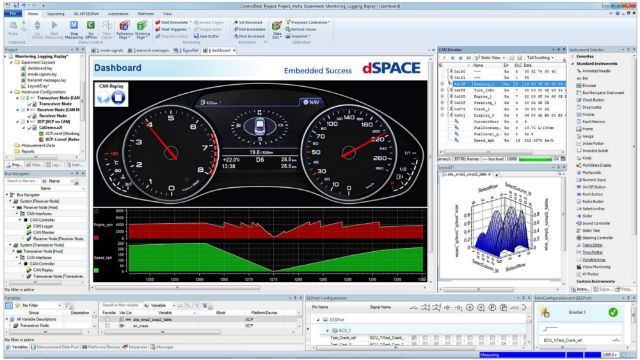

- Software (Real-Time Interface and ControlDesk) that gives you the power to:
- Set up connections to your Simulink model and generate a real-time application
- Tune parameters and monitor signals from MATLAB or Simulink while the real-time application runs
- Measure signals with plotters based on several time scales
- Manage models and handle parameter sets
- Create graphical instrument panels and automate experiments
About dSPACE ACE Kits
dSPACE ACE Kits are used in academia for high-end real-time applications. dSPACE offers the following versions of its kits:
Explore gallery (8 images)

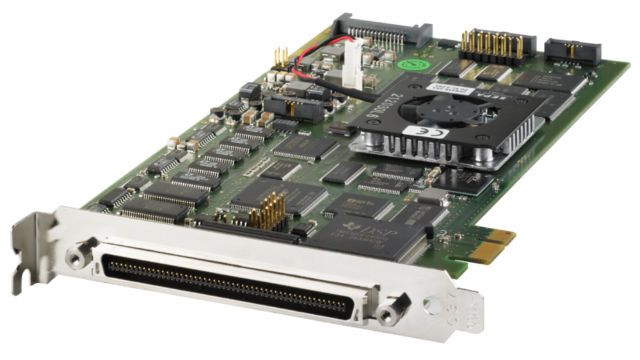

| ACE Kit 1104 with DS1104 R&D Controller Board | Cost-effective, single-board solution |

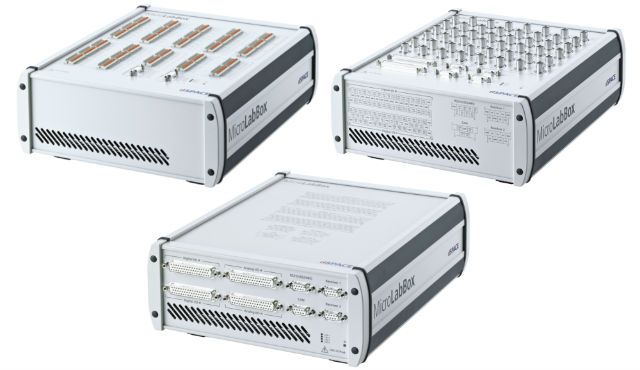

| ACE Kit MicroLabBox | Compact all-in-one development system for the laboratory, with high computing power and comprehensive functionalities |

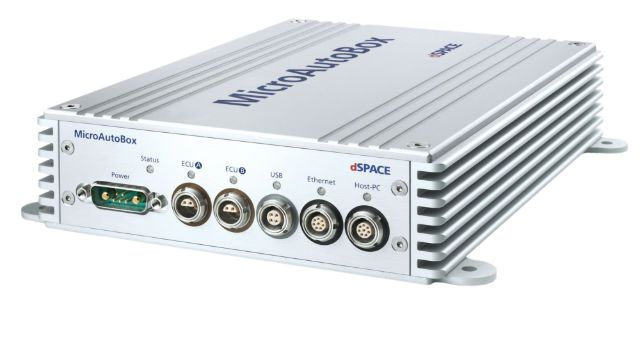

| ACE Kit MicroAutoBox | Robust rapid control prototyping for experiments in vehicles or in the field |

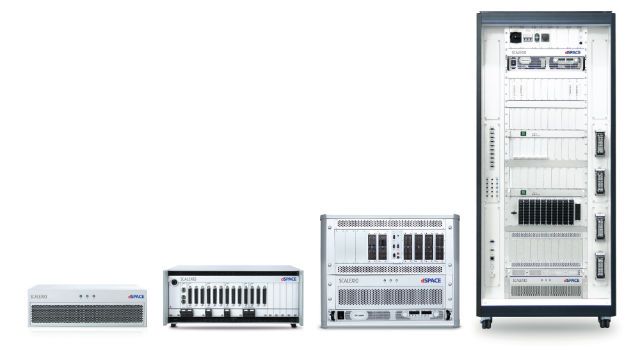

ACE Kit SCALEXIO |
Powerful real-time systems for RCP or HIL applications |
Supported in student software.
