Boom Lift Model in Simscape

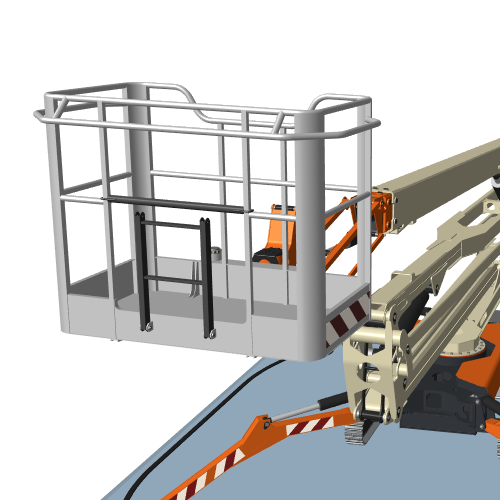

Telescoping boom lift with tread drive.
551 Downloads
Aktualisiert 16. Dez 2025
This example models a boom lift with hydraulic actuators. To see videos and animations of what you can do with this model, please visit this page
The lift has 6 hydraulic actuators in the chassis, 7 hydraulic actuators in the boom plus one other passive hydraulic cylinder. The mechanical model of the lift was created in CAD software and imported into Simscape Multibody.
  • CAD geometry is imported to ensure accurate representation of masses, inertias, and joint locations.
  • Mechanical effects are incorporated into the design, including ground contact, worm gear kinematics, cables, and flexible bodies
  • Actuator requirements are refined using dynamic simulation with abstract actuator models
  • Hydraulic components including valve blocks, pipelines, and actuators are integrated with the multibody model of the system.
  • Modular testing ensures efficient development, as each actuation system can be tested in a separate model
  • Integrated testing of physical system and controller is supported by combining a hydromechanical model with sensors and a logic controller.
  • Interactive workflows are shown using dashboard blocks to test algorithms
  • MATLAB Apps helps you open the model that best matches your needs.
Open the project file sm_boom_lift_crawler.prj to begin.
Use the "Download" button above to get files compatible with the latest release of MATLAB.
