Battery Pack Design Solution for Battery EVs in Simscape

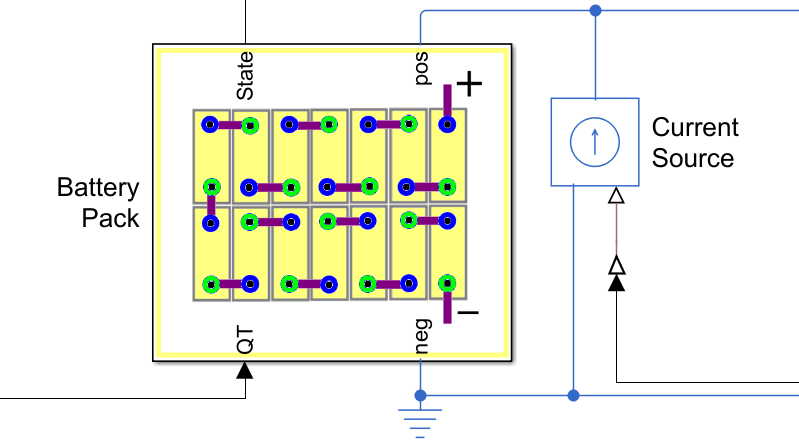

Battery pack model for thermal management tasks, with modules of cells in series and parallel.

This repository shows use of Simscape to model an electric vehicle battery pack. There are three examples:

1. Battery Pack Thermal Management

Shows how to model an automotive battery pack for thermal management tasks.

2. Full Vehicle Thermal Management

Shows a BEV full vehicle thermal management with a detailed battery model.

3. Workflow from Module Design to Full Pack

Demonstrates a workflow to go from a detailed battery module design to a real-time pack plant model

4. Battery Management System for State of Charge estimation

Shows how to use Kalman Filters (EKF) and predict battery state of charge.

5. Battery Temperature estimation using Neural Networks

Shows how to use Neural Networks to eliminate a sensor in the battery pack. Demonstrates a workflow to generate training data for neural networks, train the network, validate it and use for time-series prediciton, and code generation for hardware deployment.

Open batteryExamplesProjectSetup.prj to get started up the project path. The project shortcut buttons in the toolstrip open these three examples.

Use the "Download" button above to get files compatible with the latest release of MATLAB.

You can also test in MATLAB Online

For earlier MATLAB releases, use "Version History" tab above or these links:

• R2025b, R2025a, R2024b, R2024a, R2023b, R2023a, R2022b, R2022a, R2021b, R2021a, R2020b

All examples have a battery-module custom component that is based on Simscape Electrical Battery (Table-Based) block for modeling battery behavior. Please visit the Simscape Electrical page to learn more about modeling electrical systems.

• https://www.mathworks.com/products/simscape-electrical.html

Learn how to use Simscape with

• Self-paced tutorials, including multi-domain systems, 3D mechanical systems, circuits, motors, and battery packs.
• Searching posts for the keyword "physical modeling".
• Stories from users: https://www.mathworks.com/solutions/physical-modeling.html
