calc_meshdata

Version 1.3.0.0 (1,3 MB) von Immanuel Anjam

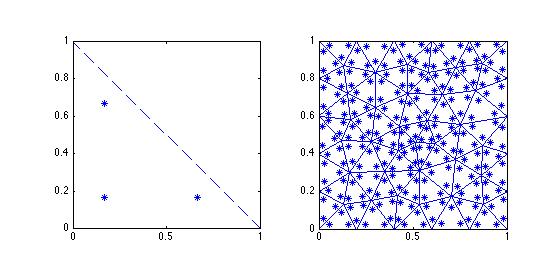

Calculates the affine transformations for integration in 2D/3D via the unit triangle/tetrahedron.
0.0
(0)
895 Downloads
Aktualisiert 26 Sep 2014

Lizenz anzeigen

Calculates the affine transformations needed for integration in 2D/3D via the unit reference triangle/tetrahedron. In 2D the function takes as its input the matrices p,e,t given by initmesh/poimesh (PDEtool toolbox), and calculates the affine transformations for each triangle simultaneously in a vectorized manner. In 3D we use Tetgen meshes.
With a 2009 MacBook Pro laptop, calculating the affine transformations for a mesh of 2 million triangles takes about 1.2 seconds.

We also demonstrate how to use this data to perform fast vectorized calculation of integral values over 2D and 3D meshes.

Zitieren als

Immanuel Anjam (2024). calc_meshdata (https://www.mathworks.com/matlabcentral/fileexchange/37606-calc_meshdata), MATLAB Central File Exchange. Abgerufen .

Kompatibilität der MATLAB-Version
Erstellt mit R2012a
Kompatibel mit allen Versionen
Plattform-Kompatibilität
Windows macOS Linux
Quellenangaben

Inspiriert von: inttet, read_tetgenmesh

Inspiriert: Fast FEM assembly: edge elements

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

2d/

Version Veröffentlicht Versionshinweise
1.3.0.0

Examples of vectorized calculation of integrals.
1.2.0.0

Added a function giving 2d integration quadratures.
1.1.0.0

The same in 3D too.
1.0.0.0
