showEnvironment

Display channel environment with D-Rays from ray tracing

Description

example

showEnvironment(tgay) displays a three-dimensional figure for the IEEE® 802.11ay™ (TGay) channel environment determined by the input wlanTGayChannel object, tgay. The figure shows a schematic depiction of the channel environment, locations of the transmit and receive antenna arrays, and quasi-deterministic strong rays (D-rays) between the arrays determined by ray tracing.

example

showEnvironment(tgay,envOnly) displays the channel environment with the option of turning off ray tracing.

Examples

collapse all

Filter a dual-polarized signal through a WLAN 802.11ay™ channel, specifying a street canyon environment.

Configure a TGay channel System object for a street canyon environment, specifying a user configuration of single-user multiple-input/multiple-output (SU-MIMO) with two transmit antenna arrays and two receive antenna arrays. Specify the transmit antenna arrays as two-element uniform linear arrays (ULAs) and the receive antenna arrays as single isotropic elements. Use a custom beamforming method to specify the transmit and receive beamforming vectors, and specify the source of the random number stream.

tgay = wlanTGayChannel('SampleRate',2e9,'Environment','Street canyon hotspot', ...
    'UserConfiguration','SU-MIMO 2x2','ArraySeparation',[0.8 0.8],'ArrayPolarization','Dual, Dual', ...
    'TransmitArray',wlanURAConfig('Size',[1 2]),'TransmitArrayOrientation',[10; 10; 10], ...
    'ReceiveArray',wlanURAConfig('Size',[1 1]),'BeamformingMethod','Custom','NormalizeImpulseResponses',false, ...
    'RandomStream','mt19937ar with seed','Seed',100);

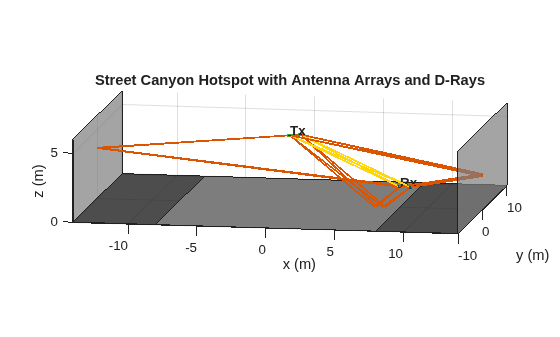

Display the environment of the TGay channel.

showEnvironment(tgay);
title('Street Canyon Hotspot with Antenna Arrays and D-Rays');

Retrieve channel characteristics by using the info object function.

tgayInfo = tgay.info;

Formulate the beamforming vectors in terms of the number of transmit elements, receive elements, transmit streams, and receive streams obtained from tgayInfo.

NTE = tgayInfo.NumTxElements;
NTS = tgayInfo.NumTxStreams;
NRE = tgayInfo.NumRxElements;
NRS = tgayInfo.NumRxStreams;
tgay.TransmitBeamformingVectors = ones(NTE,NTS)/sqrt(NTE);
tgay.ReceiveBeamformingVectors = ones(NRE,NRS)/sqrt(NRE);

Create a random input signal and filter it through the TGay channel.

txSignal = complex(rand(100,NTS),rand(100,NTS));
rxSignal = tgay(txSignal);

Display the open area hotspot environment for a WLAN TGay channel model.

Configure a TGay channel System object for an open area hotspot environment, specifying a user configuration of single-user multiple-input/multiple-output (SU-MIMO) with two transmit antenna arrays and two receive antenna arrays. Specify the transmit antenna array as a 2x2 uniform rectangular array (URA) and the receive antenna arrays as single isotropic elements. Use a custom beamforming method to specify the transmit and receive beamforming vectors, and specify the source of the random number stream.

tgay = wlanTGayChannel('SampleRate',1e9,'Environment','Open area hotspot', ...
    'UserConfiguration','SU-MIMO 2x2','ArraySeparation',[0.6 0.6],'ArrayPolarization','Dual, Dual', ...
    'TransmitArray',wlanURAConfig('Size',[2 2]),'TransmitArrayOrientation',[20; 10; 10], ...
    'ReceiveArray',wlanURAConfig('Size',[1 1]),'BeamformingMethod','Custom', ...
    'NormalizeImpulseResponses',false,'RandomStream','mt19937ar with seed','Seed',150);

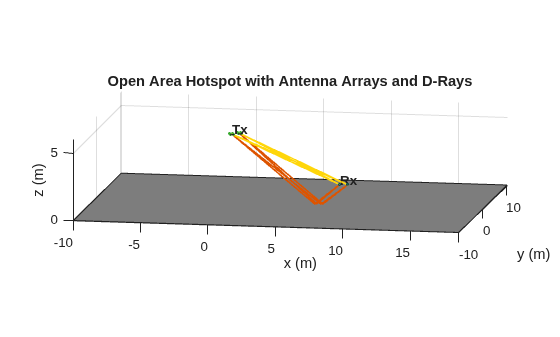

Display the environment of the TGay channel.

envOnly = false;
showEnvironment(tgay,envOnly);
title('Open Area Hotspot with Antenna Arrays and D-Rays');

Input Arguments

collapse all

TGay multipath fading channel, specified as a wlanTGayChannel System object.

Display environment without D-Rays, specified as a logical value of true or false. To display a schematic of the channel environment without D-Rays, set this property to true. To display a schematic of the channel environment with D-Rays, set this property to false.

Data Types: logical
