Propagation Channel Models

Channel models for 802.11™

WLAN Toolbox™ provides functions that let you model SISO and MIMO transmit-receive links with IEEE^® standard defined channel models.

Objects

`wlanTGnChannel`	Filter signal through 802.11n multipath fading channel
`wlanTGacChannel`	Filter signal through 802.11ac multipath fading channel
`wlanTGahChannel`	Filter signal through 802.11ah multipath fading channel
`wlanTGaxChannel`	Filter signal through 802.11ax multipath fading channel
`wlanTGayChannel`	Filter signal through 802.11ay multipath fading channel

WLAN Channel Models
Using WLAN channel models to add channel impairments to WLAN transmissions.
Delay Profile and Fluorescent Lighting Effects
Demonstrate the impact of changing TGac delay profile and how fluorescent lighting affects channel response.

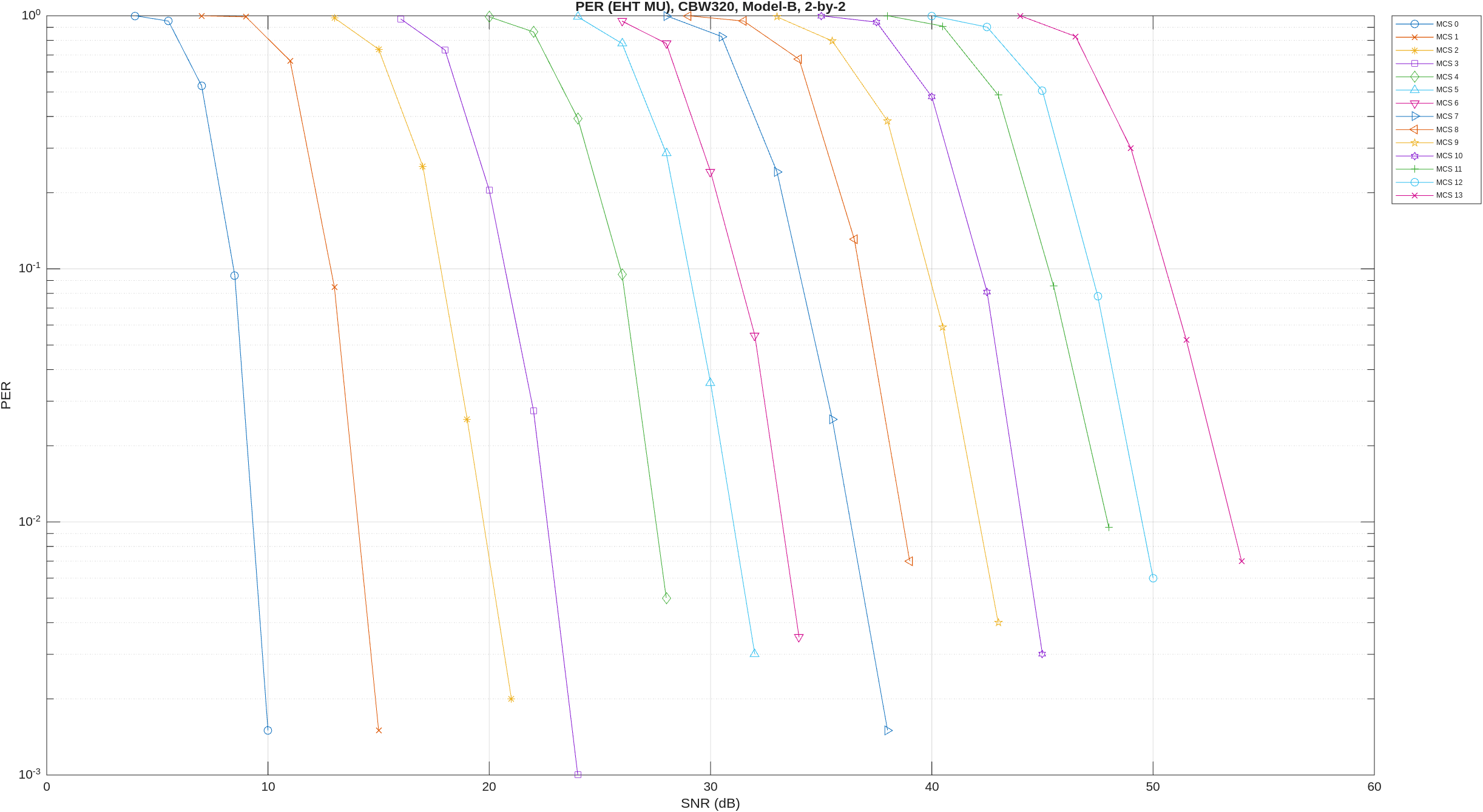

Measure the packet error rate of an IEEE 802.11be™ EHT SU link.

Measure the packet error rate of an IEEE 802.11ax™ HE SU link.

Measure the packet error rate of an IEEE 802.11ad™ single-carrier link by using and end-to-end simulation with a TGay channel.

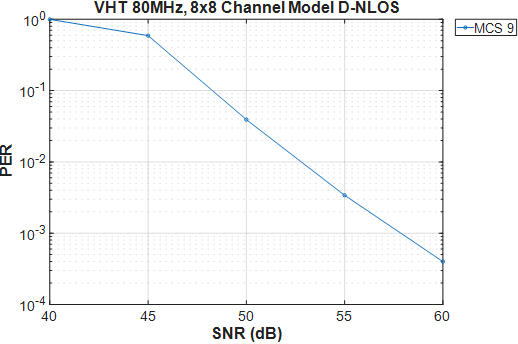

Measure the packet error rate of an IEEE 802.11ac™ link by using an end-to-end simulation with a TGac channel.

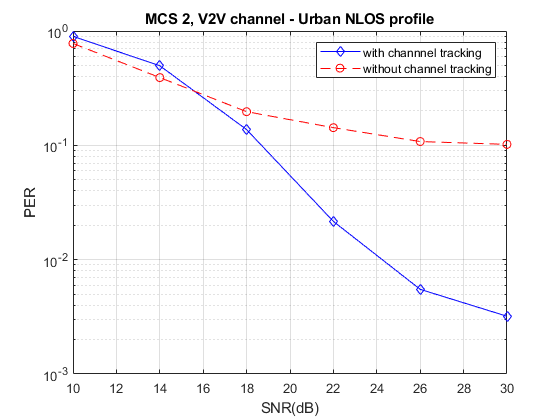

Measure the PER of an IEEE 802.11p™ link by using an end-to-end simulation with a V2V fading channel with AWGN.

Measure the packet error rate of an IEEE 802.11ah™ link by using an end-to-end simulation with a TGah channel.

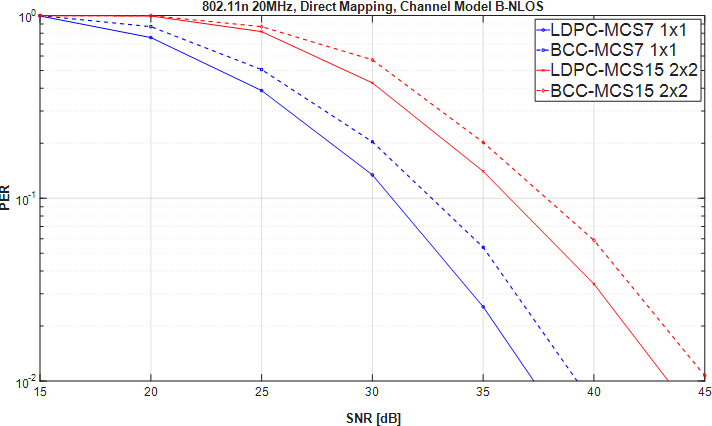

Measure the packet error rate of an IEEE 802.11n™ link by using an end-to-end simulation with a TGn channel.
