# wpbmpen

Penalized threshold for wavelet packet denoising

## Syntax

``thr = wpbmpen(t,sigma,alpha)``
``thr = wpbmpen(t,sigma,alpha,ARG)``

## Description

example

````thr = wpbmpen(t,sigma,alpha)` returns a global threshold for denoising. `t` is a wavelet packet tree corresponding to the wavelet packet decomposition of the signal or image you want to denoise. `sigma` and `alpha` are parameters in a penalization method used to obtain the threshold. For more information, see Penalized Criterion.```
````thr = wpbmpen(t,sigma,alpha,ARG)`, where `ARG` is arbitrary, also plots three curves (see Penalized Criterion): ```2×sigma^2×t×(alpha + log(n/t))````sum(c(k)^2,k≤t)``crit(t)` ```

## Examples

collapse all

Denoise Signal

Load a noisy chirp signal.

```load noischir x = noischir;```

Obtain the wavelet packet decomposition of the signal at level 5 using the `sym6` wavelet.

```wname = "sym6"; lev = 5; t = wpdec(x,lev,wname);```

Estimate the noise standard deviation from the detail coefficients at level 1, corresponding to node index 2.

```det1 = wpcoef(t,2); sigma = median(abs(det1))/0.675;```

Use `wpbmpen` to select the global thresholding for denoising, using the recommended value of `alpha`.

```alpha = 2; thr = wpbmpen(t,sigma,alpha)```
```thr = 4.5740 ```

Use `wpdencmp` to denoise the signal using the threshold. Use soft thresholding and keep the approximation.

```keepapp = 1; xd = wpdencmp(t,"s","nobest",thr,keepapp);```

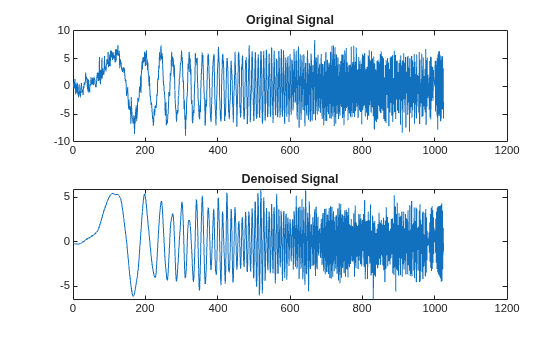

Plot the original and denoised signals.

```tiledlayout(2,1) nexttile plot(x) title("Original Signal") nexttile plot(xd) title("Denoised Signal")```

Denoise Image

```load flower img = flower.Noisy;```

Obtain the wavelet packet decomposition of the image at level 3 using the `coif2` wavelet.

```wname = "coif2"; lev = 3; t = wpdec2(img,lev,wname);```

Estimate the noise standard deviation from the detail coefficients at level 1.

```det1 = [wpcoef(t,2) wpcoef(t,3) wpcoef(t,4)]; sigma = median(abs(det1(:)))/0.6745;```

Use `wpbmpen` to select the global thresholding for denoising.

```alpha = 1.1; thr = wpbmpen(t,sigma,alpha)```
```thr = 0.2050 ```

Use `wpdencmp` to denoise the image using the threshold. Use soft thresholding and keep the approximation.

```keepapp = 1; xd2 = wpdencmp(t,"s","nobest",thr,keepapp);```

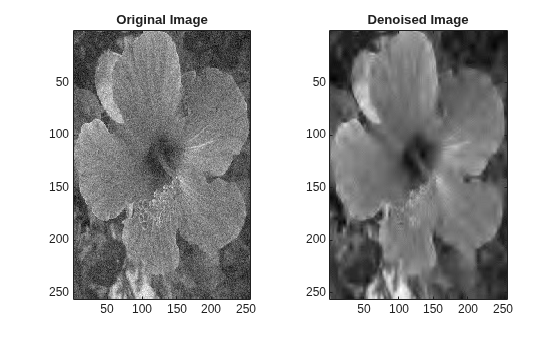

Plot the original and denoised images.

```figure colormap(gray) tiledlayout(1,2) nexttile imagesc(img) title("Original Image") nexttile imagesc(xd2) title("Denoised Image")```

## Input Arguments

collapse all

Wavelet packet tree corresponding to the wavelet packet decomposition of the signal or image to be denoised, specified as a `wptree` object.

Example: `t = wpdec(x,5,"sym4")`

Standard deviation of the zero mean Gaussian white noise in the denoising model, specified as a scalar. For more information, see `wnoisest` and Penalized Criterion.

Data Types: `double`

Tuning parameter for the penalty term, specified as a scalar greater than 1. The sparsity of the wavelet representation of the denoised signal or image grows with `alpha`. Typically, `alpha` equals 2. For more information, see Penalized Criterion.

Data Types: `double`

## Output Arguments

collapse all

Global threshold for denoising, returned as a scalar. `thr` is obtained by a wavelet coefficients selection rule using a penalization method provided by Birgé-Massart. For more information, see Penalized Criterion.

collapse all

### Penalized Criterion

The global threshold `thr` is obtained by a wavelet coefficients selection rule using a penalization method provided by Birgé-Massart.

The global threshold minimizes the penalized criterion given by the following:

Let `t`* be the minimizer of

```crit(t) = -sum(c(k)^2,k≤t) + 2×sigma^2×t×(alpha + log(n/t)), ```
where `c`(k) are the wavelet coefficients sorted in decreasing order of their absolute value, and `n` is the number of coefficients; then `thr` = |`c`(t*)|.

## References

[1] Birgé, Lucien, and Pascal Massart. “From Model Selection to Adaptive Estimation.” In Festschrift for Lucien Le Cam, edited by David Pollard, Erik Torgersen, and Grace L. Yang, 55–87. New York, NY: Springer New York, 1997. https://doi.org/10.1007/978-1-4612-1880-7_4.

## Version History

Introduced before R2006a
