trainYOLOv3ObjectDetector

Train YOLO v3 object detector

Since R2024a

Syntax

detector = trainYOLOv3ObjectDetector(trainingData,detector,options)

detector = trainYOLOv3ObjectDetector(trainingData,checkpoint,options)

[detector,info] = trainYOLOv3ObjectDetector(___)

[___] = trainYOLOv3ObjectDetector(___,Name=Value)

Description

detector = trainYOLOv3ObjectDetector(trainingData,detector,options) returns an object detector trained using the you only look once version 3 (YOLO v3) network specified by detector. The input detector can be an untrained or pretrained YOLO v3 object detector. The options input specifies training parameters for the detection network.

You can also use this syntax to fine-tune a pretrained YOLO v3 object detector.

detector = trainYOLOv3ObjectDetector(trainingData,checkpoint,options) resumes training from the saved detector checkpoint.

You can use this syntax to:

• Add more training data and continue training.

• Improve training accuracy by increasing the maximum number of iterations.

[detector,info] = trainYOLOv3ObjectDetector(___) also returns information on training progress, using any combination of input arguments from previous syntaxes, such as the training loss and learning rate for each iteration.

[___] = trainYOLOv3ObjectDetector(___,Name=Value) specifies options using one or more name-value arguments in addition to any combination of arguments from previous syntaxes. For example, ExperimentMonitor=[] specifies not to track metrics with Experiment Manager.

Note

This functionality requires Deep Learning Toolbox™. To use the pretrained YOLO v3 deep learning networks trained on COCO dataset, you must install the Computer Vision Toolbox™ Model for YOLO v3 Object Detection from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

Examples

Train YOLO v3 Network for Vehicle Detection

Train a pretrained YOLO v3 object detector to detect vehicles in an image. The object detector uses a tiny YOLO v3 network, trained on the COCO data set as the base network.

Load a .mat file containing training data, and extract the training data into the workspace. The training data is a table in which the first column contains the training images and the remaining columns contain the corresponding labeled bounding boxes.

data = load("vehicleTrainingData.mat");
trainingData = data.vehicleTrainingData;

Specify the directory that contains the training samples. Add the full paths to the filenames in the training data.

dataDir = fullfile(toolboxdir("vision"),"visiondata");
trainingData.imageFilename = fullfile(dataDir,trainingData.imageFilename);

Create an image datastore using the files from the table.

imds = imageDatastore(trainingData.imageFilename);

Create a box label datastore using the label columns from the table.

blds = boxLabelDatastore(trainingData(:,2:end));

Combine the image and box label datastores.

ds = combine(imds,blds);

Specify the anchor boxes to use for training the network. You must assign at least one anchor box to each output layer of the network. Because the tiny YOLO v3 network contains two output layers, specify the anchor boxes as a two-element cell array.

anchorBoxes = {[91 115; 82 106; 58 83];[41 58; 24 32;19 23]};

Specify the names of the classes to detect.

classes = {'vehicle'};

Create a pretrained YOLO v3 deep learning network configured to retrain on the new dataset by using the yolov3ObjectDetector function.

detector = yolov3ObjectDetector("tiny-yolov3-coco",classes,anchorBoxes);
detector.Network

ans =
  dlnetwork with properties:

         Layers: [44×1 nnet.cnn.layer.Layer]
    Connections: [45×2 table]
     Learnables: [48×3 table]
          State: [22×3 table]
     InputNames: {'input'}
    OutputNames: {'convOut1'  'convOut2'}
    Initialized: 1

  View summary with summary.

Specify the training options.

options = trainingOptions("adam", ...
    InitialLearnRate=0.001, ...
    MiniBatchSize=8, ...
    MaxEpochs=30, ...
    BatchNormalizationStatistics="moving", ...
    ResetInputNormalization=false, ...
    VerboseFrequency=30);

Retrain the pretrained YOLO v3 network on the new data set by using the trainYOLOv3ObjectDetector function.

trainedDetector = trainYOLOv3ObjectDetector(ds,detector,options);

*************************************************************************
Training a YOLO v3 Object Detector for the following object classes:

* vehicle


    Epoch    Iteration    TimeElapsed    LearnRate    TrainingLoss
    _____    _________    ___________    _________    ____________
      1         30         00:00:39        0.001         27.477
      2         60         00:01:21        0.001         12.281
      3         90         00:01:59        0.001         7.3423
      4         120        00:02:36        0.001         5.5316
      5         150        00:03:13        0.001         4.6442
      5         180        00:03:50        0.001         3.532
      6         210        00:04:27        0.001          5.46
      7         240        00:05:04        0.001         3.7652
      8         270        00:05:41        0.001         2.0736
      9         300        00:06:18        0.001         2.8613
      9         330        00:06:54        0.001         2.1912
     10         360        00:07:31        0.001         1.7878
     11         390        00:08:08        0.001         1.6713
     12         420        00:08:44        0.001         1.0196
     13         450        00:09:20        0.001         1.4047
     13         480        00:09:57        0.001         1.2047
     14         510        00:10:33        0.001         1.0924
     15         540        00:11:10        0.001         1.0899
     16         570        00:11:47        0.001        0.80751
     17         600        00:12:23        0.001        0.77776
     18         630        00:12:59        0.001        0.92279
     18         660        00:13:36        0.001         0.6374
     19         690        00:14:12        0.001        0.64517
     20         720        00:14:49        0.001        0.52645
     21         750        00:15:26        0.001        0.61458
     22         780        00:16:03        0.001        0.65221
     22         810        00:16:39        0.001        0.69775
     23         840        00:17:16        0.001        0.51352
     24         870        00:17:52        0.001        0.82176
     25         900        00:18:29        0.001        0.86924
     26         930        00:19:05        0.001         0.887
     26         960        00:19:42        0.001        0.57564
     27         990        00:20:18        0.001        0.40471
     28        1020        00:20:55        0.001        0.37672
     29        1050        00:21:31        0.001        0.28895
     30        1080        00:22:07        0.001        0.54886
     30        1110        00:22:44        0.001         0.4914

*************************************************************************
Detector training complete.
*************************************************************************

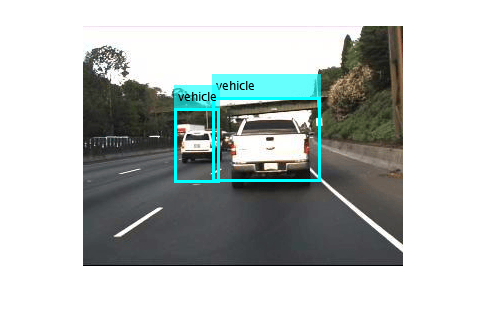

Read a test image. Use the trained YOLO v3 object detector to detect vehicles and display the detection results.

I = imread('highway.png');
[bboxes, scores, labels] = detect(trainedDetector,I,Threshold=0.05);
results = table(bboxes,labels,scores)

results=2×3 table
             bboxes             labels     scores
    ________________________    _______    _______

    131     73    107     83    vehicle    0.15463
     93     84     44     73    vehicle    0.12592

detectedImg = insertObjectAnnotation(I,"Rectangle",bboxes,labels,LineWidth=3,AnnotationColor="cyan");
figure
imshow(detectedImg)

Fine-Tune YOLO v3 Network for Multiclass Object Detection

Perform transfer learning to fine-tune a pretrained YOLO v3 object detector by freezing its backbone. The detector has been trained for detecting stop signs and the front views and rear views of cars in an image. The detector uses a DarkNet-53 network, trained on the COCO data set, as the base network.

Load a .mat file containing training data, and extract the training data into the workspace. The training data is a table in which the first column contains the training images and the remaining columns contain the corresponding labeled bounding boxes.

data = load("stopSignsAndCars.mat");
trainingData = data.stopSignsAndCars;

Specify the directory that contains the training samples. Add the full paths to the filenames in the training data.

dataDir = fullfile(toolboxdir("vision"),"visiondata");
trainingData.imageFilename = fullfile(dataDir,trainingData.imageFilename);

Create an image datastore using the files from the table.

imds = imageDatastore(trainingData.imageFilename);

Create a box label datastore using the label columns from the table.

blds = boxLabelDatastore(trainingData(:,2:end));

Combine the image and box label datastores.

ds = combine(imds,blds);

Specify the input size to use for resizing the training images. You must also resize the bounding boxes based on the specified input size.

inputSize = [224 224 3];

Resize and rescale the training images and bounding boxes by using the preprocessData helper function. Convert the preprocessed data to a datastore object by using the transform function.

trainingDataForEstimation = transform(ds,@(data)preprocessData(data,inputSize));

Specify the anchor boxes to use for training the network. You must assign at least one anchor box to each output layer of the network. Because the darknet53-coco YOLO v3 network contains three output layers, specify the anchor boxes as a three-element cell array.

numAnchors = 9;
[anchors,meanIoU] = estimateAnchorBoxes(trainingDataForEstimation,numAnchors);

Use larger anchor boxes at lower scale and smaller anchor boxes at higher scale output layers. To do so, sort anchors by area, in descending order, and assign the first three to the first output layer, the next three to the second output layer, and the last three to the third output layer of the network.

area = anchors(:,1).*anchors(:,2);
[~,idx] = sort(area,"descend");
anchors = anchors(idx,:);
anchorBoxes = {anchors(1:3,:); anchors(4:6,:); anchors(7:9,:)};

Specify the names of the classes to detect.

classes = {'stopSign','carRear','carFront'};

Create a pretrained YOLO v3 deep learning network configured to retrain on the new dataset by using the yolov3ObjectDetector function.

detector = yolov3ObjectDetector("darknet53-coco",classes,anchorBoxes,InputSize=inputSize);
detector.Network

ans =
  dlnetwork with properties:

         Layers: [247×1 nnet.cnn.layer.Layer]
    Connections: [273×2 table]
     Learnables: [294×3 table]
          State: [144×3 table]
     InputNames: {'input'}
    OutputNames: {'convOut1'  'convOut2'  'convOut3'}
    Initialized: 1

  View summary with summary.

Specify the training options.

options = trainingOptions("sgdm", ...
    InitialLearnRate=0.0001, ...
    MiniBatchSize=4, ...
    MaxEpochs=30, ...
    BatchNormalizationStatistics="moving", ...
    ResetInputNormalization=false, ...
    VerboseFrequency=30);

Retrain the pretrained YOLO v3 network on the new data set by using the trainYOLOv3ObjectDetector function. To freeze the backbone of the pretrained YOLO v3 network during training, specify the FreezeSubNetwork name-value argument to "backbone". The weights of the frozen backbone layers do not change during training, which increases training speed and reduces GPU memory consumption.

trainedDetector = trainYOLOv3ObjectDetector(ds,detector,options,FreezeSubNetwork="backbone");

*************************************************************************
Training a YOLO v3 Object Detector for the following object classes:

* stopSign
* carRear
* carFront


    Epoch    Iteration    TimeElapsed    LearnRate    TrainingLoss
    _____    _________    ___________    _________    ____________
      3         30         00:00:30       0.0001          35.9
      6         60         00:00:58       0.0001         4.8118
      9         90         00:01:26       0.0001         2.5195
     11         120        00:01:54       0.0001         2.5046
     14         150        00:02:22       0.0001         2.4547
     17         180        00:02:50       0.0001         2.8295
     20         210        00:03:19       0.0001         4.031
     22         240        00:03:47       0.0001        0.76425
     25         270        00:04:16       0.0001        0.86645
     28         300        00:04:44       0.0001         1.7476
     30         330        00:05:13       0.0001         0.7068

*************************************************************************
Detector training complete.
*************************************************************************

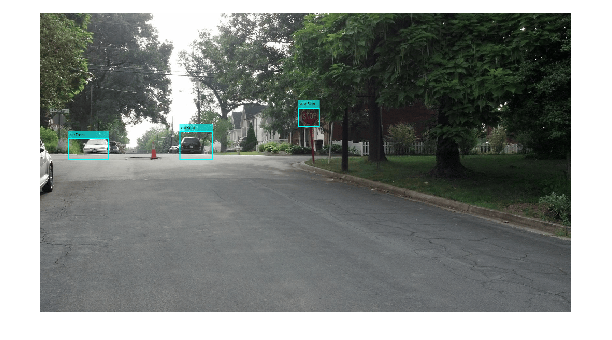

Read a test image. Use the fine-tuned YOLO v3 object detector to detect the stop signs and the front views and rear views of cars, and display the detection results.

I = imread("Test_Image.jpg");
[bboxes,scores,labels] = detect(trainedDetector,I,Threshold=0.2);
detectedImg = insertObjectAnnotation(I,"Rectangle",bboxes,labels,LineWidth=3,AnnotationColor="cyan");
results = table(bboxes,labels,scores)

results=3×3 table
             bboxes              labels     scores
    ________________________    ________    _______

     88    388    124     65    carFront    0.39835
    430    366    102     87    carRear     0.72145
    795    293     65     58    stopSign    0.97976

figure
imshow(detectedImg)

Supporting Function

function data = preprocessData(data,targetSize)
for num = 1:size(data,1)
    I = data{num,1};
    imgSize = size(I);
    bboxes = data{num,2};
    I = im2single(imresize(I,targetSize(1:2)));
    scale = targetSize(1:2)./imgSize(1:2);
    bboxes = bboxresize(bboxes,scale);
    data(num,1:2) = {I bboxes};
end
end

Input Arguments

trainingData — Labeled ground truth images

datastore

Labeled ground truth images, specified as a datastore. Data must be set up so that calling the datastore with the read and readall functions returns a cell array or table with three columns in the format {data boxes labels}.

The first column, data, must contain the image data, stored as a cell array. The second column, boxes, must contain the bounding boxes, stored as a matrix with dimensions determined by the type of bounding box. The third column, labels, must be a cell array in which each cell contains an M-by-1 categorical vector of object class names, where M is the number of bounding boxes. All the categorical data returned by the datastore must use the same categories.

This table describes the format of each element of the bounding boxes column.

Bounding Box	Description
Axis-aligned rectangle	Defined in spatial coordinates as an M-by-4 numeric matrix with rows of the form [x y w h], where: M is the number of axis-aligned rectangles. x and y specify the upper-left corner of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis. h specifies the height of the rectangle, which is its length along the y-axis.
Rotated rectangle	Defined in spatial coordinates as an M-by-5 numeric matrix with rows of the form [xctr yctr w h yaw], where: M is the number of rotated rectangles. xctr and yctr specify the center of the rectangle. w specifies the width of the rectangle, which is its length along the x-axis before rotation. h specifies the height of the rectangle, which is its length along the y-axis before rotation. yaw specifies the rotation angle in degrees. The rotation is clockwise-positive around the center of the bounding box.

For more information, see Datastores for Deep Learning (Deep Learning Toolbox).

Note

You can convert a pretrained, axis-aligned network to a rotated rectangle network by providing rotated rectangle training data. When you provide the rotated rectangle training data, the trainYOLOv3ObjectDetector function fine-tunes the network, enabling the rotated rectangle detections.

detector — Pretrained or untrained YOLO v3 object detector

yolov3ObjectDetector object

Pretrained or untrained YOLO v3 object detector, specified as a yolov3ObjectDetector object.

options — Training options

TrainingOptionsSGDM object | TrainingOptionsRMSProp object | TrainingOptionsADAM object

Training options, specified as a TrainingOptionsSGDM, TrainingOptionsRMSProp, or TrainingOptionsADAM object returned by the trainingOptions (Deep Learning Toolbox) function. To specify the solver name and other options for network training, use the trainingOptions function. You must set the BatchNormalizationStatistics property of the object to "moving".

checkpoint — Saved detector checkpoint

yolov3ObjectDetector object

Saved detector checkpoint, specified as a yolov3ObjectDetector object. To periodically save a detector checkpoint during training as a MAT file, specify a location for the file using the CheckpointPath property of the training options object options. To control how frequently the detector saves checkpoints, use the CheckPointFrequency and CheckPointFrequencyUnit properties of the training options object.

To load a checkpoint for a previously trained detector, load the MAT file from the checkpoint path. For example, this code loads the checkpoint MAT file of a detector from the "checkpath" folder in the current working directory to which the detector saves checkpoints during training.

data = load("checkpath/net_checkpoint__6__2023_11_17__16_03_08.mat");
checkpoint = data.net;

The name of each MAT file includes the iteration number and timestamp at which the detector saves the checkpoint. The file stores the detector in the net variable. To continue training the network, specify the detector extracted from the file to the trainYOLOv3ObjectDetector function:

yoloDetector = trainYOLOv3ObjectDetector(trainingData,checkpoint,options);

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: ExperimentMonitor=[] specifies not to track metrics with Experiment Manager.

FreezeSubNetwork — Subnetworks to freeze

"none" (default) | "backbone" | "backboneAndNeck"

Subnetworks to freeze during training, specified as one of these values:

• "none" — Do not freeze subnetworks.

• "backbone" — Freeze the feature extraction subnetwork.

• "backboneAndNeck" — Freeze both the feature extraction and the path aggregation subnetworks.

The weight of layers in frozen subnetworks does not change during training.

Note

You cannot use the FreezeSubNetwork argument values "backbone" and "backboneAndNeck" with a custom YOLO v3 object detector created using the syntax yolov3ObjectDetector(net,classes,aboxes).

ExperimentMonitor — Detector training experiment monitoring

[] (default) | experiments.Monitor object

Detector training experiment monitoring, specified as an experiments.Monitor (Deep Learning Toolbox) object for use with the Experiment Manager (Deep Learning Toolbox) app. You can use this object to track the progress of training, update information fields in the training results table, record values of the metrics used by the training, and to produce training plots. For an example using this app, see Train Object Detectors in Experiment Manager.

The app monitors this Information during training:

• Training loss at each iteration

• Learning rate at each iteration

• Validation loss at each iteration, if the options input contains validation data

Output Arguments

detector — Trained YOLO v3 object detector

yolov3ObjectDetector object

Trained YOLO v3 object detector, returned as a yolov3ObjectDetector object. You can train a YOLO v3 object detector to detect multiple object classes.

info — Training progress information

structure array

Training progress information, returned as a structure array with these fields. Each field corresponds to a stage of training.

• TrainingLoss — Training loss at each iteration. The trainYOLOv3ObjectDetector function uses mean square error for computing bounding box regression loss and cross-entropy for computing classification loss.

• BaseLearnRate — Learning rate at each iteration.

• OutputNetworkIteration — Iteration number of the returned network.

• ValidationLoss — Validation loss at each iteration.

• FinalValidationLoss — Final validation loss at the end of the training.

Each field is a numeric vector with one element per training iteration. If the function does not calculate a metric at a specific iteration, the corresponding element of that vector has a value of NaN. The structure contains the ValidationLoss and FinalValidationLoss fields only when options specifies validation data.

Tips

• To generate the ground truth, use the Image Labeler or Video Labeler app. To create a table of training data from the generated ground truth, use the objectDetectorTrainingData function.

• Use these processes to improve prediction accuracy:

  • Increase the number of images you use to train the network. You can expand the training data set through data augmentation. For information on how to apply data augmentation for preprocessing, see Preprocess Images for Deep Learning (Deep Learning Toolbox).

  • Choose anchor boxes appropriate to the training dataset. You can use the estimateAnchorBoxes function to compute anchor boxes directly from the training data.

• When you train a rotated rectangle bounding box detector, use a learning rate approximately one order of magnitude below that of its axis-aligned counterpart.

• When you perform transfer learning using a YOLO v3 object detector, consider freezing the subnetworks using the FreezeSubNetwork name-value argument to increase training speed and reduce GPU memory consumption.

Version History

Introduced in R2024a
