Color Space Conversion

Convert color space of image

• Library:
• Computer Vision Toolbox / Conversions

Description

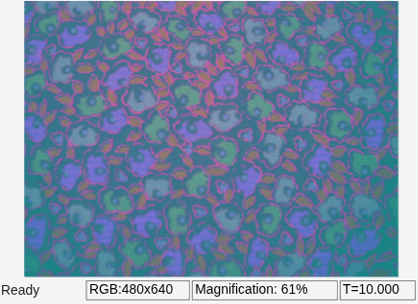

The Color Space Conversion block converts color information between color spaces. Use the Conversion parameter to specify the color spaces you are converting between.

Ports

Input

expand all

Input image, specified as an M-by-N-by-C array, where C is the number of color channels in the input image.

Data Types: `single` | `double` | `uint8`

Red color component of image, specified as an M-by-N matrix.

Note

Inputs to the R', G', and B' ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `R'G'B' to Y'CbCr`

• `R'G'B' to intensity`

• `R'G'B' to HSV`

• `sR'G'B' to XYZ`

• `sR'G'B' to L*a*b*`

Data Types: `single` | `double` | `uint8`

Green color component of image, specified as an M-by-N matrix.

Note

Inputs to the R', G', and B' ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `R'G'B' to Y'CbCr`

• `R'G'B' to intensity`

• `R'G'B' to HSV`

• `sR'G'B' to XYZ`

• `sR'G'B' to L*a*b*`

Data Types: `single` | `double` | `uint8`

Blue color component of image, specified as an M-by-N matrix.

Note

Inputs to the R', G', and B' ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `R'G'B' to Y'CbCr`

• `R'G'B' to intensity`

• `R'G'B' to HSV`

• `sR'G'B' to XYZ`

• `sR'G'B' to L*a*b*`

Data Types: `single` | `double` | `uint8`

Luma component of image, specified as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```Y'CbCr to R'G'B'```.

Data Types: `single` | `double` | `uint8`

Blue-difference chroma component of image, specified as an M-by-D matrix, where D is half the width of the image.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```Y'CbCr to R'G'B'```.

Data Types: `single` | `double` | `uint8`

Red-difference chroma component of image, specified as an M-by-D matrix, where D is half the width of the image.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```Y'CbCr to R'G'B'```.

Data Types: `single` | `double` | `uint8`

Hue component of image, specified as an M-by-N matrix.

Note

Inputs to the H, S, and V ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```HSV to R'G'B'```.

Data Types: `single` | `double`

Saturation component of image, specified as an M-by-N matrix.

Note

Inputs to the H, S, and V ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```HSV to R'G'B'```.

Data Types: `single` | `double`

Brightness component of image, specified as an M-by-N matrix.

Note

Inputs to the H, S, and V ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```HSV to R'G'B'```.

Data Types: `single` | `double`

X component of image, specified as an M-by-N matrix.

Note

Inputs to the X, Y, and Z ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```XYZ to sR'G'B'```.

Data Types: `single` | `double`

Y component of image, specified as an M-by-N matrix.

Note

Inputs to the X, Y, and Z ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```XYZ to sR'G'B'```.

Data Types: `single` | `double`

Z component of image, specified as an M-by-N matrix.

Note

Inputs to the X, Y, and Z ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```XYZ to sR'G'B'```.

Data Types: `single` | `double`

Lightness component of image, specified as an M-by-N matrix.

Note

Inputs to the L*, a*, and b* ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```L*a*b* to sR'G'B'```.

Data Types: `single` | `double`

Red-green component of image, specified as an M-by-N matrix.

Note

Inputs to the L*, a*, and b* ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```L*a*b* to sR'G'B'```.

Data Types: `single` | `double`

Yellow-blue component of image, specified as an M-by-N matrix.

Note

Inputs to the L*, a*, and b* ports must have the same dimensions and data type as one another.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```L*a*b* to sR'G'B'```.

Data Types: `single` | `double`

Output

expand all

Output image, returned as an M-by-N-by-P array, where P is the number of color channels in the output image. For Y'CbCr output, the value range for the Y component differs from those of the Cb and Cr components.

• If the input is `uint8`, then Y'CbCr is `uint8`. `Y'` is in the range ```[16, 235]```, and `Cb` and `Cr` are in the range `[16, 240]`.

• If the input is `double`, then `Y'CbCr` is `double`. `Y'` is in the range `[16/255, 235/255]`, and `Cb` and `Cr` are in the range ```[16/255, 240/255]```.

Data Types: `single` | `double` | `int8` | `uint8`

Red color component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `Y'CbCr to R'G'B'`

• `HSV to R'G'B'`

• `XYZ to sR'G'B'`

• `L*a*b* to sR'G'B'`

.

Data Types: `single` | `double` | `int8` | `uint8`

Green color component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `Y'CbCr to R'G'B'`

• `HSV to R'G'B'`

• `XYZ to sR'G'B'`

• `L*a*b* to sR'G'B'`

Data Types: `single` | `double` | `int8` | `uint8`

Blue color component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to one of these options:

• `Y'CbCr to R'G'B'`

• `HSV to R'G'B'`

• `XYZ to sR'G'B'`

• `L*a*b* to sR'G'B'`

.

Data Types: `single` | `double` | `int8` | `uint8`

Luma component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to Y'CbCr```.

Data Types: `single` | `double` | `int8` | `uint8`

Blue-difference chroma component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to Y'CbCr```.

Data Types: `single` | `double` | `int8` | `uint8`

Red-difference chroma component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to Y'CbCr```.

Data Types: `single` | `double` | `int8` | `uint8`

Intensity image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to intensity```.

Data Types: `single` | `double` | `int8` | `uint8`

Hue component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to HSV```.

Data Types: `single` | `double`

Saturation component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to HSV```.

Data Types: `single` | `double`

Brightness component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```R'G'B' to HSV```.

Data Types: `single` | `double`

X component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to XYZ```.

Data Types: `single` | `double`

Y component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to XYZ```.

Data Types: `single` | `double`

Z component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to XYZ```.

Data Types: `single` | `double`

Lightness component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to L*a*b*```.

Data Types: `single` | `double`

Red-green component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to L*a*b*```.

Data Types: `single` | `double`

Yellow-blue component of image, returned as an M-by-N matrix.

Dependencies

To enable this port, set the Image signal parameter to `Separate color signals` and set the Conversion parameter to ```sR'G'B' to L*a*b*```.

Data Types: `single` | `double`

Parameters

expand all

Specify which color space to convert the image from and to using these options:

• `R'G'B' to Y'CbCr`

• `Y'CbCr to R'G'B'`

• `R'G'B' to intensity`

• `B'G'R' to intensity`

• `B'G'R' to R'G'B'`

• `R'G'B' to B'G'R'`

• `R'G'B' to HSV`

• `HSV to R'G'B'`

• `sR'G'B' to XYZ`

• `XYZ to sR'G'B'`

• `sR'G'B' to L*a*b*`

• `L*a*b* to sR'G'B'`

Note

The prime notation indicates that the signal is gamma corrected.

Specify the color conversion standard for converting the image between the R'G'B' and Y'CbCr color spaces as either `Rec. 601 (SDTV)` or `Rec. 709 (HDTV)`.

Dependencies

To enable this parameter, set the Conversion parameter to `R'G'B' to Y'CbCr` or ```Y'CbCr to R'G'B'```.

Specify the scanning standard for converting the image between the R'G'B' and Y'CbCr color spaces as either `1125/60/2:1` or `1250/50/2:1`.

Dependencies

To enable this parameter, set the Conversion parameter to `R'G'B' to Y'CbCr` or ```Y'CbCr to R'G'B'``` and set the Use conversion specified by parameter to `Rec. 709 (HDTV)`.

Specify the reference white point for converting the image between the sR'G'B' and L*a*b* color spaces as `D50`, `D55`, or `D65`.

Dependencies

To enable this parameter, set the Conversion parameter to `sR'G'B' to L*a*b*` or ```L*a*b* to sR'G'B'```.

Specify whether to combine the color channels of the image into one signal or input and output them individually.

• `One multidimensional signal` — The block accepts all color channels of the input image as a multidimensional array to a single input port, and outputs the converted image as a single matrix or array from a single output port.

• `Separate color signals` — The block accepts each color channel of the input image to a separate input port, and outputs each color channel of the converted image from a separate output port.

Block Characteristics

 Data Types `Boolean` | `double` | `integer` | `single` | `image` Multidimensional Signals `yes` Variable-Size Signals `yes`

expand all

References

[1] Poynton, Charles A. A Technical Introduction to Digital Video. New York: John Wiley & Sons, 1996.

[2] International Telecommunication Union (ITU). Studio Encoding Parameters of Digital Television for Standard 4:3 and Wide-Screen 16:9 Aspect Ratios. Recommendation ITU-R BT.601-5. Geneva, Switzerland: ITU, recommended October 1995; superseded January 2007.

[3] International Telecommunication Union (ITU). Parameter Values for the HDTV Standards for Production and International Programme Exchange. Recommendation ITU-R BT.709-5. Geneva, Switzerland: ITU, recommended April 2002; superseded June 2015.

[4] Stokes, Michael, Matthew Anderson, Srinivasan Chandrasekar, and Ricardo Motta. “A Standard Default Color Space for the Internet - sRGB. World Wide Web Consortium (W3C).” November 5, 1996. https://www.w3.org/Graphics/Color/sRGB.html

[5] Berns, Roy S., Fred W. Billmeyer, Max Saltzman, and Fred W. Billmeyer. Billmeyer and Saltzman’s Principles of Color Technology. 3rd ed. New York: Wiley, 2000.

Version History

Introduced before R2006a
