rgb2hsv

Convert RGB colors to HSV

Syntax

HSV = rgb2hsv(RGB)
hsvmap = rgb2hsv(rgbmap)

Description

example

HSV = rgb2hsv(RGB) converts the red, green, and blue values of an RGB image to hue, saturation, and value (HSV) values of an HSV image.

example

hsvmap = rgb2hsv(rgbmap) converts an RGB colormap to an HSV colormap.

Examples

collapse all

Get a down-sampled version of the prism colormap.

rgb = prism(6)
rgb = 6×3

    1.0000         0         0
    1.0000    0.5000         0
    1.0000    1.0000         0
         0    1.0000         0
         0         0    1.0000
    0.6667         0    1.0000

Convert the RGB values in the colormap to HSV.

hsv = rgb2hsv(rgb)
hsv = 6×3

         0    1.0000    1.0000
    0.0833    1.0000    1.0000
    0.1667    1.0000    1.0000
    0.3333    1.0000    1.0000
    0.6667    1.0000    1.0000
    0.7778    1.0000    1.0000

Create a 2-by-2 truecolor image.

rgb(:,:,1) = [1 1; 0 .5];
rgb(:,:,2) = [0 1; 0 .5];
rgb(:,:,3) = [0 0; 1 .5];

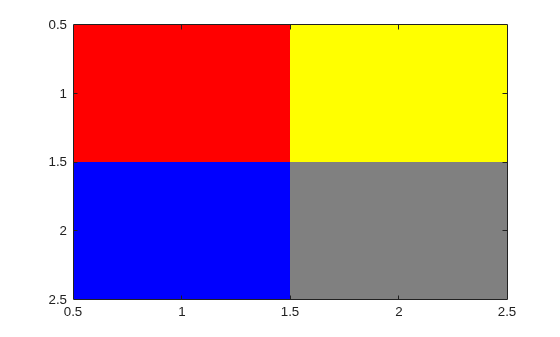

image(rgb);

Convert the image to an HSV array.

hsv = rgb2hsv(rgb)
hsv =
hsv(:,:,1) =

         0    0.1667
    0.6667         0


hsv(:,:,2) =

     1     1
     1     0


hsv(:,:,3) =

    1.0000    1.0000
    1.0000    0.5000

Input Arguments

collapse all

RGB image to convert, specified as an m-by-n-by-3 numeric array. The third dimension of RGB defines the red, green, and blue intensity of each pixel, respectively.

Data Types: single | double | uint8 | uint16

RGB colormap, specified as a c-by-3 numeric matrix with values in the range [0, 1]. Each row of rgbmap is a three-element RGB triplet that specifies the red, green, and blue components of a single color of the colormap.

Data Types: double

Output Arguments

collapse all

HSV image, returned as an m-by-n-by-3 numeric array with values in the range [0, 1]. The third dimension of HSV defines the hue, saturation, and value for each pixel, respectively, as described in the table.

AttributeDescription
HueValue from 0 to 1 that corresponds to the color’s position on a color wheel. As hue increases from 0 to 1, the color transitions from red to orange, yellow, green, cyan, blue, magenta, and finally back to red.
SaturationAmount of hue or departure from neutral. 0 indicates a neutral shade, whereas 1 indicates maximum saturation.
Value

Maximum value among the red, green, and blue components of a specific color.

The data type of HSV depends on the type of RGB:

  • If RGB is of type single, then HSV is of type single.

  • Otherwise, HSV is of type double.

Data Types: double | single

HSV colormap, returned as a c-by-3 numeric matrix with values in the range [0, 1]. Each row of hsvmap is a three-element HSV triplet that specifies the hue, saturation, and value components of a single color of the colormap.

The data type depends on the type of rgbmap:

  • If rgbmap is of type single, then hsvmap is of type single.

  • Otherwise, hsvmap is of type double.

Data Types: single | double

References

[1] Smith, A. R. “Color Gamut Transform Pairs”. SIGGRAPH 78 Conference Proceedings. 1978, pp. 12–19.
