Model Reference Adaptive Control

Compute control actions to make controlled system track reference model

Since R2021b

•

Libraries:
Simulink Control Design / Adaptive Control

Description

The Model Reference Adaptive Control block computes control actions to make an uncertain controlled system track the behavior of a given reference plant model. Using this block, you can implement the following model reference adaptive control (MRAC) algorithms.

• Direct MRAC — Estimate the following controller gains and compute control actions using the estimated controller.

  • Feedback gains that relate the state of the controlled system to the control signal.

  • Feedforward gains that relate the reference signal to the control signal.

• Indirect MRAC — Estimate the following matrices of the uncertain controlled system and derive control actions based on the estimated model.

  • State matrix A

  • Control effective matrix B

Both direct and indirect MRAC also estimate a model of the external disturbances and uncertainty in the system being controlled and use this model when computing control actions.

In both cases, based on the real-time tracking error, the controller can update the estimated parameters and disturbance model.

For more information, see Model Reference Adaptive Control.

Examples

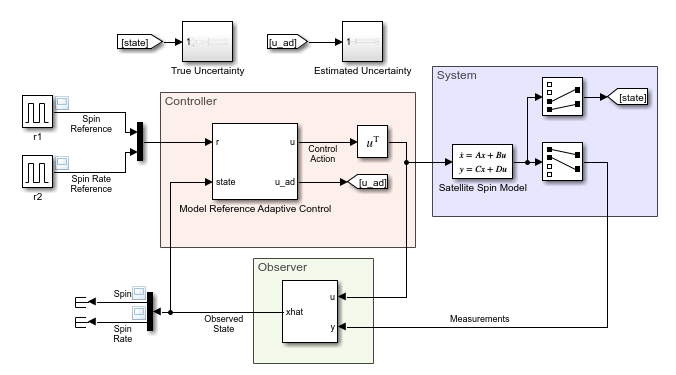

Model Reference Adaptive Control of Satellite Spin

Design an MRAC controller that adapts plant uncertainty model parameters to achieve performance that matches an ideal reference model.

• Open Live Script

Model Reference Adaptive Control of Aircraft Undergoing Wing Rock

Design an MRAC controller that adapts disturbance model parameters to achieve performance matching an ideal reference model.

• Open Live Script

Indirect Model Reference Adaptive Control of First-Order System

Design an indirect MRAC controller that estimates the properties of an unknown first-order system.

• Open Live Script

Indirect MRAC Control of Mass-Spring-Damper System

Design an indirect MRAC controller that estimates the parameters of an unknown MIMO system.

• Open Live Script

Ports

Input

r — Reference signal

scalar signal | vector signal

Provide the reference signal for the controlled system to follow.

state — Controlled system state

vector signal

Provide the current state vector from the controlled system.

phi — Disturbance model features

vector signal | matrix signal

Provide custom disturbance model features.

Dependencies

To enable this input port, set the Feature type parameter to Use External Source for Feature.

Output

u — Control input

scalar signal | matrix signal

Connect the control input signal to the input of the controlled system. The control input is a vector signal with length equal to the number of control inputs in the controlled system.

u_ad — Disturbance and uncertainty estimate

scalar signal | matrix signal

The disturbance and uncertainty estimate is the product of the disturbance model features and the disturbance model weight vector. You can use this signal to compare the estimated disturbance model with the actual disturbances in your system.

Dependencies

To enable this output port, select the Output disturbance/uncertainty estimate parameter.

Ahat — Estimator state matrix

matrix signal

Use this port to output the estimated state matrix for the estimator plant model.

Dependencies

This output port is used for indirect MRAC. To enable this port, first select the Indirect algorithm option. Then, select the Output estimated parameters parameter.

Bhat — Estimator control effective matrix

vector signal | matrix signal

Use this port to output the estimated control effective matrix for the estimator plant model.

Dependencies

This output port is used for indirect MRAC. To enable this port, first select the Indirect algorithm option. Then, select the Output estimated parameters parameter.

Parameters

System

Select an MRAC algorithm and specify nominal, reference, and estimator model dynamics.

A — Nominal model state matrix

0 (default) | square matrix

Specify the state matrix for the nominal model as an N-by-N matrix, where N is the number of states in the controlled system.

Dependencies

This parameter is used for direct MRAC. To enable this parameter, select the Direct algorithm option.

Programmatic Use

Block Parameter: 'A'

Type: character vector

Values: square matrix

Default: '0'

B — Nominal model control effective matrix

1 (default) | vector | matrix

Specify the control effective matrix of the nominal model as a nonzero N-by-M matrix, where N is the number of states in the controlled system and M is the number of control inputs in the controlled system.

Dependencies

This parameter is used for direct MRAC. To enable this parameter, select the Direct algorithm option.

Programmatic Use

Block Parameter: 'B'

Type: character vector

Values: vector | matrix

Default: '1'

Am — Reference model state matrix

-1 (default) | matrix

Specify the state matrix for the reference model as a matrix with the same dimensions as parameter A. For a stable reference model, Am must be a Hurwitz matrix for which every eigenvalue must have a strictly negative real part.

Programmatic Use

Block Parameter: 'Am'

Type: character vector

Values: square matrix

Default: '-1'

Bm — Reference model control effective matrix

1 (default) | vector | matrix

Specify the control effective matrix of the reference model as a nonzero matrix with the same dimensions as parameter B.

Programmatic Use

Block Parameter: 'Bm'

Type: character vector

Values: vector | matrix

Default: '[0;4]'

Ahat — Estimator plant model state matrix

0 (default) | square matrix

Specify the state matrix for the estimator plant model as an N-by-N matrix, where N is the number of states in the controlled system.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'Ahat'

Type: character vector

Values: square matrix

Default: '0'

Adapt Ahat — Option to adapt estimator plant model state matrix

on (default) | off

When you select this parameter, the controller adapts the estimator plant model state matrix.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'ALrEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning rate (gamma_a) — Learning rate for adapting estimator plant model state matrix

1 (default) | finite positive scalar

Use this parameter to control the rate at which the controller adapts the estimator plant model state matrix. A larger value increases the size of the updates.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Ahat parameter.

Programmatic Use

Block Parameter: 'gamma_a'

Type: character vector

Values: finite positive scalar

Default: '1'

Use learning modification — Option to enable learning modification for updating the estimator model state matrix

on (default) | off

To add robustness at higher gains, select this option to add a momentum term to the estimator model state matrix updates. Configure the learning modification on the Learning Modification tab.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Ahat parameter.

Programmatic Use

Block Parameter: 'ALrEnableMod'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Bhat — Estimator plant model control effective matrix

1 (default) | vector | matrix

Specify the control effective matrix of the estimator plant model as a nonzero N-by-M matrix, where N is the number of states in the controlled system and M is the number of control inputs in the controlled system.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'Bhat'

Type: character vector

Values: vector | matrix

Default: '1'

Adapt Bhat — Option to adapt estimator plant model control effective matrix

on (default) | off

When you select this parameter, the controller adapts the estimator plant model control effective matrix.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'BLrEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning rate (gamma_b) — Learning rate for adapting estimator plant model control effective matrix

1 (default) | finite positive scalar

Use this parameter to control the rate at which the controller adapts the estimator plant model control effective matrix. A larger value increases the size of the updates.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Bhat parameter.

Programmatic Use

Block Parameter: 'gamma_a'

Type: character vector

Values: finite positive scalar

Default: '1'

Use learning modification — Option to enable learning modification for updating the estimator model control effective matrix

on (default) | off

To add robustness at higher gains, select this option to add a momentum term to the estimator model control effective matrix updates. Configure the learning modification on the Learning Modification tab.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Adapt Bhat parameter.

Programmatic Use

Block Parameter: 'BLrEnableMod'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Specify estimator feedback gain — Option to enable specification of estimator feedback gain

off (default) | on

To specify the estimator feedback gain, first select this parameter. Then, specify the Estimator feedback gain parameter.

If you do not select this parameter, the estimator uses a default feedback gain equal to the Am parameter.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'externalKTauEnable'

Type: character vector

Values: 'off' | 'on'

Default: 'off'

Estimator feedback gain — Estimator feedback gain

-1 (default) | matrix

To use the Am matrix as the default estimator feedback gain, specify this parameter as -1. Otherwise, specify the feedback gain as a Hurwitz matrix with the same dimensions as Am.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, first select the Indirect algorithm option. Then, select the Specify estimator feedback gain parameter.

Programmatic Use

Block Parameter: 'k_tau'

Type: character vector

Values: -1 | matrix

Default: '-1'

Output estimated parameters — Option to output estimator state and control effective matrices

off (default) | on

Select this parameter to add the Ahat and Bhat output ports for the estimator state and control effective matrix values, respectively.

Dependencies

This parameter is used for indirect MRAC. To enable this parameter, select the Indirect algorithm option.

Programmatic Use

Block Parameter: 'estParamOutput'

Type: character vector

Values: 'off' | 'on'

Default: 'off'

Control Gains

Define initial feedback and feedforward gains for model matching when using direct MRAC. You can configure the block to update these control gains and adjust the corresponding learning rates. To enable the parameters on this tab, select the Direct algorithm option.

Feedback gains — Feedback gains for model matching

0 (default) | finite scalar | matrix of finite values

Initial feedback gain values. If you do not select the Adapt feedback gains parameter, then the controller holds the specified feedback gains at these initial values.

Programmatic Use

Block Parameter: 'kx'

Type: character vector

Values: finite scalar | matrix of finite values

Default: '0'

Adapt feedback gains — Option to adapt feedback gains

on (default) | off

When you select this parameter, the controller adapts the feedback gains based on the difference between the states of the controlled system and the reference model.

Programmatic Use

Block Parameter: 'FBLrEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning rate (gamma_x) — Learning rate for adapting feedback gains

1 (default) | finite positive scalar

Use this parameter to control the rate at which the controller adapts the feedback gains. A larger value increases the size of the gain updates.

Programmatic Use

Block Parameter: 'gamma_kx'

Type: character vector

Values: finite positive scalar

Default: '1'

Use learning modification — Option to enable learning modification for updating the feedback gains

on (default) | off

To add robustness at higher gains, select this option to add a momentum term to the feedback gain updates. Configure the learning modification on the Learning Modification tab.

Programmatic Use

Block Parameter: 'FBLrEnableMod'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Feedforward gains — Feedforward gains for model matching

0 (default) | finite scalar | matrix of finite values

Initial feedforward gain values. If you do not select the Adapt feedforward gains parameter, then the controller holds the specified feedforward gains at these initial values.

Programmatic Use

Block Parameter: 'kr'

Type: character vector

Values: finite scalar | matrix of finite values

Default: '0'

Adapt feedforward gains — Option to adapt feedforward gains

on (default) | off

When you select this parameter, the controller adapts the feedforward gains based on the difference between the states of the controlled system and the reference model.

Programmatic Use

Block Parameter: 'FFLrEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning rate (gamma_r) — Learning rate for adapting feedforward gains

1 (default) | finite positive scalar

Use this parameter to control the rate at which the controller adapts the feedforward gains. A larger value increases the size of the gain updates.

Programmatic Use

Block Parameter: 'gamma_kr'

Type: character vector

Values: finite positive scalar

Default: '1'

Use learning modification — Option to enable learning modification for updating the feedforward gains

on (default) | off

To add robustness at higher gains, select this option to add a momentum term to the feedforward gain updates. Configure the learning modification on the Learning Modification tab.

Programmatic Use

Block Parameter: 'FFLrEnableMod'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Disturbance Model

Configure the disturbance and uncertainty model used by the block. During operation, the block adapts the disturbance model parameters.

Enable disturbance adaptation — Option to enable adaptation to system disturbances and uncertainties

on (default) | off

When you select this parameter, the controller uses a disturbance model to estimate the uncertainty and external disturbances in the controlled system. The controller adapts the parameters of the disturbance model based on the error between the states of the controlled system and reference model.

The disturbance model has the form w^Tϕ(x).

• ϕ(x) is the disturbance model feature vector. To configure the feature vector, use the Feature type parameter.

• w^T is a weighting matrix that contains disturbance model parameters. The controller adjusts its disturbance and uncertainty model by adapting these parameters.

Programmatic Use

Block Parameter: 'AdaptEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning rate (gamma_w) — Learning rate for adapting disturbance model parameters

1 (default) | finite positive scalar

Use this parameter to control the rate at which the controller adapts the disturbance model parameters. A larger value increases the size of the parameter updates.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter.

Programmatic Use

Block Parameter: 'gamma'

Type: character vector

Values: finite positive scalar

Default: '100'

Use learning modification — Option to enable learning modification for updating disturbance model parameters

on (default) | off

To add robustness at higher gains, select this option to add a momentum term to the disturbance parameter updates. Configure the learning modification on the Learning Modification tab.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter.

Programmatic Use

Block Parameter: 'WLrEnableMod'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Channel learning rate (Q) — Channel learning rate used for the Lyapunov solution

1 (default) | finite positive scalar | vector of length N containing positive finite values | symmetric positive definite matrix of size N-by-N

The channel learning rate Q is a weighting matrix for state tracking errors in the Lyapunov function for the error dynamics. The larger the value of Q, the faster the tracking error goes to zero. However, a larger value of Q also creates larger transients and a less robust system.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter.

Programmatic Use

Block Parameter: 'Q'

Type: character vector

Values: finite positive scalar | vector of positive values | symmetric positive definite matrix

Default: '1'

Feature type — Disturbance model feature type

State (default) | Radial Basis Function | Single Hidden Layer Network | Use External Source for Feature

Select one of the following types for the disturbance model feature vector.

• State — Use the states from the controlled plant as the disturbance model. This option can underrepresent the uncertainty and therefore perform poorly.

• Radial Basis Function — Use Gaussian radial basis functions to create the feature vector.

• Single Hidden Layer Network — Use a neural network with a single-hidden layer.

• Use External Source for Feature — Add the phi input port to the block. Use this port to provide your own custom feature vector.

For more information on when to use each type of feature vector, see Disturbance and Uncertainty Model.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter.

Programmatic Use

Block Parameter: 'FeatureTypeOptions'

Type: character vector

Values: 'Radial Basis Function' | 'State' | 'Single Hidden Layer Network' | 'Use External Source for Feature'

Default: 'Radial Basis Function'

Number of RBF centers — Number of radial basis function centers for disturbance model

20 (default) | positive integer

Number of radial basis function (RBF) centers to use in the disturbance model. The RBF centers are evenly spaced across the span defined by the Centers min and Centers max parameters.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Radial Basis Function.

Programmatic Use

Block Parameter: 'nCen'

Type: character vector

Values: positive integer

Default: '20'

Centers min — Lower limit for radial basis function centers

-1 (default) | finite scalar | vector

Specify the lower limits for the radial basis function centers. If you specify a scalar value, the same minimum is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.

The Centers min parameter must be less than the Centers max parameter.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Radial Basis Function.

Programmatic Use

Block Parameter: 'cSpanMin'

Type: character vector

Values: finite scalar | vector

Default: '-1'

Centers max — Upper limit for radial basis function centers

1 (default) | finite scalar | vector

Specify the upper limits for the radial basis function centers. If you specify a scalar value, the same maximum is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.

The Centers max parameter must be greater than the Centers min parameter.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Radial Basis Function.

Programmatic Use

Block Parameter: 'cSpanMax'

Type: character vector

Values: finite scalar | vector

Default: '1'

Bandwidth — Radial basis function standard deviation

5 (default) | positive scalar | vector

Specify the standard deviation for the Gaussian basis function kernel. If you specify a scalar value, the same standard deviation is used for all basis functions. Otherwise, you must specify a vector with length equal to the Number of RBF centers parameter.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Radial Basis Function.

Programmatic Use

Block Parameter: 'cSig'

Type: character vector

Values: positive scalar | vector

Default: '5'

Number of neurons in hidden layer — Number of neurons

10 (default) | positive integer

Specify the number of neurons in the hidden layer of the neural network. In general, a network with more neurons can approximate more complex nonlinear disturbances. Though, too many neurons can produce a noisy disturbance estimate.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Single Hidden Layer Network.

Programmatic Use

Block Parameter: 'shlHiddenLayerSize'

Type: character vector

Values: positive scalar | vector

Default: '10'

Hidden layer learning rate (gamma_v) — Learning rate for updating neural network weights

0.1 (default) | positive scalar

Use this parameter to control the rate at which the controller adapts the weights of the neural network. A larger value increases the size of the weight updates.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter and set the Feature type parameter to Single Hidden Layer Network.

Programmatic Use

Block Parameter: 'gamma_V'

Type: character vector

Values: positive scalar | vector

Default: '0.1'

Output disturbance/uncertancy estimate — Option to output disturbance and uncertainty estimate

on (default) | off

Select this parameter to add the u_ad output port.

Dependencies

To enable this parameter, select the Enable disturbance adaptation parameter.

Programmatic Use

Block Parameter: 'adaptiveCntrlOutport'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Learning Modification

To add robustness at higher gains, you can modify the parameter updates to include a momentum term. The equations in the Parameter Update Equations section show the update formulas for the current block configuration.

Modification Methods — Modification method for updating parameters

None (default) | e-Modification | Sigma Modification

Select one of the following options for computing the momentum term that is added to the parameter updates.

• Sigma Modification — The momentum term is the product of the momentum weight parameter σ and the current parameter values.

• e-Modification — Scale the sigma-modification momentum term by the magnitude of the error value

• None — Do not use learning modification.

To specify σ, use the Sigma parameter.

Programmatic Use

Block Parameter: 'modChoice'

Type: character vector

Values: 'Sigma Modification' | 'e-Modification' | 'None'

Default: 'Sigma Modification'

Sigma — Momentum weight for parameter updates

0.1 (default) | scalar

Specify the value for the momentum weight term. A larger value increases the size of the parameter updates gain and parameter updates.

Dependencies

To enable this parameter, set the Modification Methods parameter to either Sigma Modification or e-Modification.

Programmatic Use

Block Parameter: 'sigma_val'

Type: character vector

Values: finite positive scalar

Default: '0.1'

Use discrete-time integration in adaptation — Use discrete-time integration in adaptation

off (default) | on

Since R2024b

Select to use discrete-time integration for parameter updates. Doing so allows you to generate code for embedded systems that require a user-specified sample time.

Programmatic Use

Block Parameter: 'DiscreteEnable'

Type: character vector

Values: 'on' | 'off'

Default: 'on'

Sample time — Sample time

0.05 (default) | finite positive scalar

Since R2024b

Sample time for discrete-time integration, specified as a finite positive scalar.

Dependencies

To enable this parameter, select the Use discrete-time integration in adaptation parameter.

Programmatic Use

Block Parameter: 'Ts'

Type: character vector

Values: finite positive scalar

Default: '0.05'

Integration method — Discrete integration method

Forward Euler (default) | Backward Euler | Trapezoidal

Since R2024b

Specify the discrete integration formula for calculating the integral in parameter update equations as one of the following:

• Forward Euler — $$\frac{T_s}{z-1}$$

• Backward Euler — $$\frac{T_{s}z}{z-1}$$

• Trapezoidal — $$\frac{T_s}{2}\frac{z+1}{z-1}$$

Dependencies

To enable this parameter, select the Use discrete-time integration in adaptation parameter.

Programmatic Use

Block Parameter: 'IntegrationMethods'

Type: character vector

Values: 'Forward Euler' | 'Backward Euler' | 'Trapezoidal'

Default: 'Forward Euler'

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2021b

R2024b: Support for embedded code generation

You can now configure the Model Reference Adaptive Control block to use discrete-time integration for parameter updates. Doing so allows you to generate code for embedded systems that require a user-specified sample time. To use discrete-time integration, on the Learning Modification tab, enable Use discrete-time integration in adaptation. You can then specify a desired sample time and discrete integration method for parameter updates.

R2023b: Library location changed

The Model Reference Adaptive Control block is now in the Simulink Control Design/Adaptive Control sublibrary.

In R2023b, when you open a model saved in a previous release, the library links for Model Reference Adaptive Control blocks update automatically.

R2023a: Single hidden layer disturbance model

You can now model disturbances and uncertainty in your system using a single hidden layer (SHL) neural network. An SHL neural network is a universal function approximator, which can be useful for modeling unstructured uncertainty in your system.

To learn the disturbance model, the MRAC controller adapts the weights of the hidden layer and output layer of the neural network. You can configure the SHL neural network model by specifying the number of neurons in the hidden layer and the learning rate.

R2022a: Indirect model reference adaptive control

The Model Reference Adaptive Control block now supports indirect model reference adaptive control (MRAC). Previously, the block supported only direct MRAC.

Direct MRAC computes control actions to make an uncertain controlled system track the behavior of a given reference plant model. However, indirect MRAC estimates the parameters of the uncertain system and derives the control signal based on the estimated parameters.
