hideAll

Hide all graphics in satellite scenario viewer

Description

example

hideAll(viewer) hides all graphics in the specified satellite scenario viewer.

Examples

collapse all

Create a satellite scenario object.

sc = satelliteScenario;

Add satellites to the scenario.

tleFile = "leoSatelliteConstellation.tle";
sats = satellite(sc,tleFile);

Add a hundred ground stations to the scenario.

latitudes = linspace(-90,90,100);            % degrees
longitudes = linspace(-180,180,100);         % degrees
gss = groundStation(sc,latitudes,longitudes);

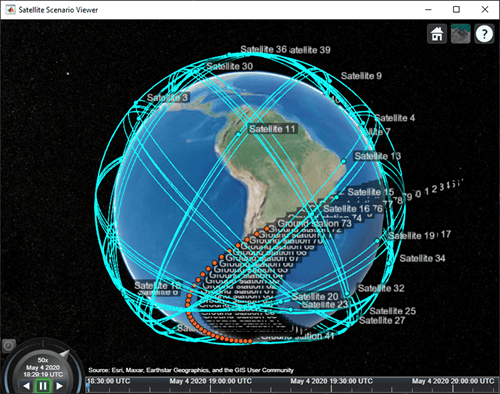

Visualize the scenario using the Satellite Scenario Viewer.

v = satelliteScenarioViewer(sc);

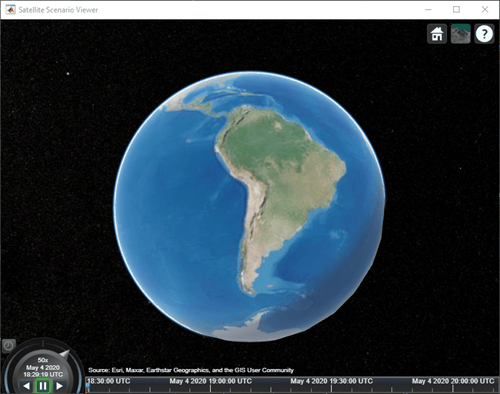

Hide all the graphics from the viewer.

hideAll(v);

Input Arguments

collapse all

Satellite scenario viewer, specified as a satelliteScenarioViewer object. viewer must be specified as a scalar satelliteScenarioViewer object.1

Version History

Introduced in R2021a

1 Alignment of boundaries and region labels are a presentation of the feature provided by the data vendors and do not imply endorsement by MathWorks®.
