Set or get roll angle of camera for satellite scenario viewer
Set Camera Roll Angle of Satellite Scenario Viewer
Create a satellite scenario object.
sc = satelliteScenario;

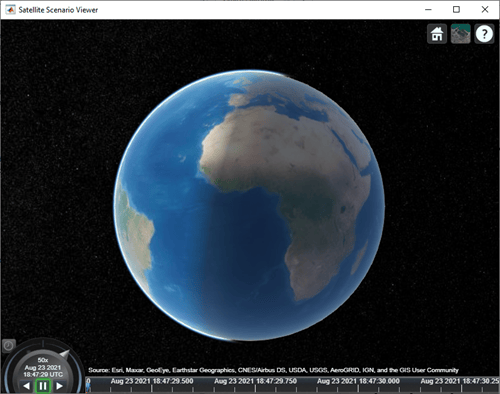

Launch the Satellite Scenario Viewer.
v = satelliteScenarioViewer(sc);

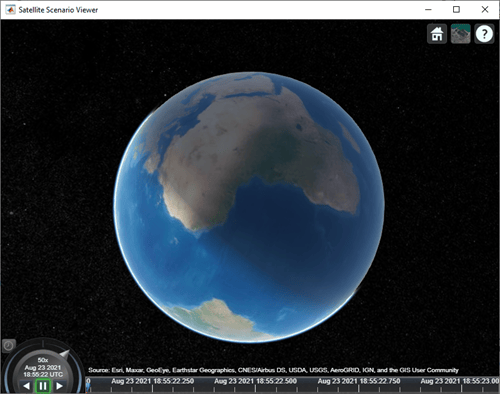

Set the roll angle of the camera in the Satellite Scenario Viewer to 60 degrees.
roll = 60; % degrees camroll(v,roll);
roll — Roll angle of camera
scalar in the range [–360, 360]
Roll angle of the camera, specified as a scalar in the range [–360, 360] degrees.
When the pitch angle is near –90 (the default value) or 90 degrees, the camera loses one rotational degree of freedom. As a result, when you change the roll angle, the heading angle might change instead. This phenomenon is called gimbal lock. To avoid the effects of gimbal lock, call the
camheadingfunction instead of the
