Difference signal of a time-synchronous averaged signal
computes the difference signal
Y = tsadifference(
Y of the time-synchronous averaged
(TSA) signal vector
X using sampling rate
the rotational speed
rpm, and the orders to be filtered
Y is computed by removing the
regular signal, the value of '
NumSidebands', and their respective
X. For more information on regular signal, see
You can use
Y to further extract condition indicators of rotating
machinery for predictive maintenance. For example, extracting the
FM4 indicator from
Y is useful to detect
faults isolated to only a limited number of teeth in a gear mesh.
___ = tsadifference(___) allows you to
specify additional parameters using one or more name-value pair arguments. You can use
this syntax with any of the previous input and output arguments.
tsadifference(___) with no output arguments plots the
time-domain and frequency-domain plots of the raw and difference TSA signals.

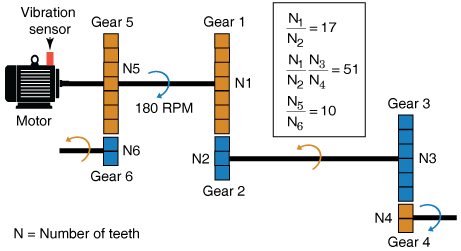

Consider a drivetrain with six gears driven by a motor that is fitted with a vibration sensor, as depicted in the figure below. Gear 1 on the motor shaft meshes with gear 2 with a gear ratio of 17:1. The final gear ratio, that is, the ratio between gears 1 and 2 and gears 3 and 4, is 51:1. Gear 5, also on the motor shaft, meshes with gear 6 with a gear ratio of 10:1. The motor is spinning at 180 RPM, and the sampling rate of the vibration sensor is 50 KHz. To obtain the signal containing just the meshing components for gears 5 and 6, filter out the components of the shaft rotation, gears 1 and 2 and, 3 and 4 by specifying their gear ratios of 17 and 51 in
orderList. The signal components corresponding to the shaft rotation (order = 1) is always implicitly included in the computation.
rpm = 180; fs = 50e3; t = (0:1/fs:(1/3)-1/fs)'; % sample times orderList = [17 51]; f = rpm/60*[1 orderList 10];
In practice, you would use measured data such as vibration signals obtained from an accelerometer. For this example, generate TSA signal
X, which is the simulated data from the vibration sensor mounted on the motor.
X = sin(2*pi*f(1)*t) + sin(2*pi*2*f(1)*t) + ... % motor shaft rotation and harmonic 3*sin(2*pi*f(2)*t) + 3*sin(2*pi*2*f(2)*t) + ... % gear mesh vibration and harmonic for gears 1 and 2 4*sin(2*pi*f(3)*t) + 4*sin(2*pi*2*f(3)*t) + ... % gear mesh vibration and harmonic for gears 3 and 4 2*sin(2*pi*10*f(1)*t); % gear mesh vibration for gears 5 and 6
Compute the difference signal of the TSA signal using the sample time, rpm, and the mesh orders to be filtered out.
Y = tsadifference(X,t,rpm,orderList);
Y is a vector containing the gear mesh signal and harmonics for gears 5 and 6.

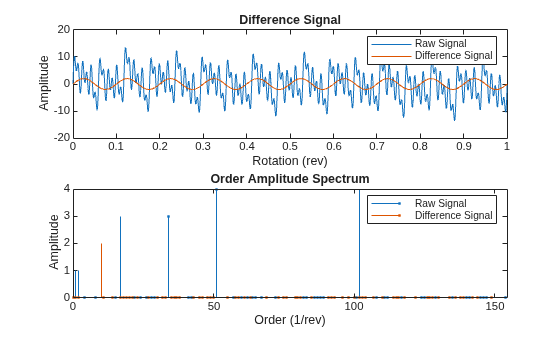

Visualize the difference signal, the raw TSA signal, and their amplitude spectrum on a plot.
From the amplitude spectrum plot, observe the following components:
The filtered component at the 17th order and its harmonic at the 34th order
The second filtered component at the 51st order and its harmonic at the 102nd order
The residual mesh components for gears 5 and 6 at the 10th order
The filtered shaft component at the 1st and 2nd orders
The amplitudes on the spectrum plot match the amplitudes of individual signals
In this example,
sineWavePhaseMod.mat contains the data of a phase modulated sine wave.
XT is a timetable with the sine wave data and
rpm used is 60 RPM. The sine wave has a frequency of 32 Hz. To filter out the unmodulated sine wave and the sidebands of the phase modulating signal, use 32 as the
Load the data and the required variables.
ans=4×2 timetable Time Data ______________ _______ 0 sec 0 0.00097656 sec 0.2011 0.0019531 sec 0.39399 0.0029297 sec 0.57078
Note that the time values in
XT are strictly increasing, equidistant, and finite.
Compute the difference signal and its amplitude spectrum. Set the value of
'frequency' since the orders are in Hz.
[Y,S] = tsadifference(XT,rpm,orders,'Domain','frequency')
Y=1024×2 timetable Time Data ______________ __________ 0 sec 2.2849e-15 0.00097656 sec 0.046525 0.0019531 sec 0.091185 0.0029297 sec 0.13219 0.0039062 sec 0.1679 0.0048828 sec 0.19688 0.0058594 sec 0.21799 0.0068359 sec 0.23039 0.0078125 sec 0.2336 0.0087891 sec 0.22751 0.0097656 sec 0.21239 0.010742 sec 0.18888 0.011719 sec 0.15793 0.012695 sec 0.12081 0.013672 sec 0.079041 0.014648 sec 0.034303 ⋮
S = 1024×1 complex -0.2403 + 0.0000i 0.0000 + 0.0000i 0.0000 + 0.0000i 0.1760 + 0.0553i 0.0059 + 0.3637i -0.0798 - 0.1911i -0.0178 + 0.1676i 0.1227 + 0.0887i -0.0879 - 0.1605i 0.0076 + 0.1280i ⋮
Y is a timetable that contains the difference signal, while
S is a vector that contains the amplitude spectrum of the difference signal
In this example,
sineWaveRectangularPulse.mat contains the data of a sine wave modulated by a rectangular pulse.
X is a vector with the modulated sine wave data obtained at a shaft speed of 60 RPM. The unmodulated sine wave has a frequency of 32 Hz and amplitude of 1.0 units.
Load the data, and plot the difference signal of the modulated TSA signal
X. To obtain the difference signal, filter out the unmodulated sine wave and the sidebands of the modulation signal by specifying the frequency of 32 Hz in
orderList. Set the value of

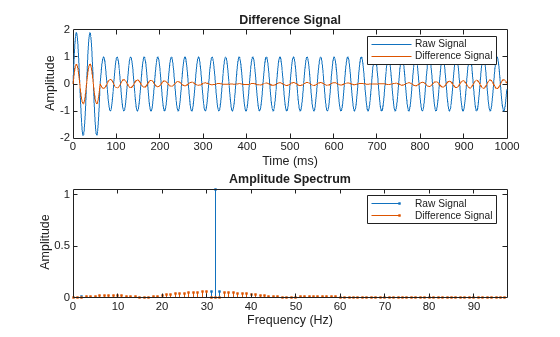

From the plot, observe the waveform and amplitude spectrum of the difference and raw signals, respectively. Observe that the difference signal contains everything except:
Unmodulated sine wave at 32 Hz
First-order sidebands of the unmodulated sine wave at 31 Hz and 33 Hz, respectively
X— Time-synchronous averaged (TSA) signal
Time-synchronous averaged (TSA) signal, specified as a vector. The time-synchronous averaged
signal is computed from a long and relatively periodic raw signal through
synchronization, resampling, and averaging. For more information on TSA signals, see
Time-synchronous averaging is a convenient method of background noise reduction in a spectrum of complex signals. It is effective in concentrating useful information that can be extracted from a time-domain signal for predictive maintenance. The synchronization typically requires a tachometer pulse signal in addition to the raw sensor data. The TSA signal depicts measurements at equally spaced angular positions over a single revolution of a shaft of interest.
XT— Time-synchronous averaged signal
Time synchronous averaged (TSA) signal, specified as a timetable.
XT must contain a single numeric column variable corresponding to the TSA signal. Time values in
XT must be strictly increasing, equidistant, and finite.
fs— Sampling frequency of the TSA signal
Sampling frequency of the TSA signal in Hertz, specified as a positive scalar.
t— Sample times of the TSA signal
Sample times of the TSA signal, specified as a positive scalar or a vector of positive values.
A positive scalar, it contains the time interval or duration between
samples. You must specify
t as a
A vector of positive values, it contains sample times corresponding to
X. The time values must be strictly
increasing, equidistant, and finite. You can specify
rpm— Rotational speed of the shaft
Rotational speed of the shaft, specified as a positive scalar.
tsadifference uses a bandwidth equal to the shaft speed and the
value of '
NumSidebands' around the frequencies of interest to compute
Y from the TSA signal. Specify
revolutions per minute. The signal components corresponding to this frequency, that is,
order = 1 are always filtered out.
orderList— Orders to be filtered out of the TSA signal
Orders to be filtered out of the TSA signal, specified as a vector of positive
integers. Select the orders and harmonics to be filtered out of the TSA signal by
observing them on the amplitude spectrum plot. For instance, specify
orderList as the known mesh orders in a gear train to filter out
the known components and their harmonics. For more information, see Visualize the Difference Signal and Amplitude Spectrum of a TSA Signal. Specify the
orderList by selecting the appropriate value for
comma-separated pairs of
the argument name and
Value is the corresponding value.
Name must appear inside quotes. You can specify several name and value
pair arguments in any order as
'NumHarmonics'— Number of shaft and gear meshing frequency harmonics to be filtered
Number of shaft and gear meshing frequency harmonics to be filtered,
specified as the comma-separated pair consisting of
NumHarmonics' and a positive
integer. Modify '
NumHarmonics' if your TSA
signal contains more than two known harmonics of components to
'NumSidebands'— Number of sidebands to be filtered from the
orderListfrequencies and their harmonics
Number of sidebands to be filtered from the
frequencies and their harmonics, specified as the comma-separated pair consisting of
NumSidebands' and a nonnegative integer. The width of sidebands
is determined using
NumSidebands' based on the number of sidebands to be filtered
X as observed in the amplitude spectrum plot.
'NumRotations'— Number of shaft rotations in the TSA signal
Number of shaft rotations in the TSA signal, specified as the comma-separated pair consisting
NumRotations' and a positive integer. Modify
NumRotations' if your input
XT contains data for more than one rotation of the driver gear
shaft. The function uses '
NumRotations' to determine the number of
rotations to be shown on the x-axis of the plot. The filtering results in
Y are not affected by this value.
'Domain'— Units of the
Units of the
orderList values, specified as the comma-separated pair
consisting of '
Domain' and one of the following:
'frequency', if the orders in
specified as frequencies in units of Hertz.
'order', if the orders in
specified as number of rotations relative to the value of
example, if the rotational speed of the driven gear is defined as a factor of the driver
gear rpm, specify '
'order' if you are comparing data obtained from machines
operating at different speeds.
Y— Difference signal of the TSA signal
Difference signal of the TSA signal, returned as:
The difference signal is computed by removing the regular signal, the first-order
sidebands, the value of '
NumSidebands', and their respective
X. You can use
Y to further
extract condition indicators of rotating machinery for predictive maintenance. For
example, extracting the FM4 indicator from
is useful to detect faults isolated to only a limited number of teeth in a gear mesh.
For more information on how
Y is computed, see Algorithms.
For more information on regular signal, see
The difference signal is computed from the TSA signal by filtering the following from the signal spectrum:
Shaft frequency and its harmonics
Gear meshing frequencies and their harmonics
First-order sidebands at the gear meshing frequencies and their harmonics
Optionally, the sidebands specified in '
NumSidebands' at the gear
meshing frequencies and their harmonics
tsadifference uses a bandwidth equal to three times the shaft speed and the
value of '
NumSidebands', around the frequencies of interest, to compute
Y from the TSA signal.
