diffbfweights

Differential beamforming weights for ULA and UCA

Since R2022a

Syntax

wts = diffbfweights(nelem,elemspacing)

wts = diffbfweights(nelem,elemspacing,ArrayGeometry='ULA')

wts = diffbfweights(nelem,rad,ArrayGeometry='UCA')

wts = diffbfweights(nelem,elemspacing,angc,ArrayGeometry=ag)

wts = diffbfweights(nelem,elemspacing,angc,respc,ArrayGeometry=ag)

wts = diffbfweights(___,SteerAngle=angs)

wts = diffbfweights(___,DiffuseNoiseCovariance=dncov)

wts = diffbfweights(___,DiagonalLoading=epsilon)

[wts,pos] = diffbfweights(___)

Description

wts = diffbfweights(nelem,elemspacing) computes differential beamforming weights that steer a uniform linear array (ULA) to its endfire direction. nelem is the number of elements in the array and elemspacing is the distance between array elements. Differential weights can achieve frequency invariant beam patterns and are often used in microphone arrays.

wts = diffbfweights(nelem,elemspacing,ArrayGeometry='ULA') explicitly sets the array to a uniform linear array (ULA).

wts = diffbfweights(nelem,rad,ArrayGeometry='UCA') computes the differential beamforming weights for a uniform circular array (UCA). nelem is the number of elements in the array and rad is the radius ot the array.

wts = diffbfweights(nelem,elemspacing,angc,ArrayGeometry=ag) also specifies angles angc at which the array response is null. When ag equals 'ULA', elemspacing refers to the distance between array elements. When ag equals 'UCA', elemspacing refers to the array radius.

wts = diffbfweights(nelem,elemspacing,angc,respc,ArrayGeometry=ag) also specifies the desired responses, respc, at the angles specified in angc. When ag equals 'ULA', elemspacing refers to the number of array elements, When ag equals 'UCA', elemspacing refers to the array radius.

wts = diffbfweights(___,SteerAngle=angs) also specifies the array steering angle angs.

wts = diffbfweights(___,DiffuseNoiseCovariance=dncov) also specifies the diffuse noise covariance matrix dncov.

wts = diffbfweights(___,DiagonalLoading=epsilon) also specifies the diagonal loading factor epsilon.

[wts,pos] = diffbfweights(___) also returns the element positions pos.

Examples

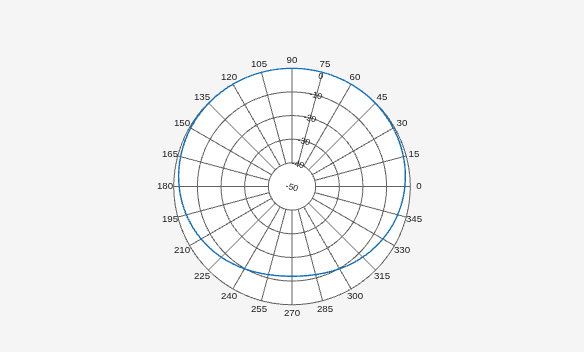

Display Pattern of Differentially-Beamformed ULA

Display the pattern of a four-element uniform linear array. The element spacing is 1/10 of the wavelength.

N = 4;
angp = -180:180;
[w,pos] = diffbfweights(N,0.1,ArrayGeometry='ULA');
bp = arrayfactor(pos,angp,w);
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])

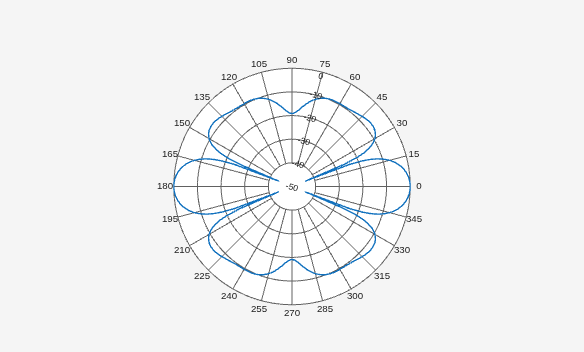

Display Pattern of Differentially-Beamformed UCA

Display the pattern of a six-element uniform circular array. The array radius is one wavelength.

N = 6;
angp = -180:180;
[w,pos] = diffbfweights(N,1,ArrayGeometry='UCA');
bp = arrayfactor(pos,angp,w);
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])

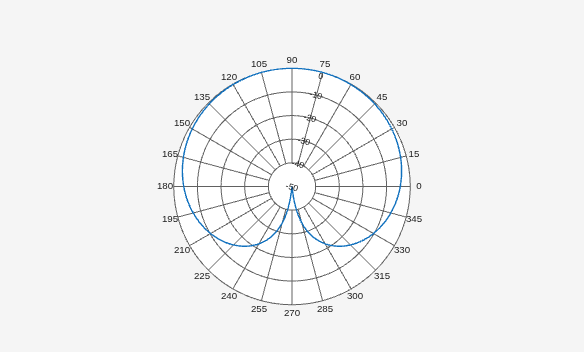

Cardioid Pattern from Differential Beamforming of ULA

Create a cardioid pattern for a four-element uniform linear array. The main beam points to the endfire direction, 90 degrees azimuth, and the null is in the opposite direction. The element spacing is set to be 1/10 of the wavelength corresponding to the maximum frequency of interest.

N = 4;
angp = -180:180;
[w,pos] = diffbfweights(4,0.1,-90);
bp = arrayfactor(pos,angp,w);
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])

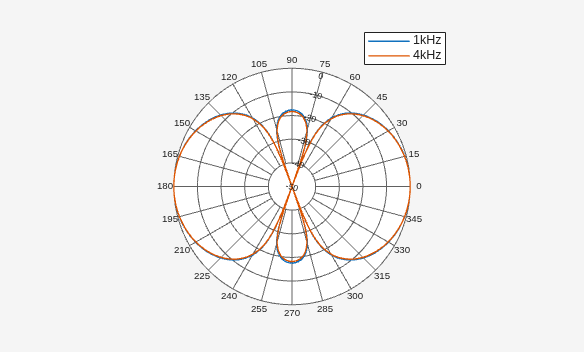

Cardioid Pattern of Four-Element ULA

Create a cardioid pattern with a four-element uniform linear array. Plot the pattern for both 1 kHz and 4 kHz. The main beam points to the broadside direction (0 degrees azimuth) and the null is at 70 degrees azimuth. The element spacing is set to be 1/10 of the wavelength corresponding to the maximum frequency of interest,

N = 4;
c = 343;
fc = [1e3 4e3];
lambda = c./fc;
d = 0.1*lambda(2);
angp = -180:180;
for m = 2:-1:1
    [w,pos] = diffbfweights(N,d/lambda(m),70,SteerAngle=0);
    bp(:,m) = arrayfactor(pos,angp,w);
end
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])
legend('1kHz','4kHz')

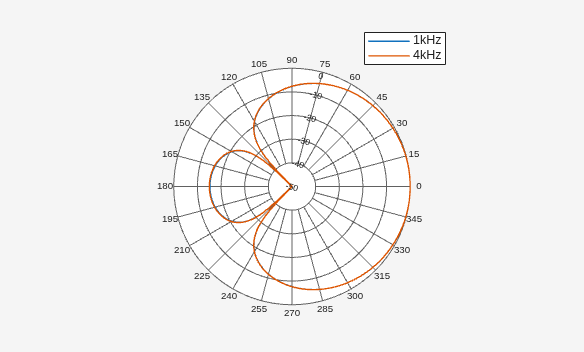

Super-Cardioid from Three-Element UCA

Create a super-cardioid pattern with a 3-element uniform circular array. Plot the pattern for both 1 kHz and 4 kHz. The main beam points to 0 degrees azimuth and the null is at 135 degrees azimuth. The element spacing is set to be 1/10 of the wavelength corresponding to the maximum frequency of interest.

N = 3;
c = 343;
fc = [1e3 4e3];
lambda = c./fc;
d = 0.1*lambda(2);
r = N*d/(2*pi);
angp = -180:180;
for m = 2:-1:1
    [w,pos] = diffbfweights(N,r/lambda(m),135,'ArrayGeometry','UCA');
    bp(:,m) = arrayfactor(pos,angp,w);
end
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])
legend('1kHz','4kHz')

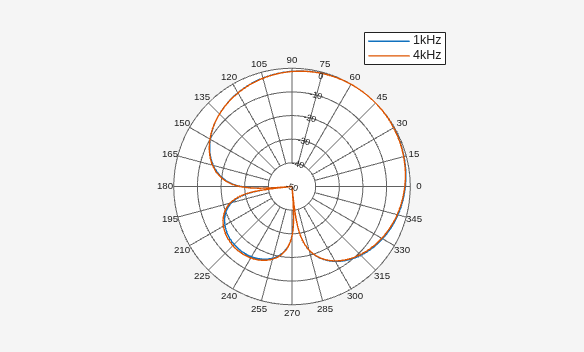

Super-Cardioid from Four-Element UCA

Create a super-cardioid pattern with a four-element uniform circular array. Plot the pattern for both 1 kHz and 4 kHz. The main beam points to 50 degrees azimuth and the null is at 185 degrees azimuth. The radius is set to be 1/10 of the wavelength corresponding to the maximum frequency of interest.

N = 4;
c = 343;
fc = [1e3 4e3];
lambda = c./fc;
r = 0.1*lambda(2);
angp = -180:180;
for m = 2:-1:1
    [w,pos] = diffbfweights(N,r/lambda(m),185, ...
        SteerAngle=50,ArrayGeometry='UCA');
    bp(:,m) = arrayfactor(pos,angp,w);
end
polarpattern(angp,mag2db(abs(bp)),'NormalizeData',true, ...
    'MagnitudeLimMode','manual','MagnitudeLim',[-50 0])
legend('1kHz','4kHz')

Input Arguments

nelem — Number of array elements

positive integer

Number of array element, specified as a positive integer.

Data Types: double

elemspacing — Element spacing of ULA

positive integer

Element spacing of a ULA array, specified as a positive scalar. Units are in wavelength.

Dependencies

To enable this argument, set the ArrayGeometry property to 'ULA'.

Data Types: double

rad — Radius of UCA

positive scalar

Radius of UCA, specified as a positive scalar. Units are in wavelength.

Dependencies

To enable this argument, set the ArrayGeometry property to 'UCA'.

Data Types: double

ag — Array geometry

'ULA' (default) | 'UCA'

Array geometry, specified as 'ULA' or 'UCA'. 'ULA' represent a uniform linear array and 'UCA' represents a uniform circular array. Use this argument to set the value of the ArrayGeometry property.

Data Types: double

angc — Angular directions of null response

real-valued P-element row vector

Angular directions of null responses measured from broadside, specified as a real-valued P-element row vector. Angles must lie in the interval [–90,90].

Data Types: double

respc — Response at null directions

real-valued P-element row vector

Response at the null angles defined by angc, specified as a real-valued P-element row vector. The number of entries in respc must be equal to the number of entries in angc.

Data Types: double

angs — Steering direction

scalar

Steering vector direction of the array, specified as a scalar in the interval [–90, 90]. The angle is measured from broadside. This argument sets the value of the SteerAngle property. Units are in degrees.

Data Types: double

dncov — Diffuse covariance noise matrix

N-by-N identity matrix (default) | N-by-N matrix

Diffuse covariance noise matrix, specified as an N-by-N matrix. Diffuse noise describes the noise presented at different directions. The default value is an identity matrix, indicating the diffuse noise is spatially white. This argument sets the value of the DiffuseNoiseCovariance property.

Data Types: double

epsilon — Diagonal loading factor

0 (default) | non-negative scalar

Diagonal loading factor, specified as a nonnegative scalar. The diagonal loading is used to form a more robust estimate of the covariance. Units are dimensionless. This argument sets the value of the DiagonalLoading property.

Data Types: double

Output Arguments

wts — Array weights

N-element complex-valued vector

Array weights, returned as an N-element complex-valued vector. Values are dimensionless.

pos — Array element positions

3-by-N real-valued matrix

Array element positions, returned as a 3-by-N real-valued matrix where N is the number of array elements. Each column of pos represents the [x;y;z] coordinates of the corresponding element. For a ULA, the returned array is along y-axis, located at (0:N-1)*D. For a UCA, the returned array is in the x-y-plane, with its first element on zero degrees azimuth. Units are in wavelengths.

References

[1] Benesty, Jacob, et al. Fundamentals of Differential Beamforming. Springer Singapore, 2016. DOI.org (Crossref), https://doi.org/10.1007/978-981-10-1046-0.

[2] Benesty, Jacob, and J. Chen. Study and Design of Differential Microphone Arrays. Springer, 2013.

[3] Jingdong Chen, Jacob Benesty, and Chao Pan, "On the design and implementation of linear differential microphone arrays", The Journal of the Acoustical Society of America, Vol 136, pp 3097, 2014.

[4] Jilu Jin, Gongping Huang, Xuehan Wang, Jingdong Chen, Jacob Benesty, and Israel Cohen, "Steering Study of Linear Differential Microphone Arrays", IEEE/ACM Transactions on Audio, Speech, and Language Processing, Vol 29, pp 158, 2020

[5] Jacob Benesty, Jingdong Chen, and Israel Cohen, Design of Circular Differential Microphone Arrays, Springer 2015.

[6] Gongping Huang, Israel Cohen, Jingdong Chen, and Jacob Benesty, "Continuously steerable differential beamformers with null constraints for circular microphone arrays", The Journal of the Acoustical Society of America, Vol 148, pp 1248, 2020.

Version History

Introduced in R2022a
